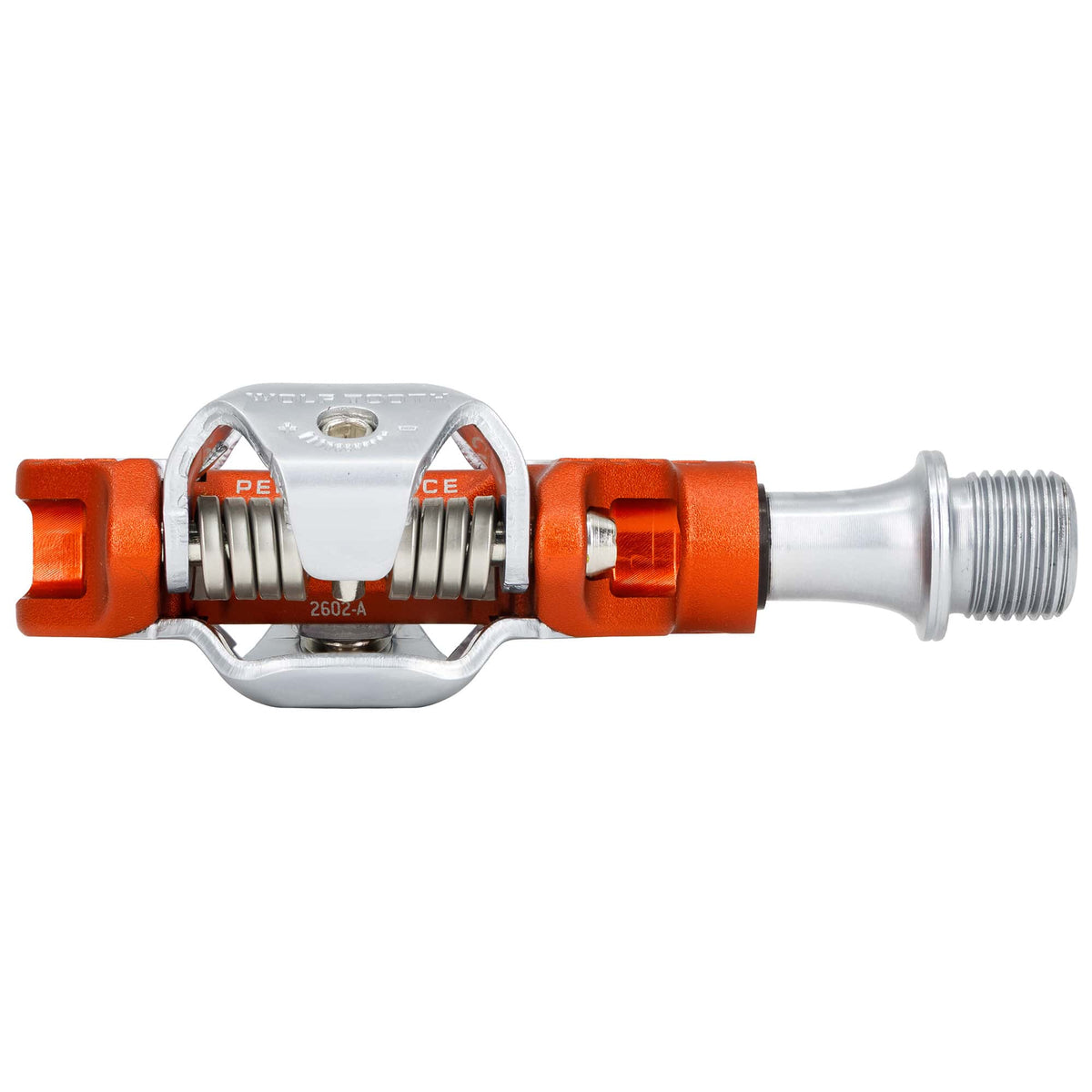

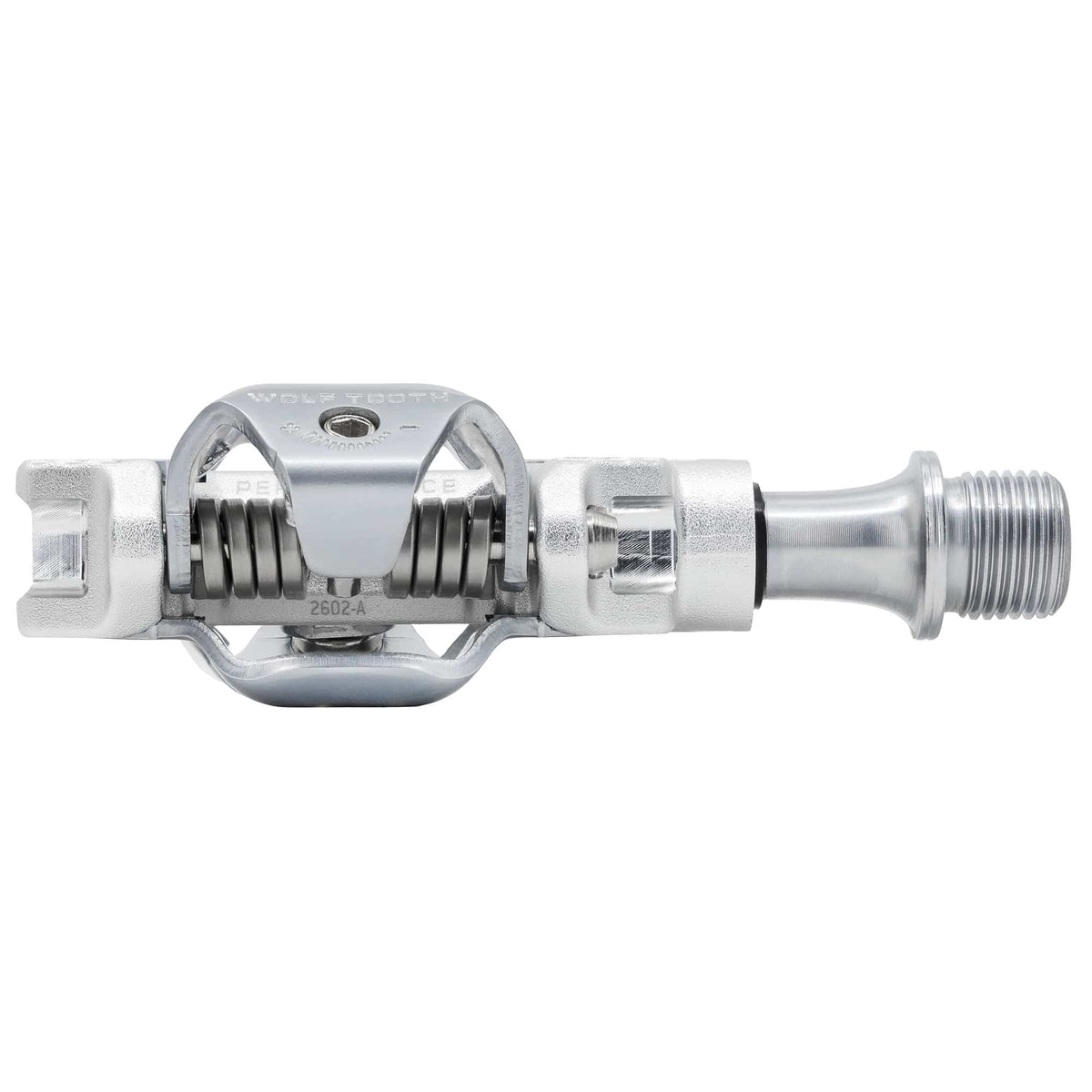

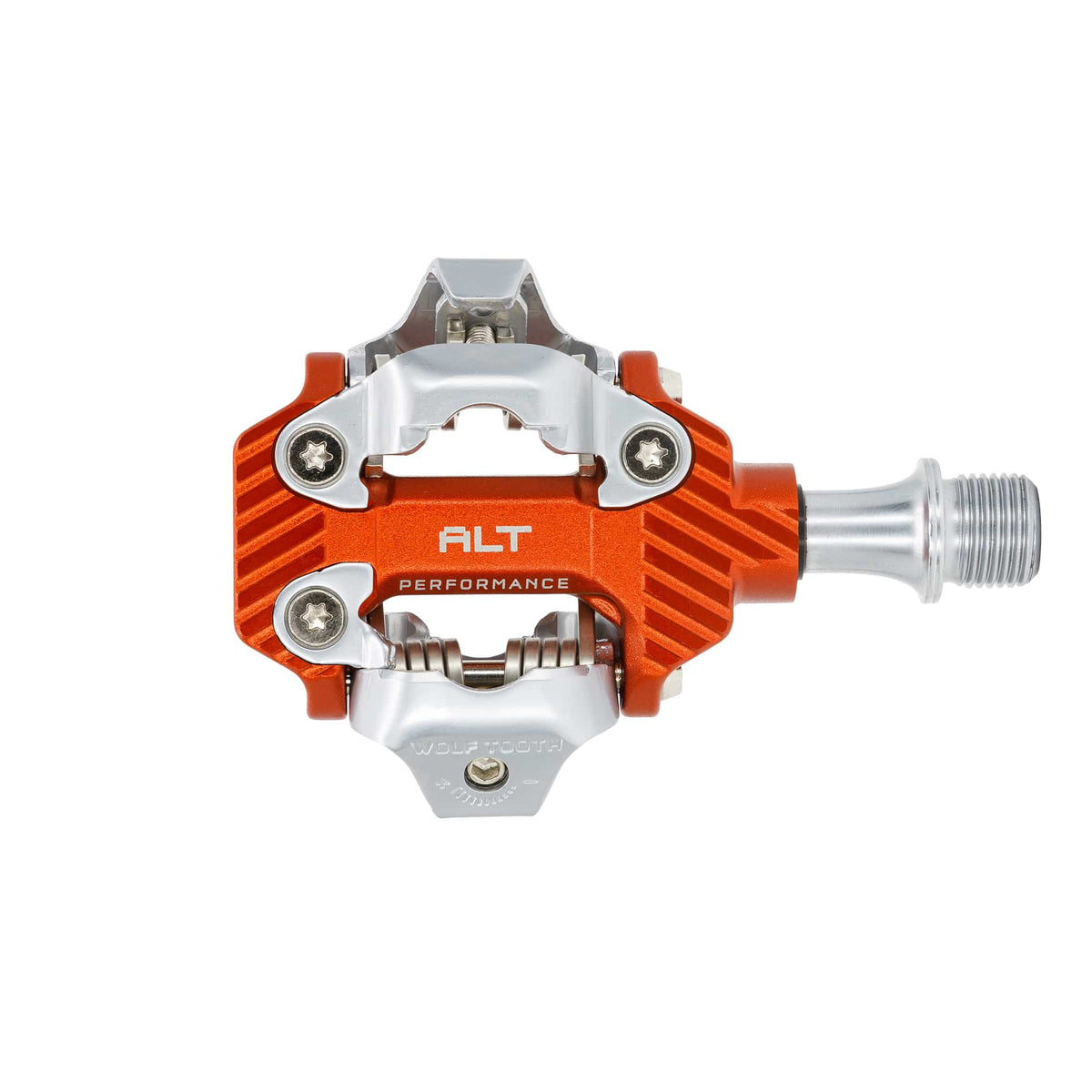

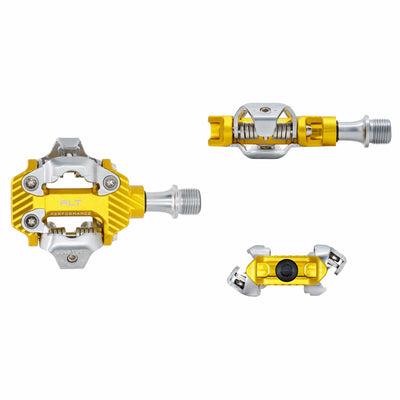

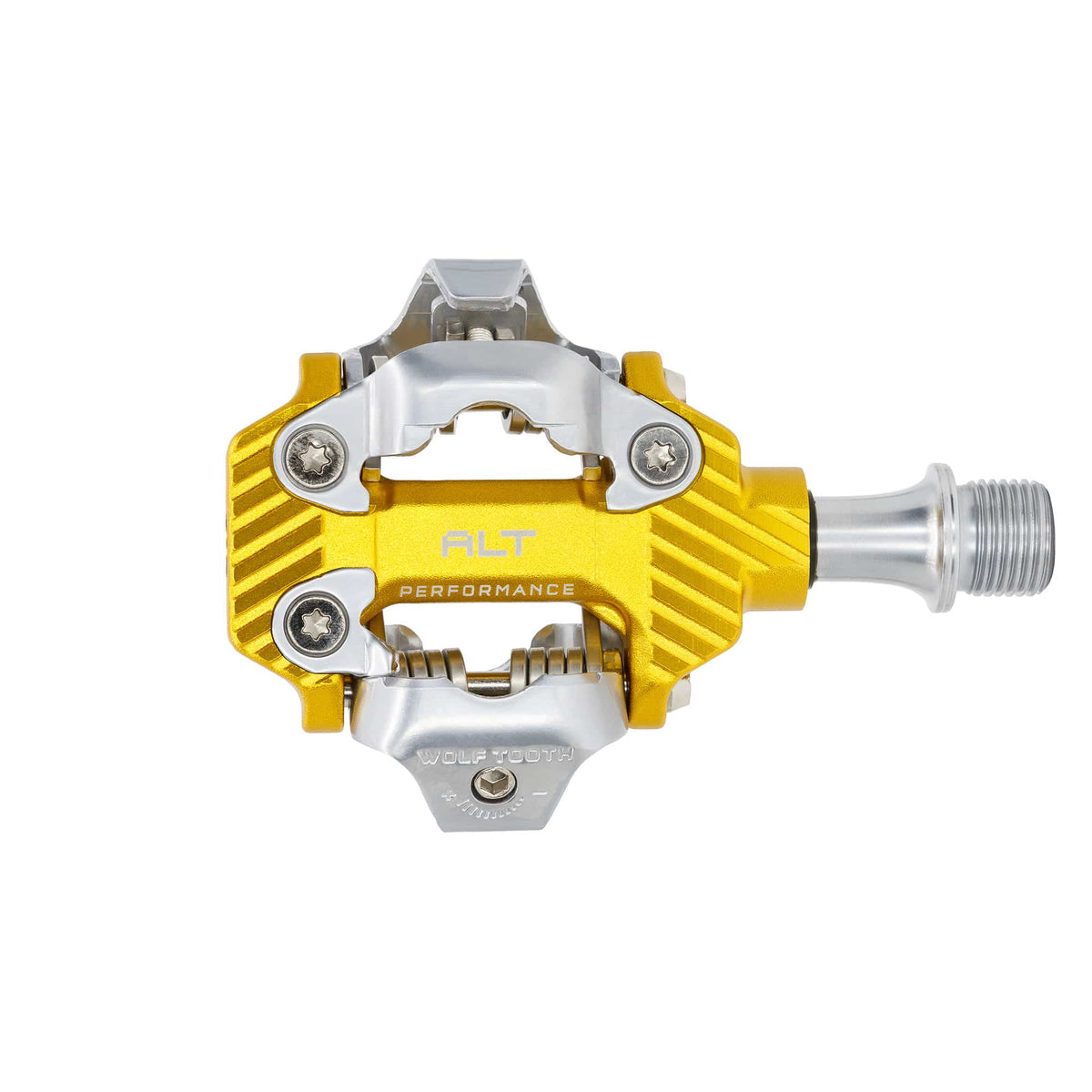

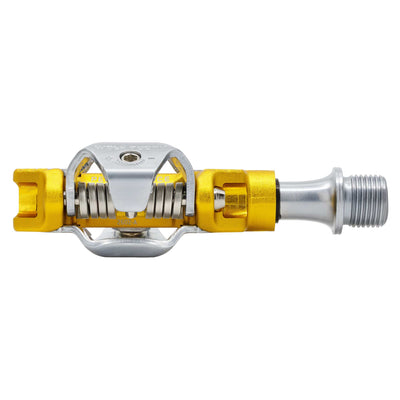

ALT Performance XC Clipless Pedal
ALT-CLPS-PFM-BLK

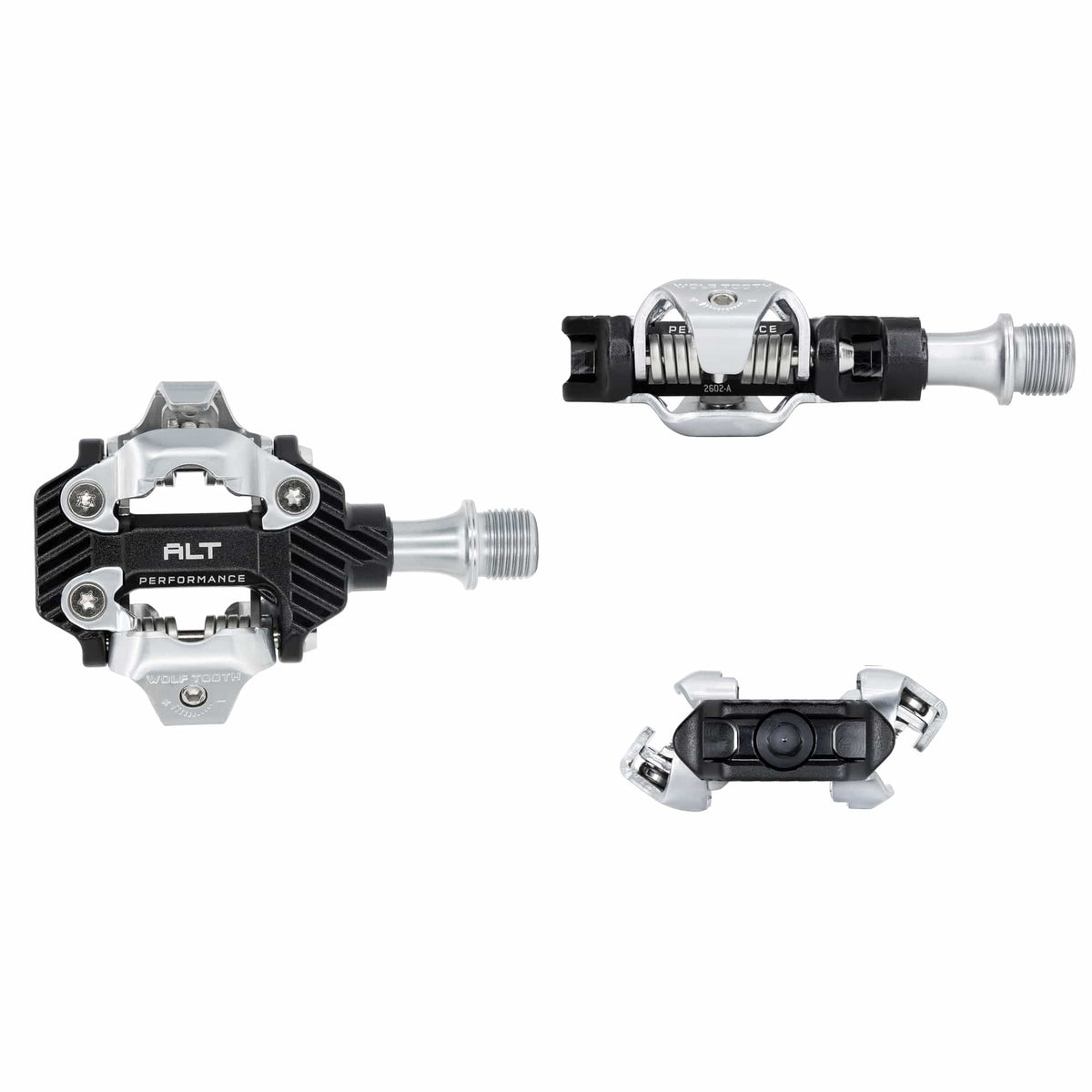

ALT Performance XC Clipless Pedal
ALT Performance XC Clipless Pedals

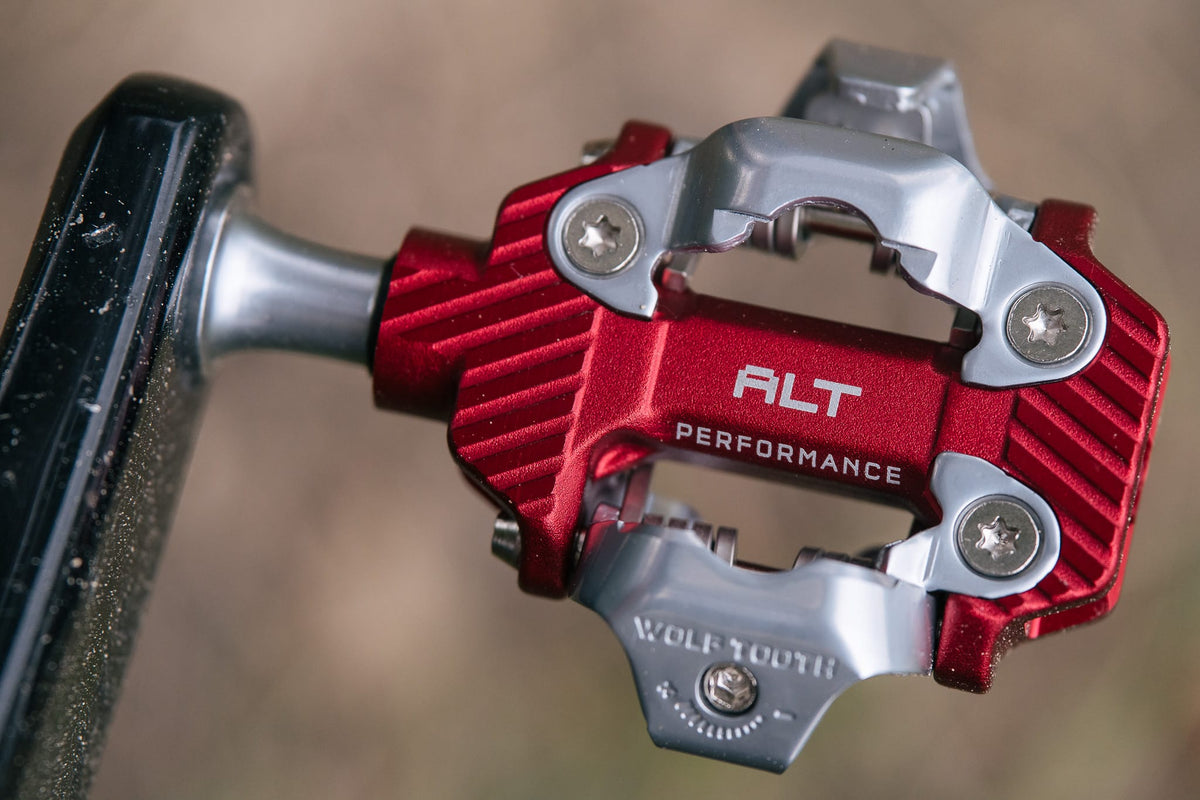

Designed for commanding performance on trails and gravel roads. These pedals are lighter and thinner than many other XC pedals, with a low stack height and more platform area for control and power transfer. An open center between the cages means increased mud shedding compared to other SPD-compatible pedals.
MAXIMUM SHOE CONTACT
The large platform area maximizes pedal and shoe contact. With many XC pedals, the only point of contact between the shoe and pedal is the cleat and cage, where it can feel like pedaling on a golf ball. With ALT Performance XC Clipless Pedals, the shoe contacts the pedal body to lock in your foot for enhanced performance.
Performance Focused
AlT Performance XC Pedals don't skimp on a single spec. Exceptionally large platform size, light weight, and thinness for maximum control, power transfer, and ground clearance.
Extreme Durability
ALT Performance XC Clipless Pedals feature satin nickel plated chromoly axles and hard chrome plated SPD-compatible binding assemblies for extreme durability. They're so durable, they might even outlast your bike.
Crisp, Consistent, Refined
Clipping in and out needs to be simple, quick, and reliable. ALT Performance XC Clipless Pedals feature an SPD-compatible cage that will work with your existing SPD cleats. Wolf Tooth cleats are included in the box for optimized performance.
Ground Clearance and Mud Shedding

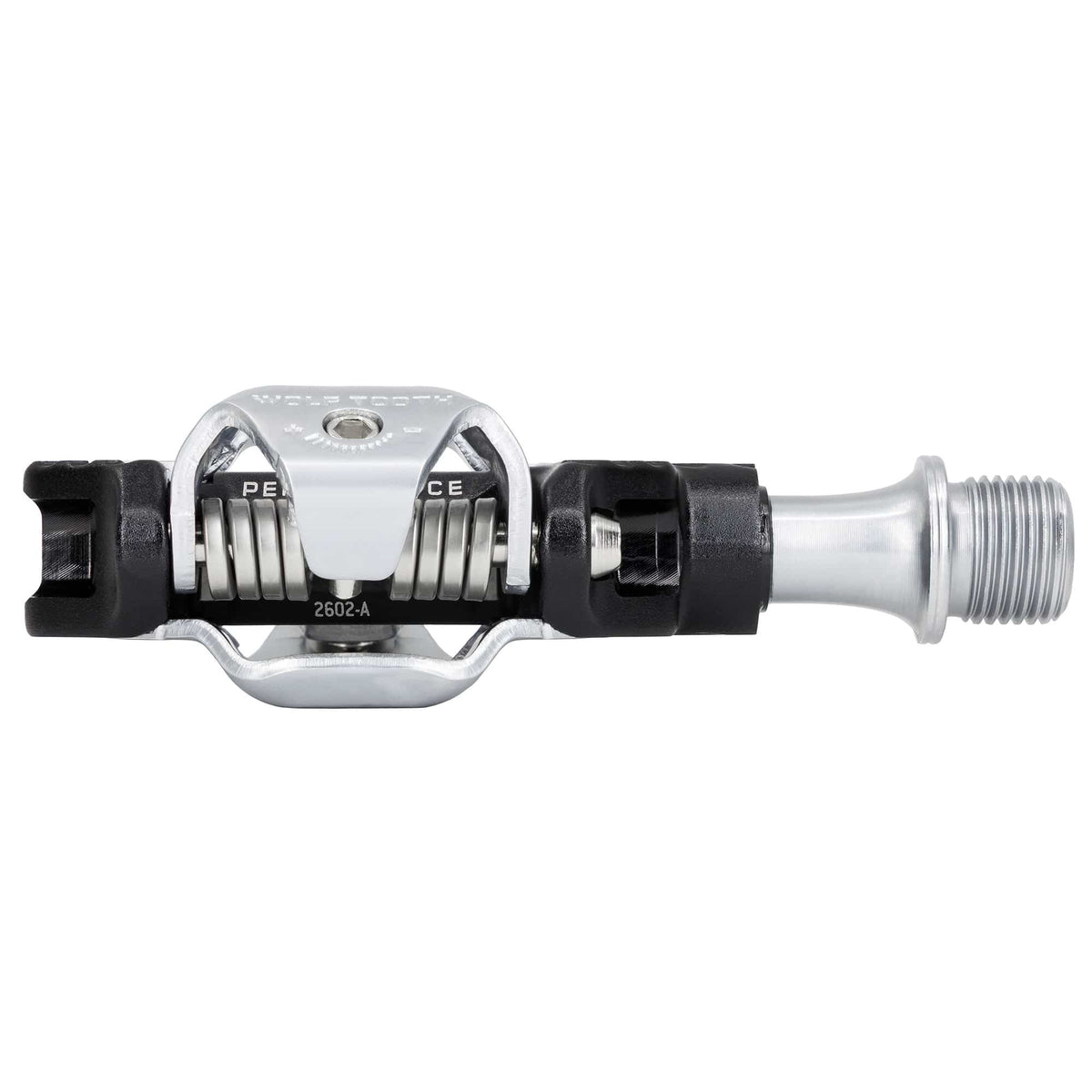

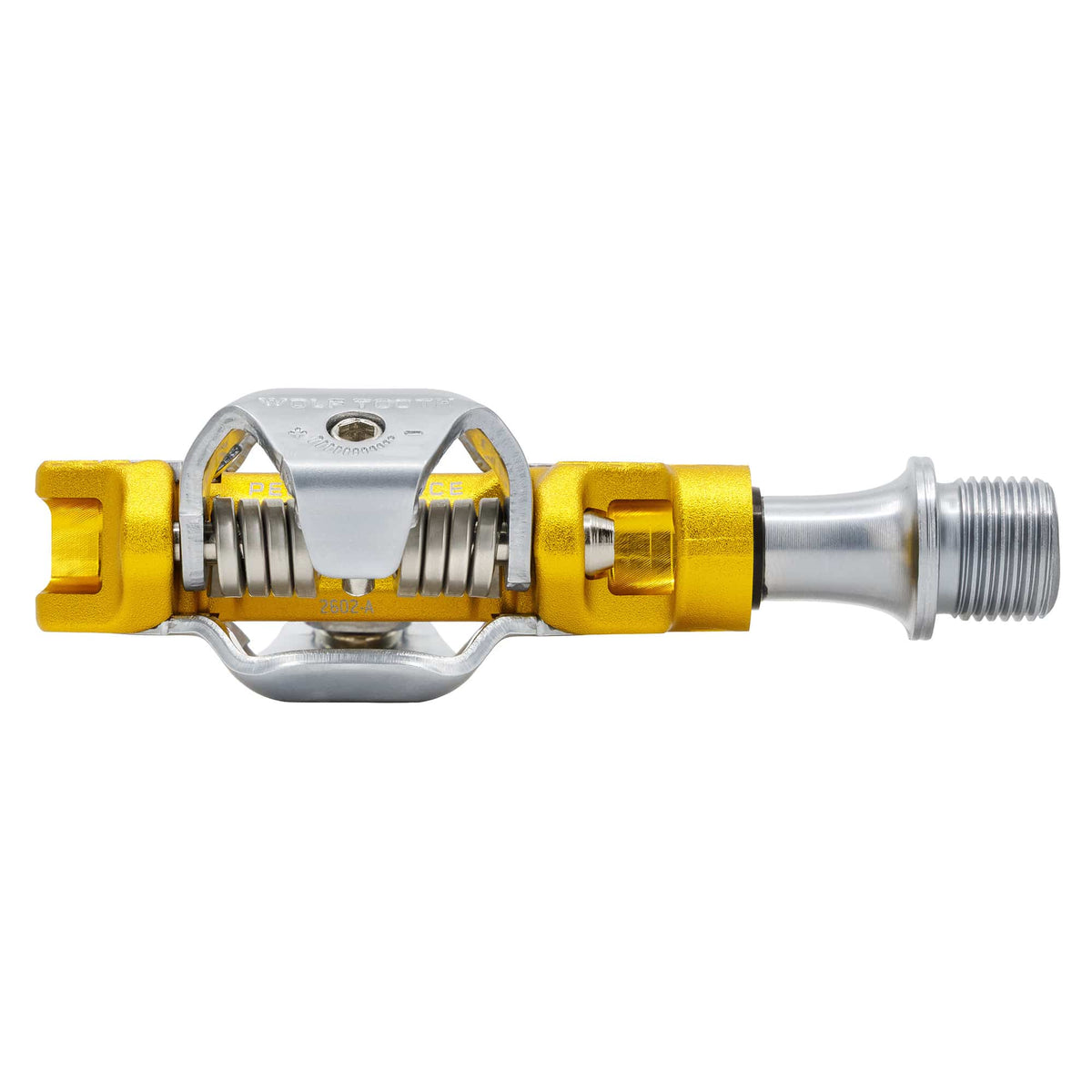

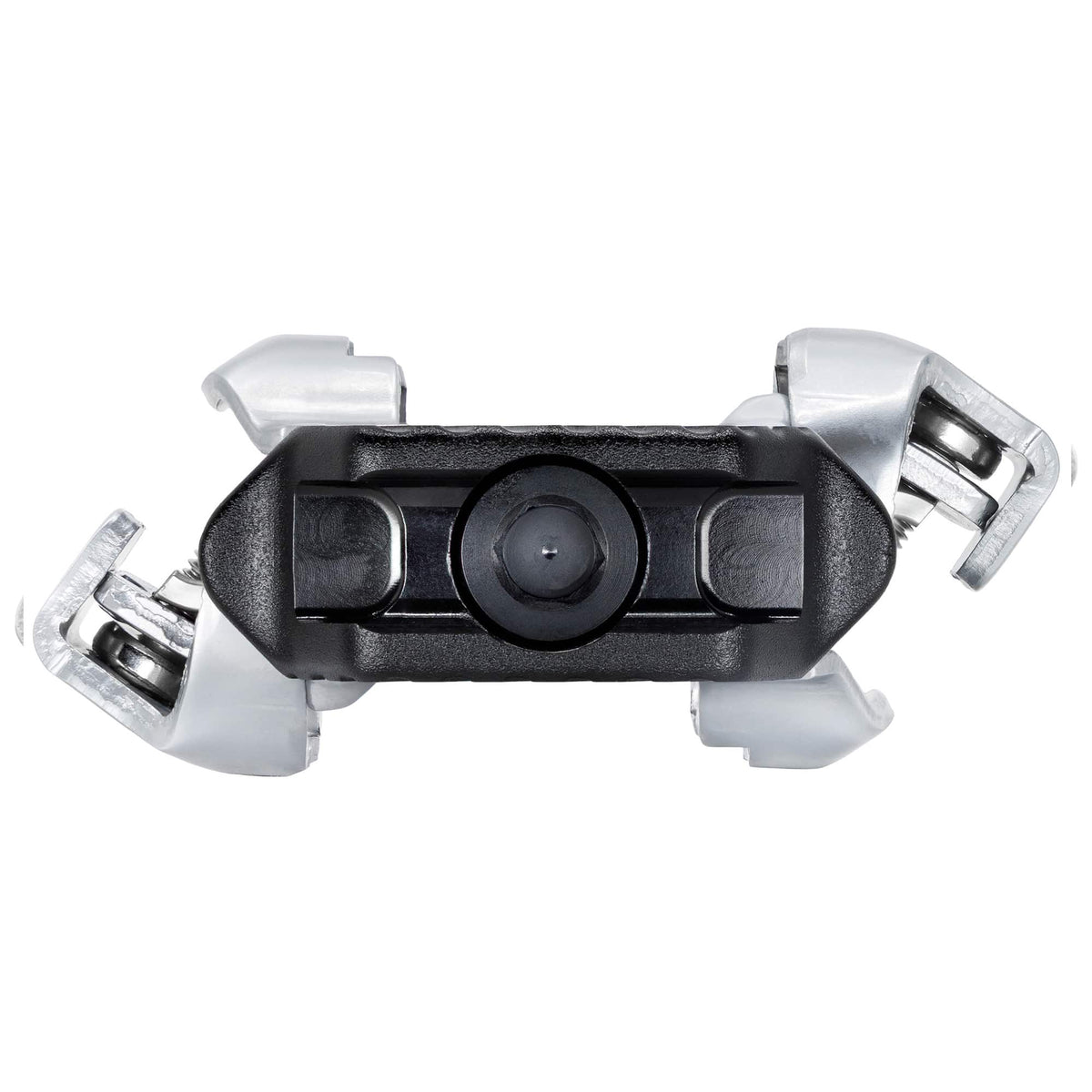

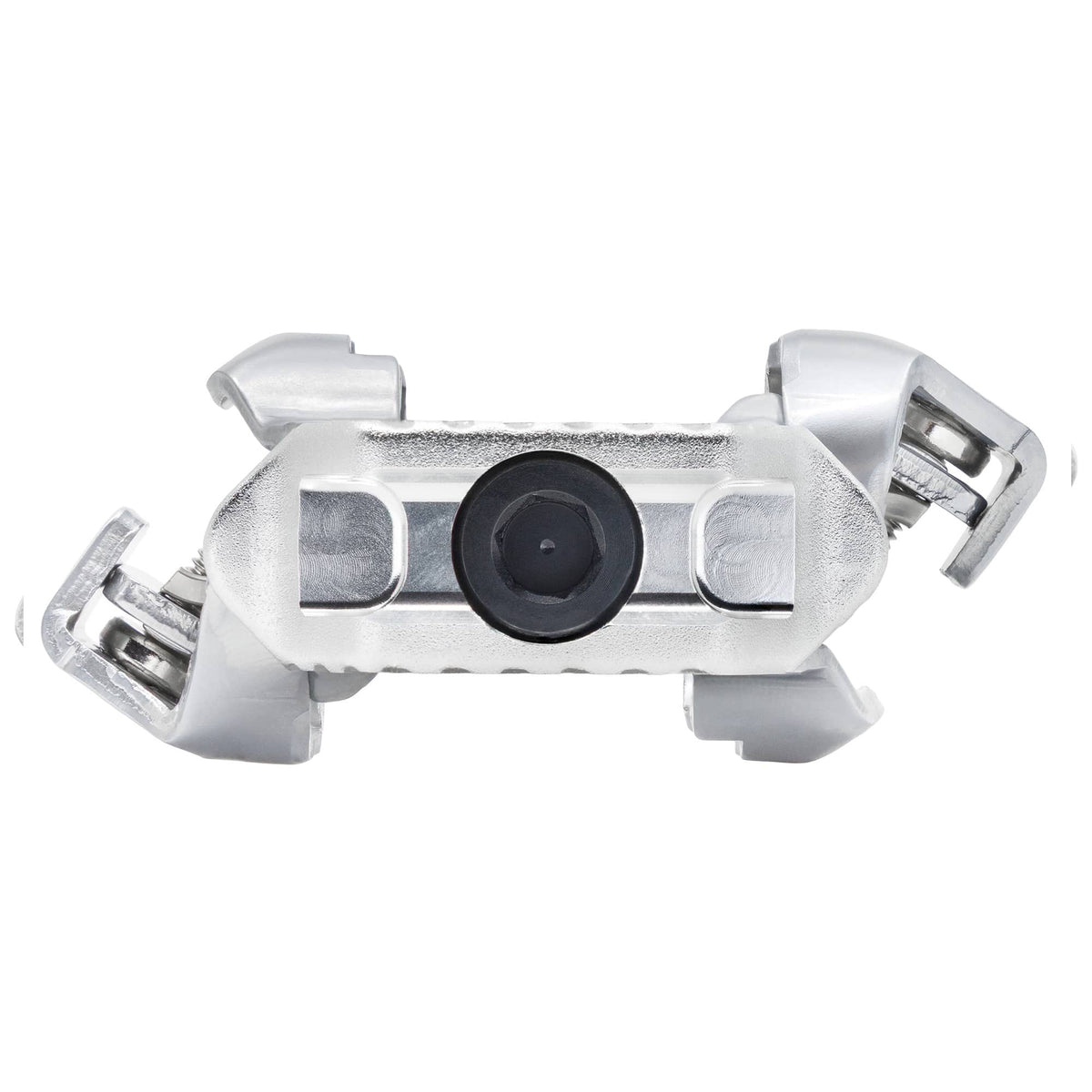

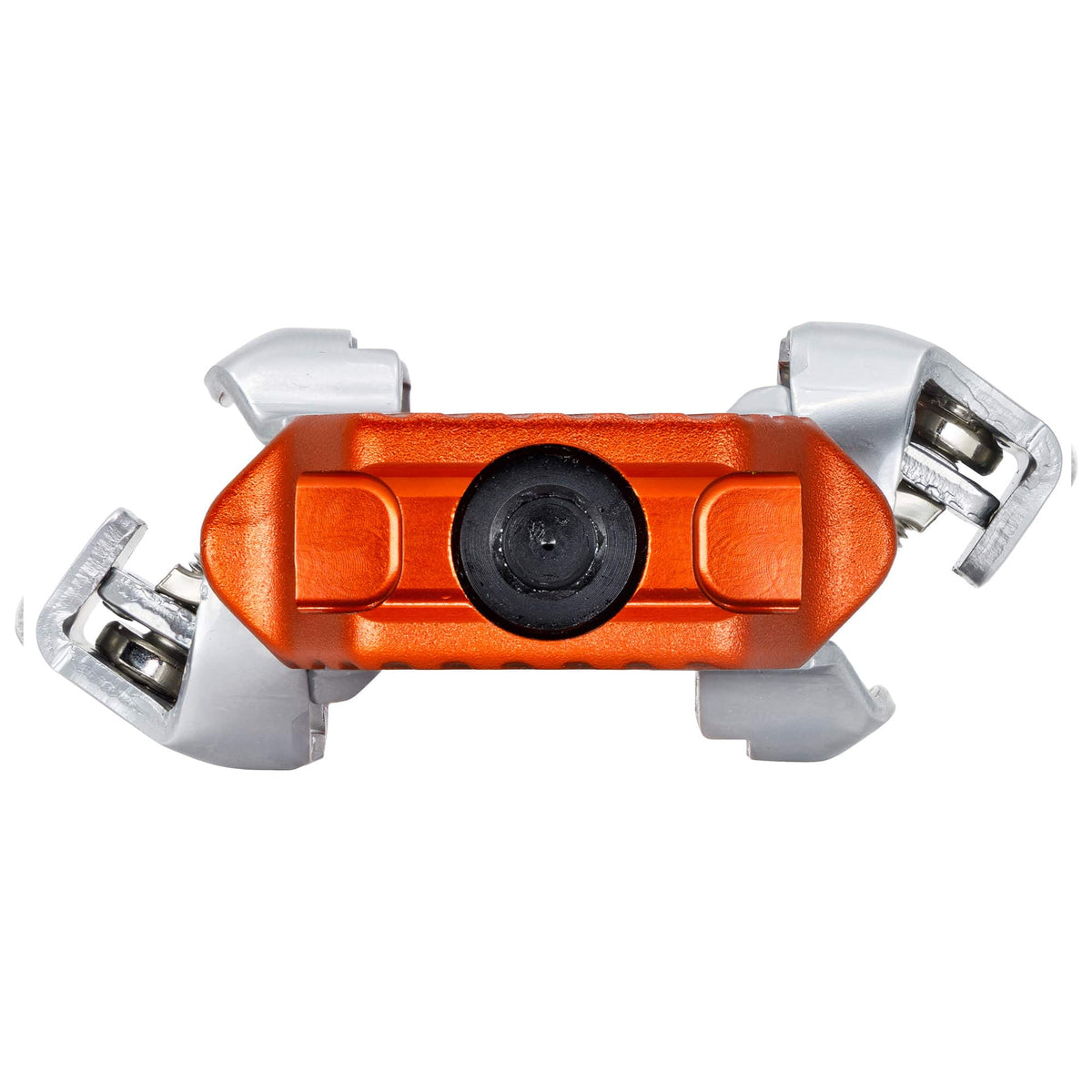

We designed ALT Performance XC Clipless Pedals with a thin profile and an open center. The thin profile means a reduced chance of pedal strikes when cornering or riding over rocks and roots. The open center quickly sheds mud that can interfere with clipping in and out to ensure that your clips and unclips are quick and reliable.
Reliable Construction

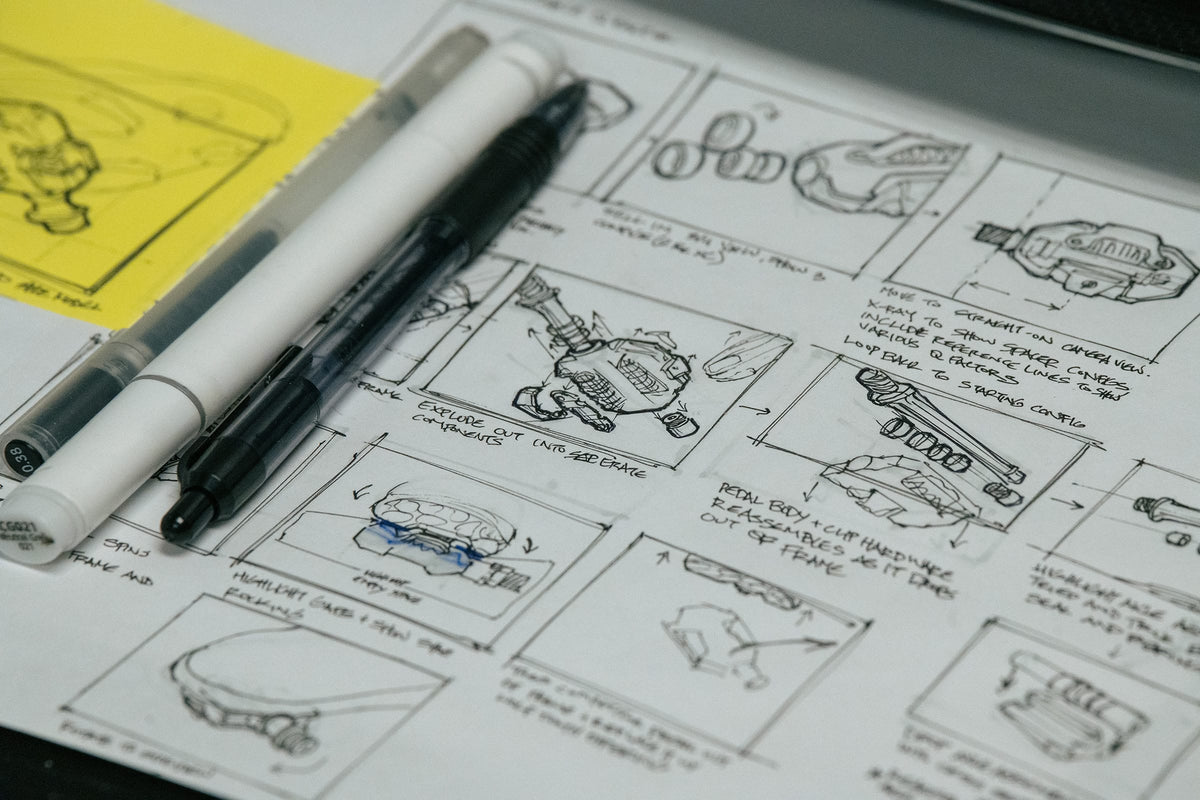

ALT Performance XC Clipless Pedals are designed at Wolf Tooth HQ in Minnesota, USA. The internal components use the same proven design pulled from our Waveform flat pedals and premium clipless pedals. This includes three low-friction cartridge bearings and one igus bushing with a custom radial seal that protects internal components from trail debris. Simply put: these pedals will perform in any/all conditions.

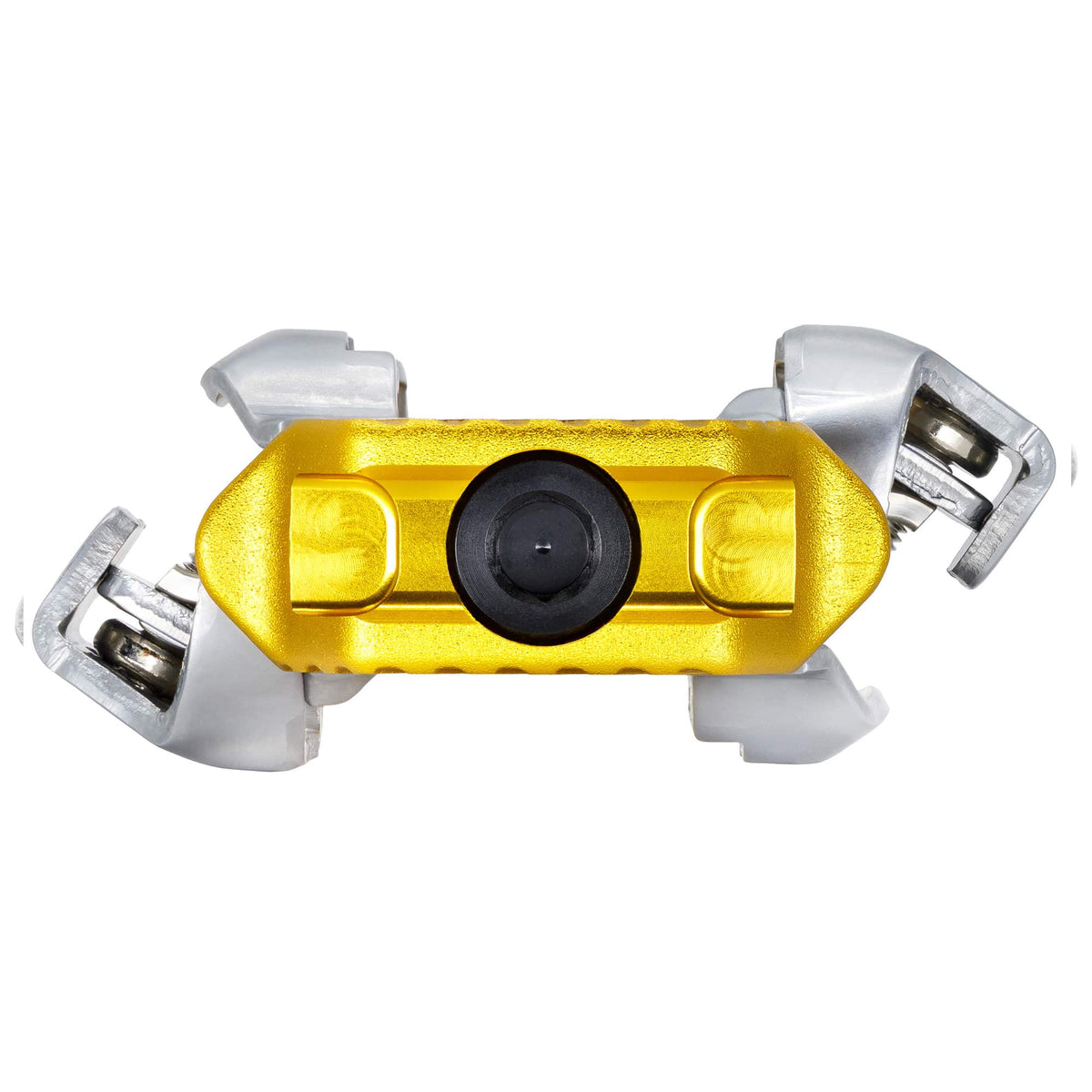

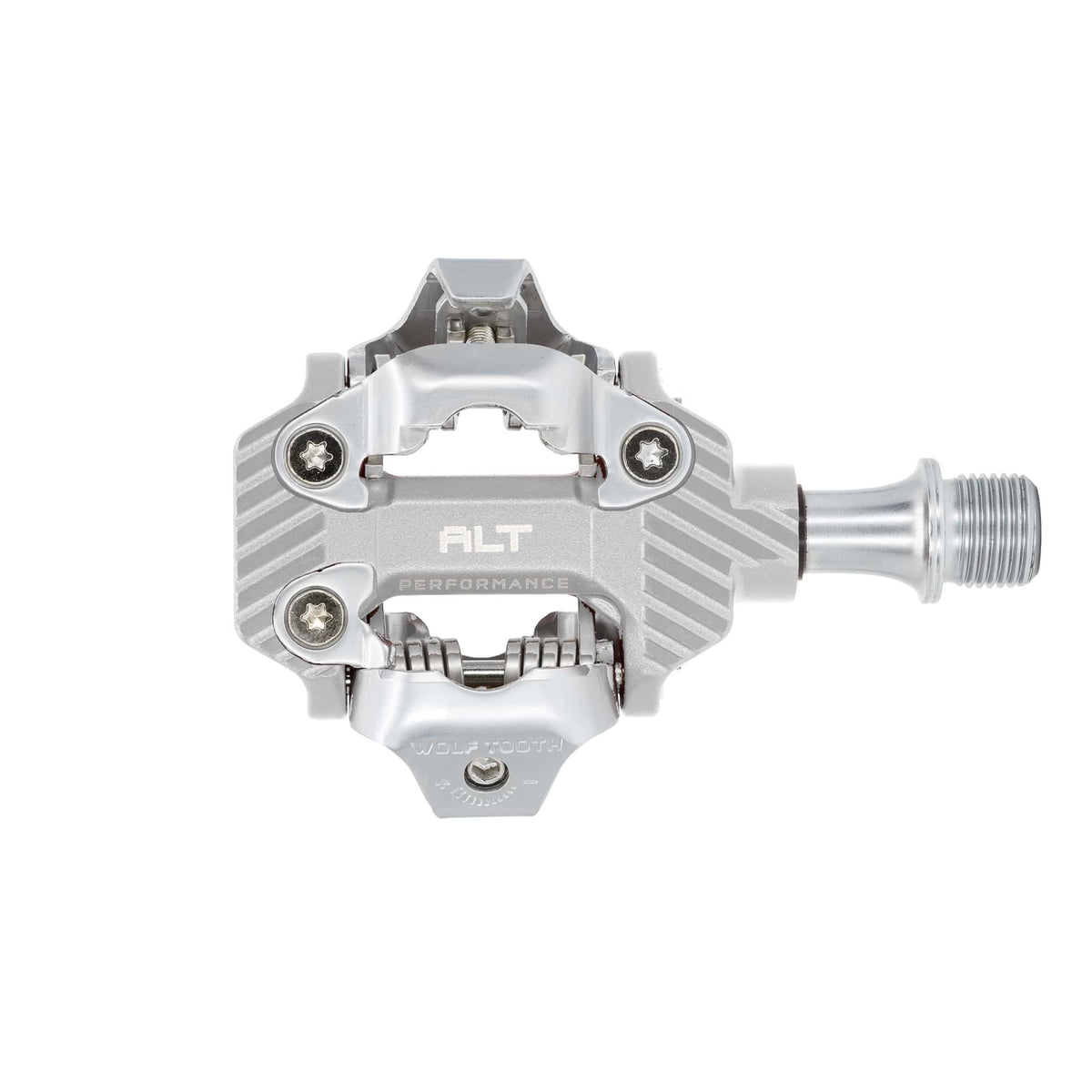

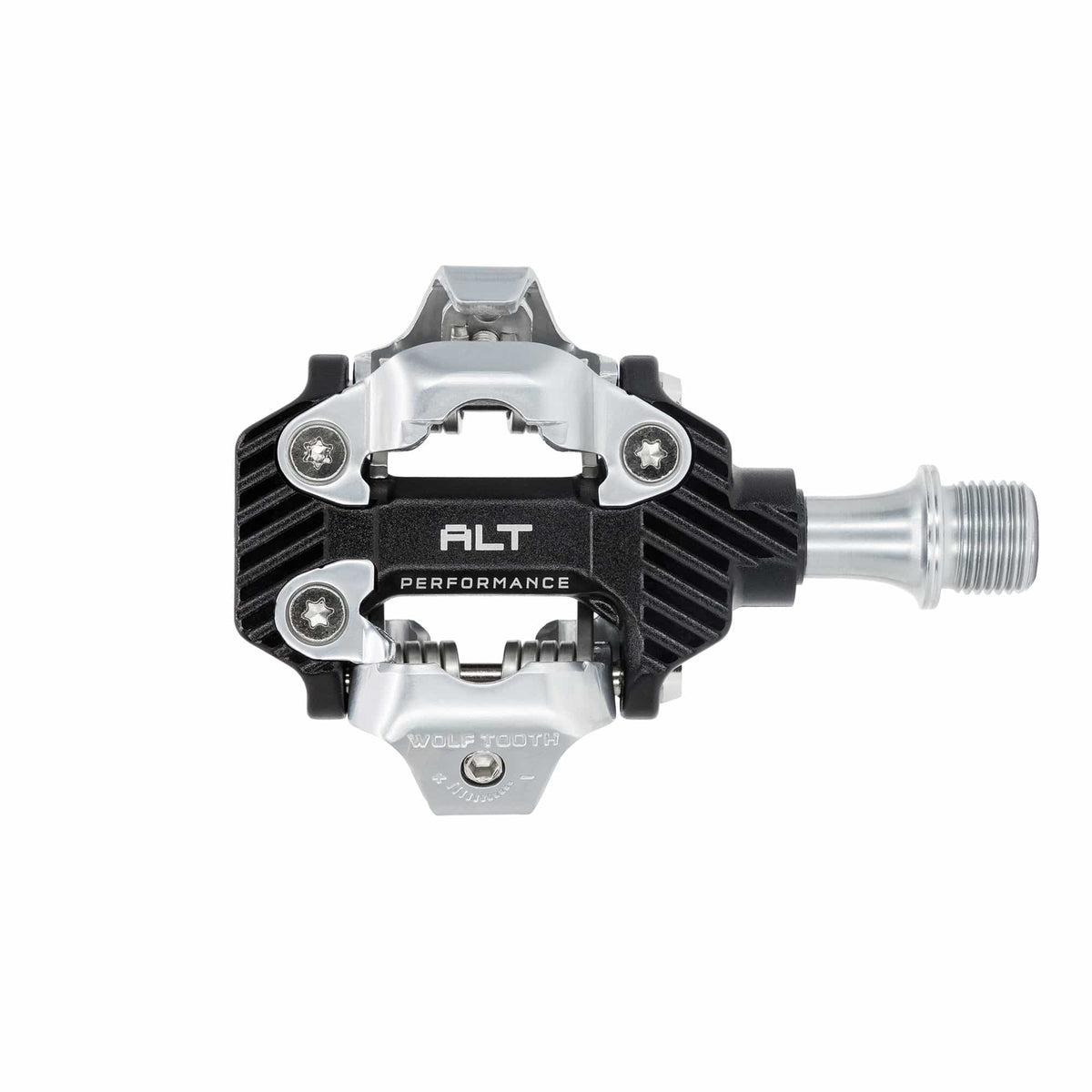

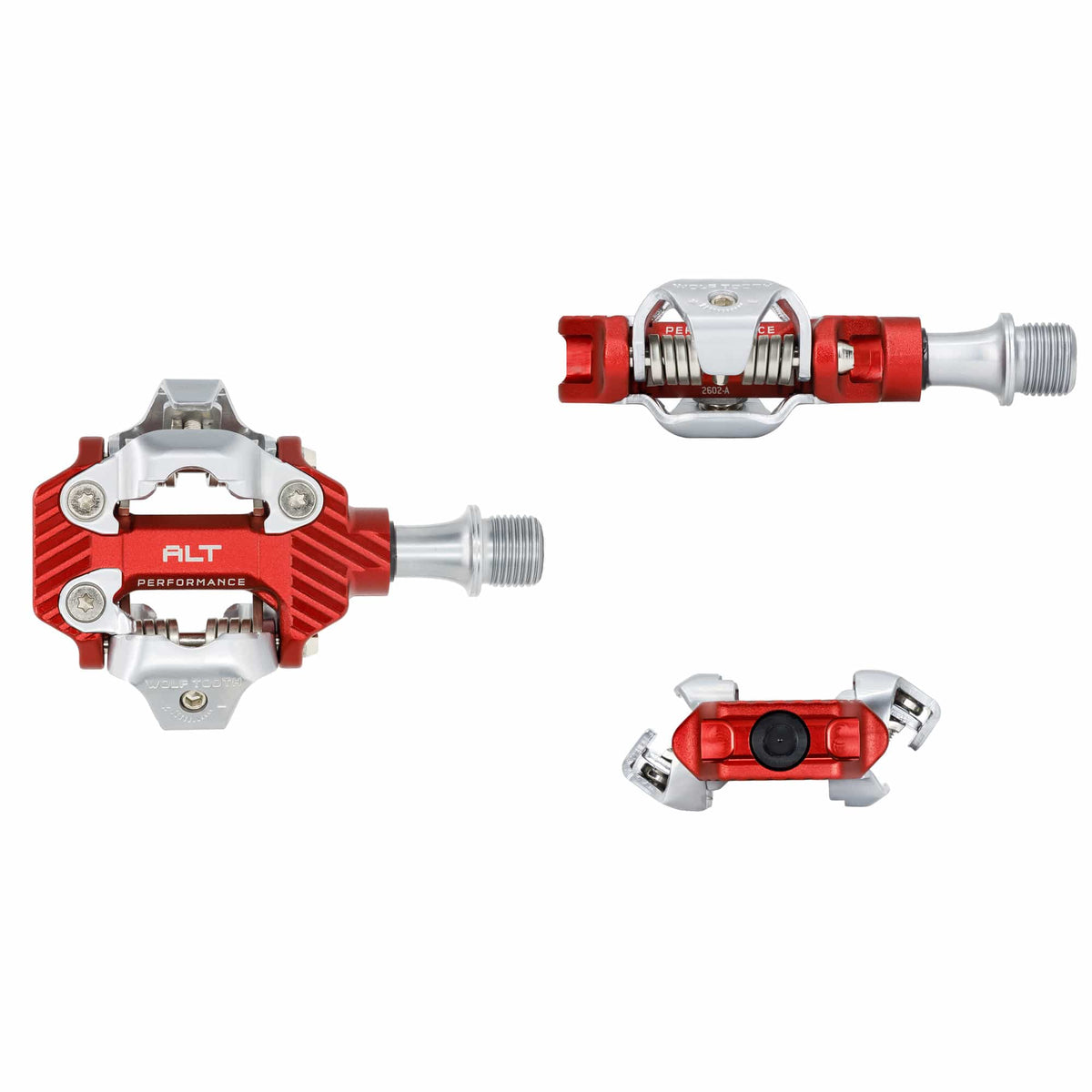

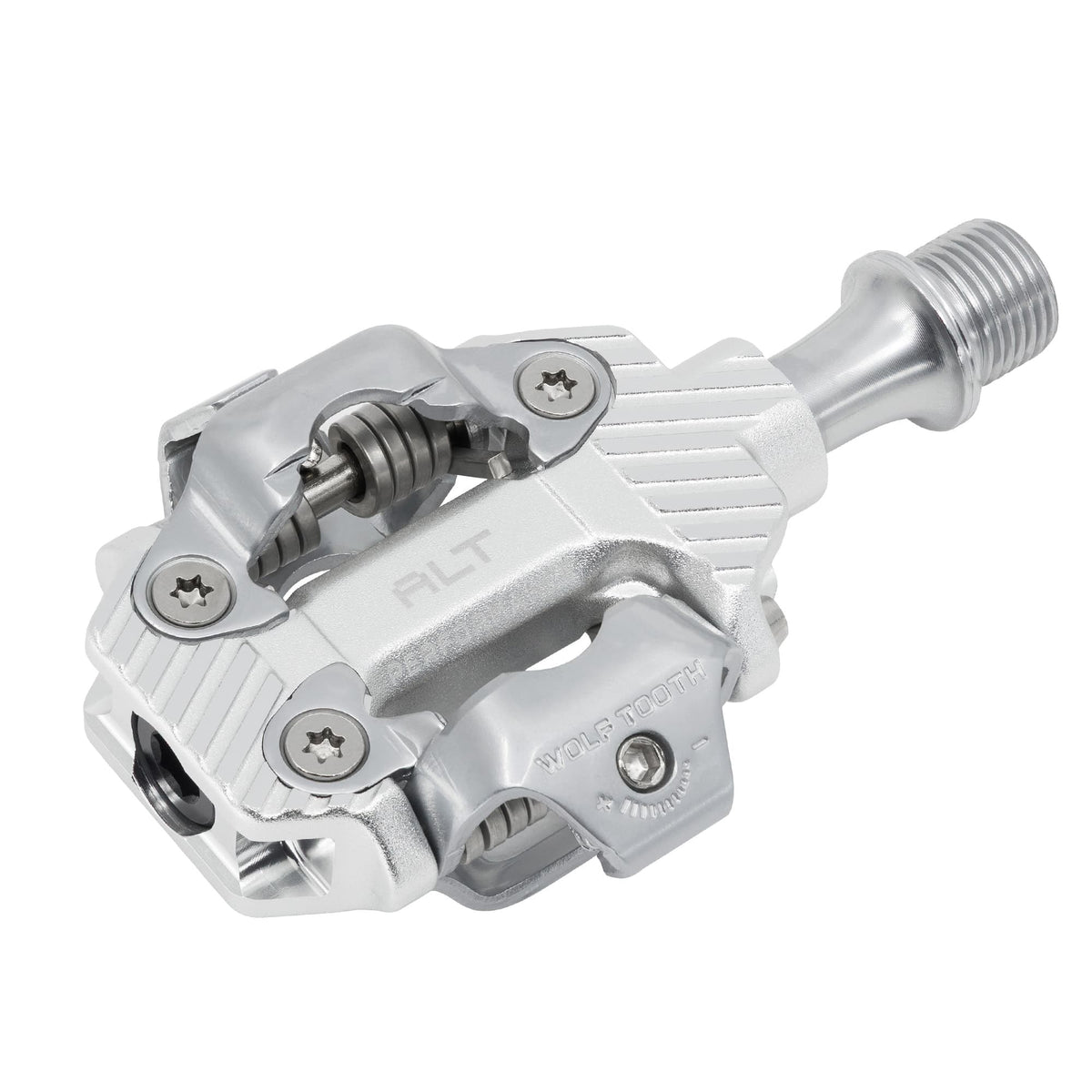

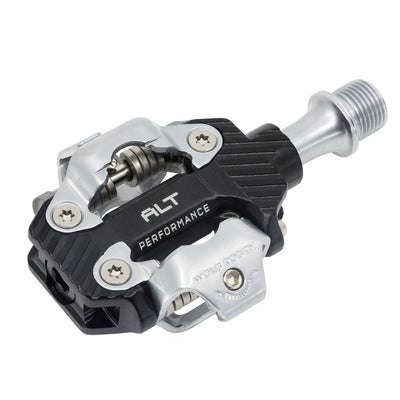

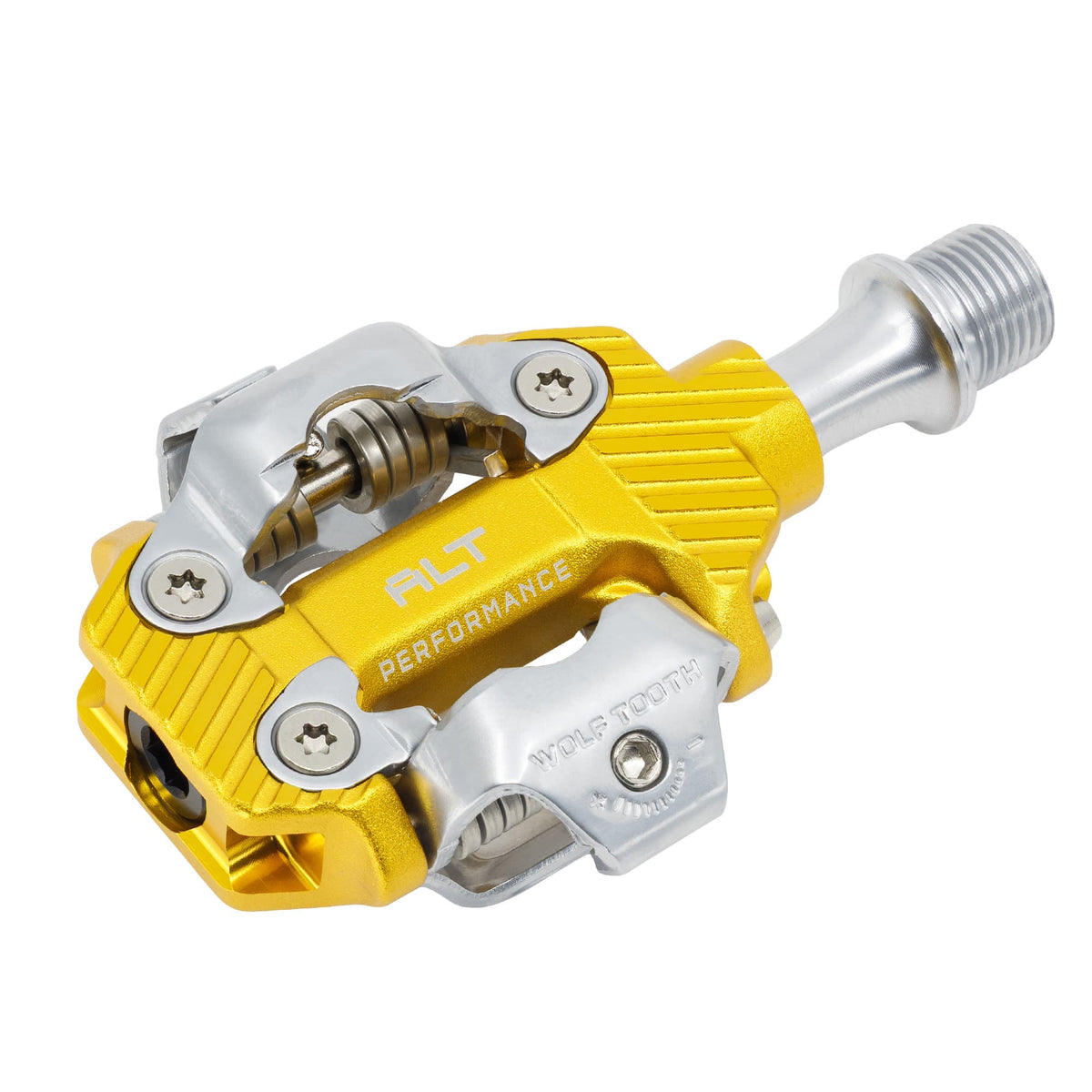

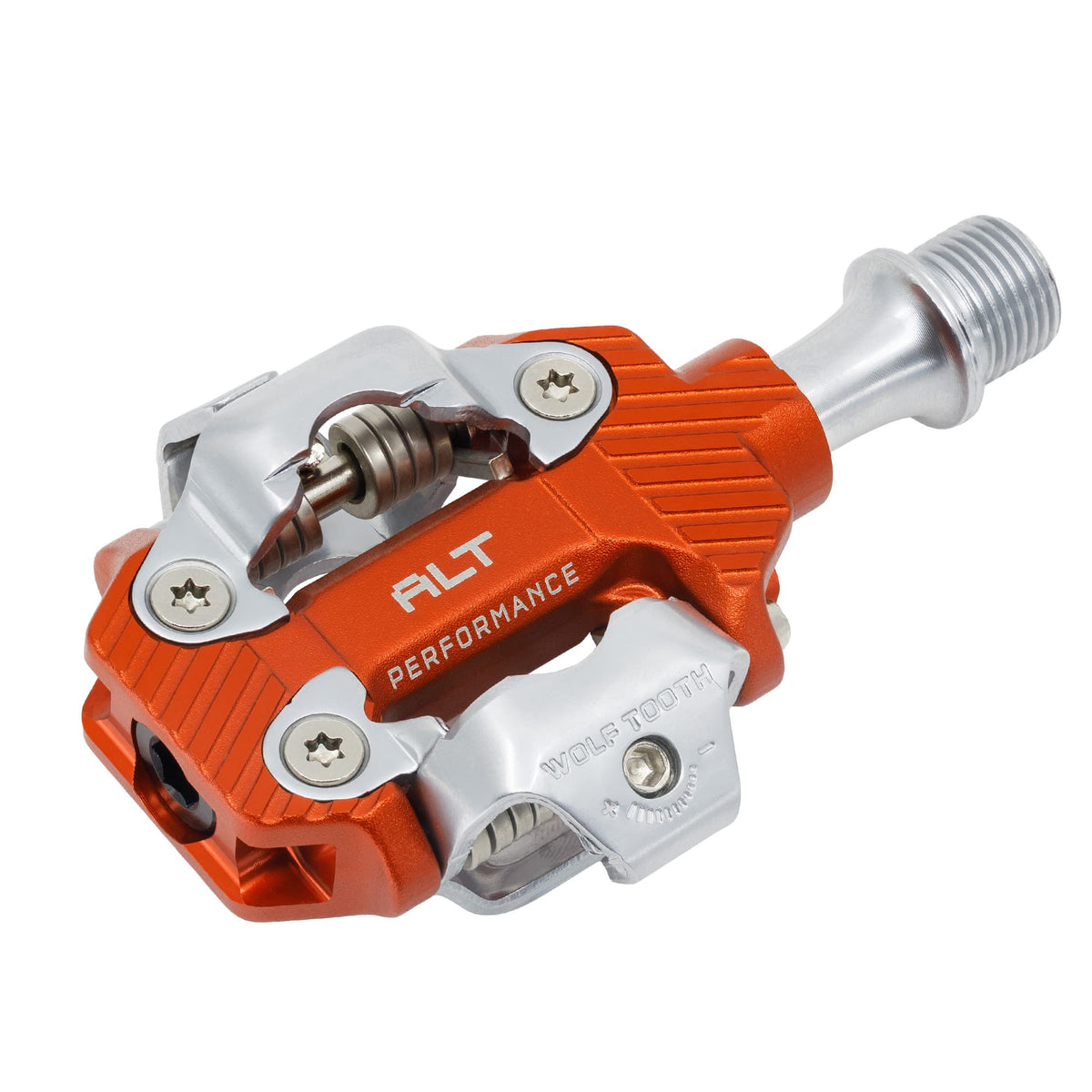

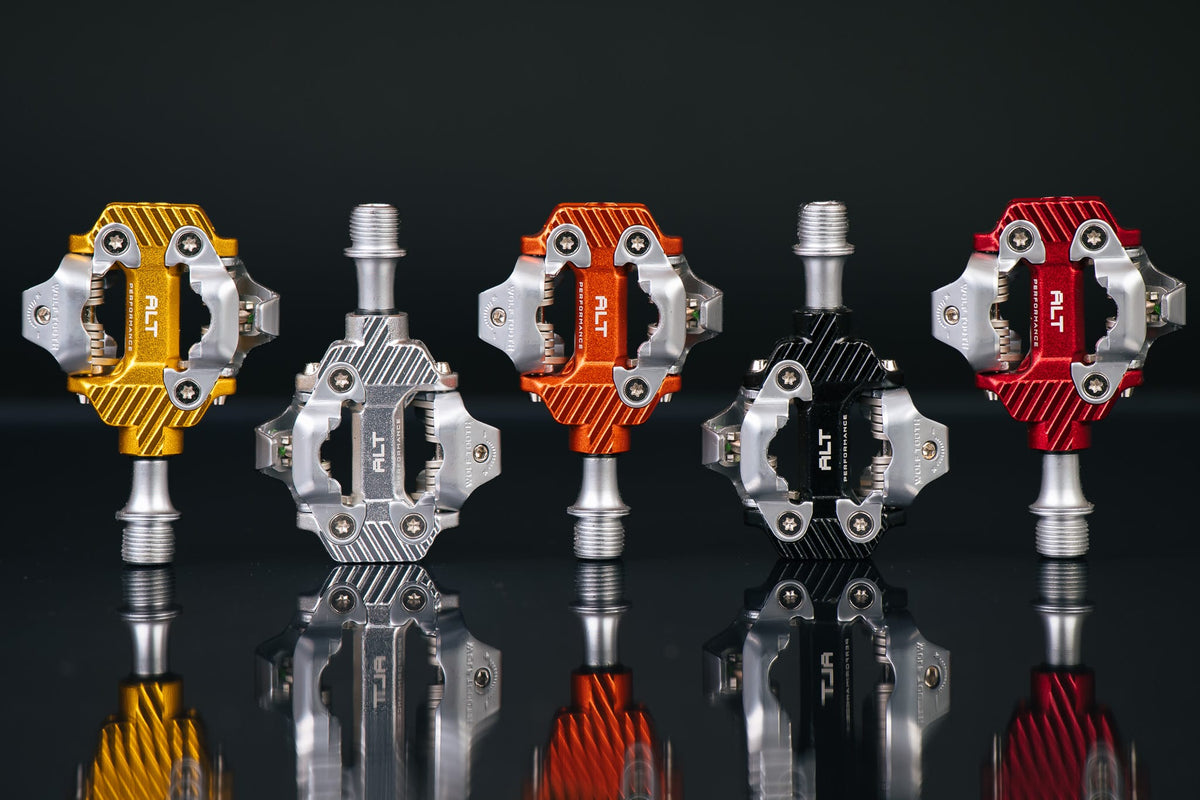

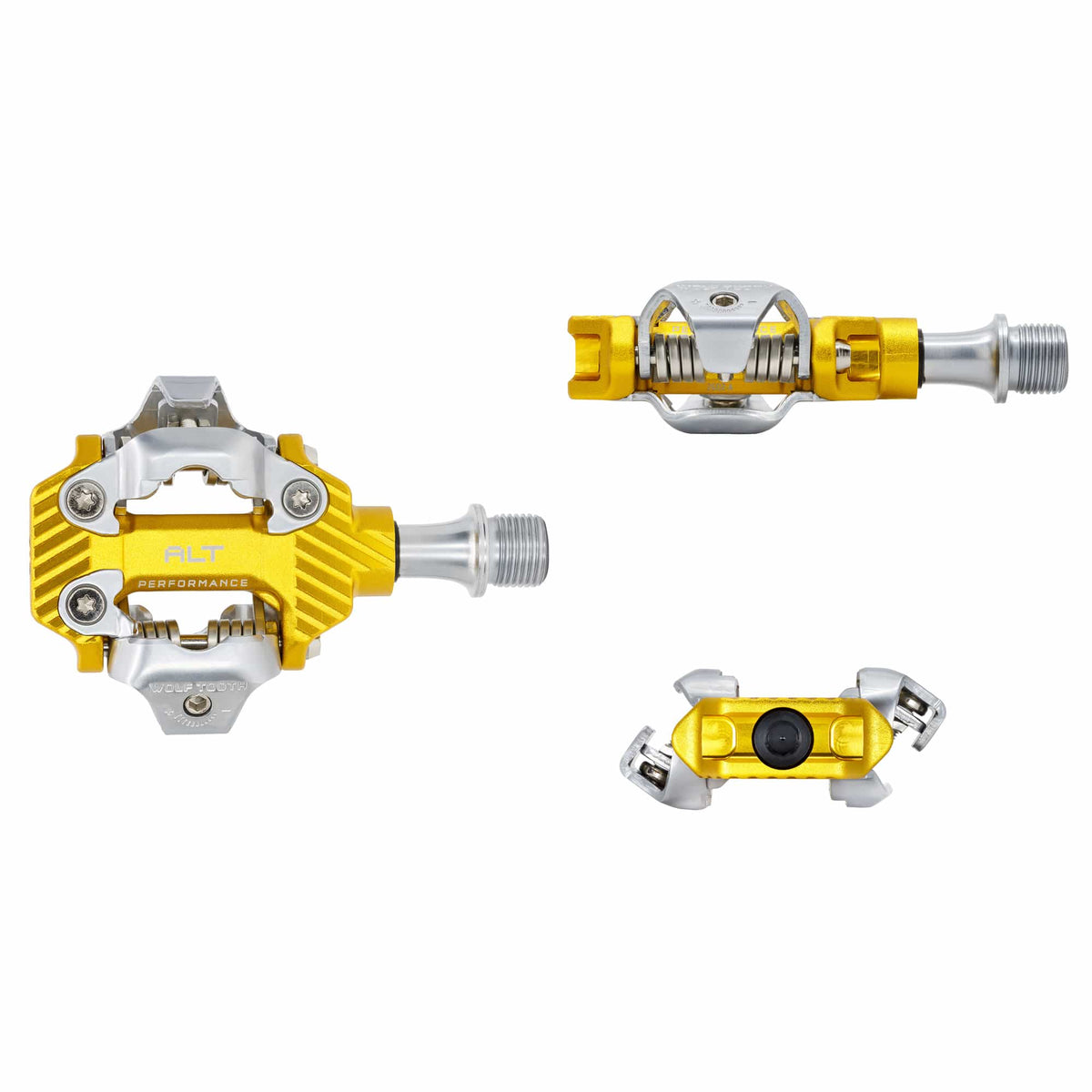

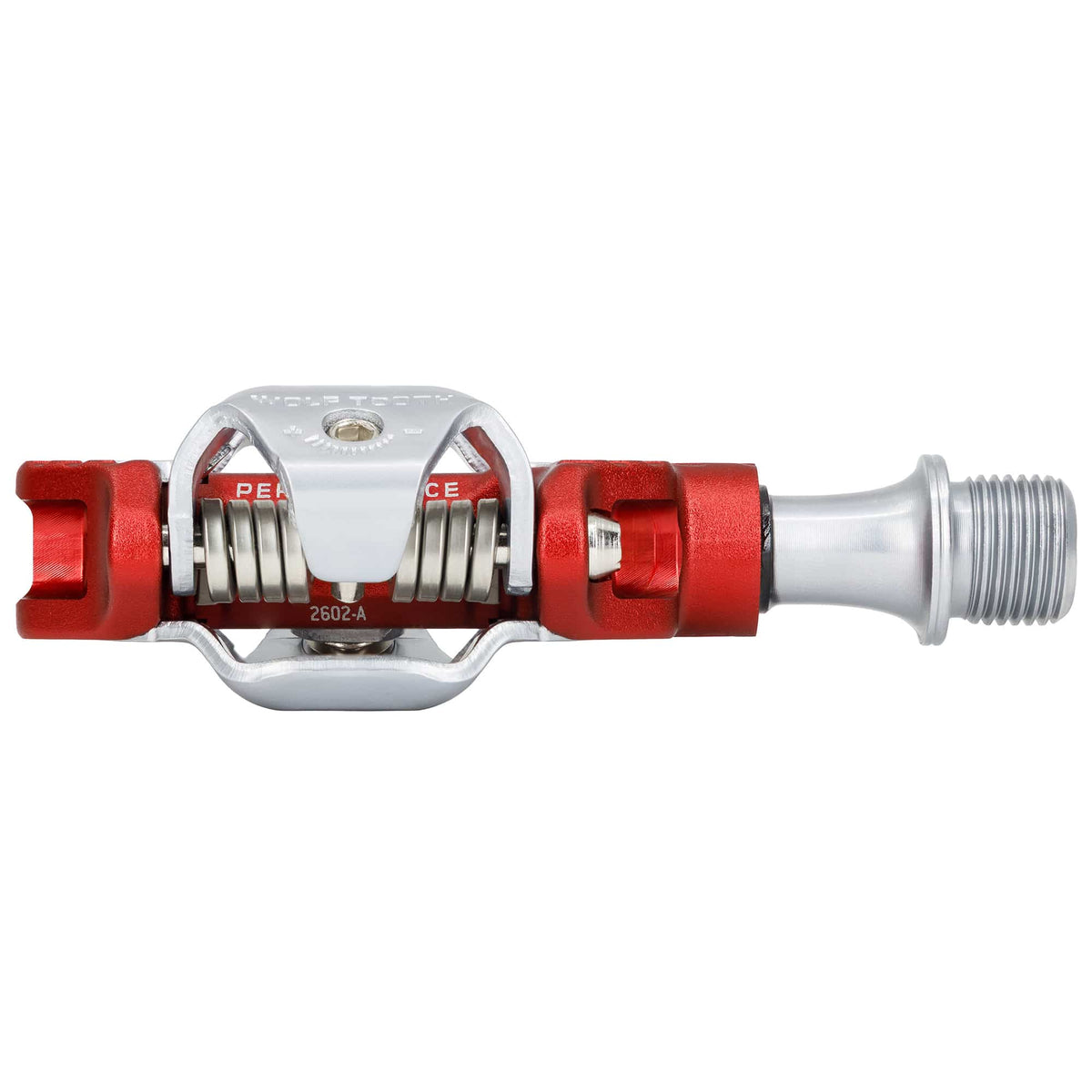

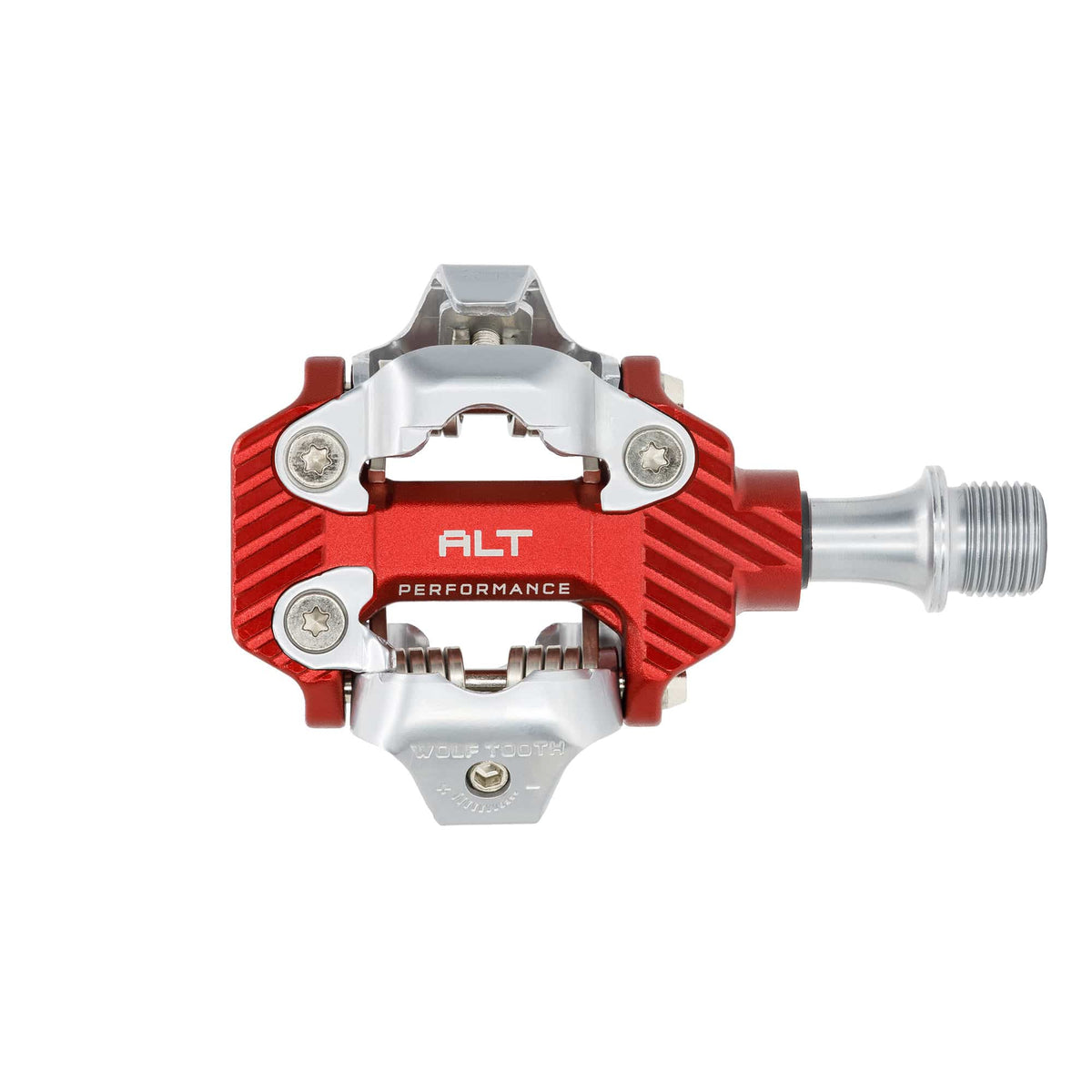

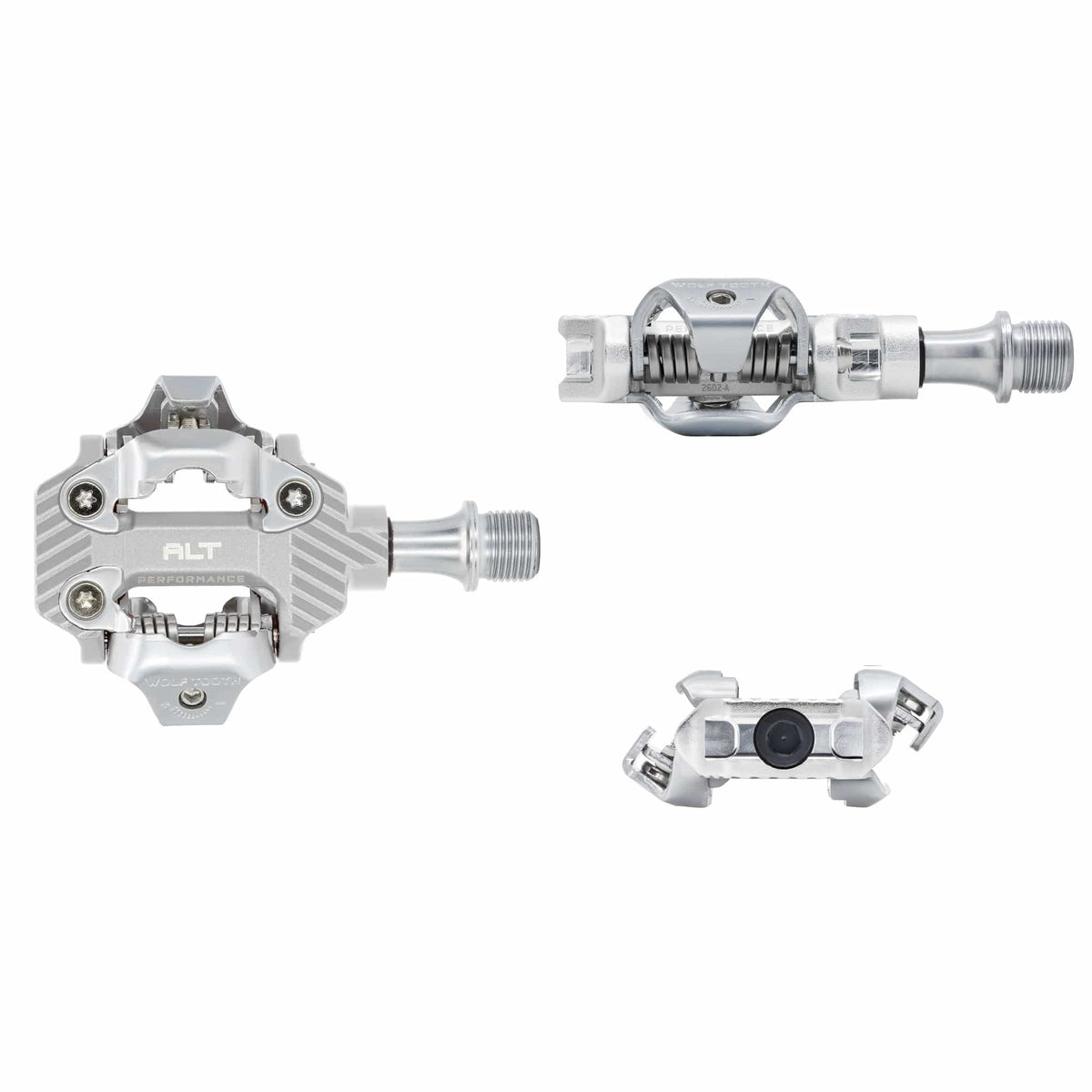

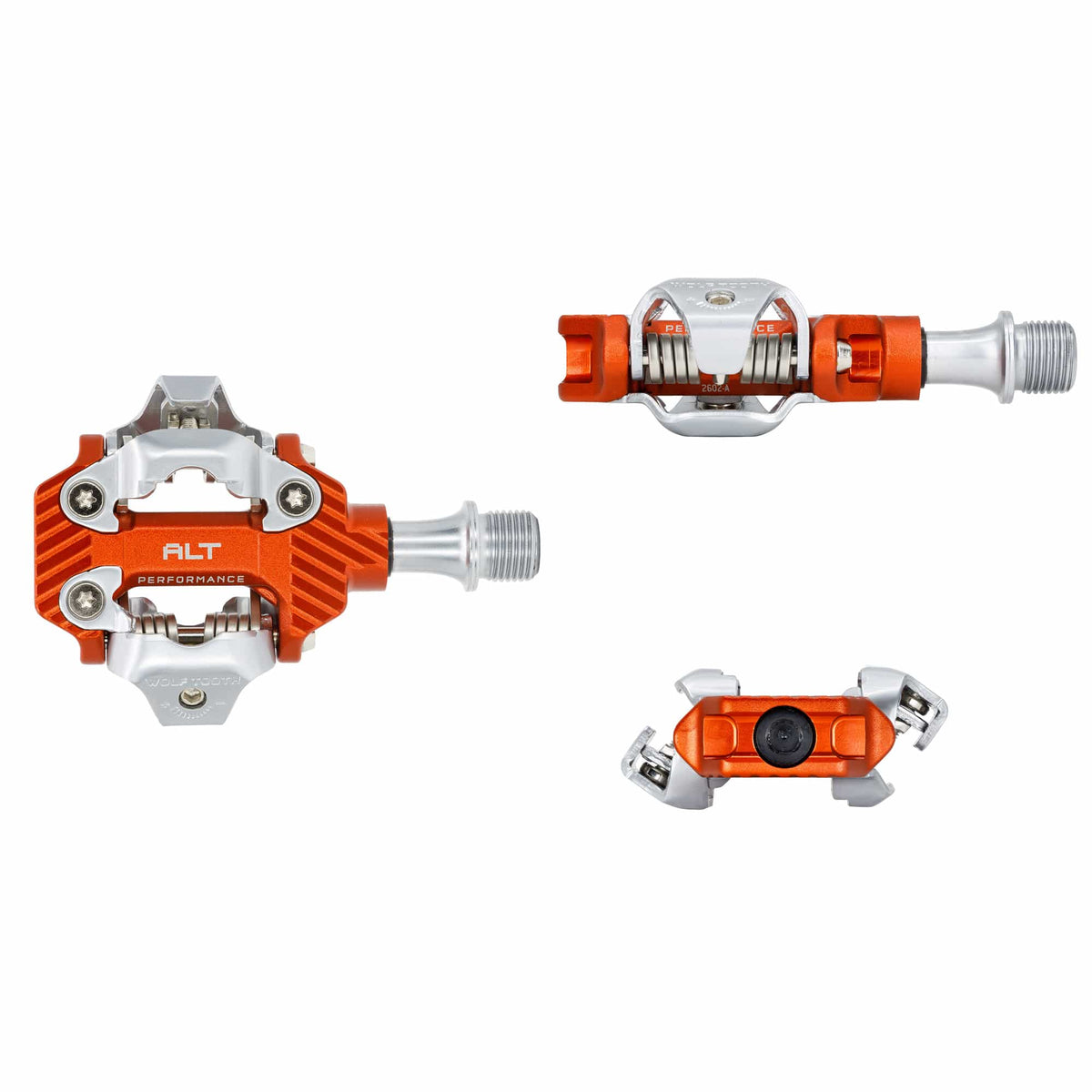

Wolf Tooth ALT Performance XC Clipless Pedals are available in Black, Raw Silver, Orange, Red, and Gold. They perfectly match our other Color Shop components and accessories.
Designed in Minnesota, USA
ALT Performance XC Clipless Pedals are designed at Wolf Tooth HQ with top level features at an unbeatable price.
Exceeds all EN/ISO safety standards
Safety is paramount. ALT Performance XC Clipless Pedals have undergone strenuous static and fatigue stress tests that exceed EN/ISO safety standards.
2-year Warranty
ALT Performance XC Clipless Pedals are warrantied for defects in material or workmanship for a period of two years from the date of purchase.
We believe in your right to be able to fix your components. Crashes happen, parts get misplaced, things go bump in the night. Replacement parts are available.
100% USER SERVICEABLE
Service for ALT Performance XC Clipless Pedals is simple and can be done at home.
REPLACEMENT PARTS AVAILABLE
Many of the components of ALT Performance XC Clipless Pedals can be purchased separately, from the axle to the bearings.
SERVICE TUTORIALS
An owner’s manual and video guide are available so you can disassemble, service, and reassemble ALT Petformance XC Clipless Pedals.
Choose Your Pedal
Weight
326 g
Weight
294 g
Weight
245 g
Contact Area
534 mm²
Contact Area
443 mm²
Contact Area
413 mm²
Q-Factor
Fixed 55mm
Q-Factor
Adjustable 51 / 55 / 59mm
Q-Factor
Adjustable 51 / 55 / 59 mm
Body Thickness
15 mm
Body Thickness
15 mm
Body Thickness
14.4mm
Body Design
Forged and Post-Machined Aluminum
Body Design
Fully CNC Machined 6061-T6 Aluminum
Body Design
Fully CNC Machined 6061-T6 Aluminum
Axle and Hardware
Satin Chrome Plated / Hard Chrome Plated Chromoly Steel
Axle and Hardware
Stainless Steel
Axle and Hardware
DLC Ti Axles and Hardware
Warranty
2 Years
Warranty
5 Years
Warranty
5 Years
Wolf Tooth ALT Performance XC Clipless Pedals are designed for commanding performance on trails and gravel roads. These pedals are lighter (326g) and thinner (15mm) than most other XC pedals, with a low stack height and more platform area (534 mm²) for control and power transfer. An open center between the cages means increased mud shedding compared to other SPD-compatible pedals.
Like other Wolf Tooth components and accessories, replacement parts and service guides are available via Wolf Tooth Right to Repair.
- Thinner than the competition at 15 mm (compared to the Shimano XTR 9200 at 16.5 mm and the Hope Union RC at 18 mm)

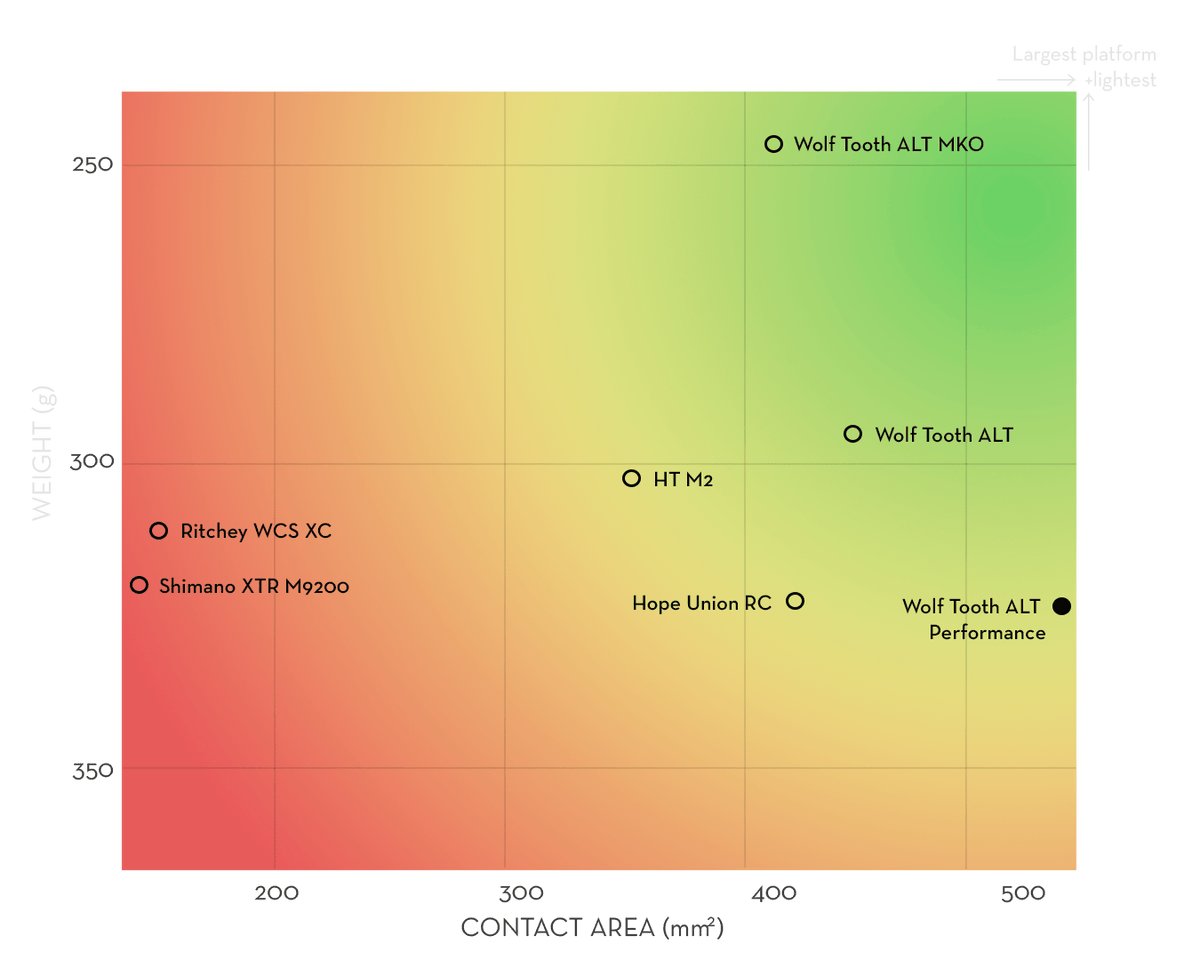

- Best price to weight ratio at only 326 g (compared to Shimano XTR 9200 at 316 g and Hope Union RC at 322 g)
- Bigger platform area than the competition at 559 mm² (compared to Shimano XTR 9200 at 144 mm² and Hope Union RC at 420 mm²)
- Fully SPD compatible with no proprietary cleats
- Fixed Q factor of 55 mm
- 5 degrees float | 12 degrees release
- Proven axle and bearing design from Waveform Aluminum Pedals
- Designed and tested at Wolf Tooth in Minnesota, USA
Recommended
-
All SPD pedals benefit from simple regular maintenance. For best performance apply a drop of oil to the rear binding every 50 hours of riding or if you notice higher than normal clip in/out force. See the service guide for more information.
- Apply WT-G Precision Bike Grease to the pedal threads before installing pedals on crankarms.
Compatibility
- Compatible with SPD cleats; Wolf Tooth cleats included
- Fits all standard cranks with 9/16-20 tpi right- and left-hand threads – some kid’s bikes and vintage bikes may have smaller incompatible threads.
Tech Specs
Weight: 326 g
Material:
Body: Forged and Post-Machined Aluminum
Axle: Satin nickel-plated chromoly steel
Binding Cage: Hard chrome plated chromoly steel; Hardware: Nickel-plated chromoly steel
Included: pedals, cleats with shims and bolts
Patent Pending
