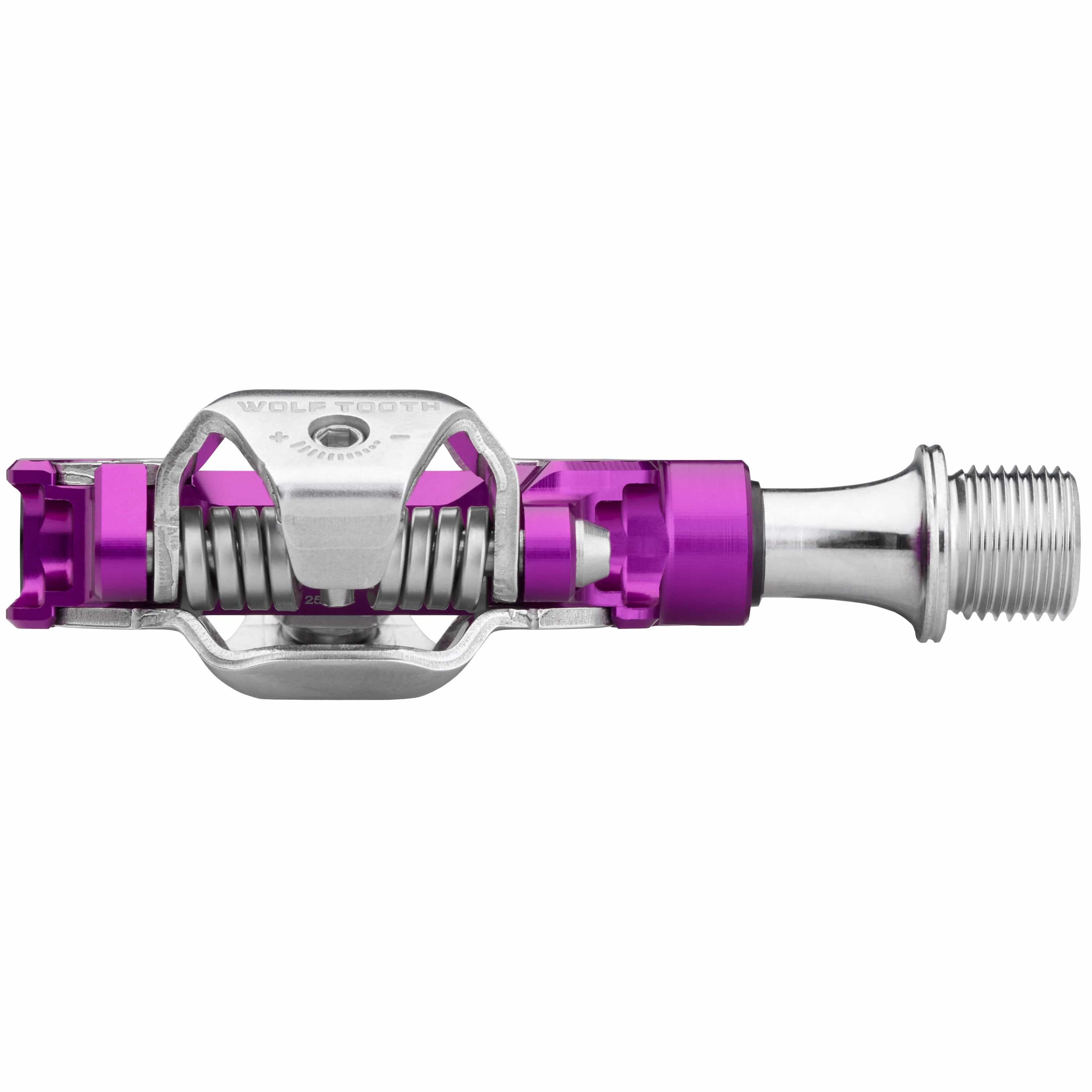

ALT XC Clipless Pedal
ALT-CLPS-PRU

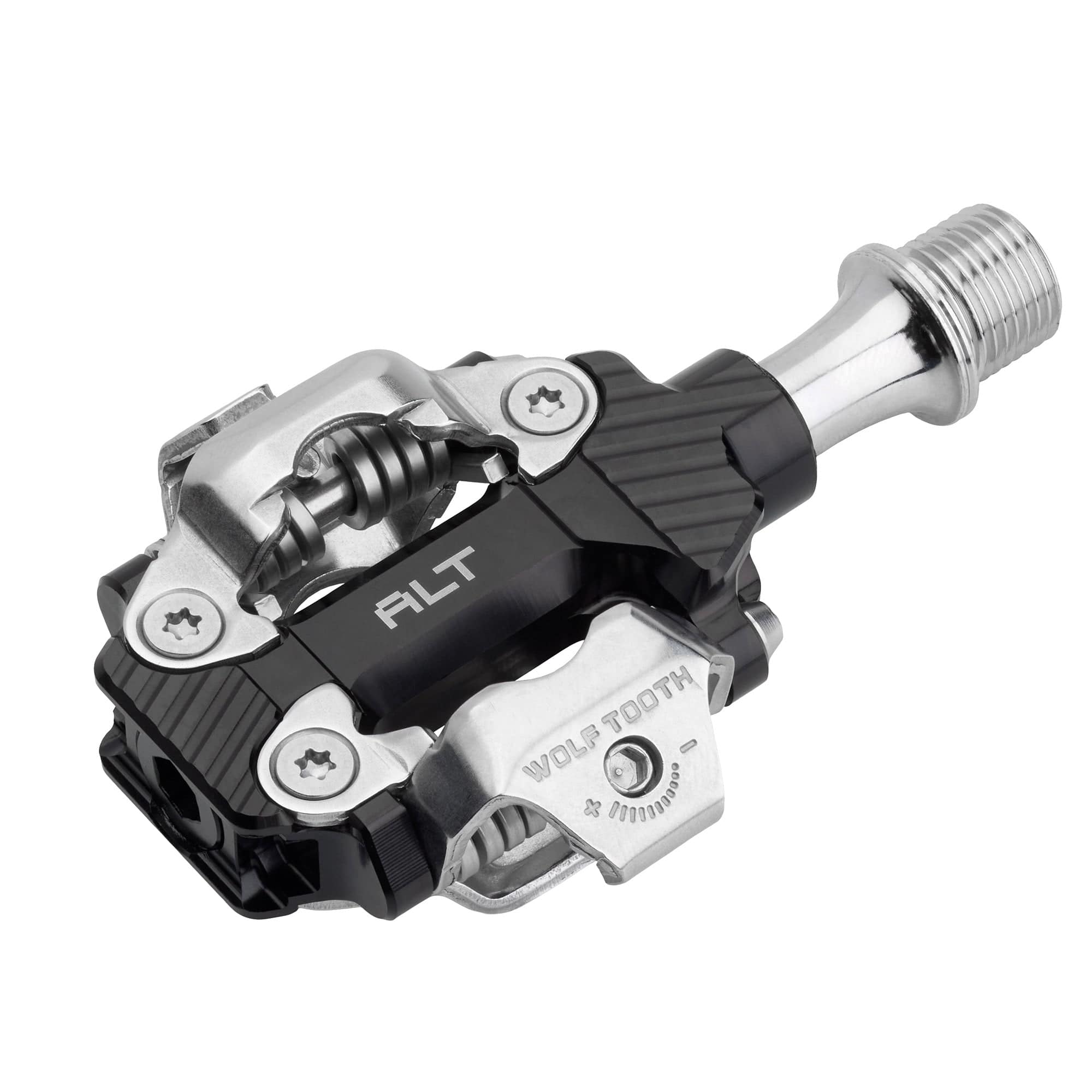

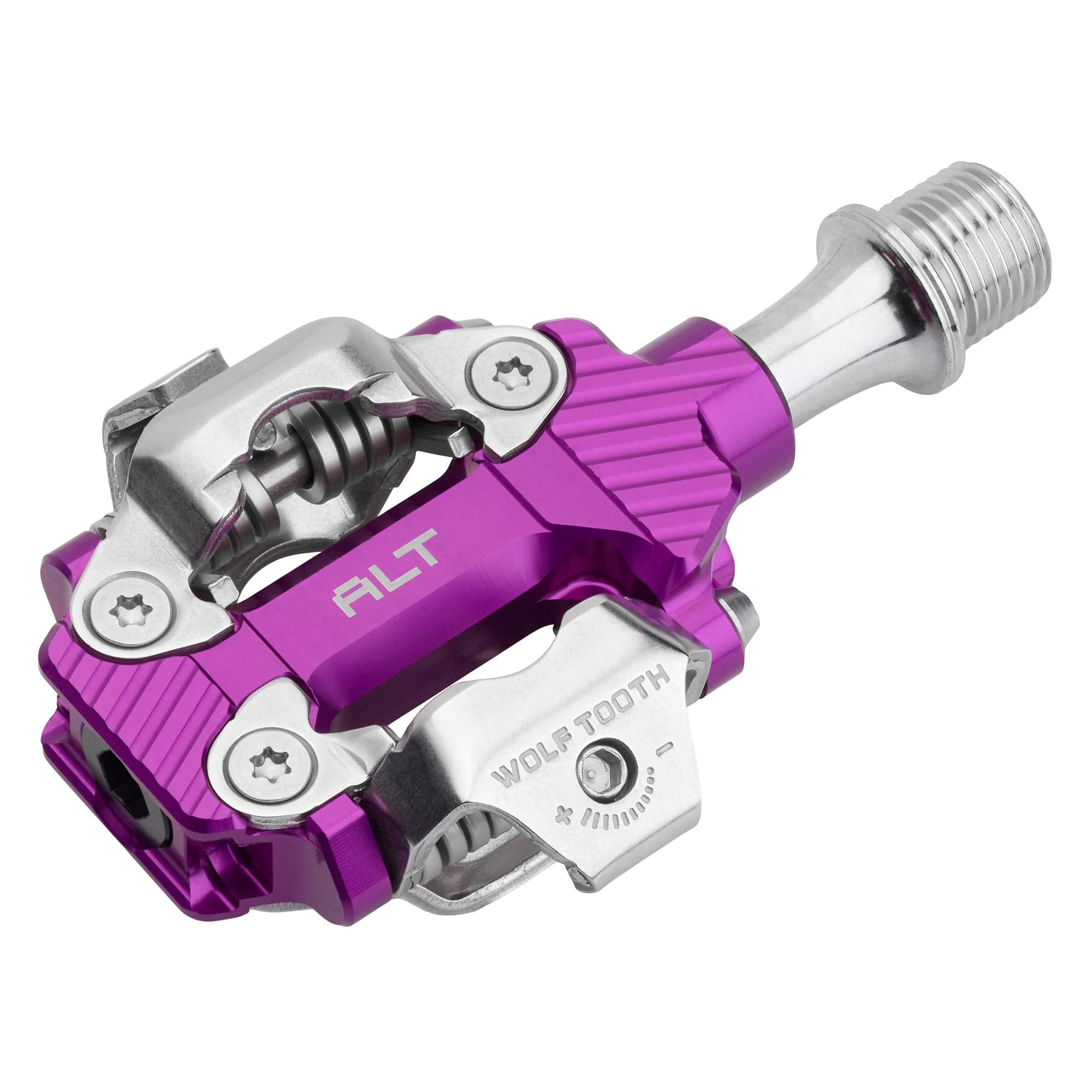

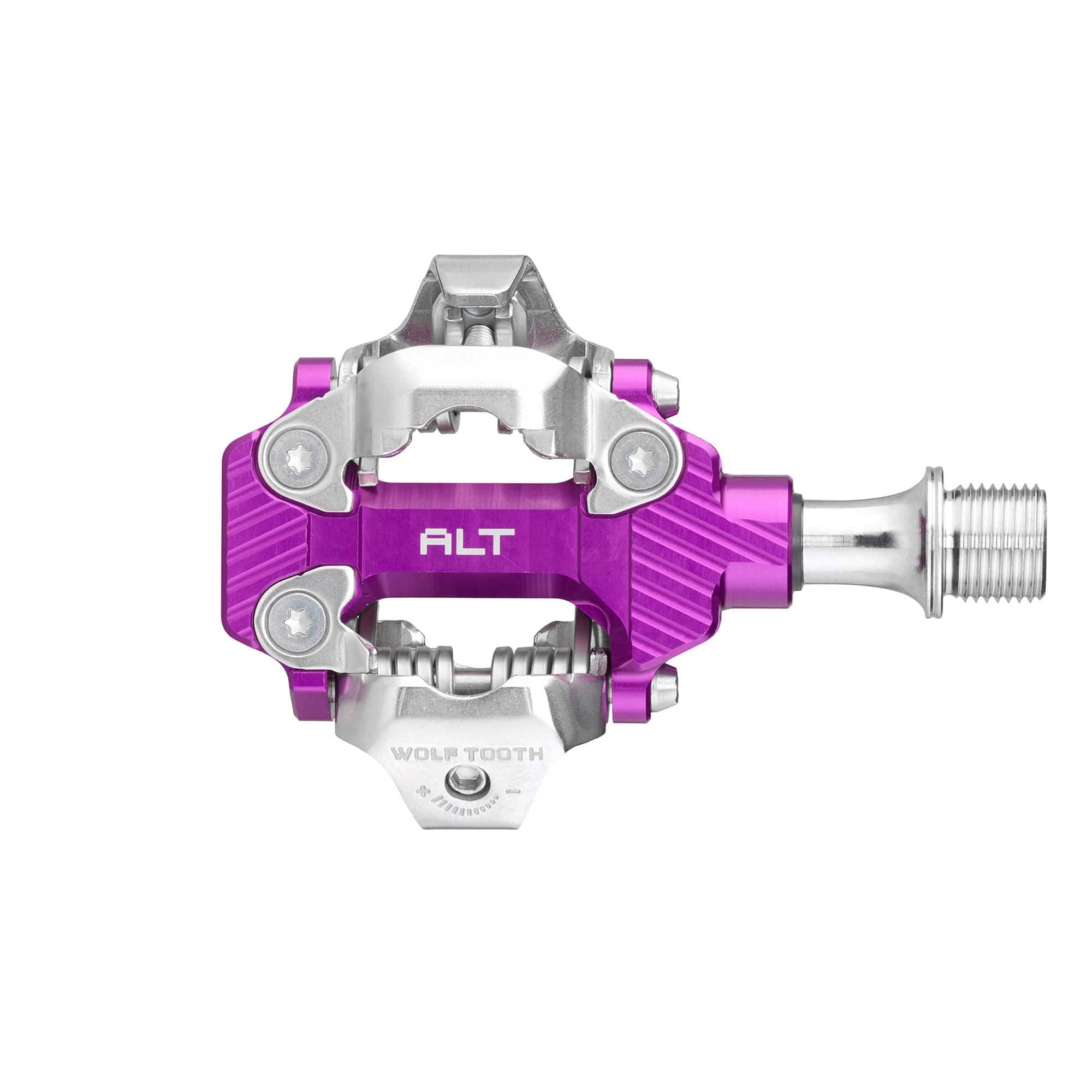

ALT XC Clipless Pedal
ALT XC Clipless Pedals

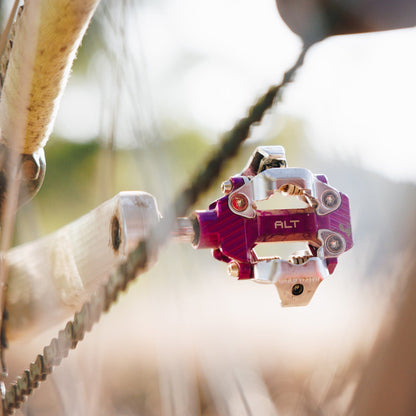

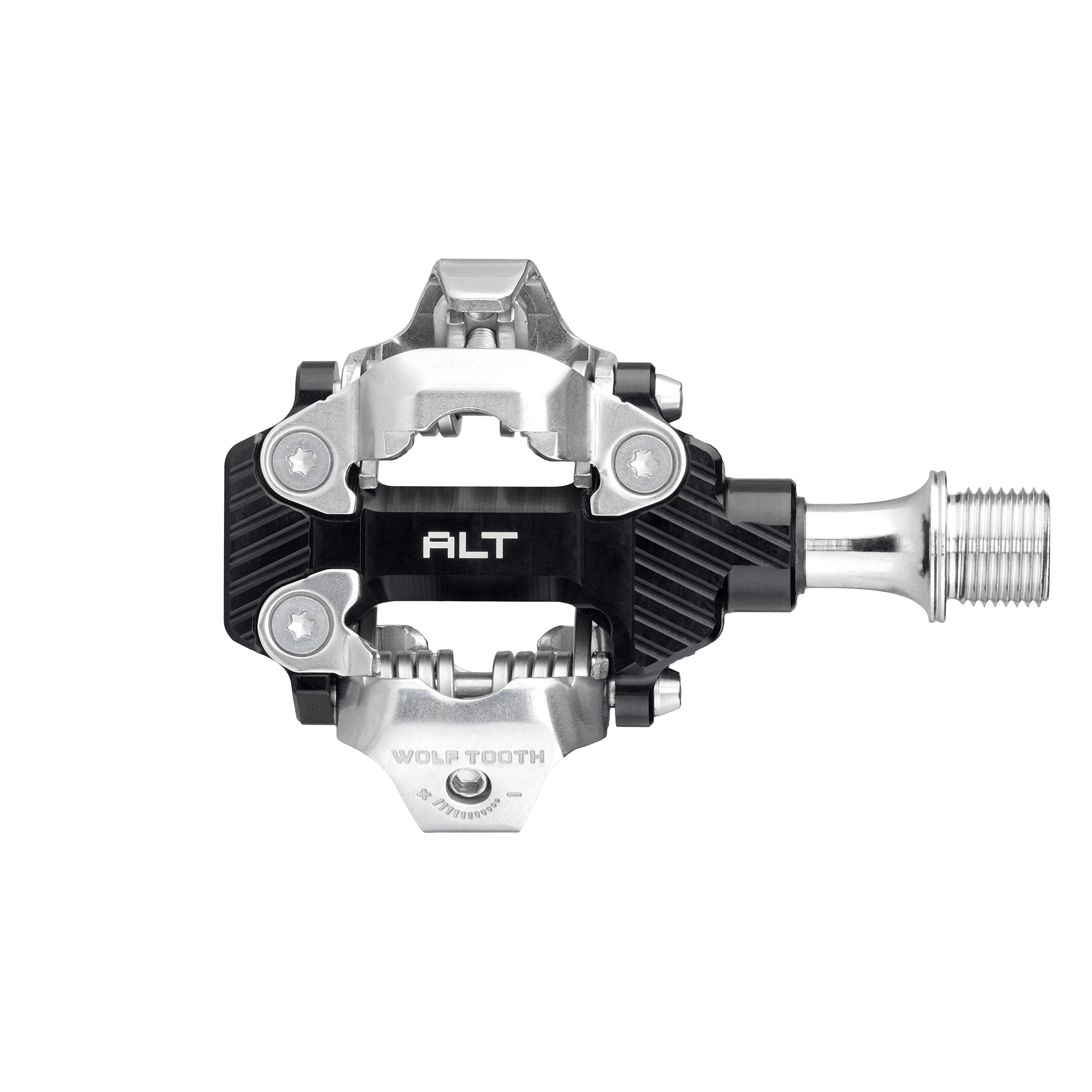

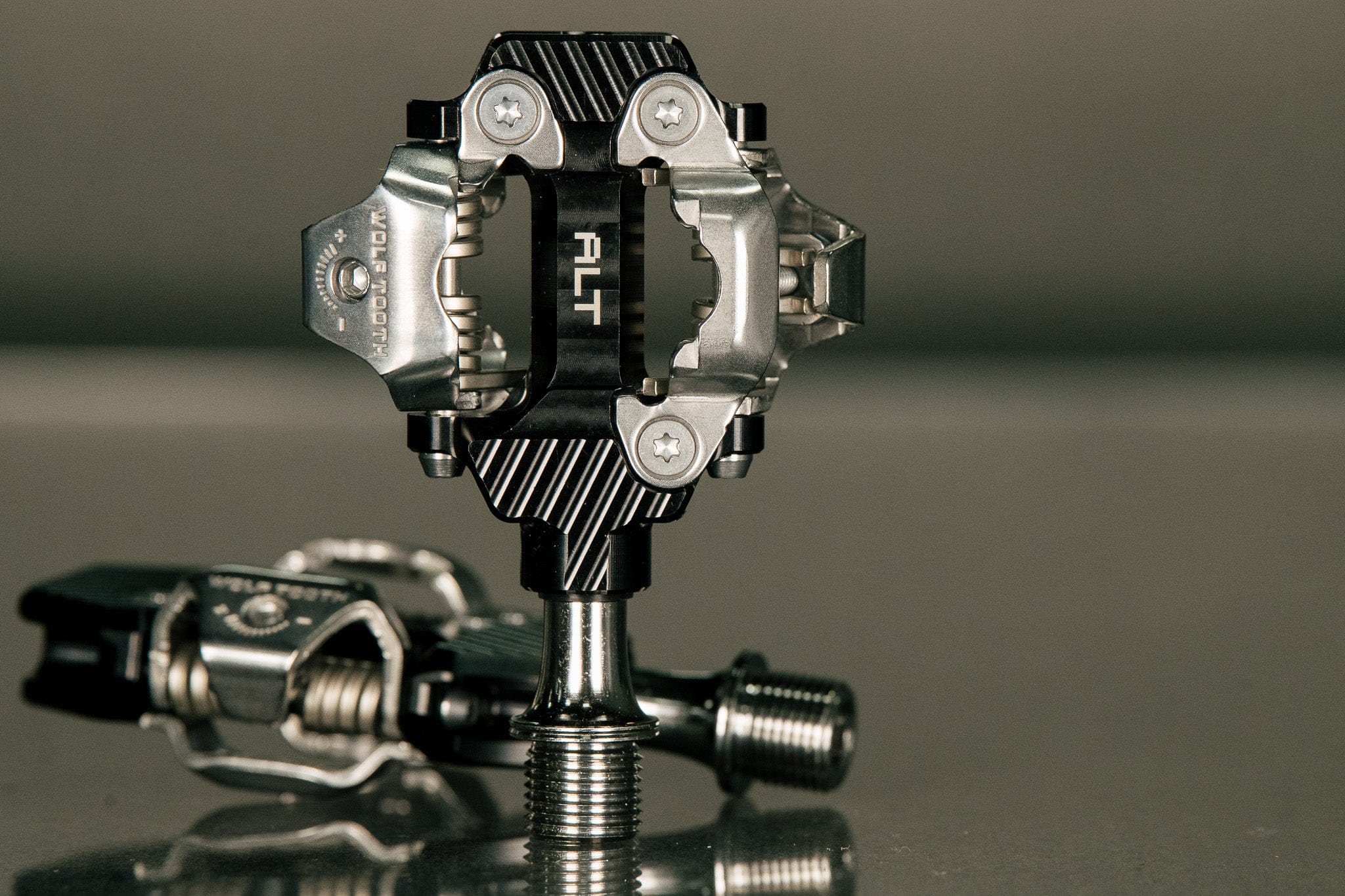

Designed for commanding performance on trails and gravel roads. These pedals are simultaneously lighter and thinner than other XC pedals with an exceptionally low stack height, while also having more platform area for control and power transfer. An open center between the cages means increased mud shedding compared to other SPD-compatible pedals.

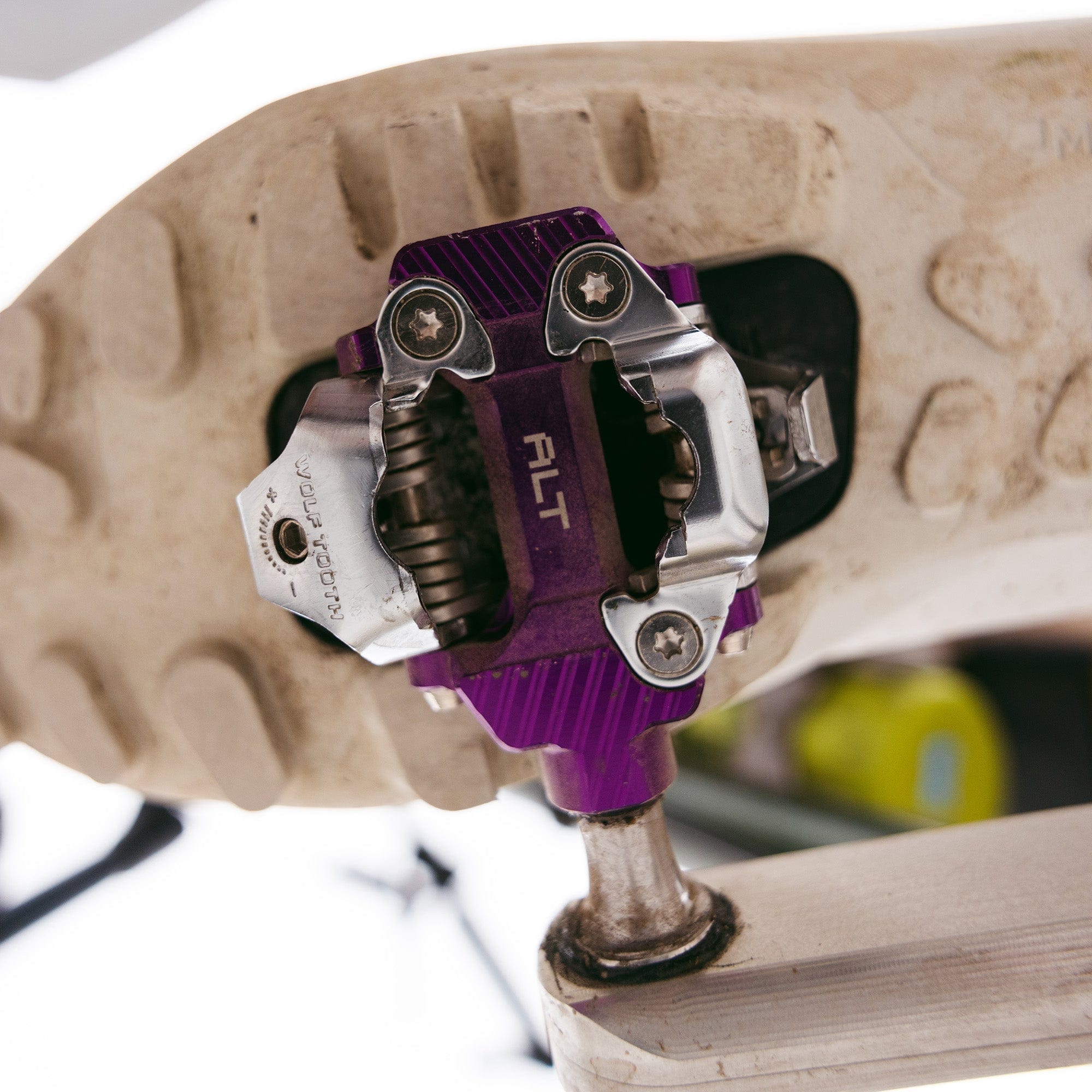

Maximum Shoe Contact

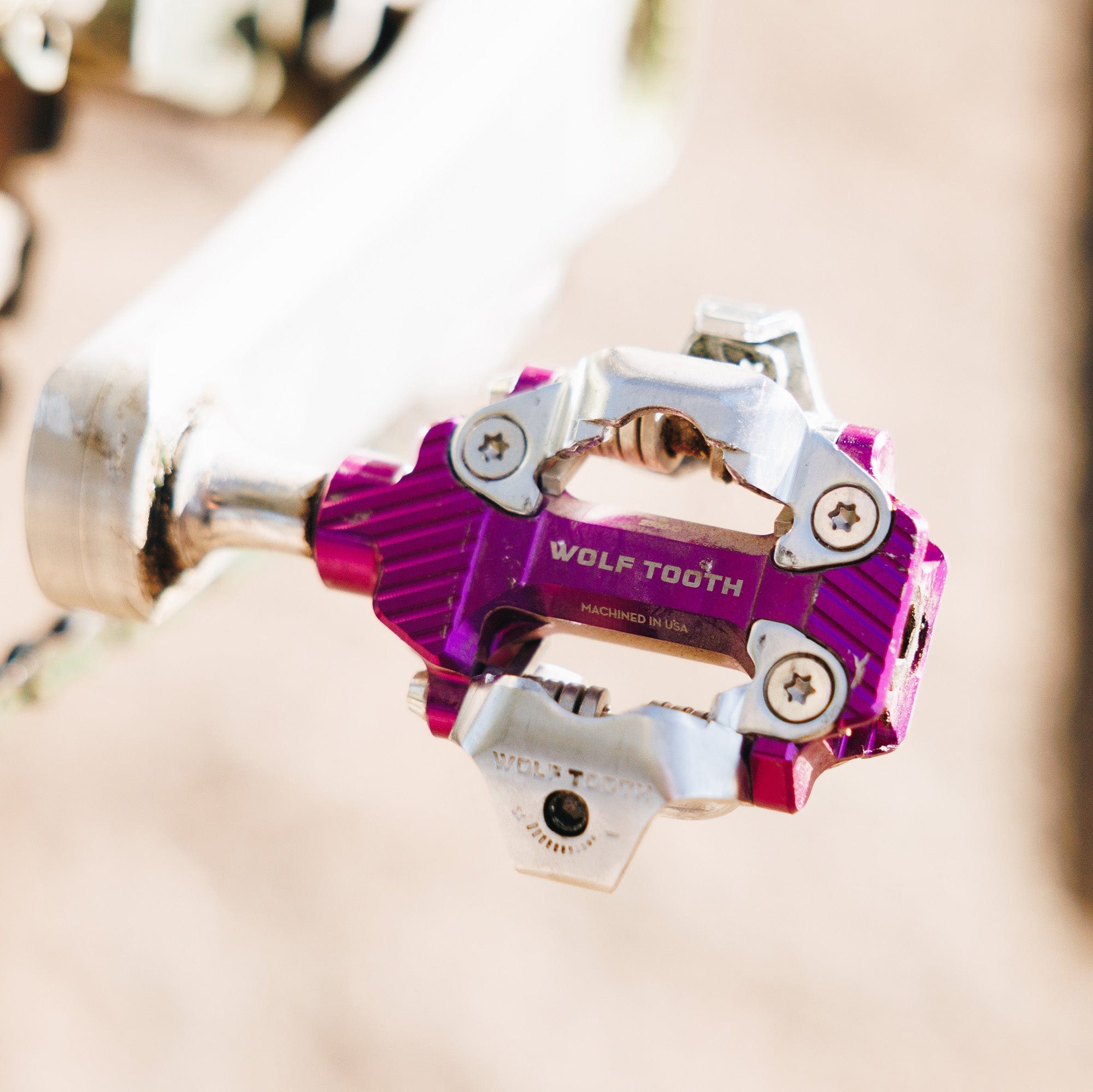

The large platform area maximizes pedal and shoe contact. This creates unprecedented control and power transfer for XC pedals. With many XC pedals, the only point of contact between the shoe and pedal is the cleat and cage, where it can feel like pedaling on a golf ball. With ALT XC Clipless Pedals, the shoe contacts the pedal body for enhanced performance on gravel and trails alike.

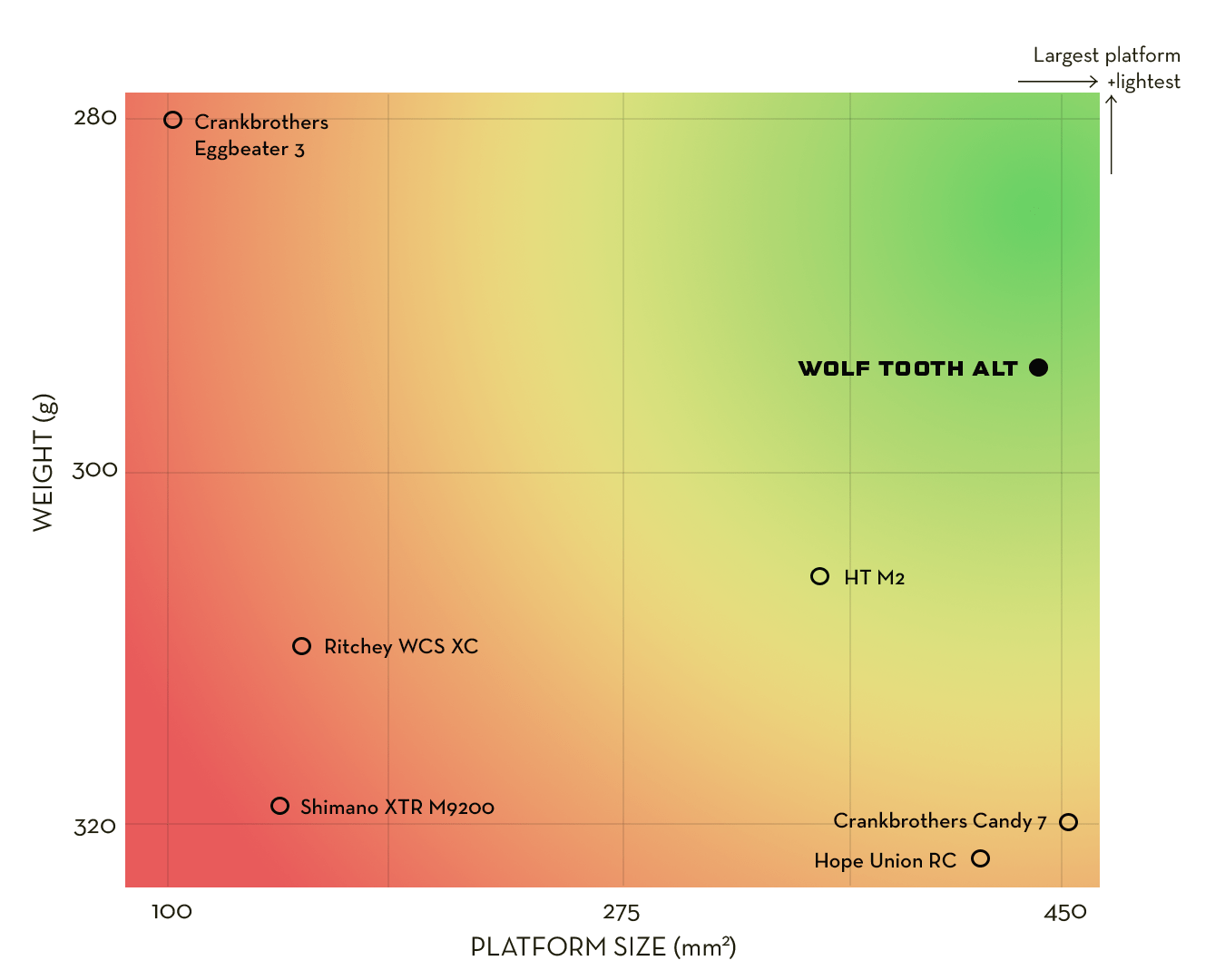

Best In Class
ALT XC Clipless Pedals are lighter, feature more platform area, and have a thinner pedal body than the competition for maximum control, power transfer, and ground clearance.
Stainless Durability
These pedals will outlast your bike. The stainless steel binding assemblies and axles create strong, rust-free pedals that are ready to ride hard on the nastiest dirt on the map.
Crisp SPD Clipping
Clipping in and out needs to be simple, quick, and reliable. The ALT XC Clipless Pedals feature an SPD-compatible stainless steel binding that will work with your existing SPD cleats. They are optimized for the Wolf Tooth cleats that are included in the box. We improved the clipping experience so you can swiftly clip in at the start of the race, stay clipped in when it matters most, and unclip as quickly as needed.
Adjustable Q Factor
Adjusting the Q factor (pedal stance width) moves the pedal toward or away from the center of the bike. The ALT XC Clipless Pedals have Q factor options of 51, 55, and 59mm to fine-tune your fit. Most XC clipless pedals have a stock Q factor around 55mm. Adjusting Q factor is simple enough to do at home.

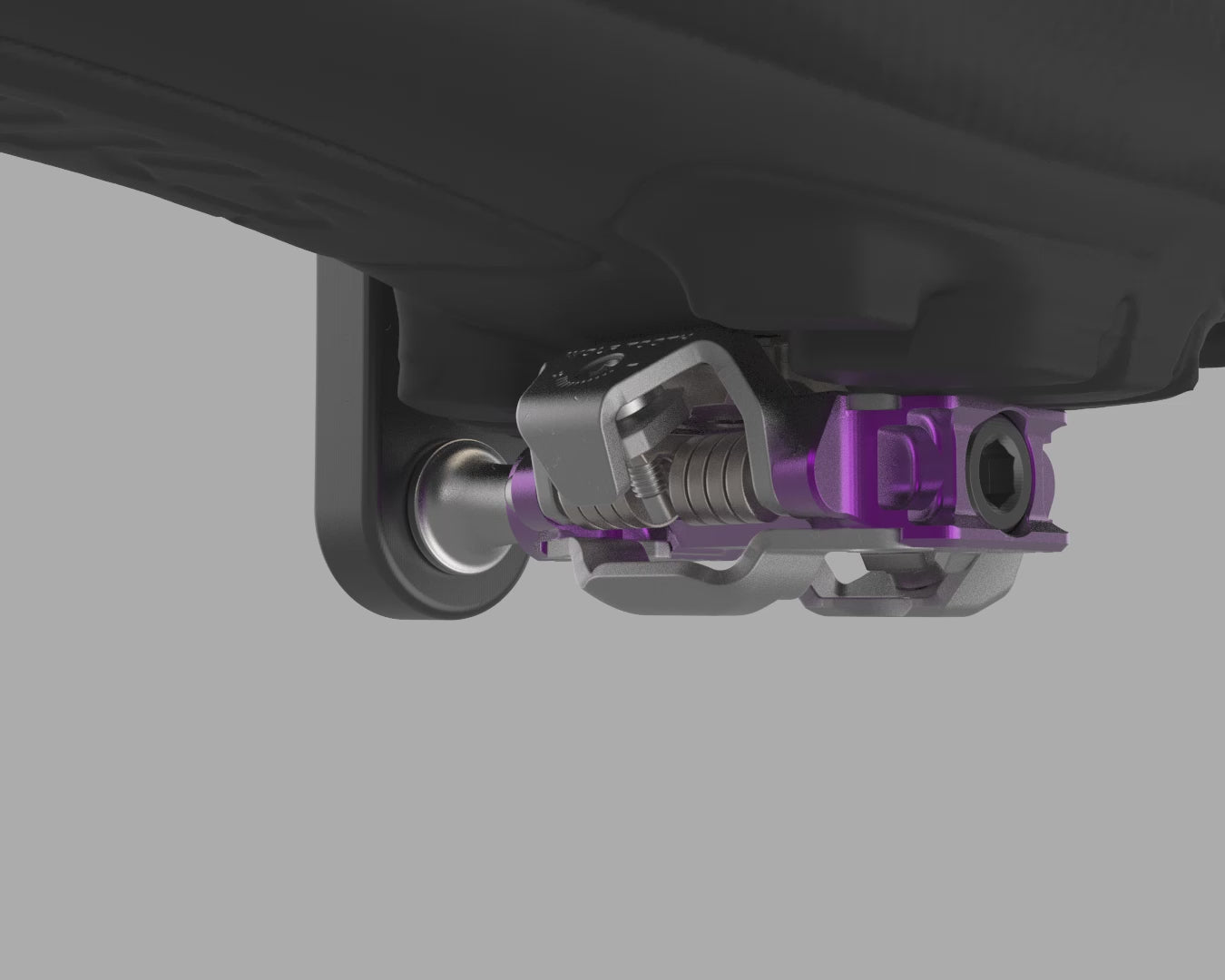

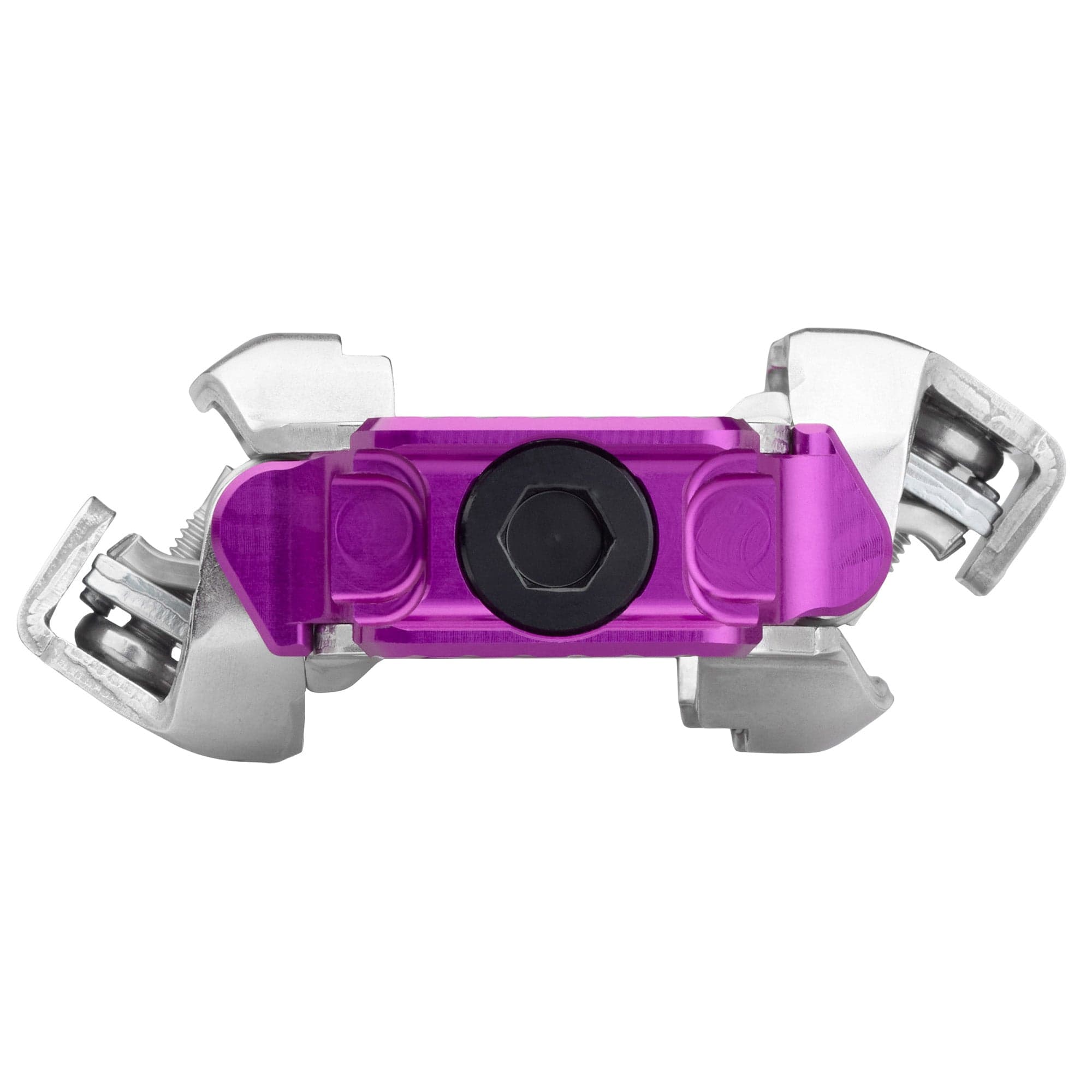

Ground Clearance and Mud Shedding

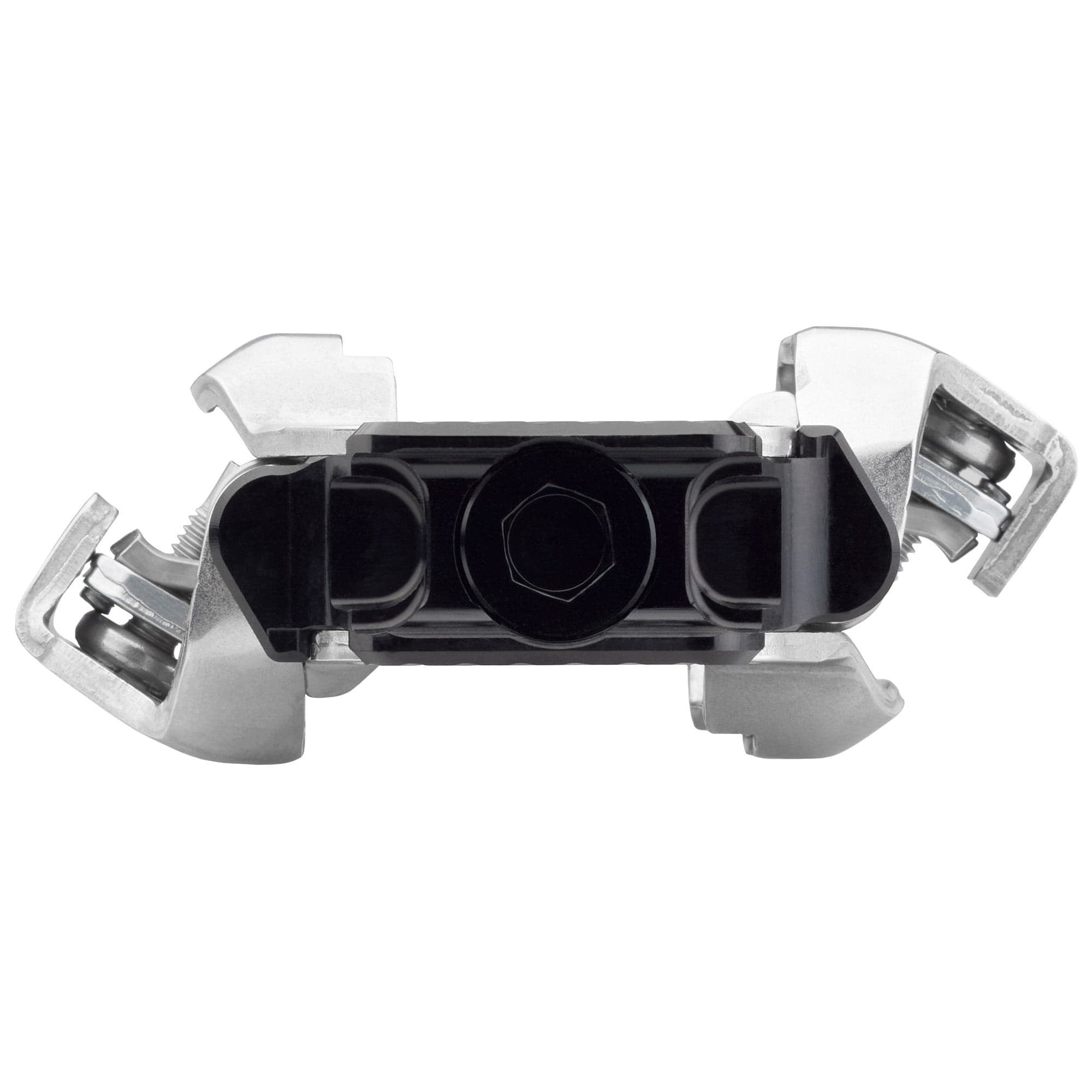

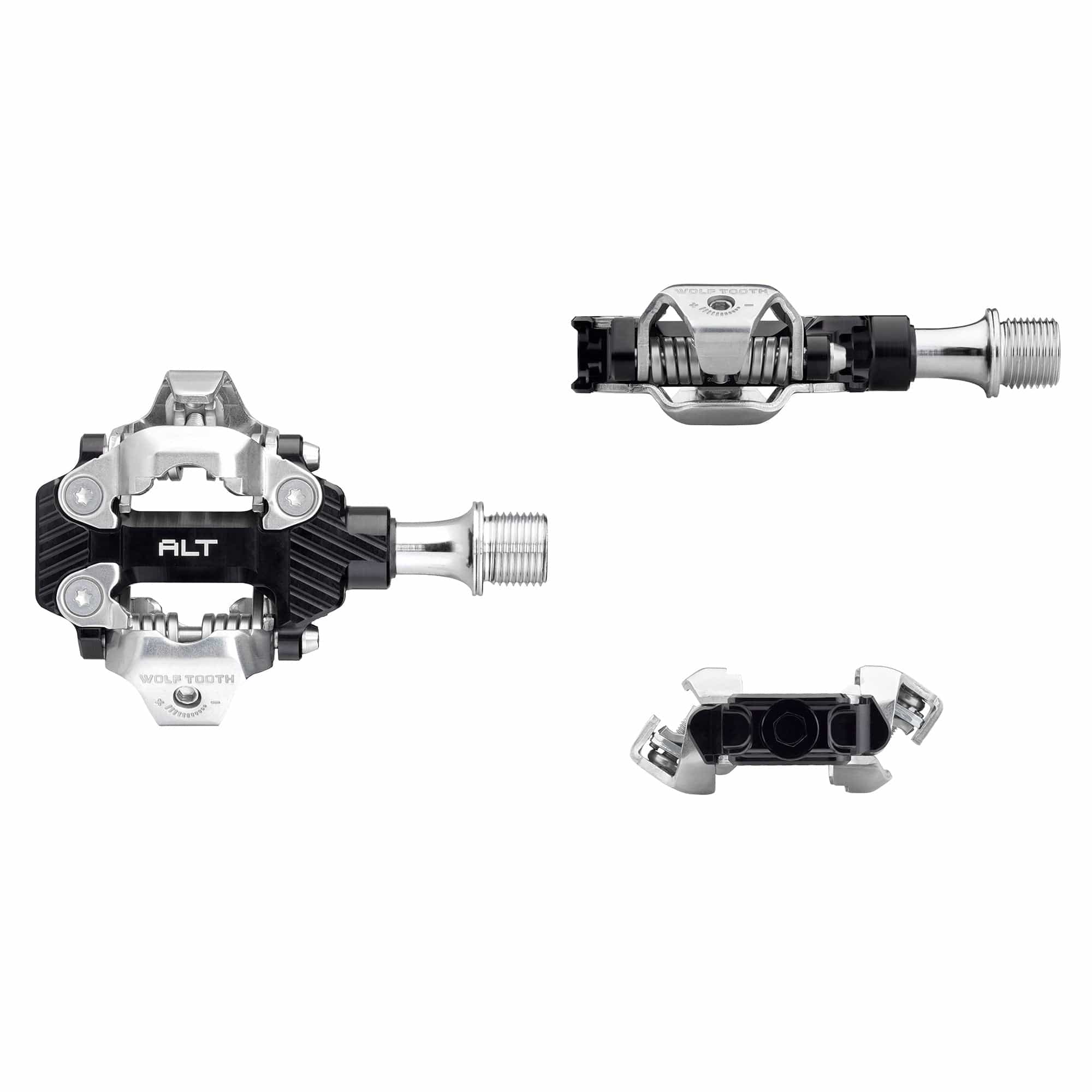

We designed ALT XC Clipless Pedals with a thin profile and open center. A thin profile means a reduced chance of pedal strikes when cornering or riding over rocks and roots. The open center quickly sheds mud that can interfere with clipping in and out to ensure that your clips and unclips are quick and reliable.
Reliable Construction
ALT XC Clipless Pedals feature machined components from Wolf Tooth HQ here in Minnesota, USA. The internal components use the same proven design from our popular Waveform Aluminum Pedals, including a machined stainless steel axle, three low-friction cartridge bearings, and one igus bushing with a custom radial seal that protects internal components from trail debris. Simply put: these pedals will perform in any/all conditions.
Machined And Assembled In USA

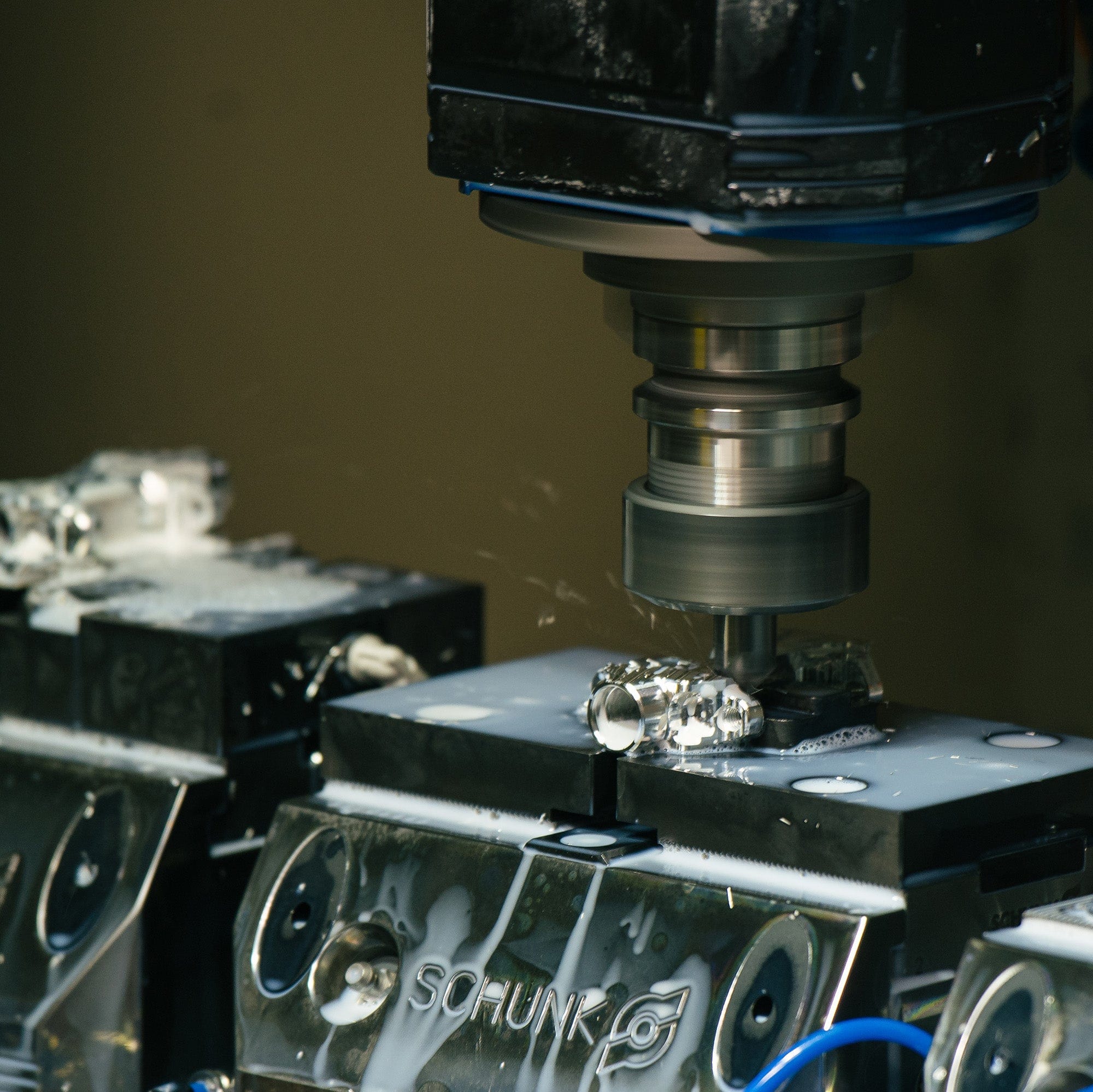

ALT XC Clipless Pedals are CNC machined here in our Minnesota machine shop.

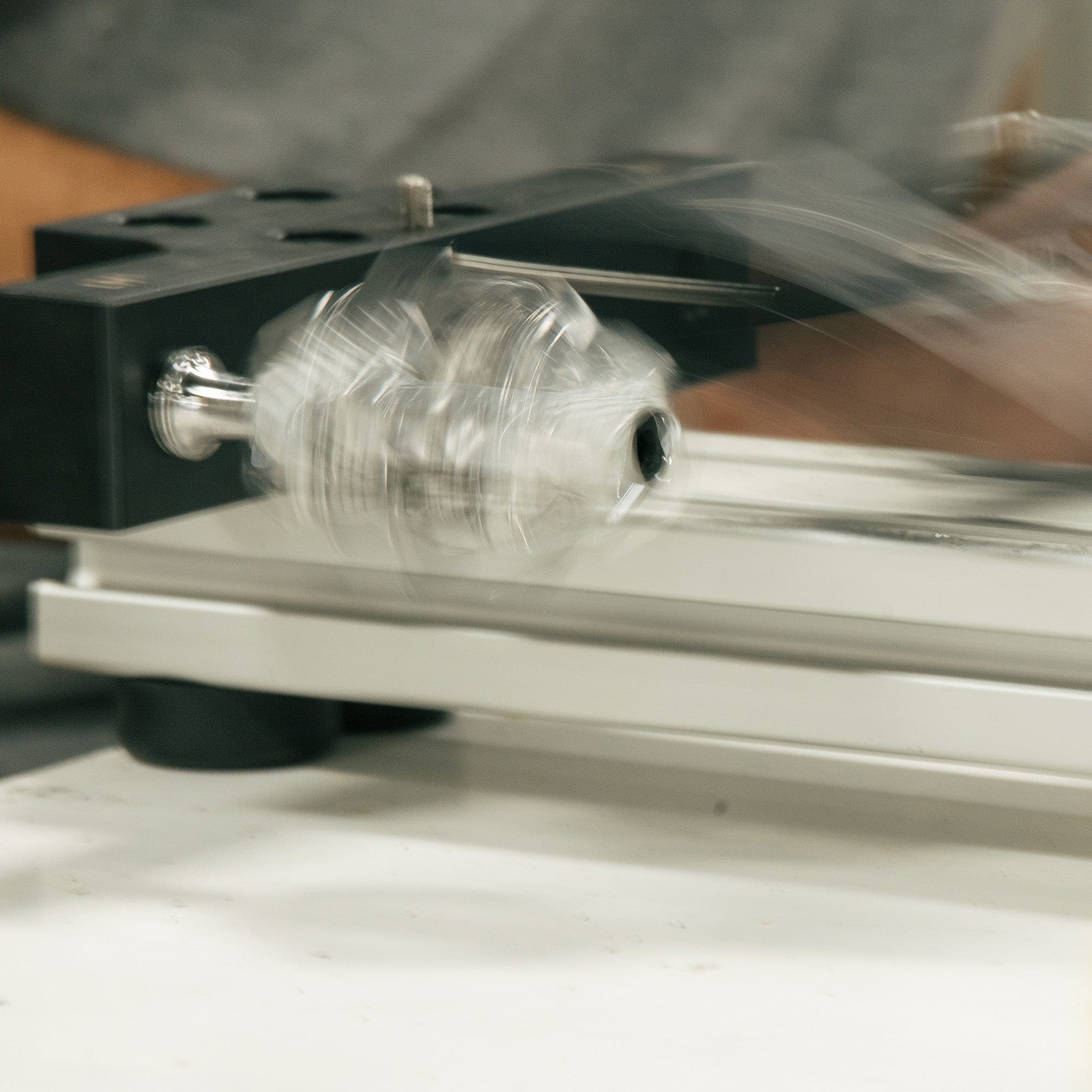

Exceeds All EN/ISO Safety Standards

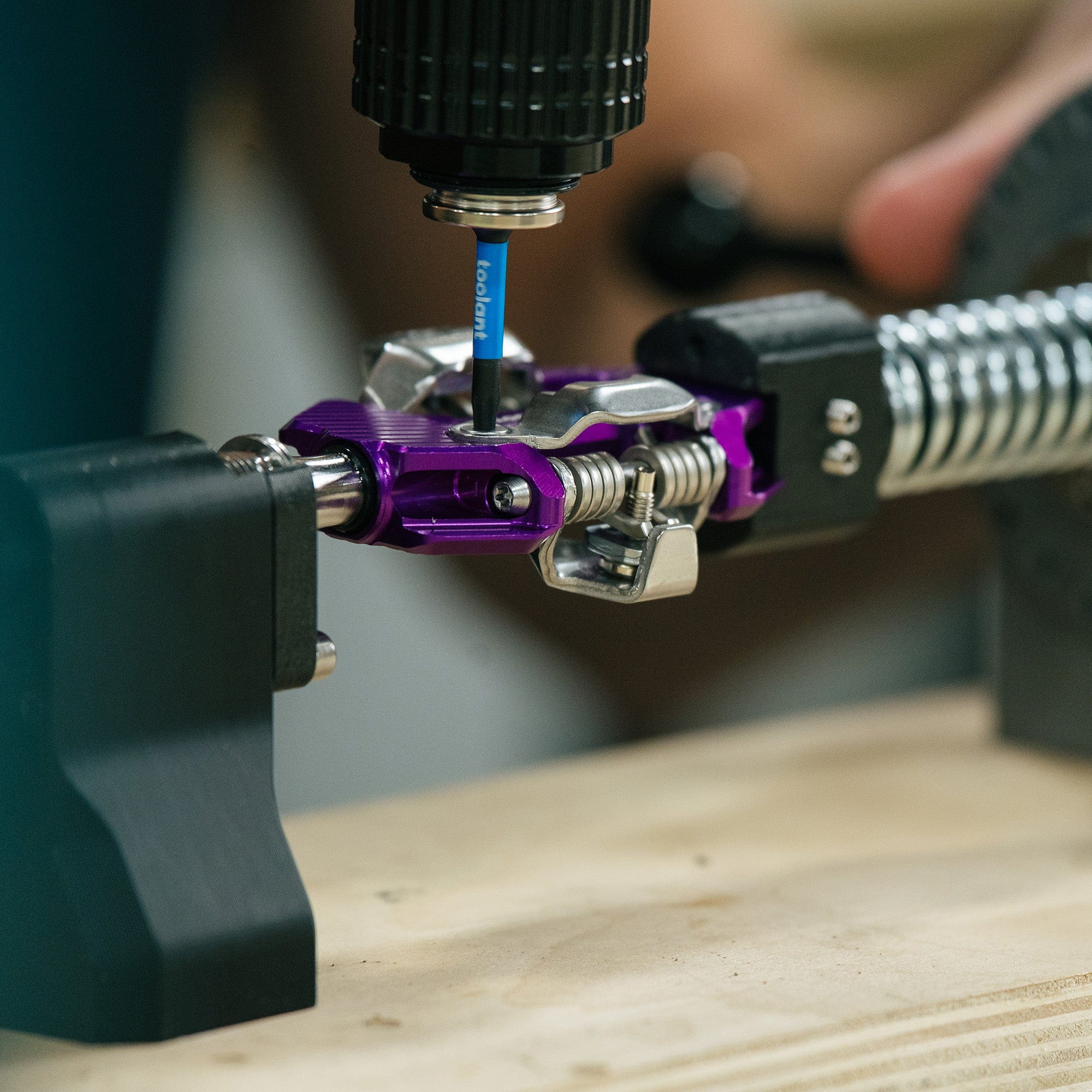

Safety is paramount. ALT XC Clipless Pedals have undergone strenuous static and fatigue stress tests that exceed EN/ISO safety standards.
5-Year Warranty
ALT XC Clipless Pedals are warrantied for defects in material or workmanship for a period of five years from the date of purchase.
We believe in your right to be able to fix your components. Crashes happen, parts get misplaced, things go bump in the night. All individual parts are available as replacement parts.
100% USER SERVICEABLE
Service for ALT XC Clipless Pedals is simple and can be done at home.
REPLACEMENT PARTS AVAILABLE
Each of the components of ALT XC Clipless Pedals can be purchased separately, from the body to the bearings.
SERVICE TUTORIALS
An owner’s manual and video guide are available so you can disassemble, service, and reassemble ALT XC Clipless Pedals.
Wolf Tooth ALT XC Clipless Pedals are designed for commanding performance on trails and gravel roads. These pedals are simultaneously lighter and thinner than their Shimano, Hope, and HT counterparts, with an exceptionally low stack height, while also having more platform area for control and power transfer. This body design also features a more open center for better mud clearance than other clipless bike pedals. The SPD-compatible clip-in/out experience is quick and precise, with Wolf Tooth cleats included.

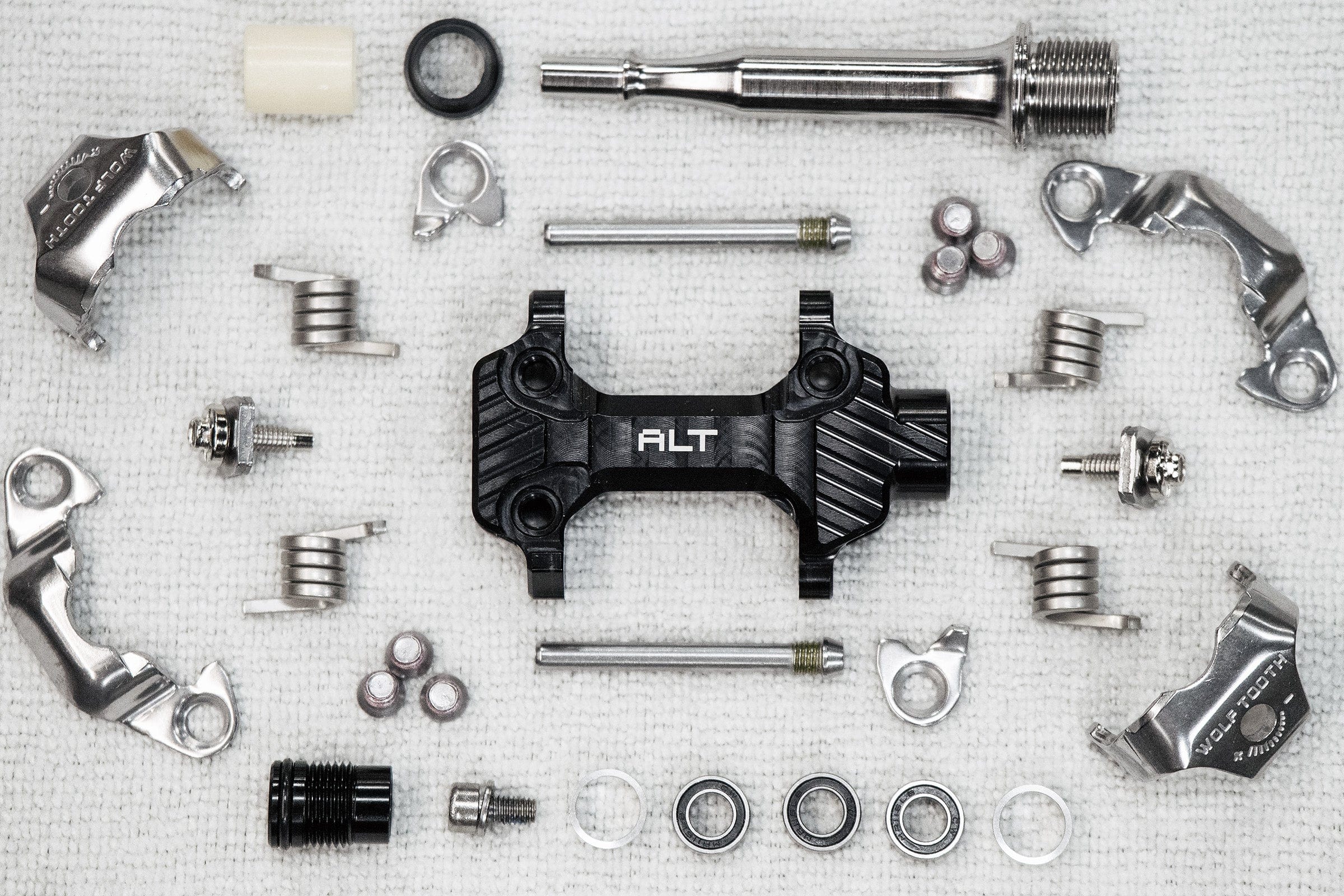

The ALT XC Clipless Pedals have an adjustable Q factor in 4 mm increments. Inside the pedal is a stainless steel axle, three bearings, and two spacers. The spacers and bearings can be rearranged for Q factors of 51, 55, or 59 mm. This is simple enough for anyone to do at home. A spacer kit including 4x 2mm spacers is available for purchase to further fine tune Q Factor adjustment. Like most Wolf Tooth components and accessories, replacement parts and service guides are available via Wolf Tooth Right to Repair.
- Thinner than the competition at 15 mm (compared to Shimano XTR 9200 at 16.5 mm, Hope RC at 18 mm, and HT M2 at 17.6 mm)
- Lighter than the competition at 294 g (compared to Shimano XTR 9200 at 316 g, Hope RC at 322 g, and HT M2 at 306 g)
- Larger platform area than the competition at 345 mm² (compared to Shimano XTR 9200 at 144 mm², Hope RC at 420 mm², and HT M2 at 357 mm²)
- Adjustable Q factor options of 51, 55, and 59 mm
- Proven axle and bearing design from Waveform Aluminum Pedals
- Designed, tested, and machined at Wolf Tooth in Minnesota, USA
Recommended
- Apply WT-G Precision Bike Grease to the pedal threads before installing pedals on crankarms.
Compatibility
- Compatible with SPD cleats; Wolf Tooth cleats included
- Fits all standard cranks with 9/16-20 tpi right- and left-hand threads – some kid’s bikes and vintage bikes may have smaller incompatible threads.
Tech Specs
Weight: 294g
Material:
Body: 6061-T6 aluminum CNC machined
Axle: heat-treated 17-4 PH stainless steel
Binding Cage: stainless steel; Hardware: stainless steel

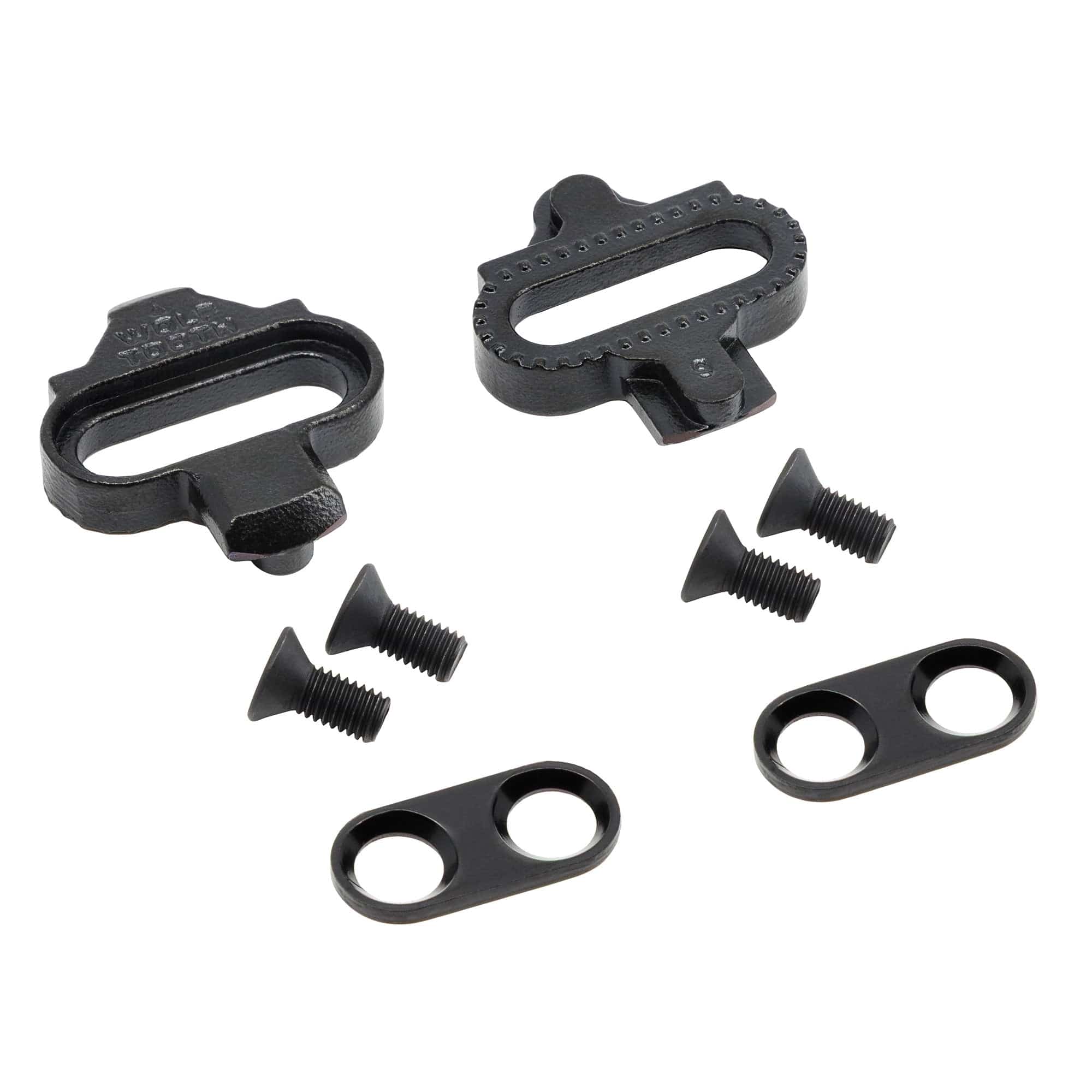

Included: Right and Left Pedal, 2 cleat sets (with shims and bolts)
Made in the USA
