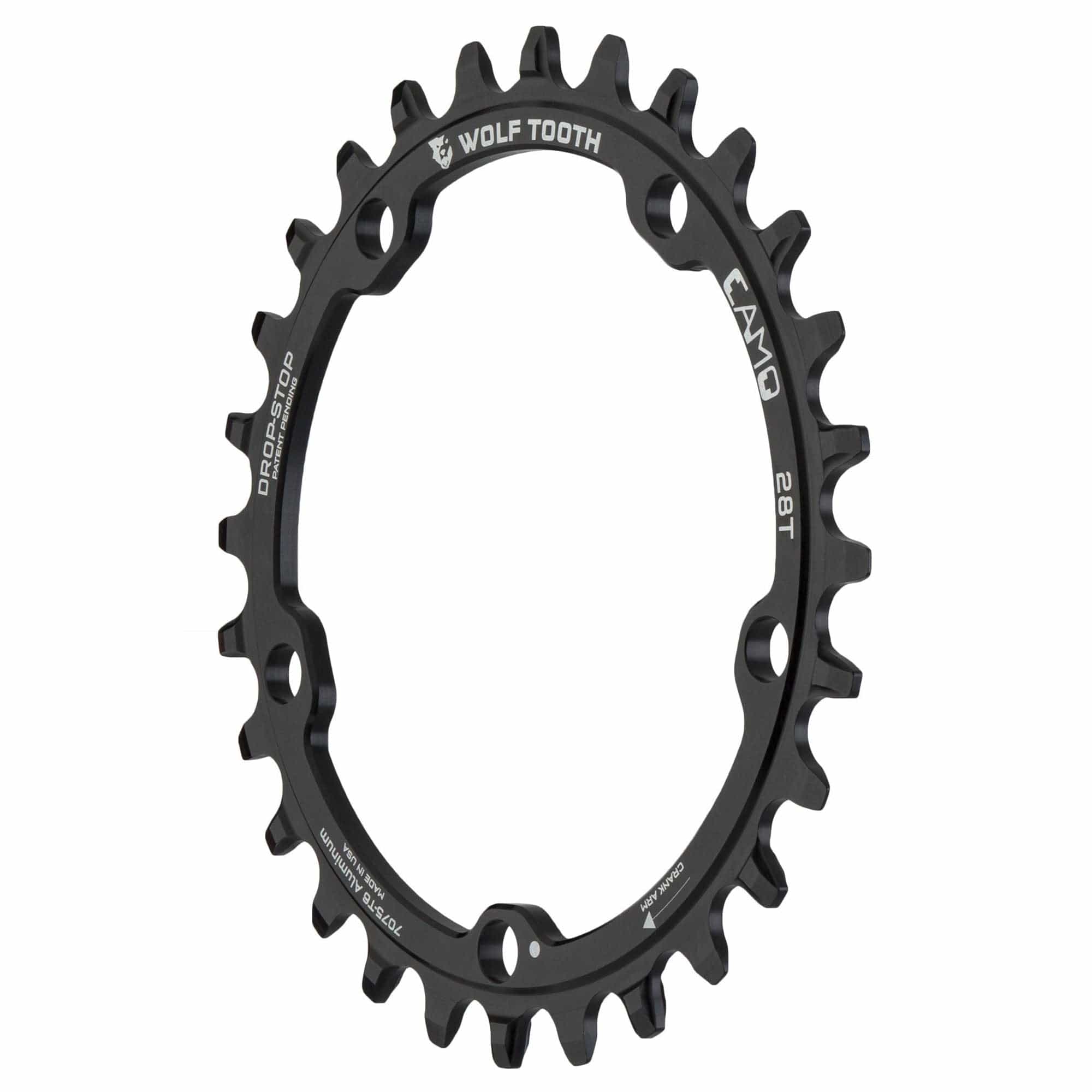

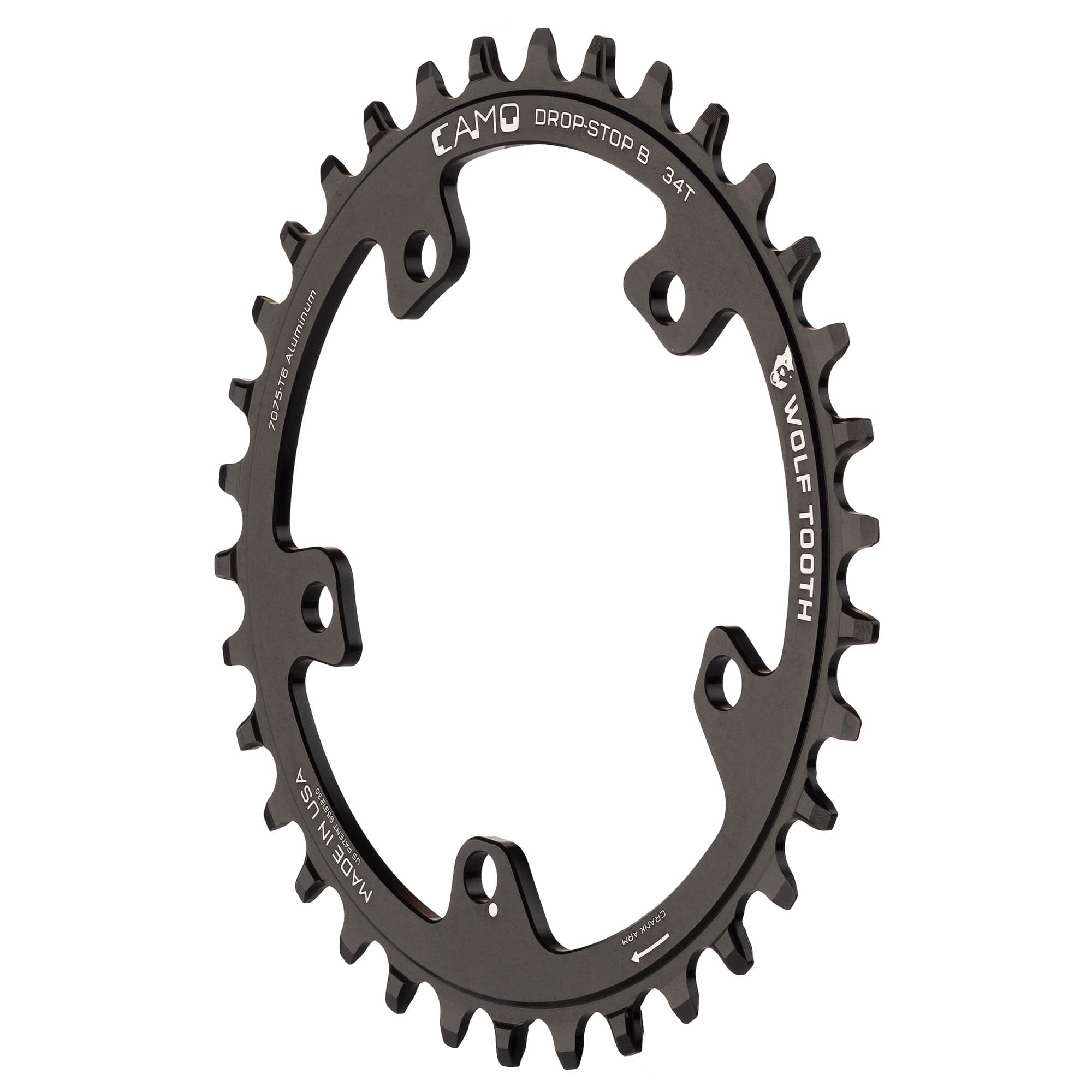

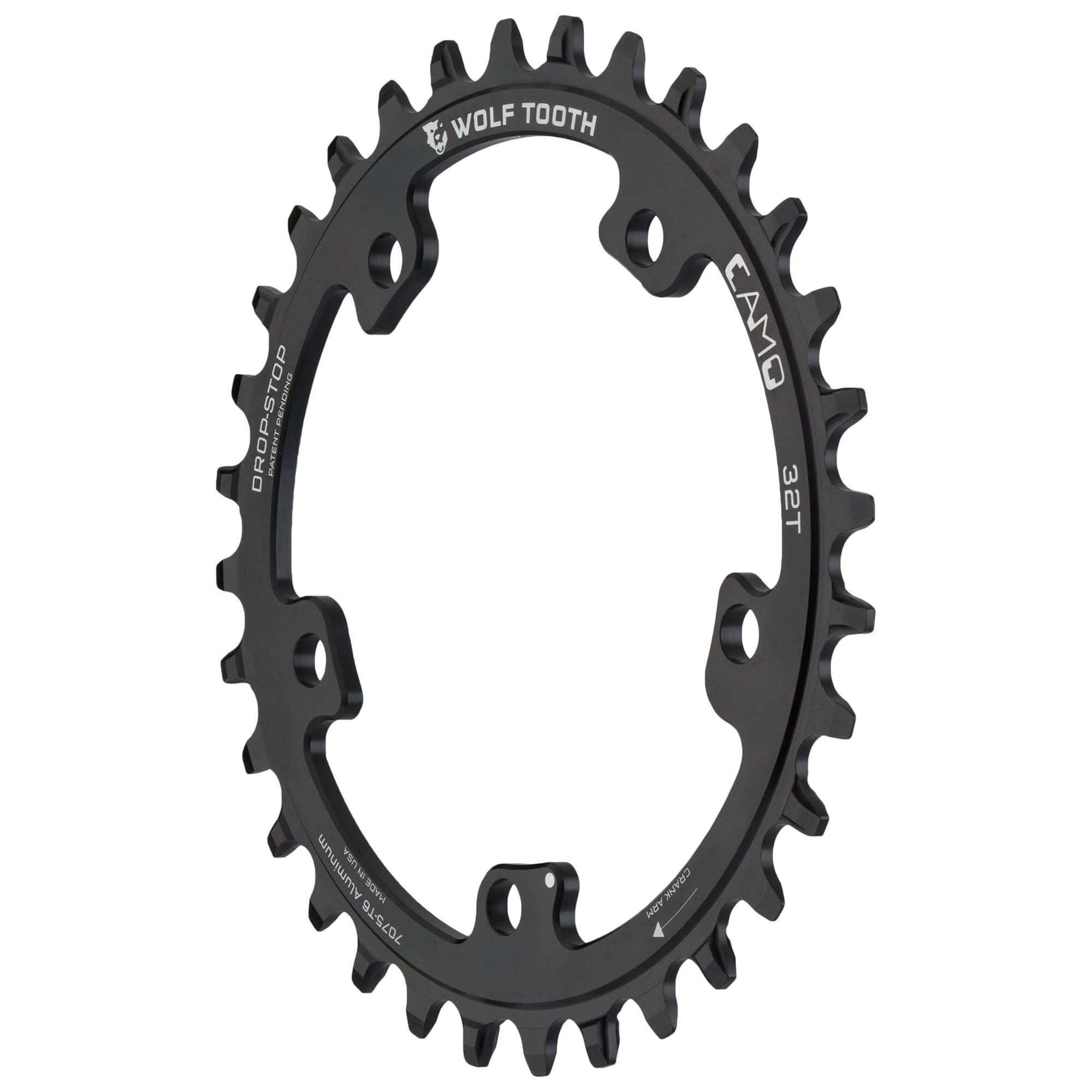

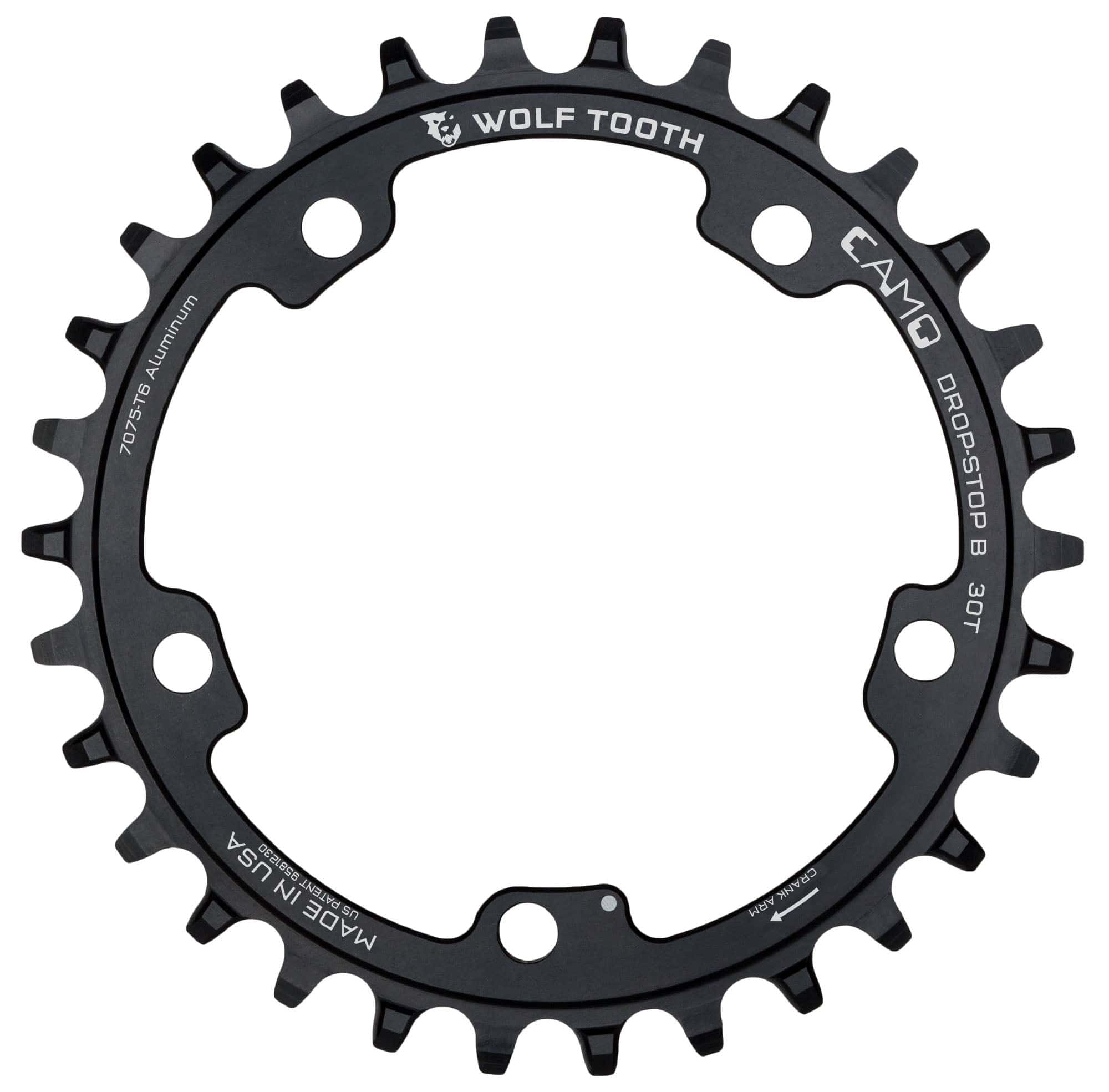

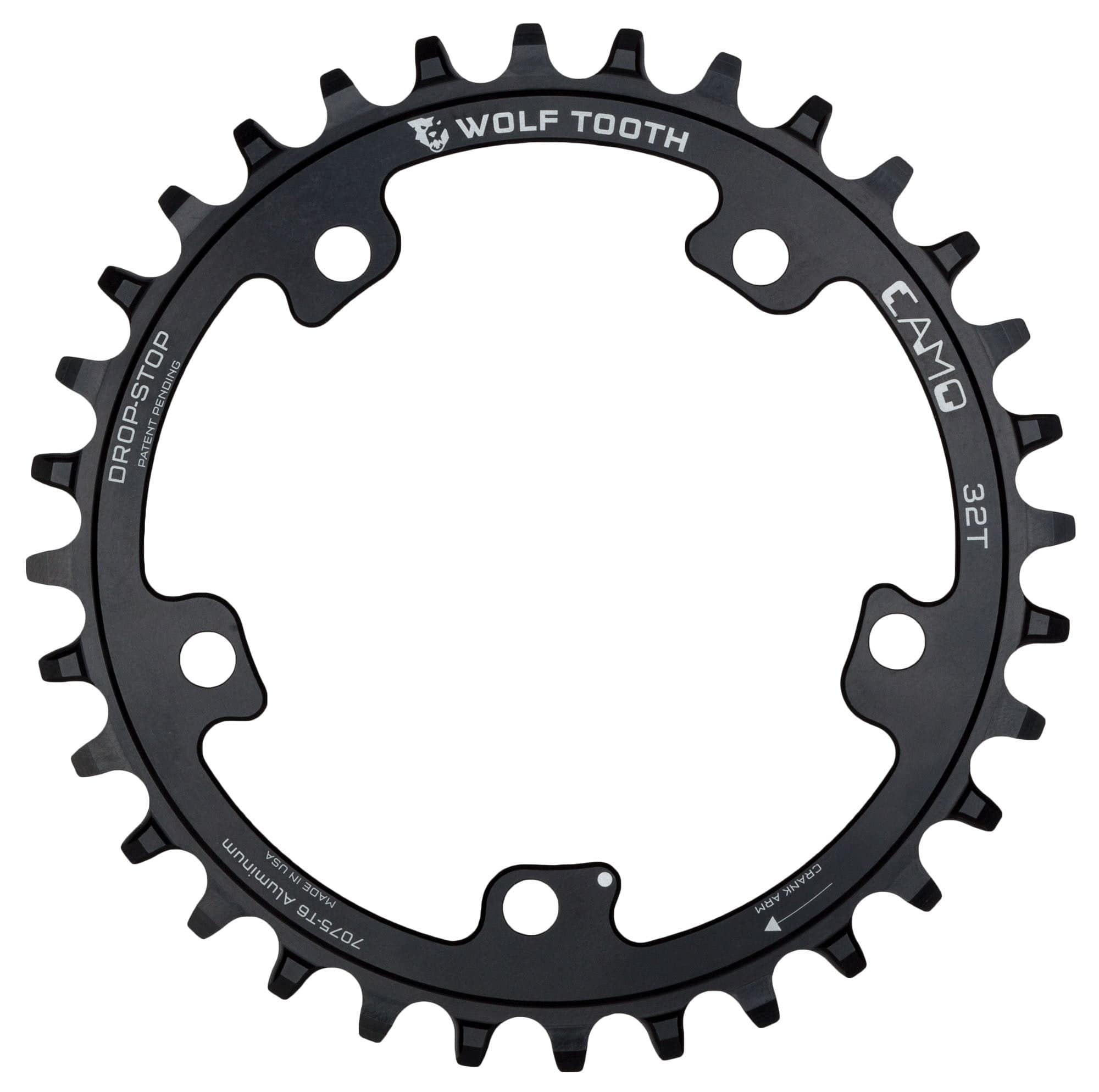

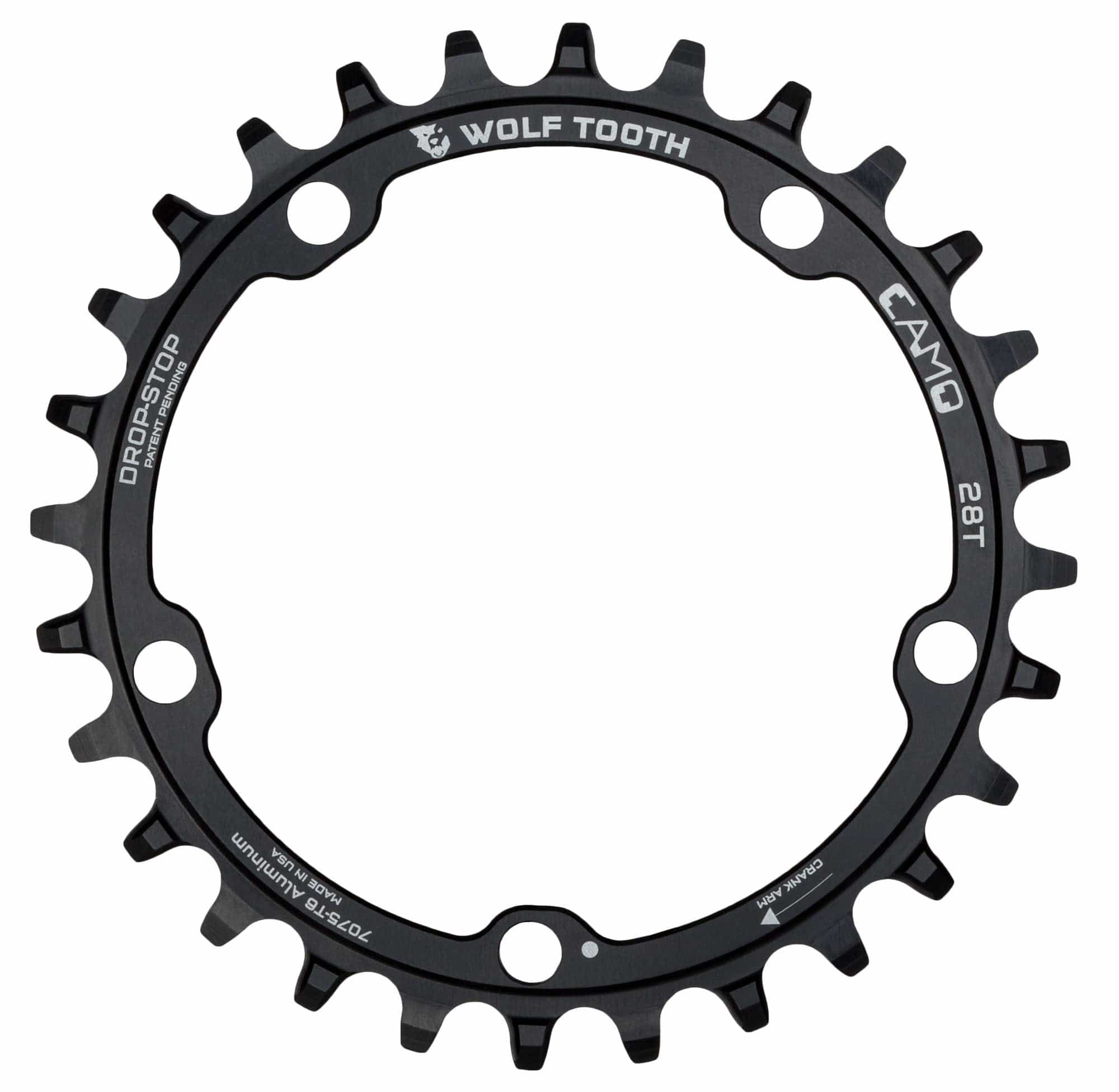

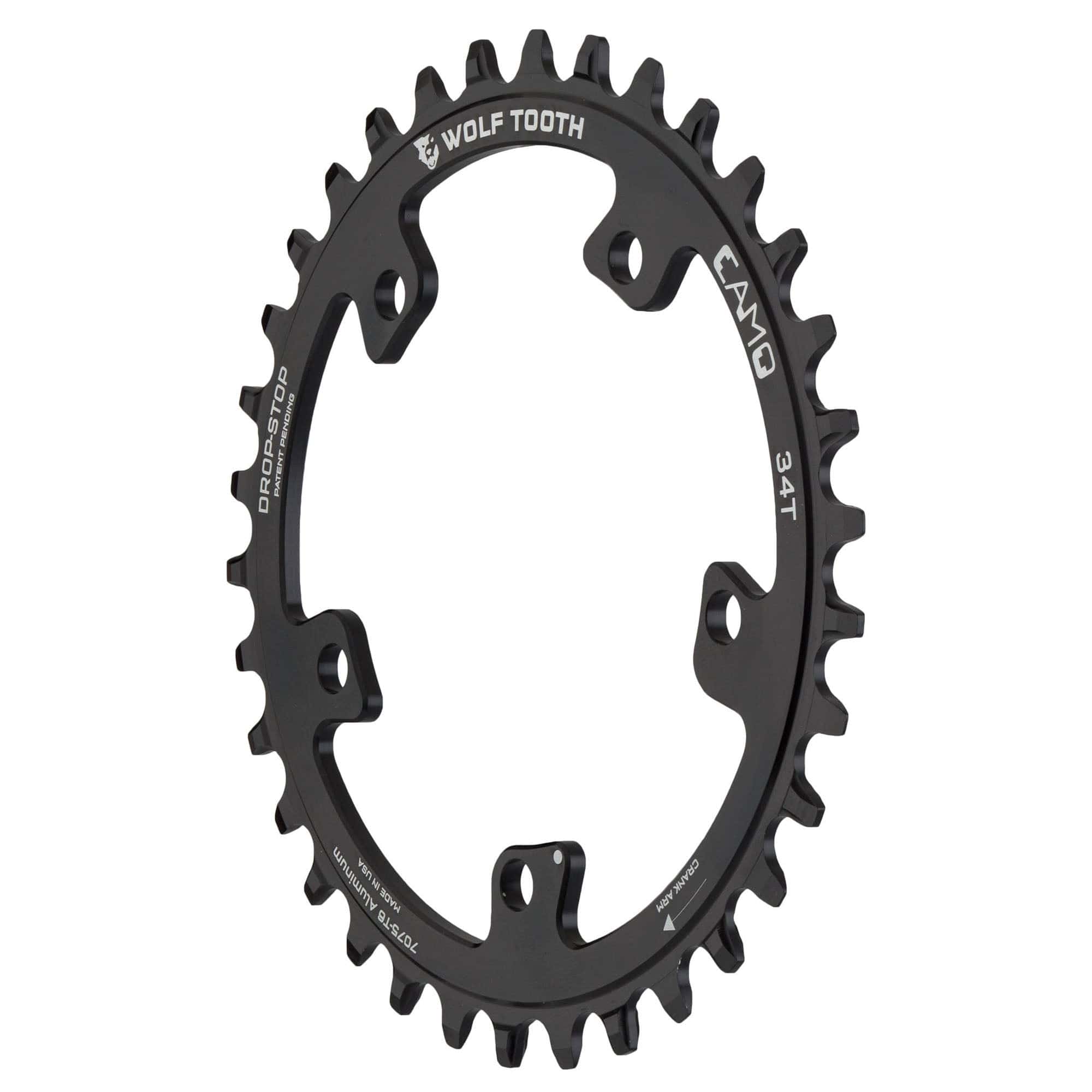

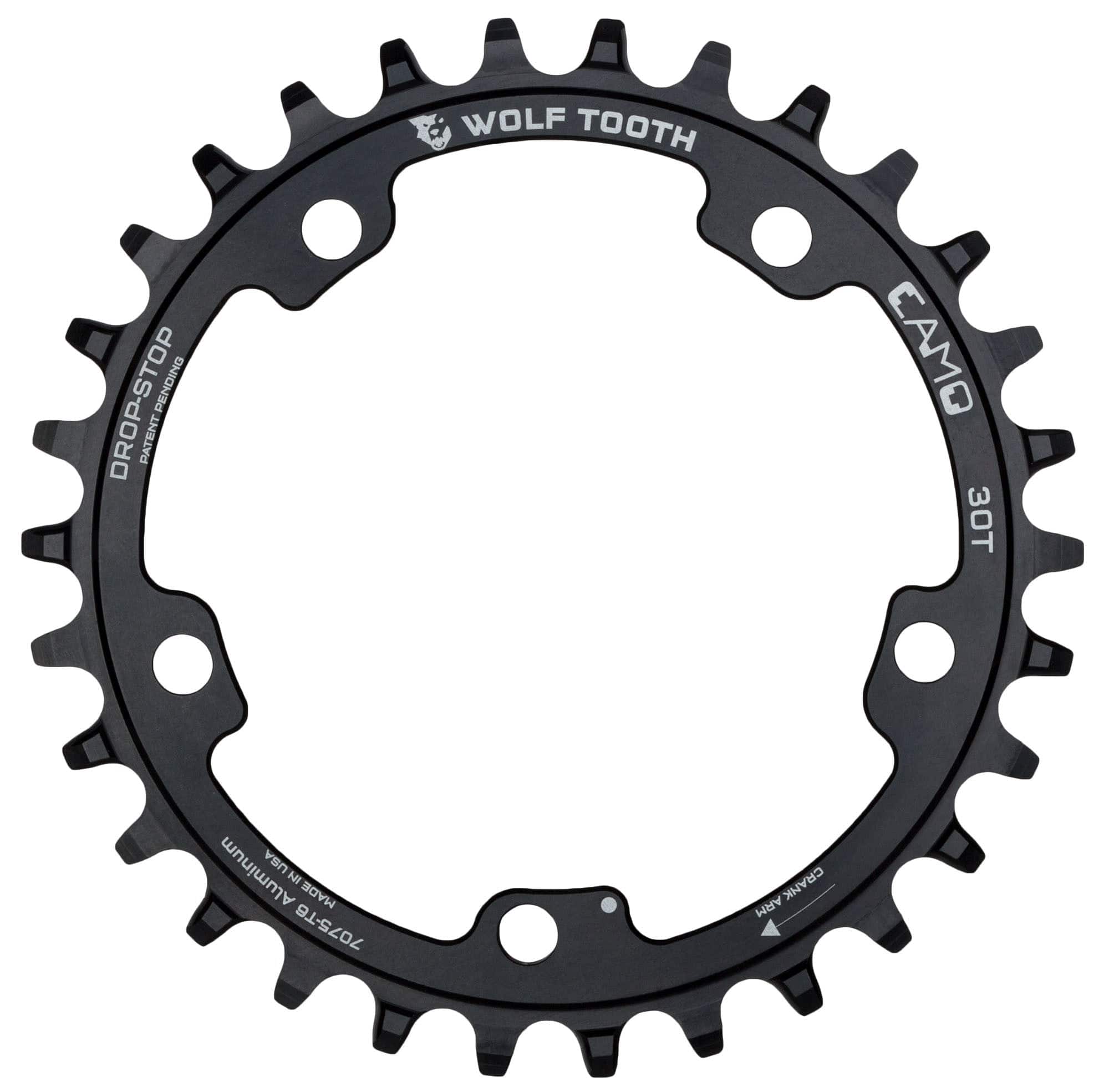

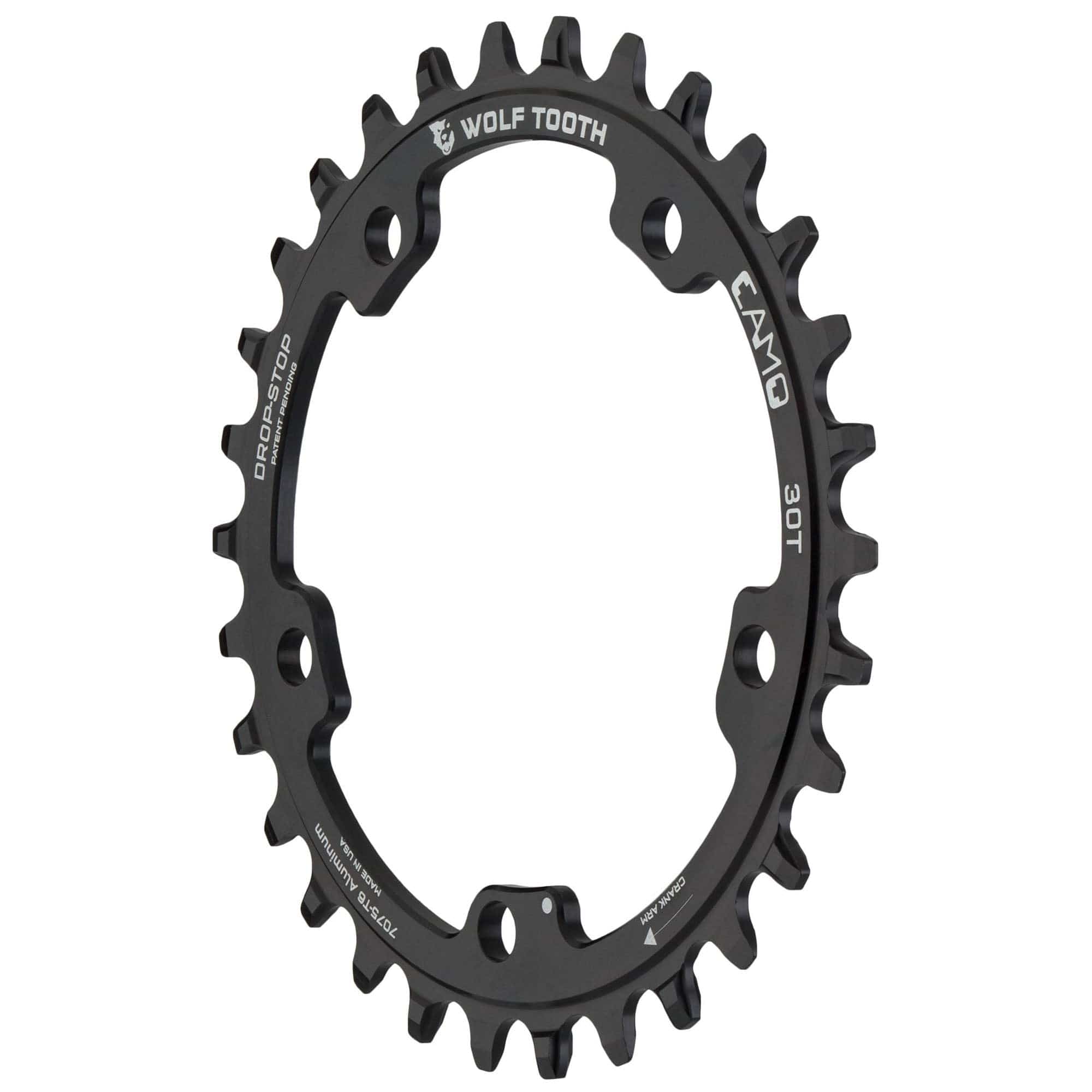

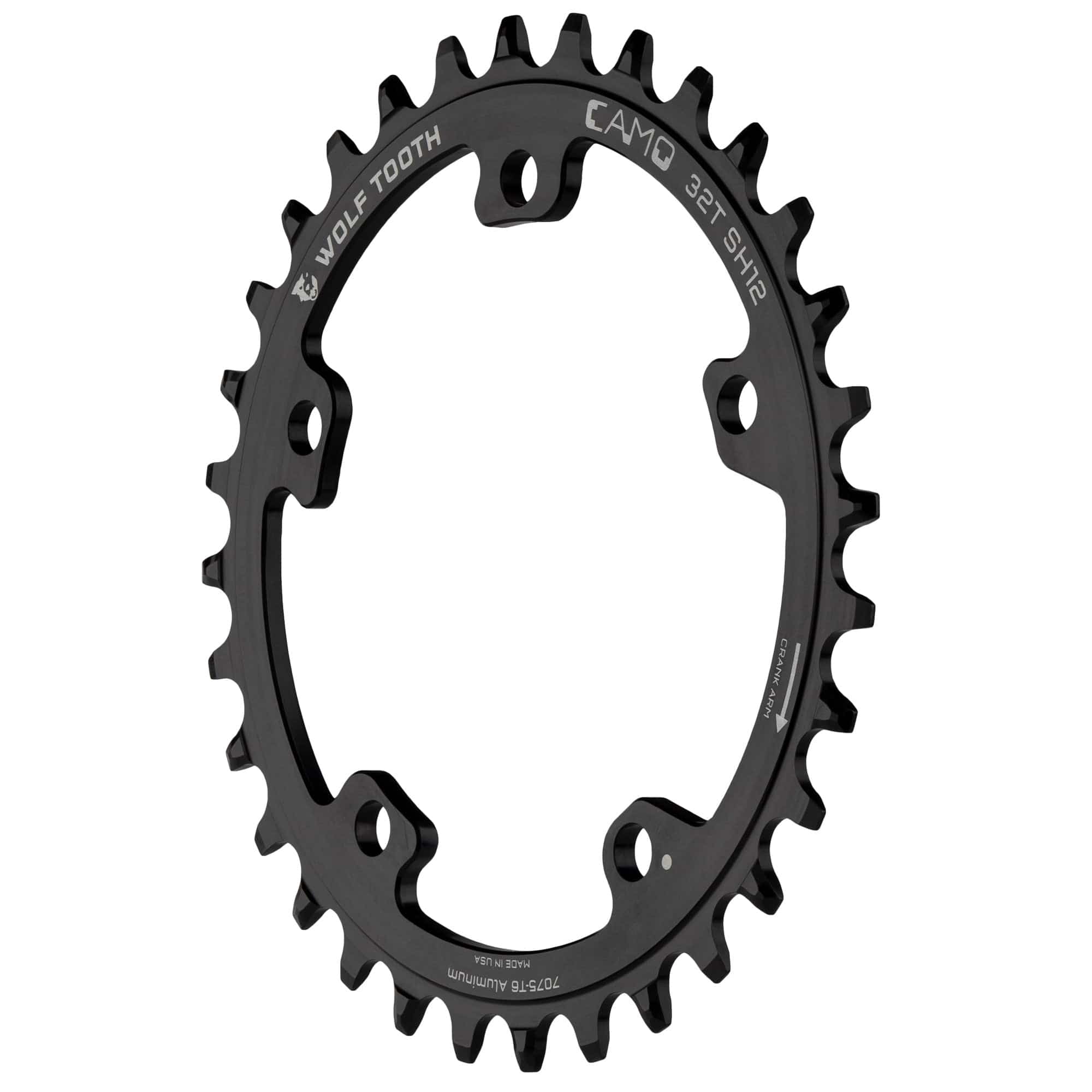

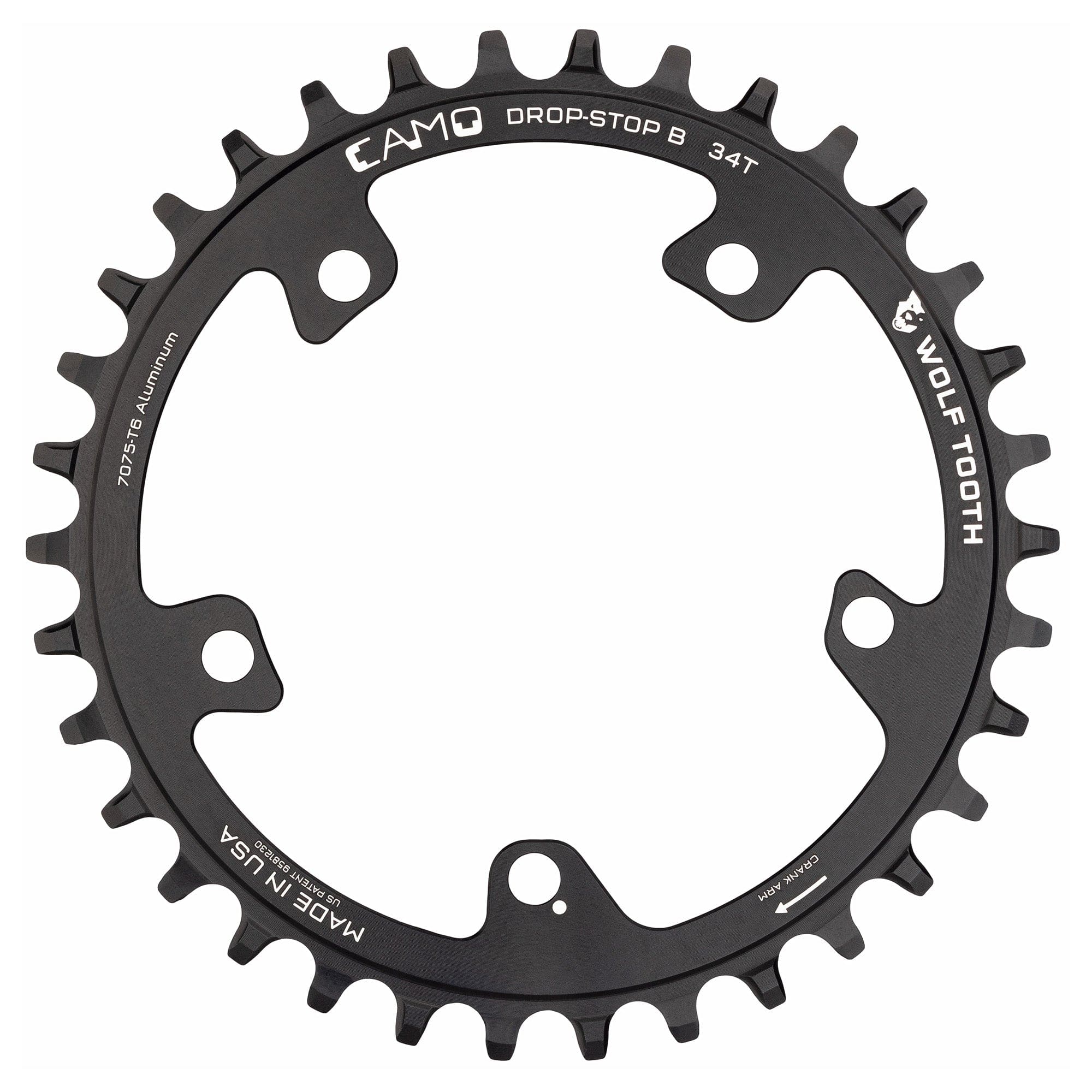

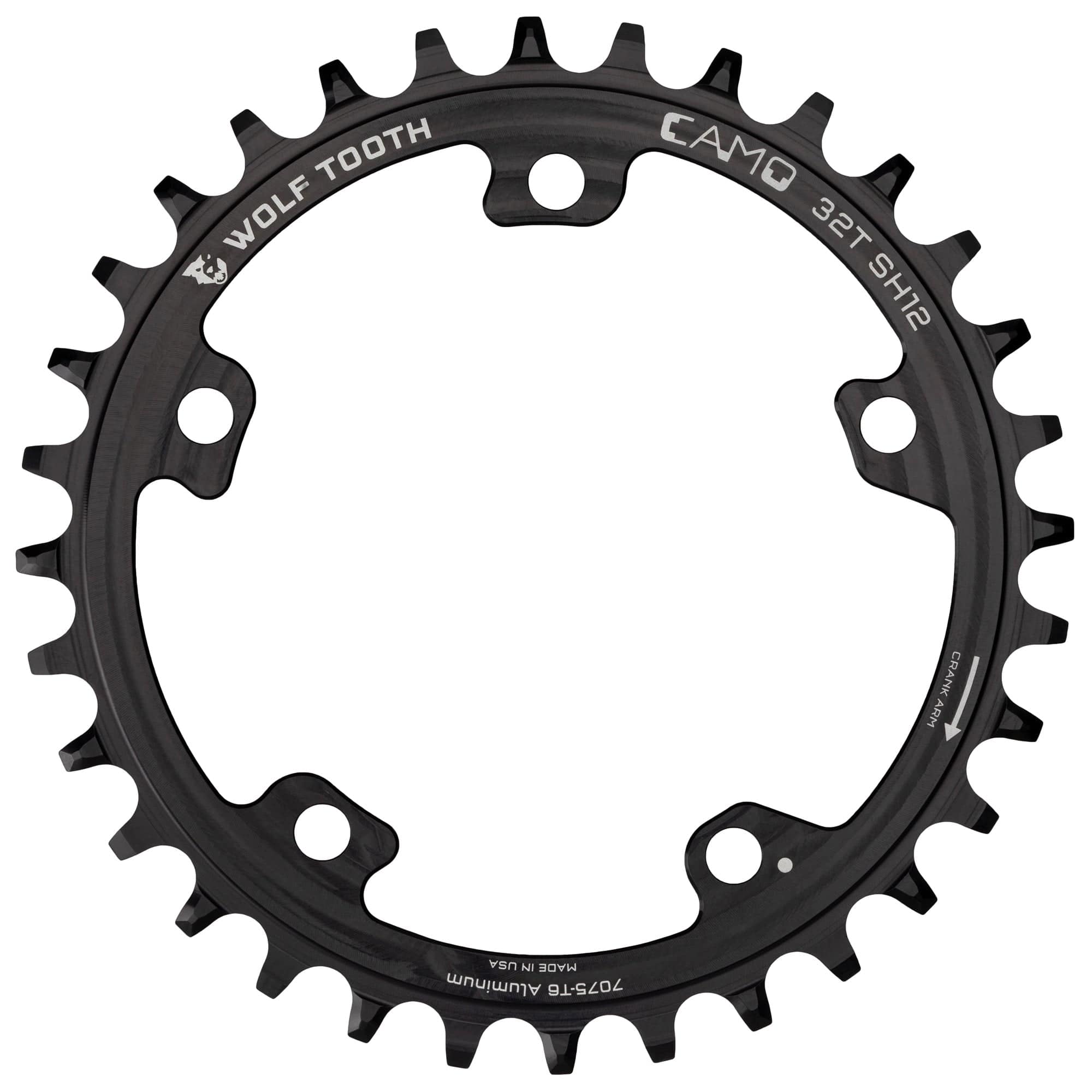

CAMO Aluminum Round Chainring
CAMO-AL28-B
Pairs well with
CAMO Aluminum Round Chainring

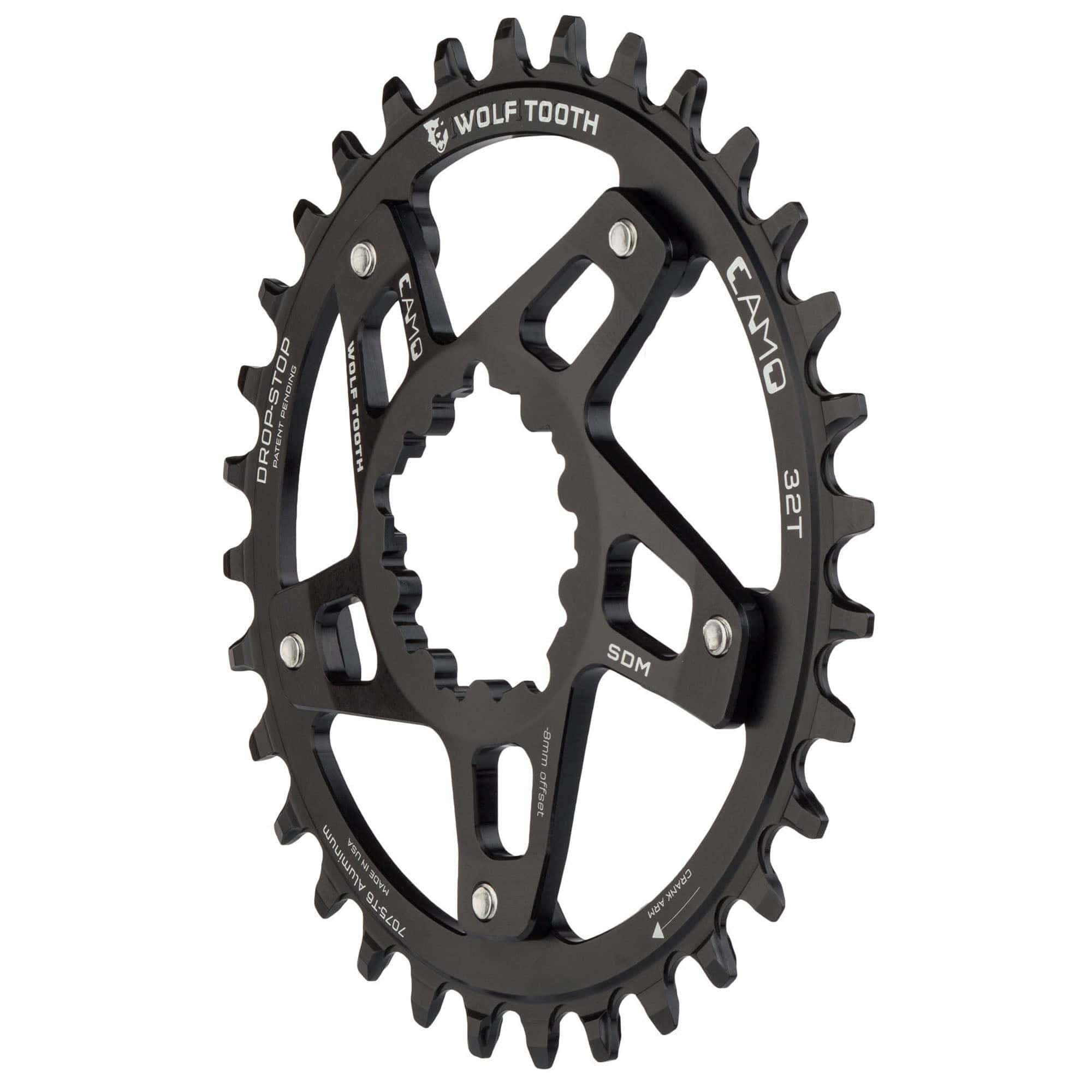

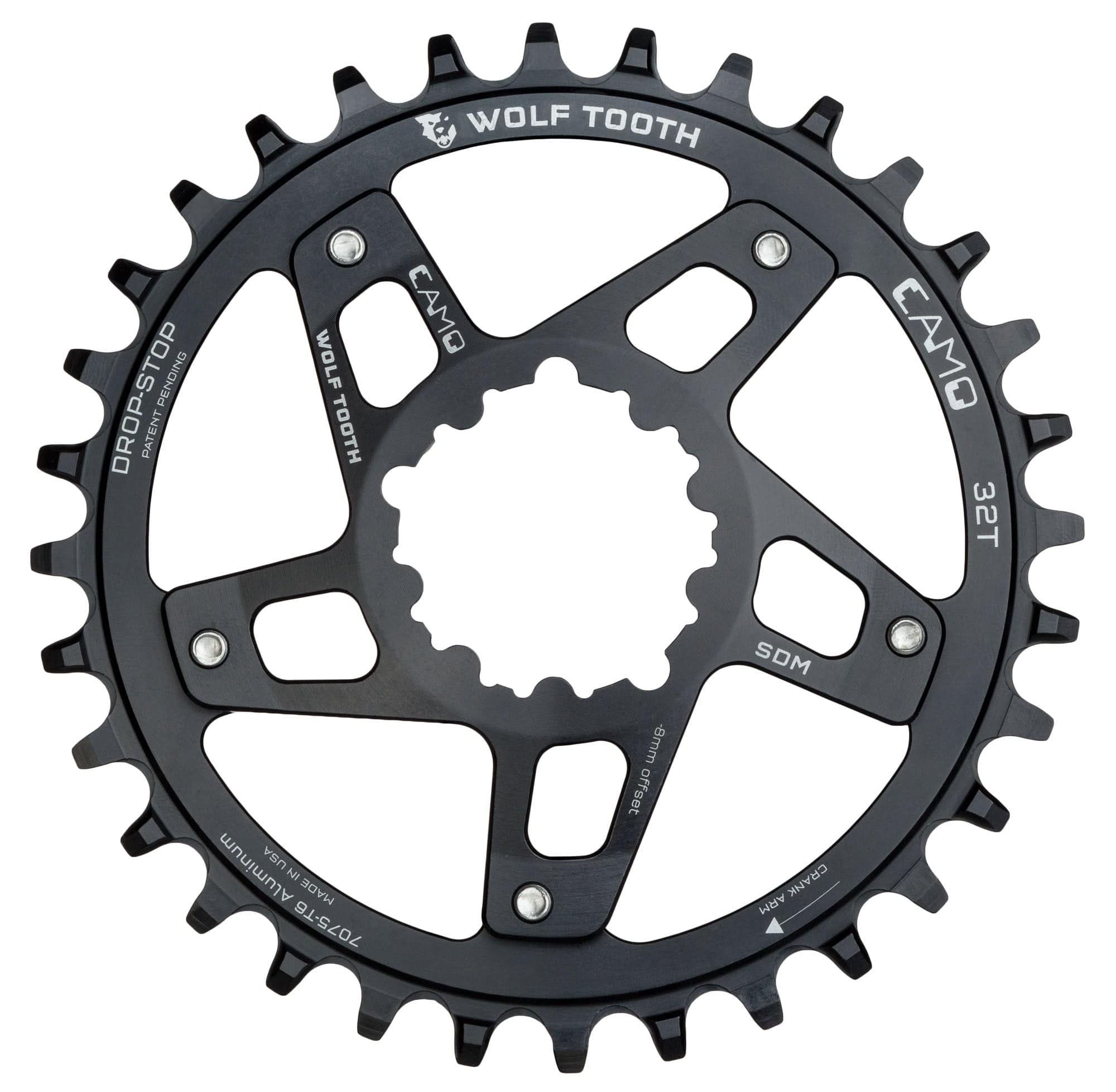

Note: This is a CAMO Chainring ONLY. A CAMO Spider is required to complete this system.
The CAMO chainring system was created by the Wolf Tooth engineers for Chainline And Material Optimization on direct mount style Chainrings. The key advantages include:
- Perfect chainline - for wear and shifting precision
- Optimal material usage - for weight, stiffness, and wear
-
Price - for less expensive replacement chainrings
-
Swapping - Very fast chainring change out with 5 small bolts and no nuts
-
Availability - Wolf Tooth is the one-stop-shop for your direct mount needs...round or oval, stainless or aluminum, and no matter the crankset
-
Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
Compatibility
- This is a chainring for the Wolf Tooth CAMO spiders. It is NOT compatible with any other chainring mountings
- The CAMO spiders come with Stainless Steel Bolts
- For 1x9, 1x10, ,1x11 and 1x12 drivetrains (including SRAM Eagle)
- If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention)
- Chainline - varies by which spider you choose
Installation notes:
- You will be able to access all bolts without removing the spider
- Line up the little dot on the ring with the dot on the spider. Don't worry, you cannot install the ring in the wrong rotational orientation
- Be sure the bosses on the spider "plug in" to the chainring
- Torque bolts only to 4-5 Nm and use blue Loctite threadlocker
Recommended
- A clutch style rear derailleur will be best for chain security.
- If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur. Without these precautions, you may experience chaindrops and/or chainsuck.
Related Products
- CAMO spiders come with stainless steel bolts
- CAMO chainrings - elliptical or round and stainless or aluminum
- CAMO mounting bolts - colored steel bolts
Tech Specs
Weight: 28t • 25g | 30t • 35g | 32t • 41g | 34t • 48g | 36t • 57g | 38t • 66g
Material: 7075-T6 aluminum
Made in USA
Wolf Tooth is committed to provide the most precision components possible and has three different tooth profiles for optimal performance based on your chain type.
| Tooth Profile | |||
|---|---|---|---|
Tooth Profile |
Drop-Stop® B |
Drop-Stop® A |
Drop-Stop® ST |
| Chain Compatibility | |||
Chain Compatibility |
All 9s, 10s, and 11s Chains 12s Chains:
Not compatible with 12s Shimano HG+, 12s KMC, or 13s Campagnolo chains |
All 9s, 10s, and 11s Chains 12s Chains:
You can use Drop-Stop B when Drop-Stop A is not available* Not compatible with 12s SRAM Transmission (T-Type) and Road Flattop, 12s Shimano HG+, 12s KMC, 12s Campagnolo, or 13s Campagnolo chains |
12s Chains:
Not compatible with all other chains |
| Details | |||
Details |
 Tooth shape is nearly identical to Drop-Stop A, but has narrower teeth. Valley between teeth is deeper to accommodate larger rollers on Flattop chain. Outside faces of narrow and wide teeth touch chain to guide alignment. Drop-Stop B Chainrings |
 The original Drop-Stop tooth profile. The wide teeth are wider than Drop-Stop B. Outside faces of narrow and wide teeth guide chain alignment. Drop-Stop A Chainrings |
 Narrower teeth than Drop-Stop A. Wide teeth use Symmetric Trapezoidal (ST) profile to match extended inner edge on chain to create alignment (outside faces of wide teeth do not touch). Interaction of narrow teeth and chain are similar to Drop-Stop A and B. Drop-Stop ST Chainrings |
*We are in the process of migrating most Drop-Stop A to Drop-Stop B to make them compatible with SRAM Road and Transmission (T-type) Flattop chains.
