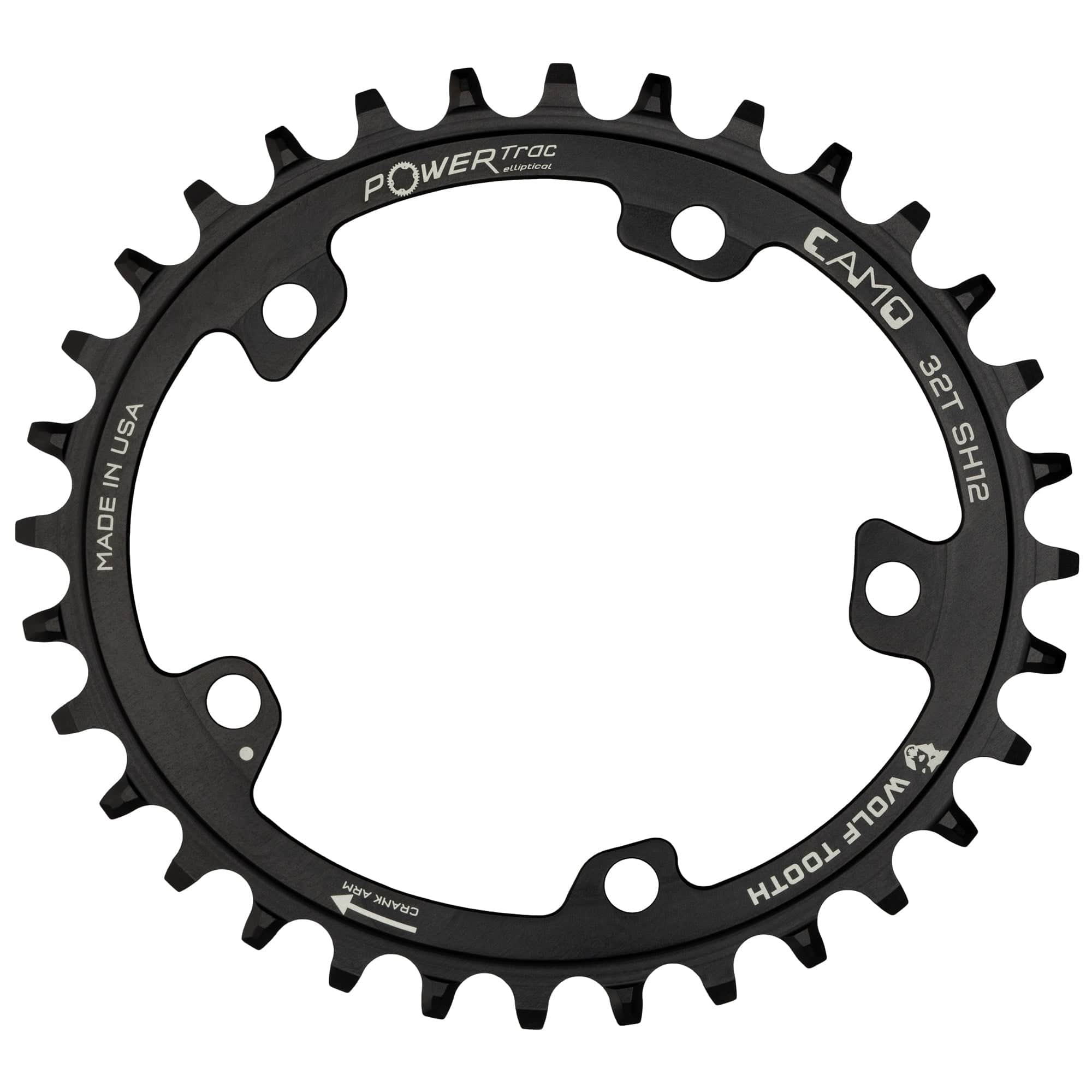

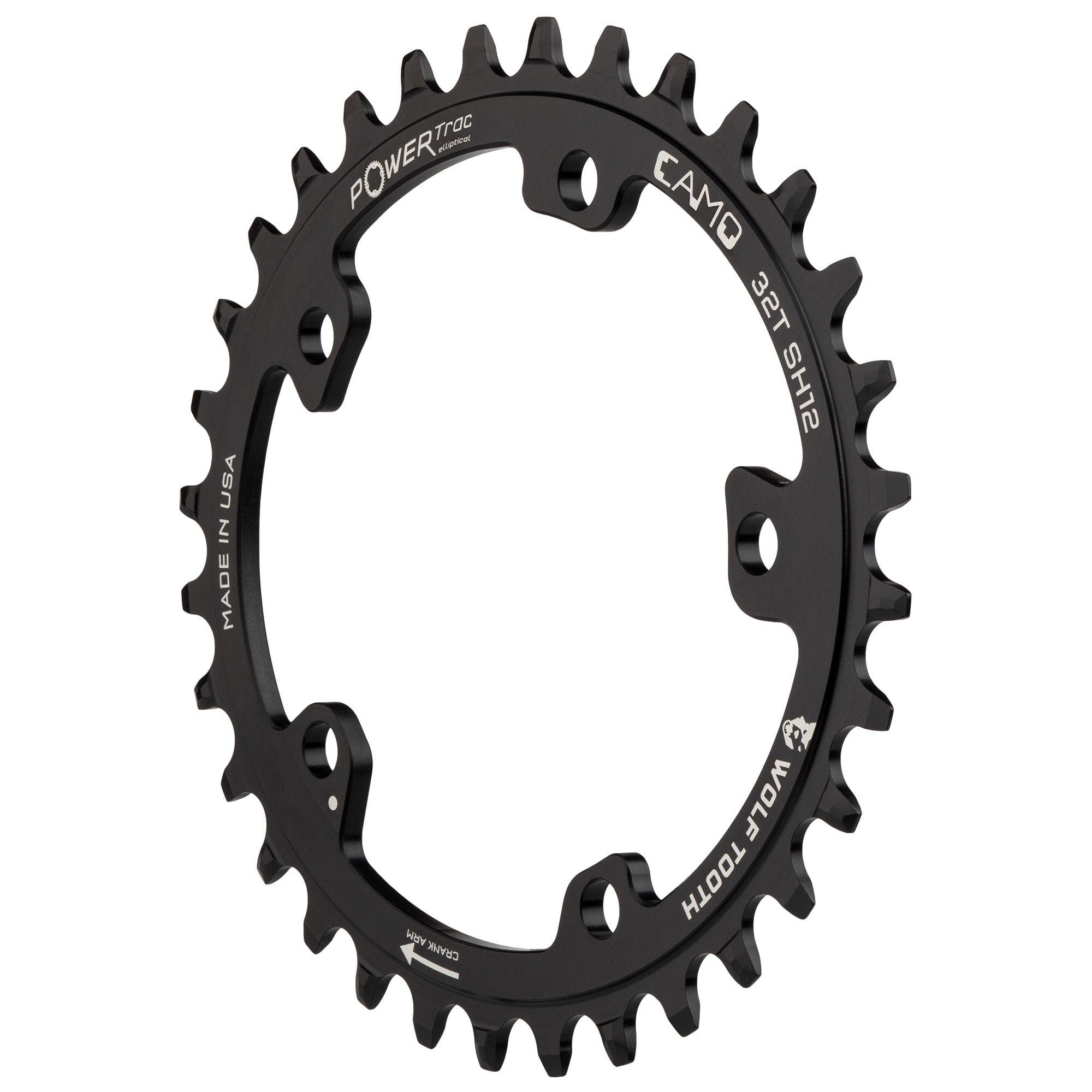

CAMO Aluminum Oval Chainring
ELP-CAMO-AL30-B
Pairs well with
CAMO Aluminum Oval Chainring
More power, better traction, less shifting. Wolf Tooth oval chainrings use our proprietary PowerTrac design that has all the benefits of oval, but without the funky, uneven pedal stroke. Ride one once and you’ll wonder why you waited so long to try oval.
Think of an oval chainring as two chainrings in one. A major benefit of oval is how the shape of the chainring alters your gearing in two important phases of your pedal stroke by harnessing your body’s natural biomechanics. Here’s how it works. The area of the chainring with the larger diameter engages with the chain at the optimal point on the downstroke, which is what’s known as the Power Zone. If you were to look at a clock, the Power Zone would be between 1-5 and 7-11. Conversely, the Recovery Zone – back to the clock face, between 11-1 and 5-7 – is the weakest part of the pedal stroke, when the oval maximizes your efficiency. A 34T oval chainring behaves like a 36T chainring when you want power, while behaving like a 32T chainring when you’re climbing.
We’ve also engineered our oval chainrings to provide smoother, more efficient pedal rotation. This equates to better traction because of steadier torque on the rear wheel. With a Wolf Tooth oval chainring, you can harness more of your strength in the Power Zone, while having easier pedaling in the Recovery Zone.
Wolf Tooth is committed to provide the most precision components possible and has three different tooth profiles for optimal performance based on your chain type.
| Tooth Profile | |||
|---|---|---|---|
Tooth Profile |
Drop-Stop® B |
Drop-Stop® A |
Drop-Stop® ST |
| Chain Compatibility | |||
Chain Compatibility |
All 9s, 10s, and 11s Chains 12s Chains:
Not compatible with 12s Shimano HG+, 12s KMC, or 13s Campagnolo chains |
All 9s, 10s, and 11s Chains 12s Chains:
You can use Drop-Stop B when Drop-Stop A is not available* Not compatible with 12s SRAM Transmission (T-Type) and Road Flattop, 12s Shimano HG+, 12s KMC, 12s Campagnolo, or 13s Campagnolo chains |
12s Chains:
Not compatible with all other chains |
| Details | |||
Details |
 Tooth shape is nearly identical to Drop-Stop A, but has narrower teeth. Valley between teeth is deeper to accommodate larger rollers on Flattop chain. Outside faces of narrow and wide teeth touch chain to guide alignment. Drop-Stop B Chainrings |
 The original Drop-Stop tooth profile. The wide teeth are wider than Drop-Stop B. Outside faces of narrow and wide teeth guide chain alignment. Drop-Stop A Chainrings |
 Narrower teeth than Drop-Stop A. Wide teeth use Symmetric Trapezoidal (ST) profile to match extended inner edge on chain to create alignment (outside faces of wide teeth do not touch). Interaction of narrow teeth and chain are similar to Drop-Stop A and B. Drop-Stop ST Chainrings |
*We are in the process of migrating most Drop-Stop A to Drop-Stop B to make them compatible with SRAM Road and Transmission (T-type) Flattop chains.
Note: This is a CAMO chainring ONLY. A CAMO spider is required to complete this system.
The CAMO chainring system was created by the Wolf Tooth engineers for Chainline And Material Optimization on direct mount style Chainrings. The key advantages include:
- Perfect chainline - for wear and shifting precision
- Optimal material usage - for weight, stiffness, and wear
-
Price - for less expensive replacement chainrings
-
Swapping - Very fast chainring change out with 5 small bolts and no nuts
-
Availability - Wolf Tooth is the one-stop-shop for your direct mount needs...round or oval, stainless or aluminum, and no matter the crankset
-
Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
Compatibility
- This chainring is for Wolf Tooth CAMO spiders only. It is NOT compatible with any other chainring mountings
- The CAMO spiders come with stainless steel bolts
- For 1x9, 1x10,1x11 and 1x12 drivetrains (including SRAM Eagle)
- If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention)
- Chainline - varies by which spider you choose
Installation notes:
- You will be able to access all bolts without removing the spider
- Line up the little dot on the ring with the dot on the spider. Don't worry, you cannot install the ring in the wrong rotational orientation.
- Be sure the bosses on the spider "plug in" to the chainring.
- Torque bolts only to 4-5 Nm and use blue Loctite threadlocker
Recommendations
- Recommend the use of a clutch style rear derailleur for the best chain security.
- If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur. Without these precautions, you may experience chaindrops and/or chainsuck.
Related Products
- The CAMO spiders come with stainless steel bolts
- The CAMO chainring options - elliptical or round and stainless or aluminum
- CAMO mounting bolts - Colored steel bolts
Tech Specs
Weight: 30t • 32g | 32t • 38g | 34t • 46g
Material: 7075-T6 aluminum
Made in the USA
