B-RAD Mounting Bases

$7.95

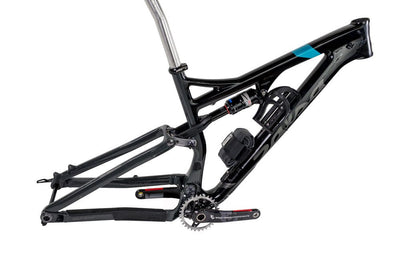

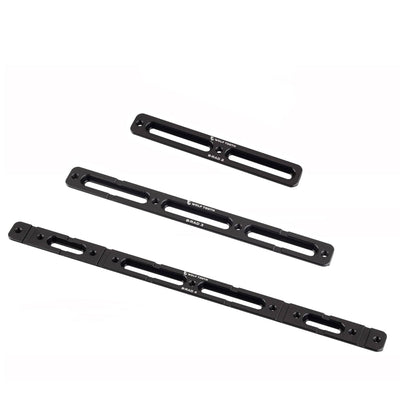

Bases are the foundation for the B-RAD system and the rest of the B-RAD system mounts to them

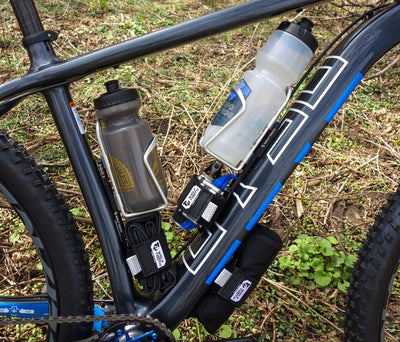

  • Reposition bottle cages using existing bottle cage mounts on your bike
  • Lightweight, durable, rust-proof materials
  • Customize storage to your specific needs with flexible B-RAD system

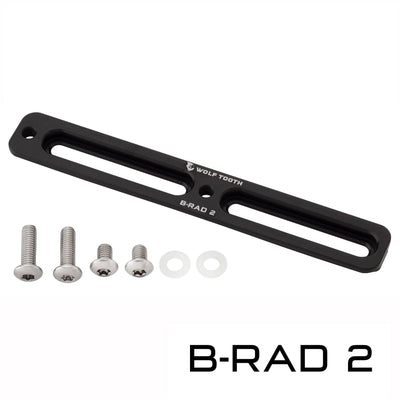

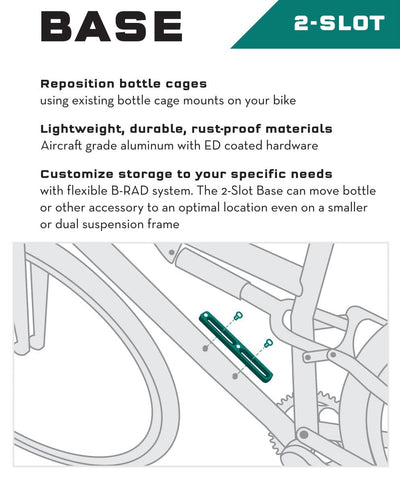

B-RAD 2
  • The 2-Slot Base can move bottle or other accessory to an optimal location even on a smaller or dual suspension frame
  • B-RAD 2 base instructions

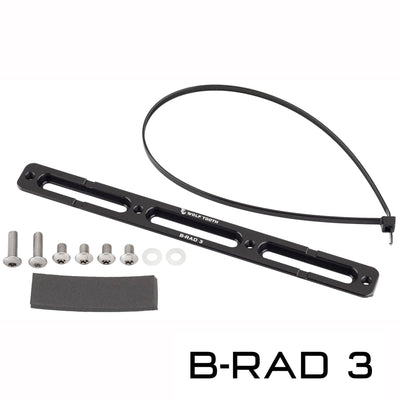

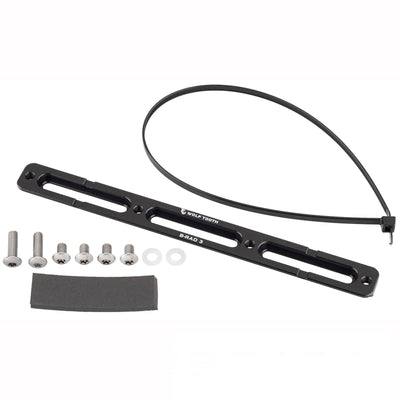

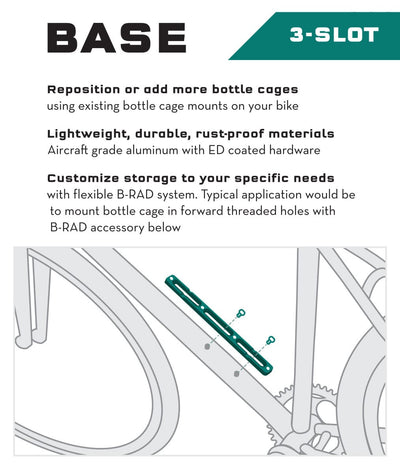

B-RAD 3

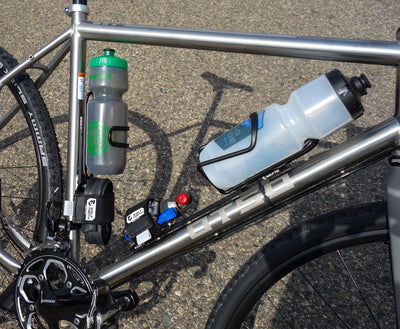

  • The 3 slot base with 4 threaded holes provides additional adjustment and mounting options vs the B-RAD 2. A typical application would be to mount a bottle cage in the forward threaded holes with a B-RAD accessory tucked behind it. This mounts perfectly to triple bottle mounts on frames and forks. The B-RAD 3 includes zip ties, channels for the zip ties, and a foam pad for secure mounting
  • B-RAD 3 base instructions

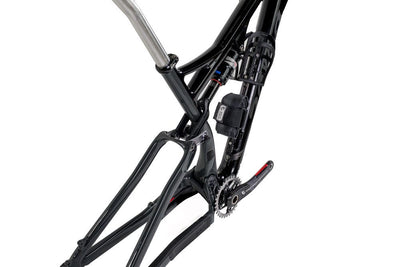

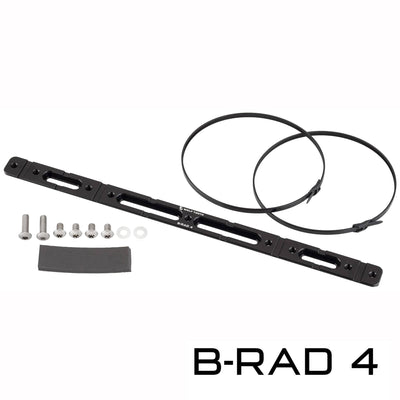

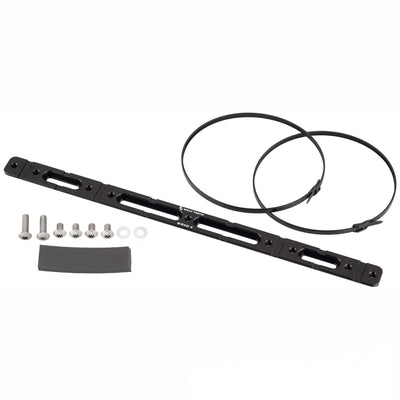

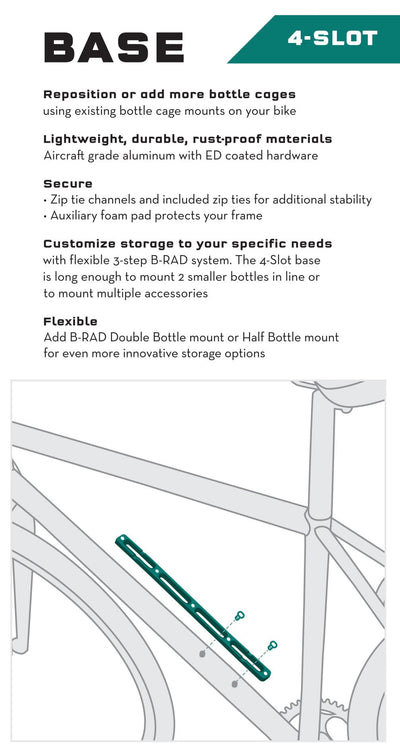

B-RAD 4

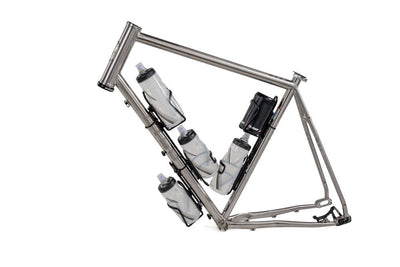

  • The 4 slot base is the longest base with 9 threaded holes for the ultimate flexibility and capacity when bike packing, touring, commuting or just exploring on 2 wheels. It′s long enough to mount 2 small bottles inline or multiple accessories. The B-RAD 4 includes zip ties, channels for the zip ties, and a foam pad for secure mounting
  • B-RAD 4 base instructions
    DOGBONE
    • The Dogbone can be used to offset a bottle or other accessory to an optimal location. Most commonly used for smaller, curved or dual suspension frames
    • Dogbone base instructions

    Complementing products:

    Compatibility:

    • Mounting any of the bases requires the use of at least 2 standard threaded bottle cage mounts. B-RAD 3 and 4 should use the auxiliary foam pad (to protect your frame) and zip tie to secure the base. Any other mounting methods are not recommended
    • Compatible with any frame that uses standard 64mm spacing bottle cage braze-ons (basically every modern frame)
    • Print this document in a 1-1 format to see how the different B-RAD mounting Bases fit on your bike.

       Tech Specs:

      • 6061-T6 aluminum brackets, stainless hardware, foam support pad with zip ties (B-RAD 3 and 4 only)
      • Weights (no hardware)
        • B-RAD 2 – 27g
        • B-RAD 3 – 41g
        • B-RAD 4 – 75g
        • Dogbone – 10g
      • 18-8 stainless bolts included
      • Maximum load per base 1700g
      • Torque 3-4 NM
      • Made in the USA

      ______________________________

      B-RAD™ — BOTTLE RELOCATION & ACCESSORY DEVICE
      An innovative, flexible system for organizing on-bike bottle storage and accessories

      Customize storage to your specific needs with the flexible 3-step B-RAD system. Here is how it works:
      B-RAD Base – available in a variety of lengths

      • Attaches to bottle cage mounts on bike
      • Provides platform for the B-RAD system

      B-RAD Mount

      • Attaches to B-RAD Base
      • Secures accessories to the Base
      • Accessory-specific mounts available

      Accessories

      • Held in place by B-RAD mounts or straps
      • Carry ride essentials like bottles or tools
