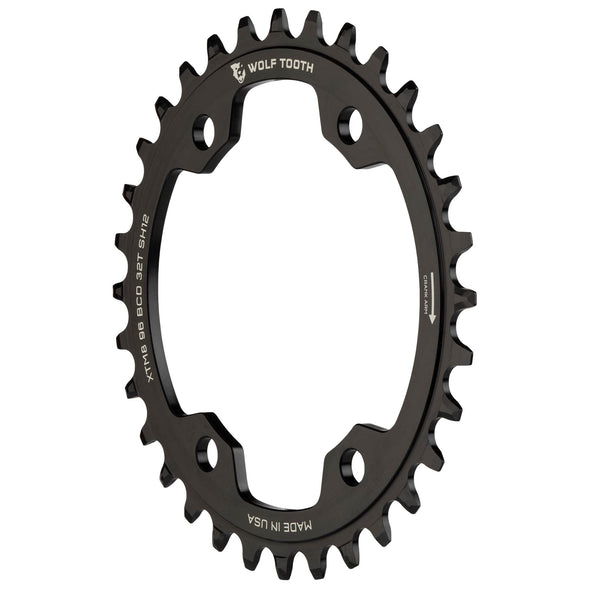

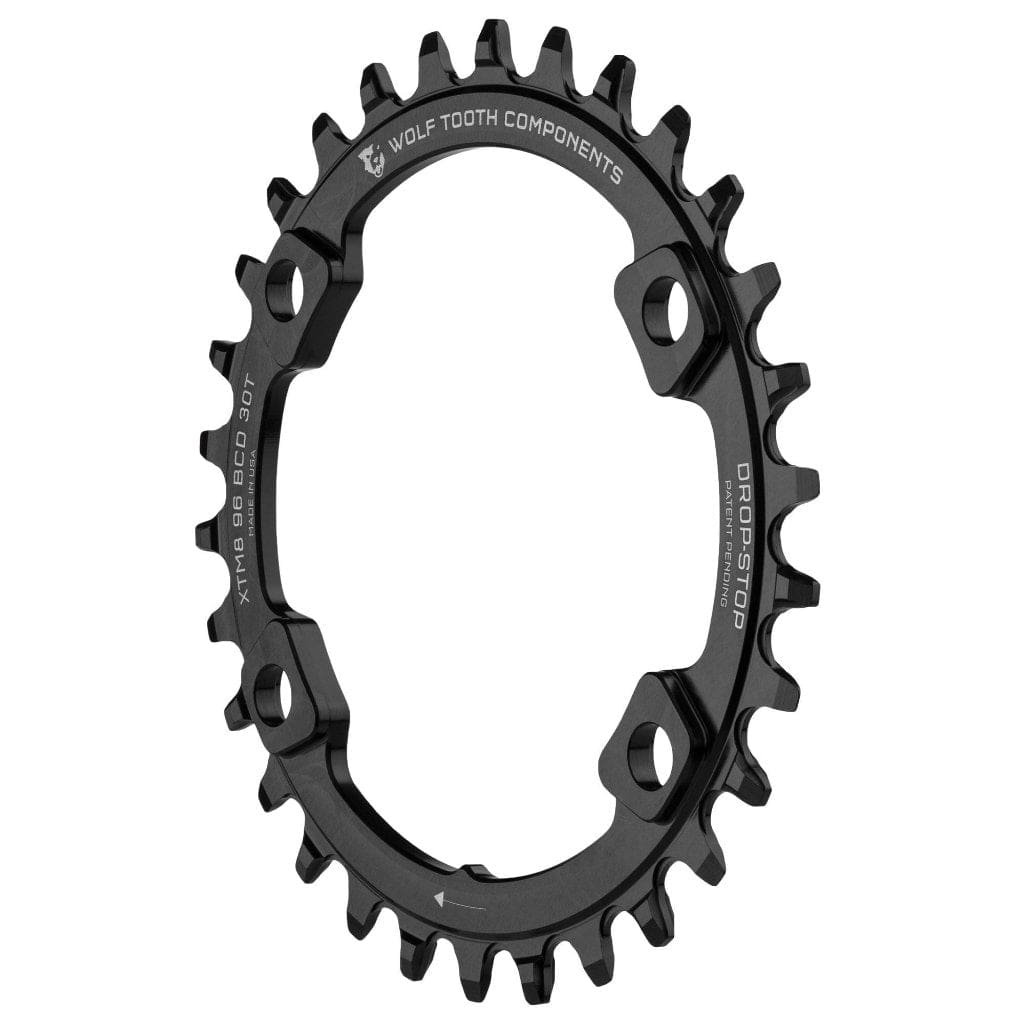

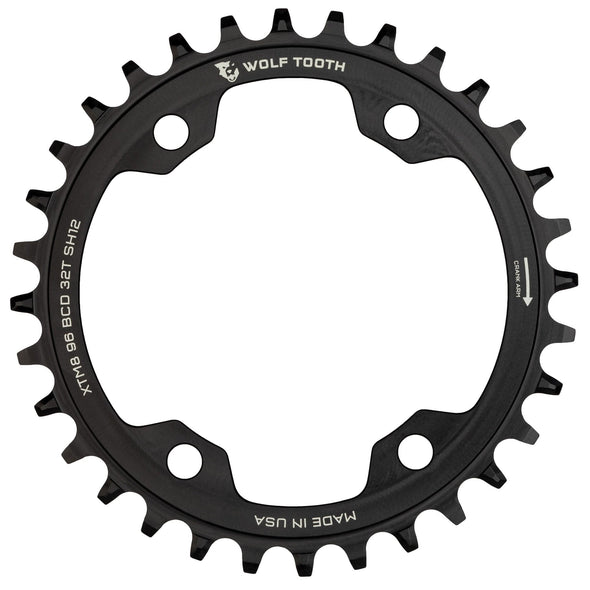

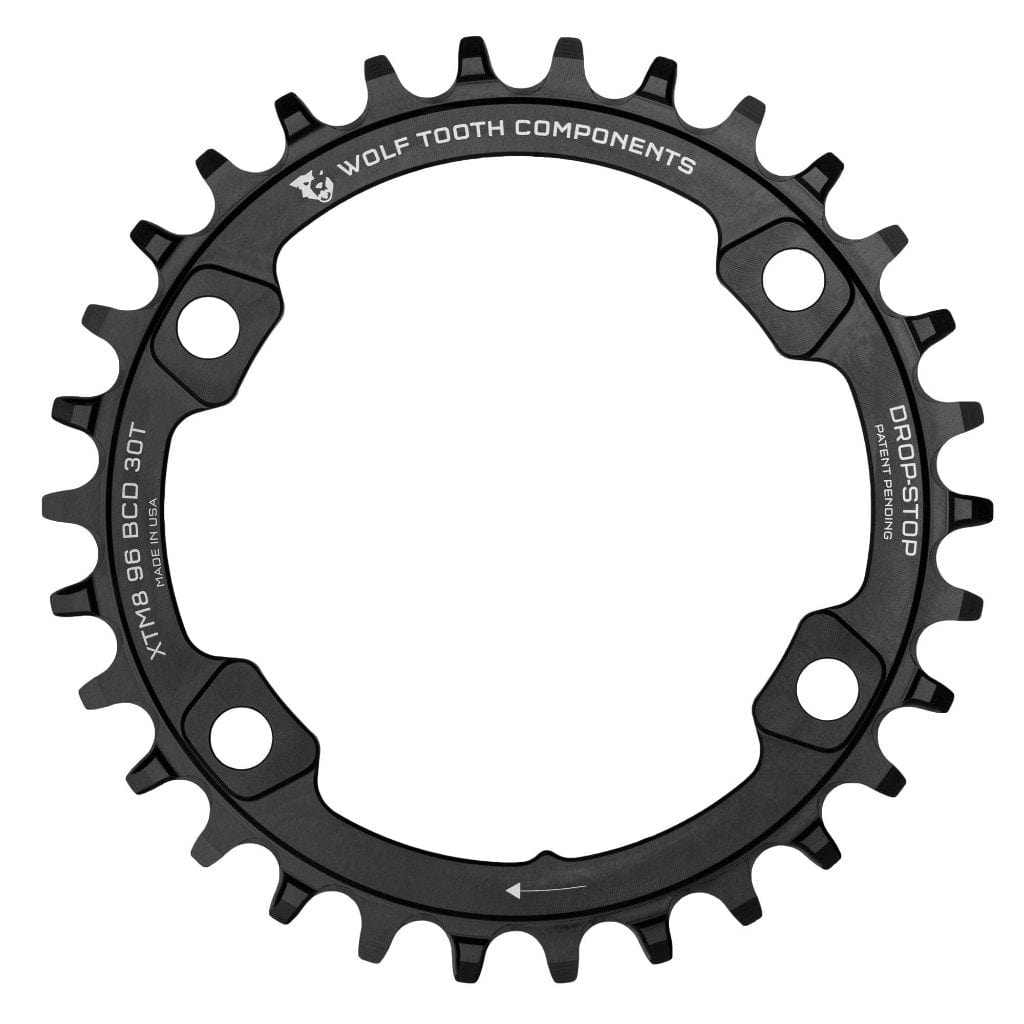

Looking for a 1X chainring for your new Shimano XT, SLX or Deore crankset with the proven chain retention of our Drop-Stop® chainrings? Wolf Tooth has what you need in the form of a beautifully machined asymmetrical 96 mm BCD that provides the ideal 1X chainline of 49mm.

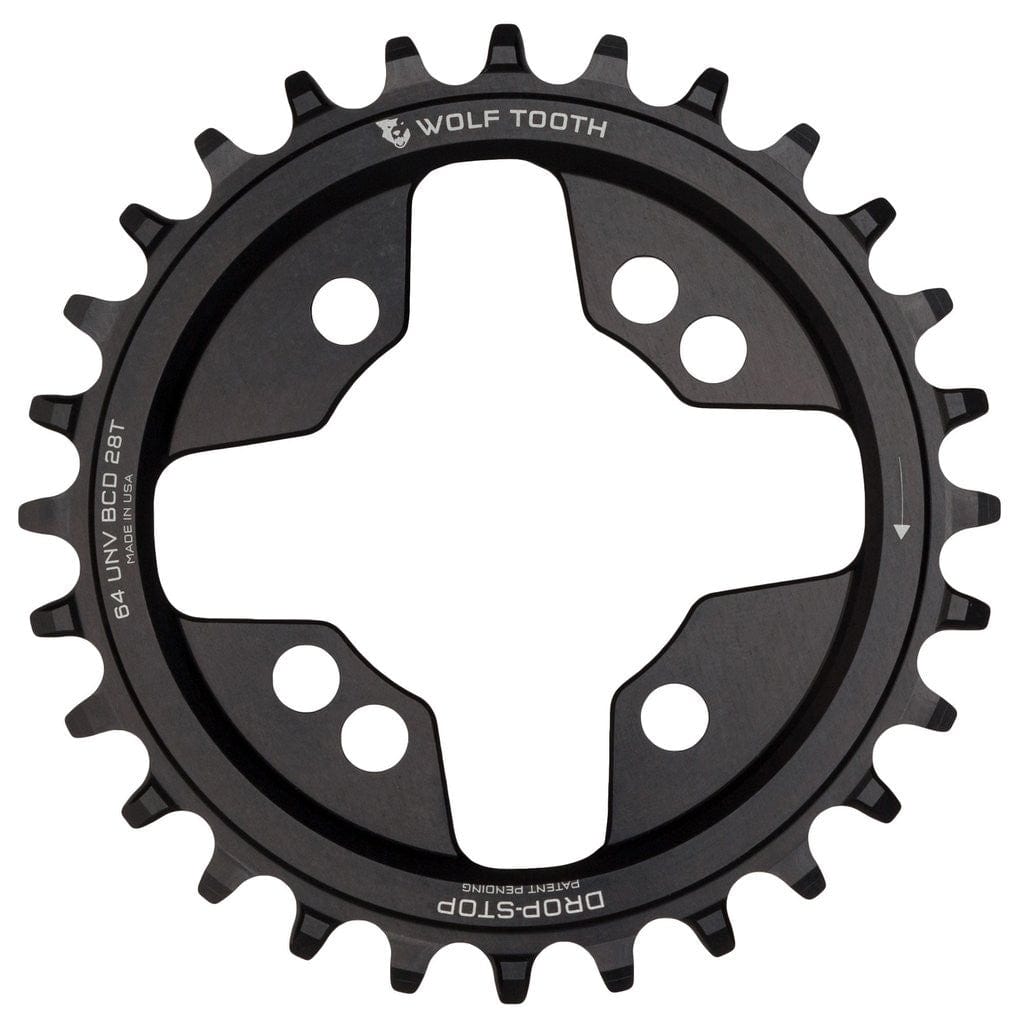

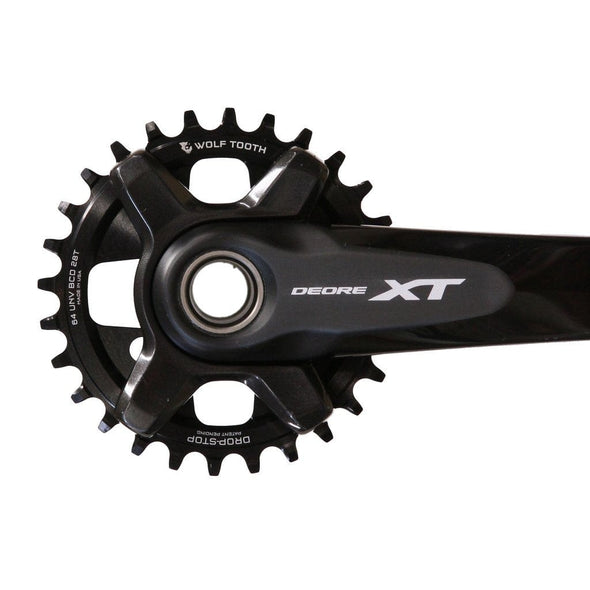

NOTE: The 28T and 26T sizes are available mount to the inner 64 BCD mounting position on these cranksets.

Compatibility

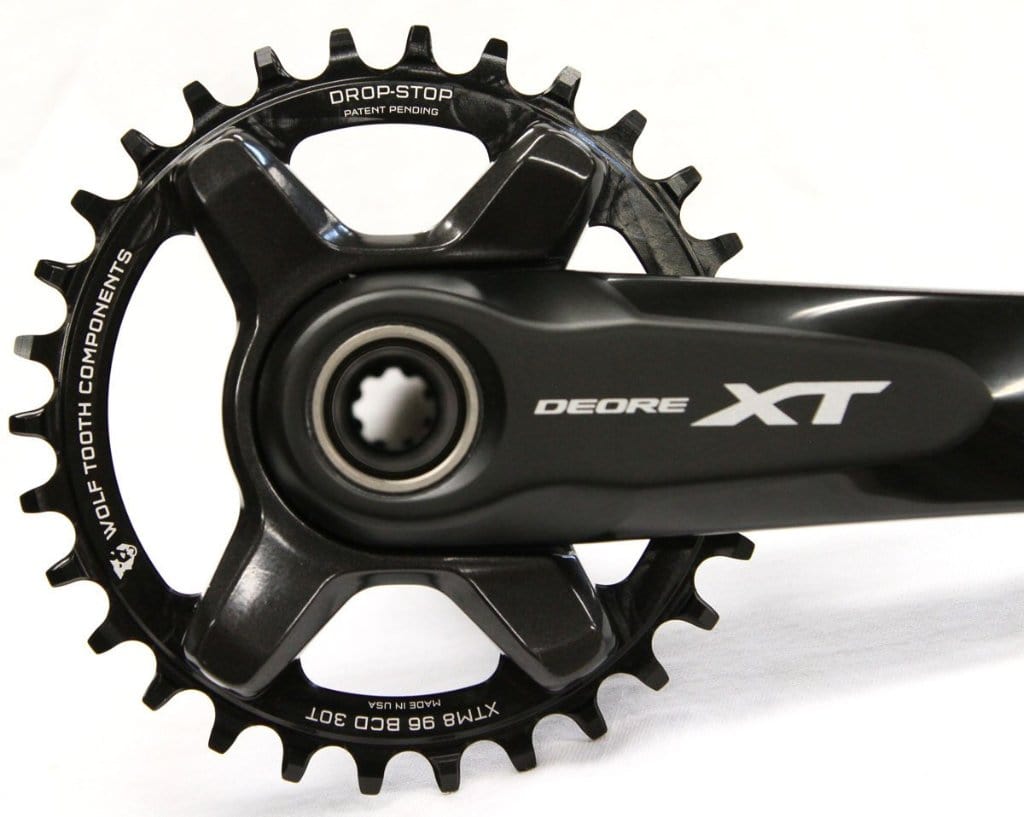

  • These rings fit on the Shimano XT M8000, SLX M7000, Deore M6000, or  FC M5100 1x or 2x cranksets
  • Not compatible with Deore triple (3x) cranksets
  • If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
  • Provide a great chainline on most Boost bikes.  See this explanation for details.
  • Drop-Stop A models will reduce the chainline (inward towards the frame) from the Shimano specified chainline for the crankset: 26T-28T = -3mm, 30T-34T = -2mm, and 36T-38T = -1mm
  • Drop-Stop ST models will have the same chainline as the Shimano specified chainline
  • 10mm bolts are optimized for mounting this ring

Recommendations

  • If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur. Without these precautions, you may experience chaindrops and/or chainsuck.

Related Products

GC and GCX cassette extenders

Tech Specs

Weight:  30t • 41g | 32t • 50g | 34t • 59g  |  36t • 69g
Material: 7075-T6 aluminum
Made in the USA

Patent and trademark inform


Wolf Tooth is committed to provide the most precision components possible and has three different tooth profiles for optimal performance based on your chain type.


Tooth Profile

Tooth Profile

Drop-Stop® B

Drop-Stop® A

Drop-Stop® ST

Chain Compatibility

Chain Compatibility

All 9s, 10s, and 11s Chains

12s Chains:

  • Connex
  • Wipperman
  • Campagnolo
  • SRAM Eagle
  • SRAM Road and Transmission (T-type) Flattop chains

Not compatible with 12s Shimano HG+, KMC, or 13s Campagnolo chains

All 9s, 10s, and 11s Chains

12s Chains:

  • SRAM® Eagle
  • Connex
  • Wippermann

You can use Drop-Stop B when Drop-Stop A is not available*

Not compatible with 12s SRAM Transmission (T-Type) and Road Flattop, 12s Shimano HG+, 12s KMC, 12s Campagnolo, or 13s Campagnolo chains

12s Chains:

  • Shimano HG+
  • 12s KMC

Not compatible with all other chains

Details

Details

Tooth shape is nearly identical to Drop-Stop A, but has narrower teeth. Valley between teeth is deeper to accommodate larger rollers on Flattop chain. Outside faces of narrow and wide teeth touch chain to guide alignment.

Drop Stop B Chainrings navigate_next

The original Drop-Stop tooth profile. The wide teeth are wider than Drop-Stop B. Outside faces of narrow and wide teeth guide chain alignment.

Drop Stop A Chainrings navigate_next

Narrower teeth than Drop-Stop A. Wide teeth use Symmetric Trapezoidal (ST) profile to match extended inner edge on chain to create alignment (outside faces of wide teeth do not touch). Interaction of narrow teeth and chain are similar to Drop-Stop A and B.

Drop Stop ST Chainrings navigate_next

*We are in the process of migrating most Drop-Stop A to Drop-Stop B to make them compatible with  SRAM Road and Transmission (T-type) Flattop chains.
