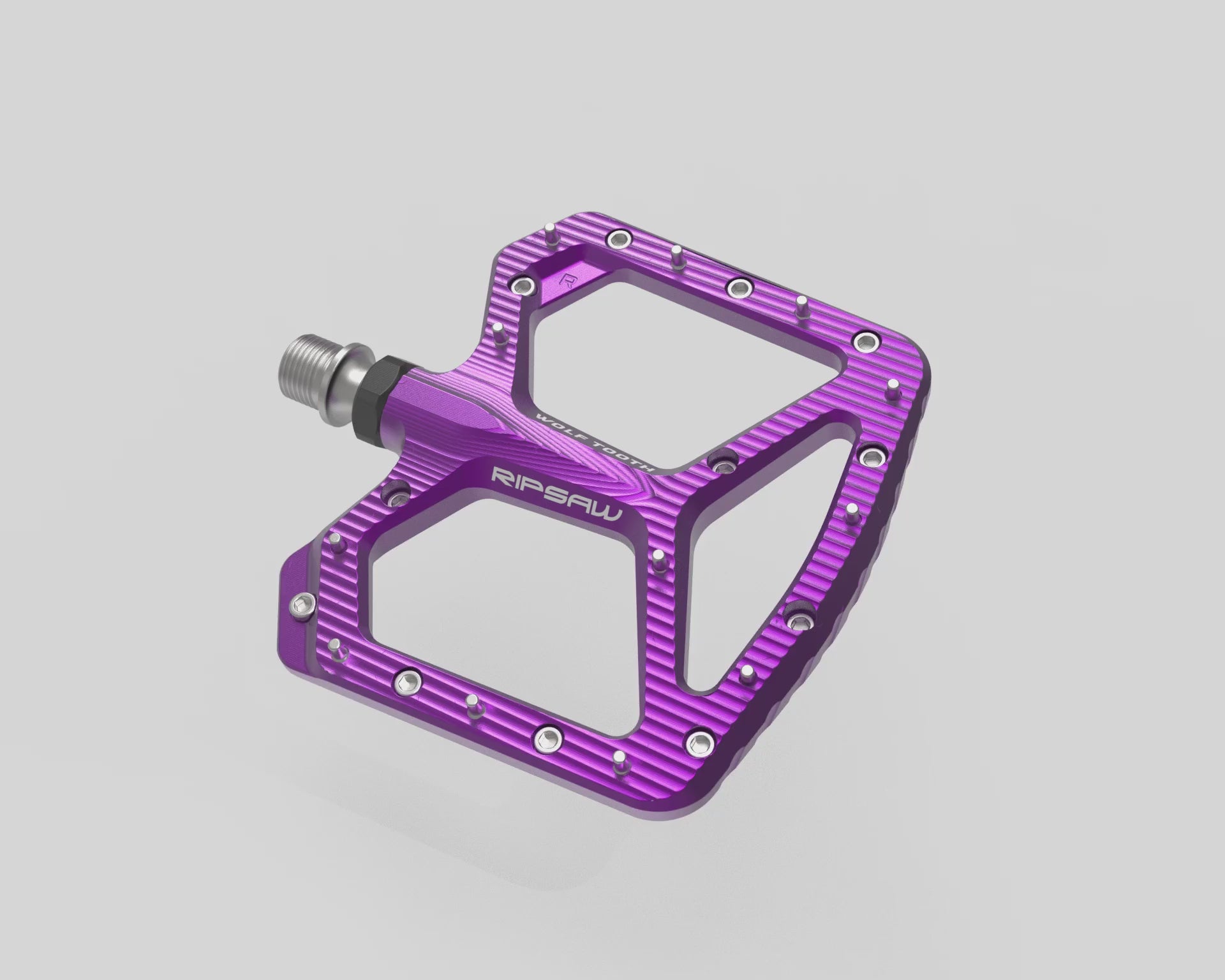

Rotate with Left Mouse Click


Pan with Right Mouse Click


Zoom with Mouse Scroll Wheel


Toggle Auto Rotate

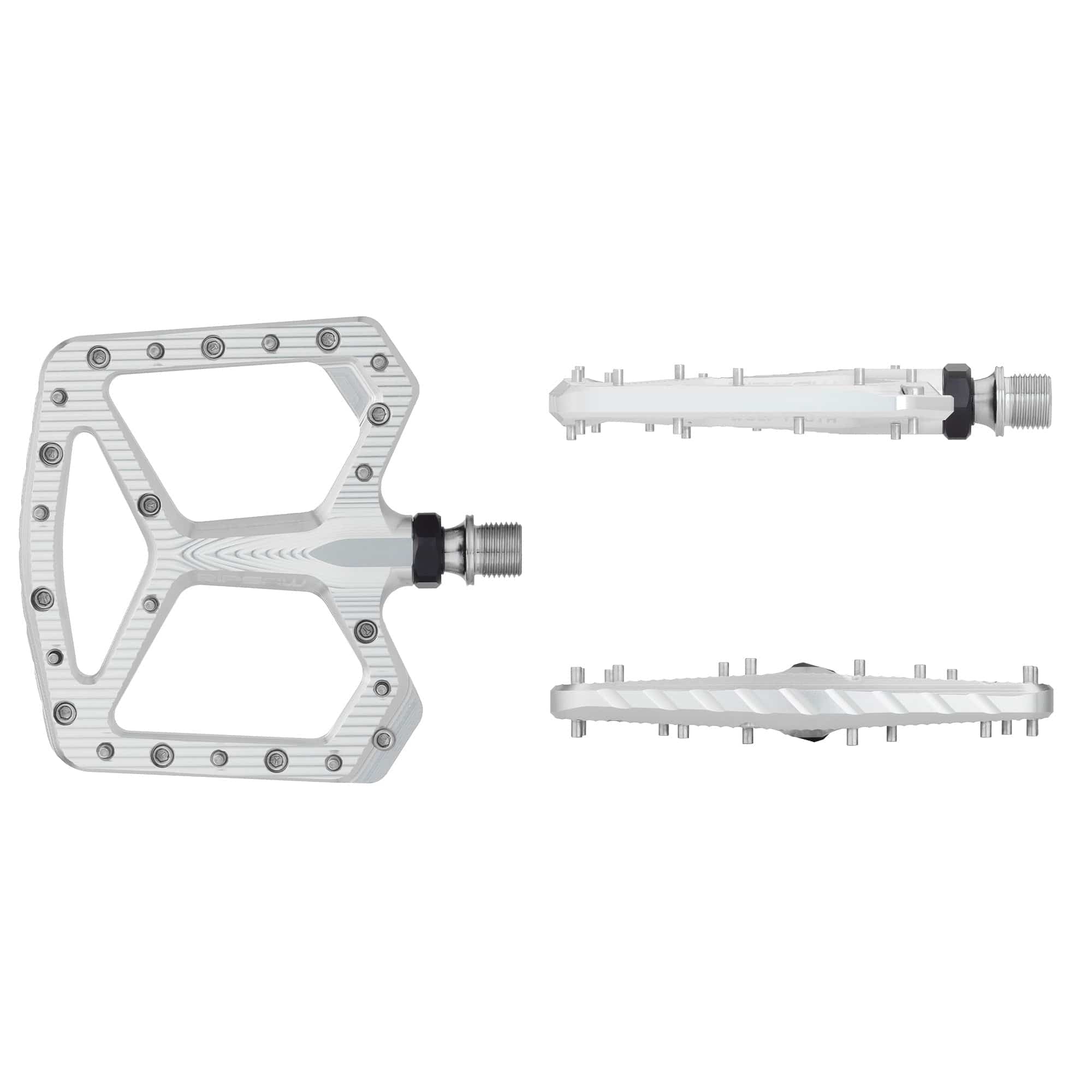

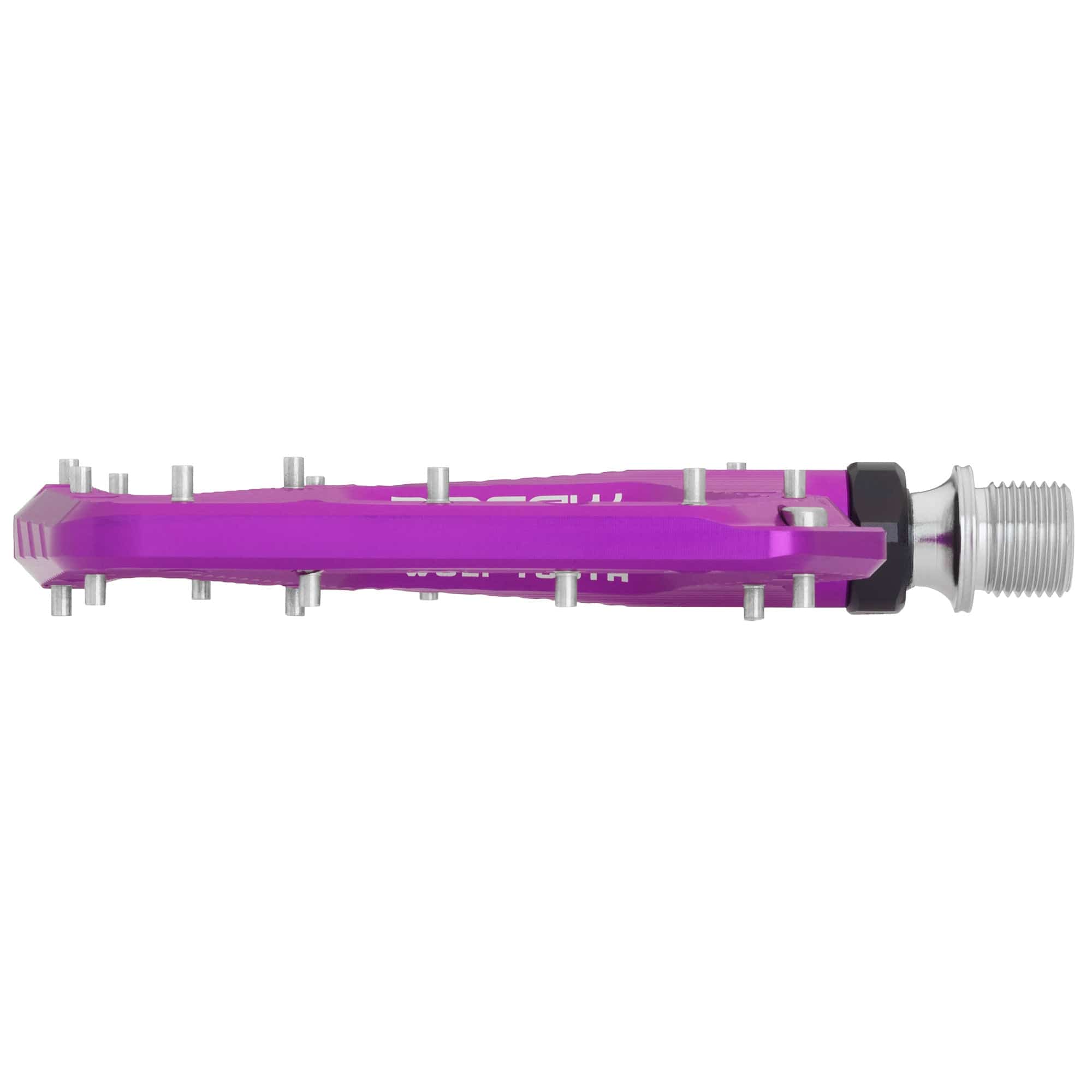

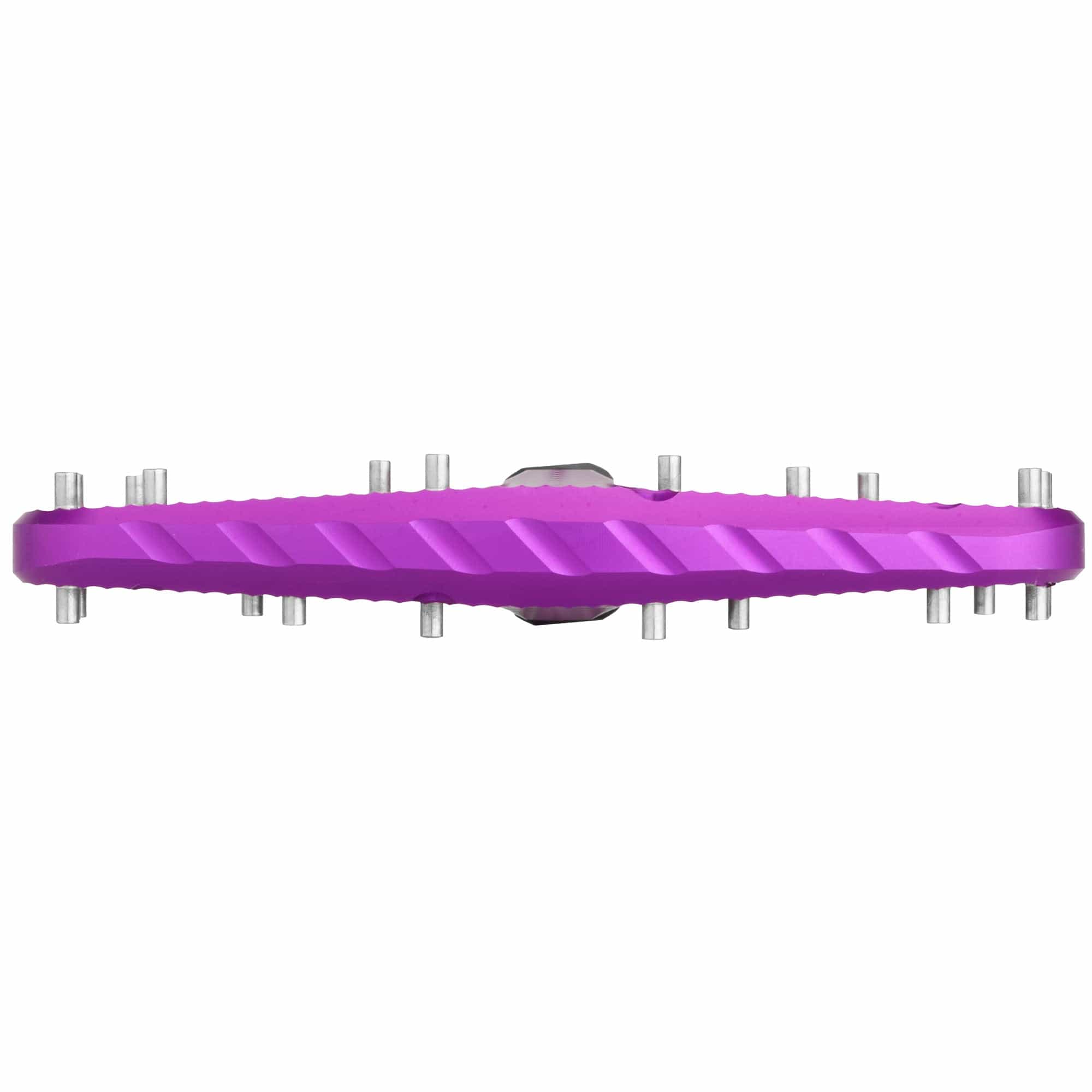

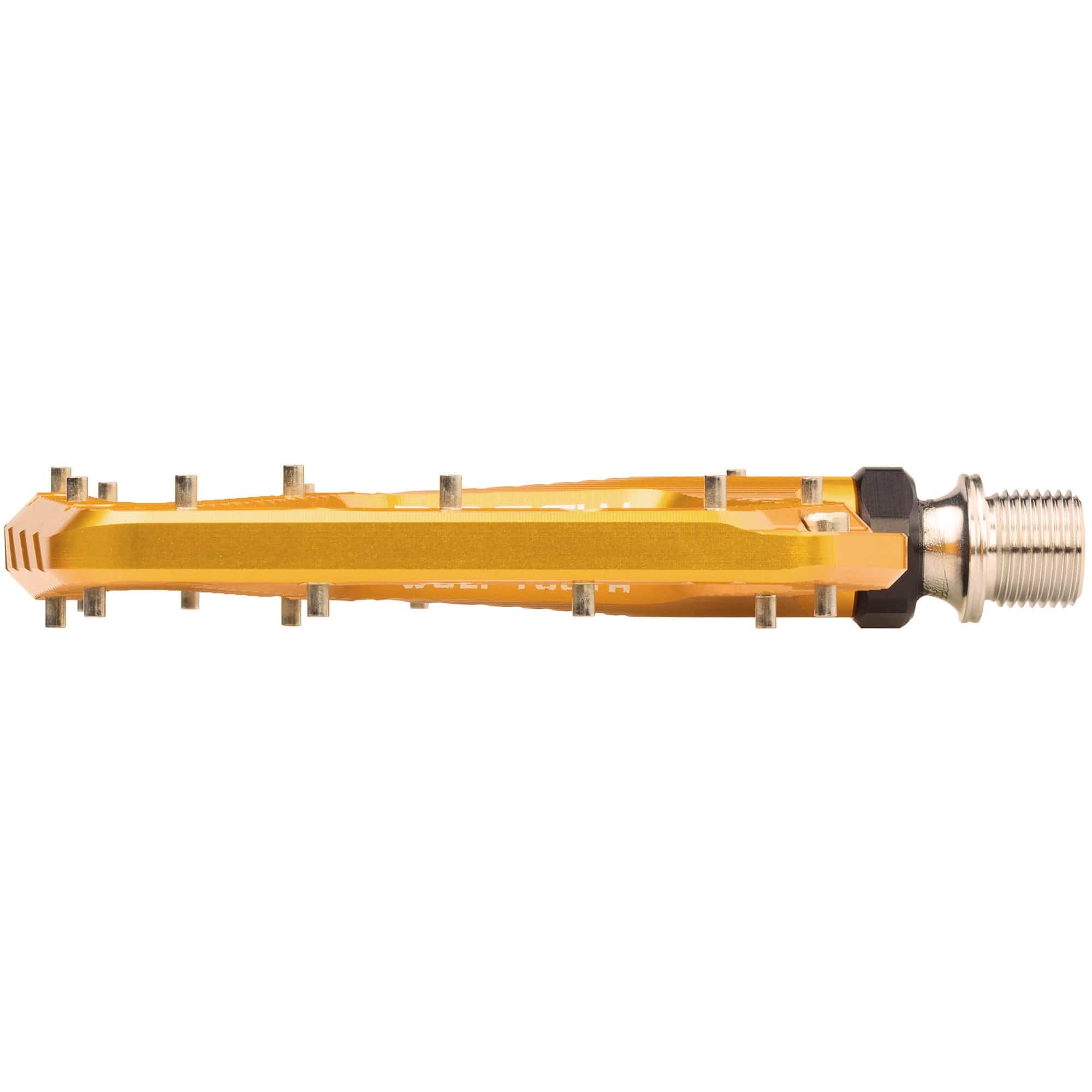

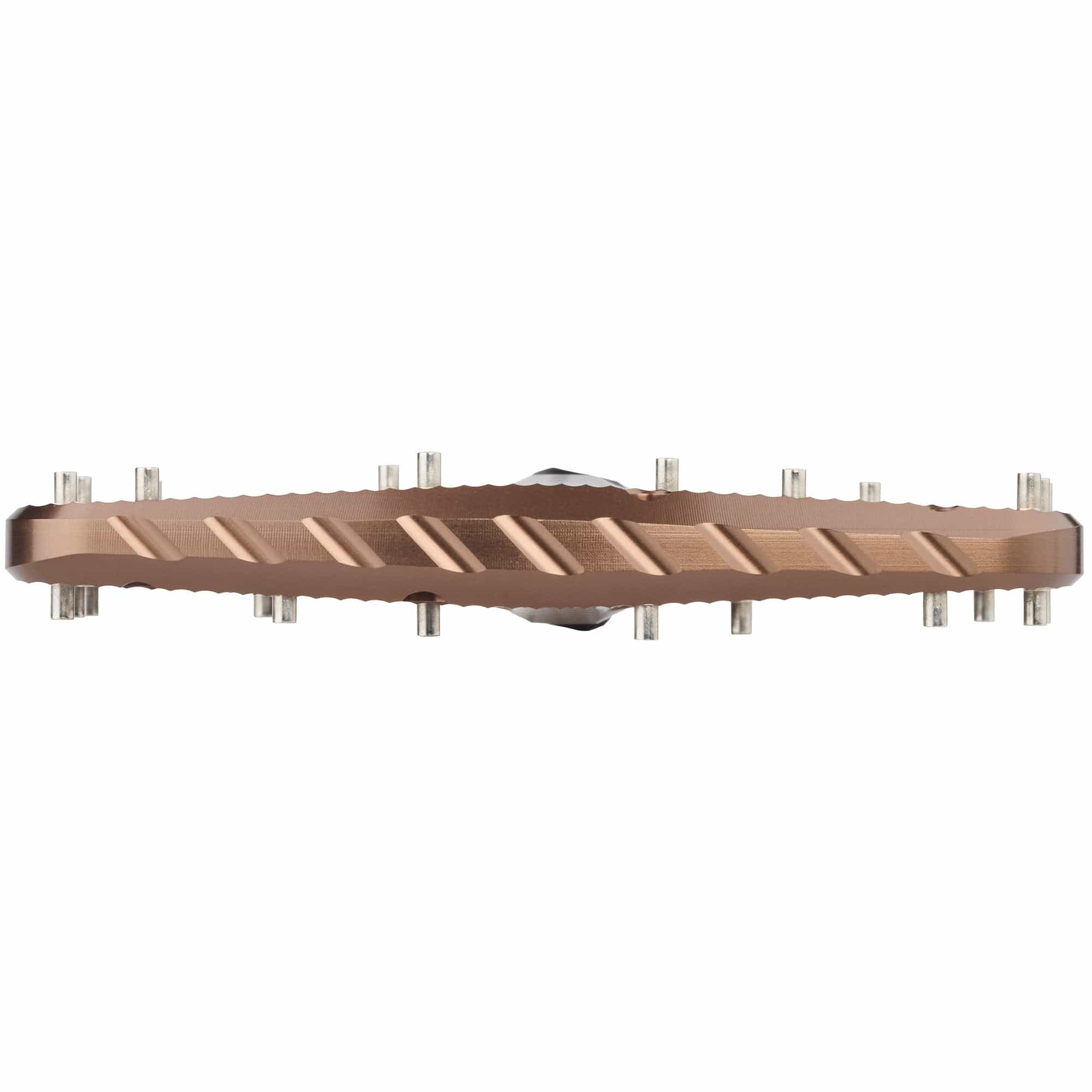

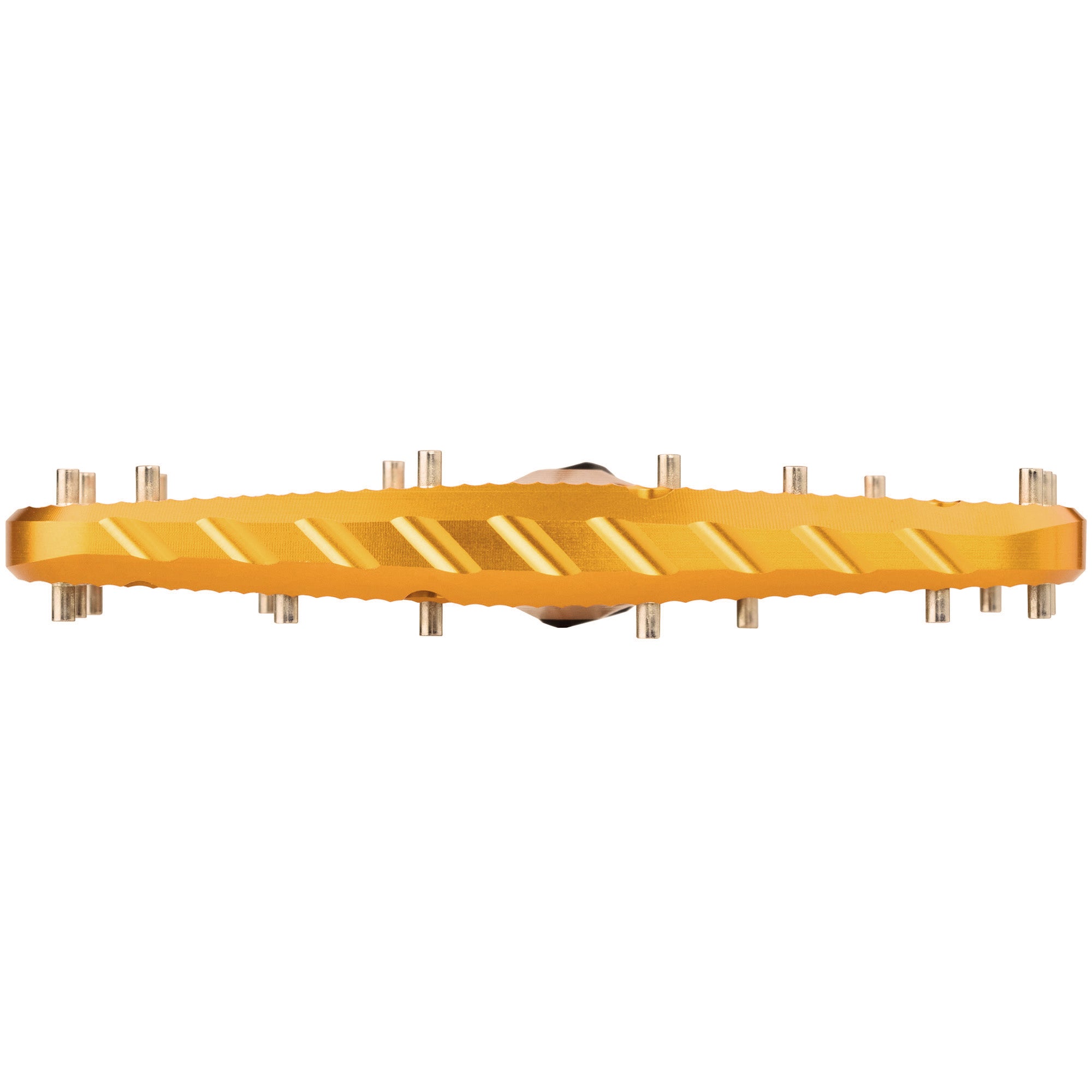

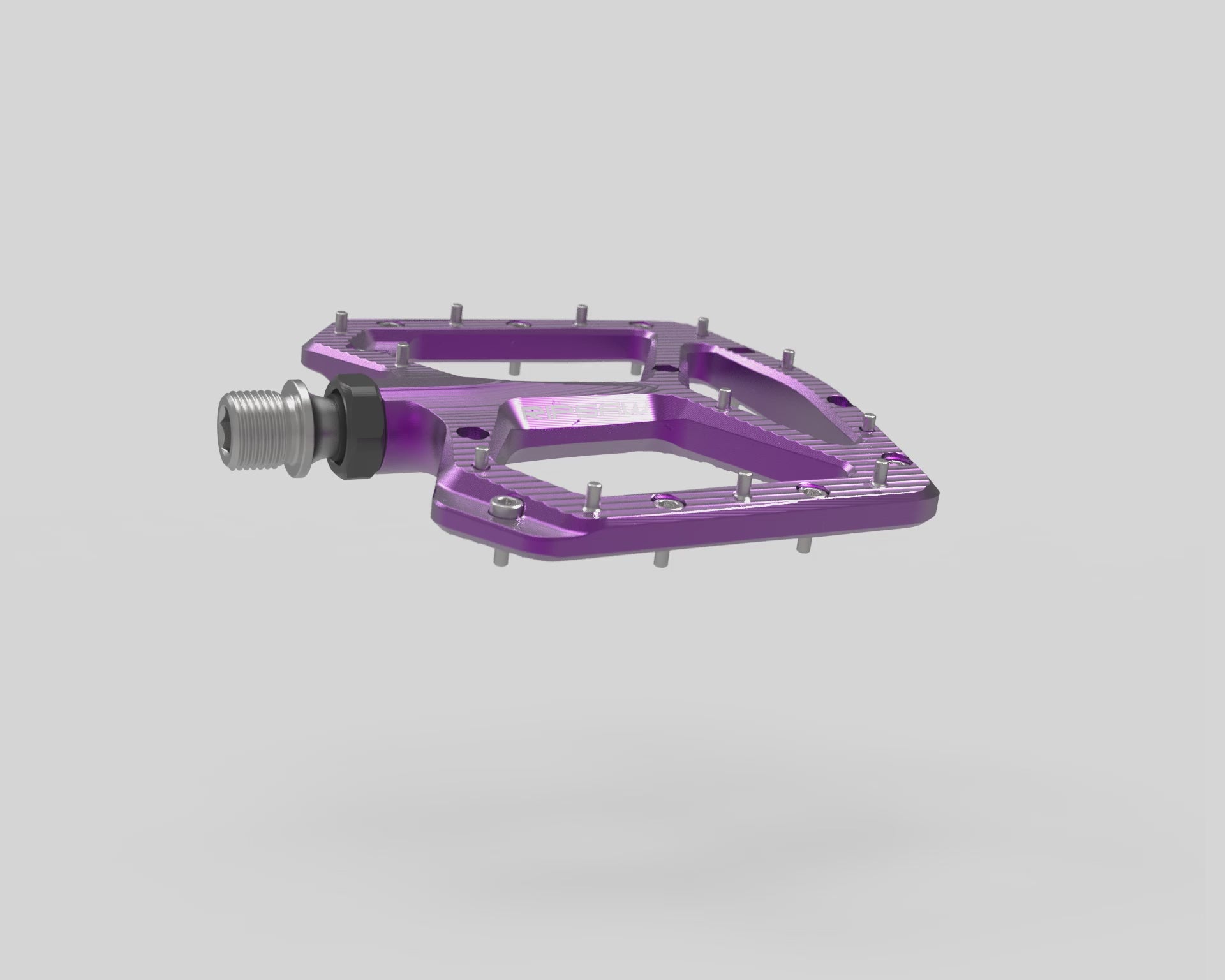

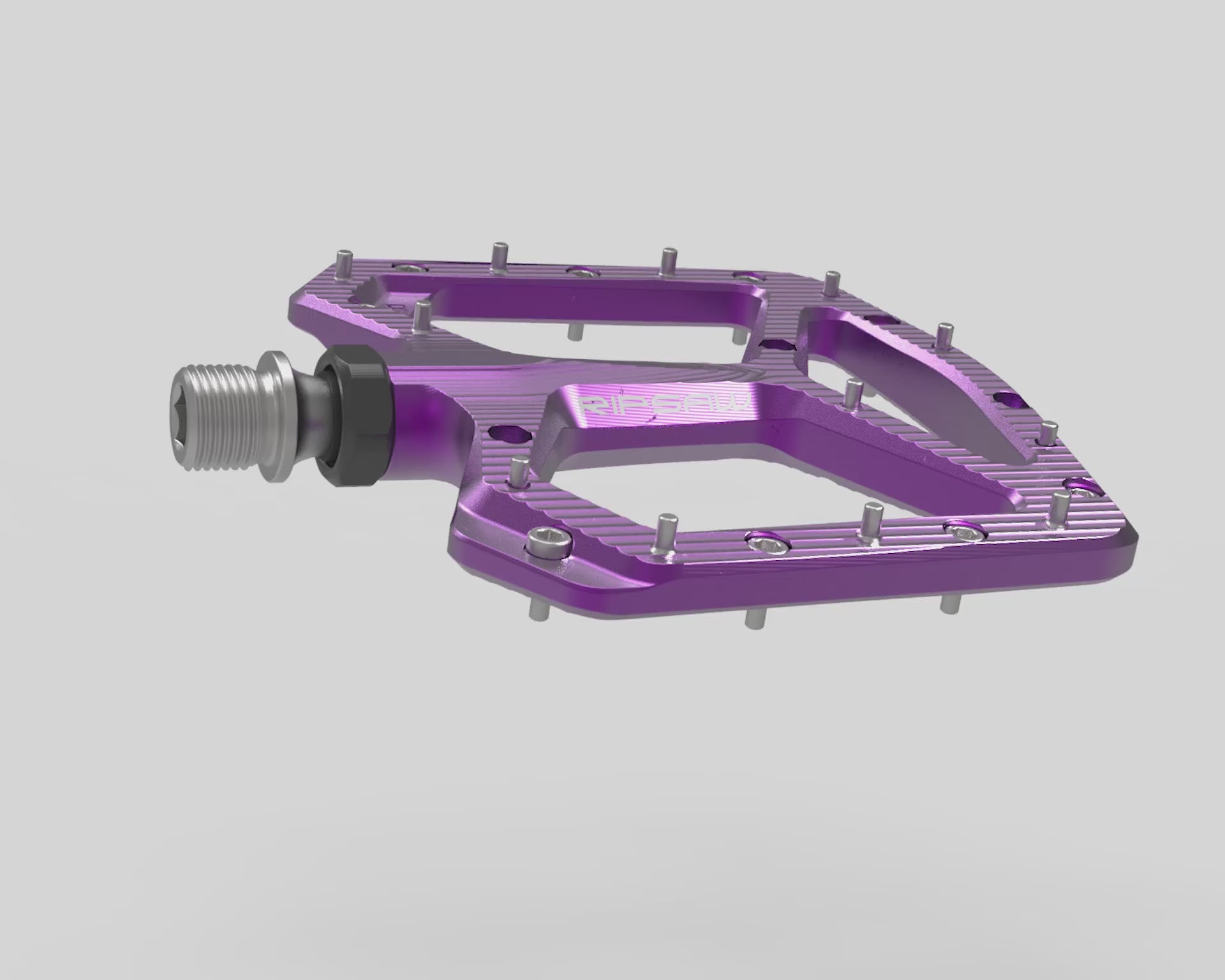

Slim Convex Profile

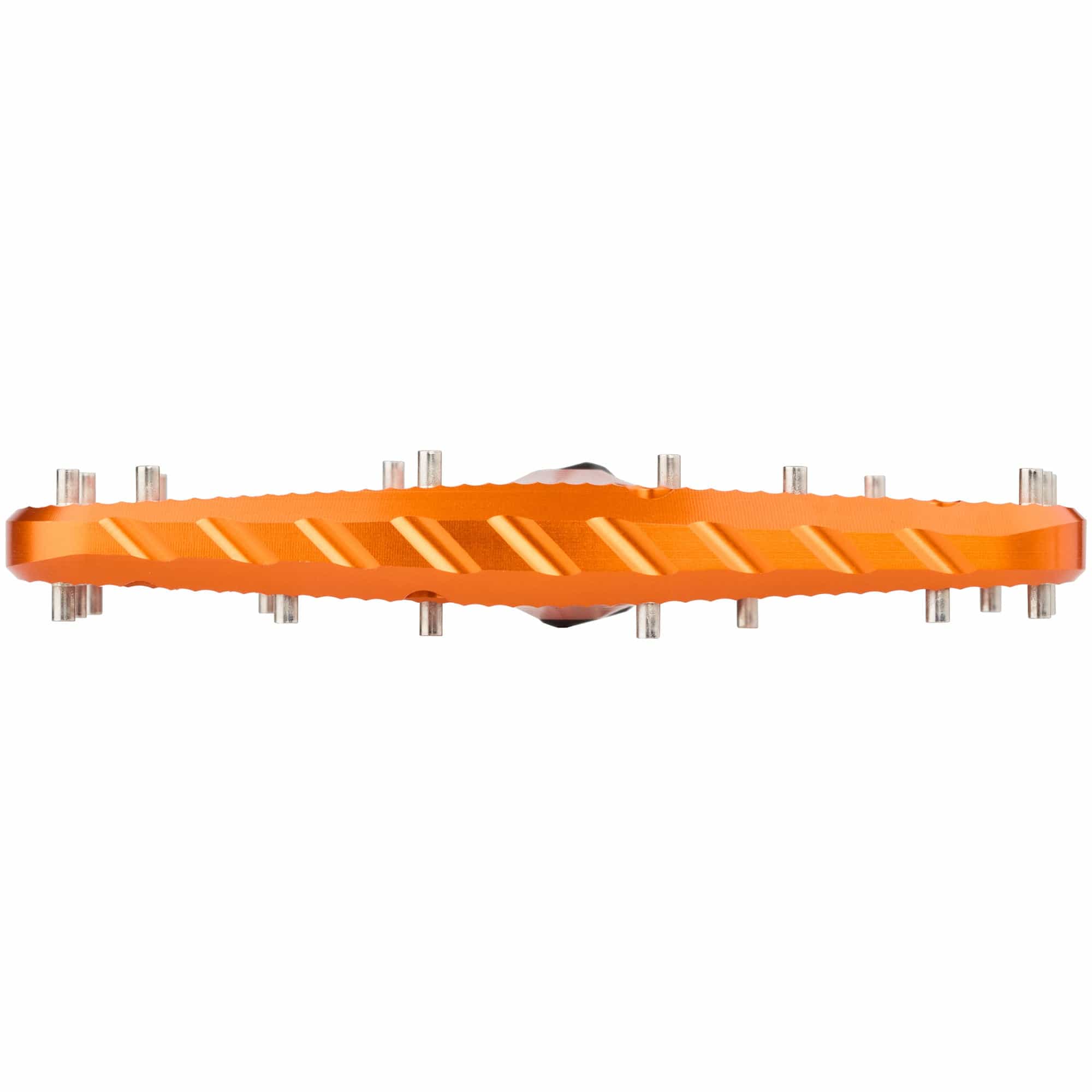

Ripsaw pedals are 12.5mm thick in the center and just 7mm thick in the front and rear edges. This profile is supportive and comfortable for all riders, while performing exceptionally well for riders who prefer pedaling with a mid-foot position or for shoes that do not have much structure or support.

Extra grip

Each side of the pedal has 12 stainless steel rear-loading 4.5mm pins for loads of traction. An additional six 4.5mm pins ship with the pedal. Shorter 3mm pins are available as replacement parts to customize the convexity of the pedal; by installing shorter pins on the edges, the convex profile is emphasized.

Formed with purpose

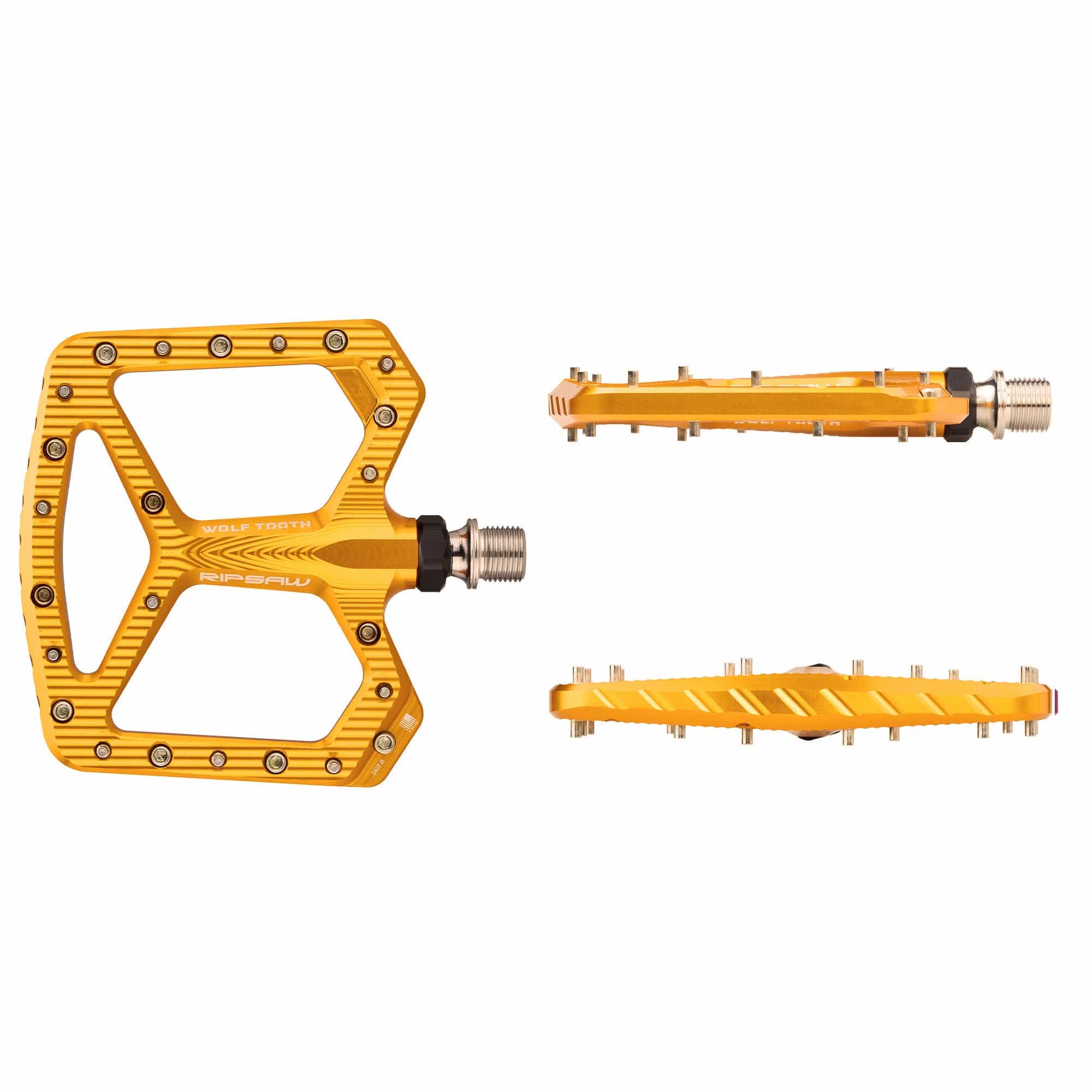

The slight convex profile of the pedal body is tallest at the pedal spindle. The shape then tapers toward each edge from there. This profile aligns perfectly with the arch of your foot and provides a strong platform for power transfer.

Reliable Performance

Three low-friction, fully sealed cartridge bearings and one igus bushing with a custom radial seal protect internal components against trail debris for riding in all conditions.

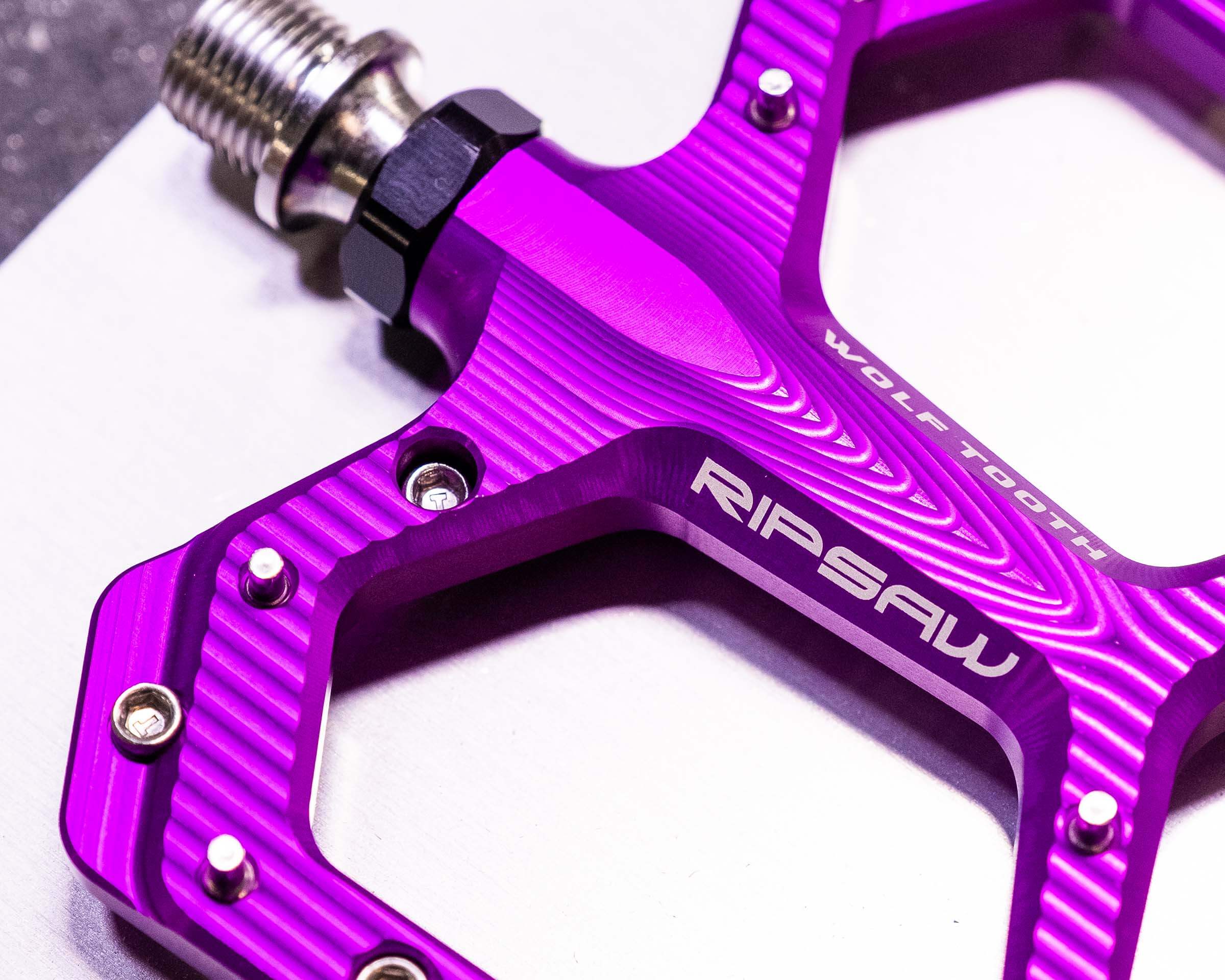

Precision Machining

Each Ripsaw Aluminum Pedal body begins as a billet of raw aluminum. After 37 minutes in our CNC mills, the result is a beautifully crafted pedal body that is ready for anodizing and assembly. If you’re a nerd for machining, you’ll appreciate the intricate gradients and machine paths.

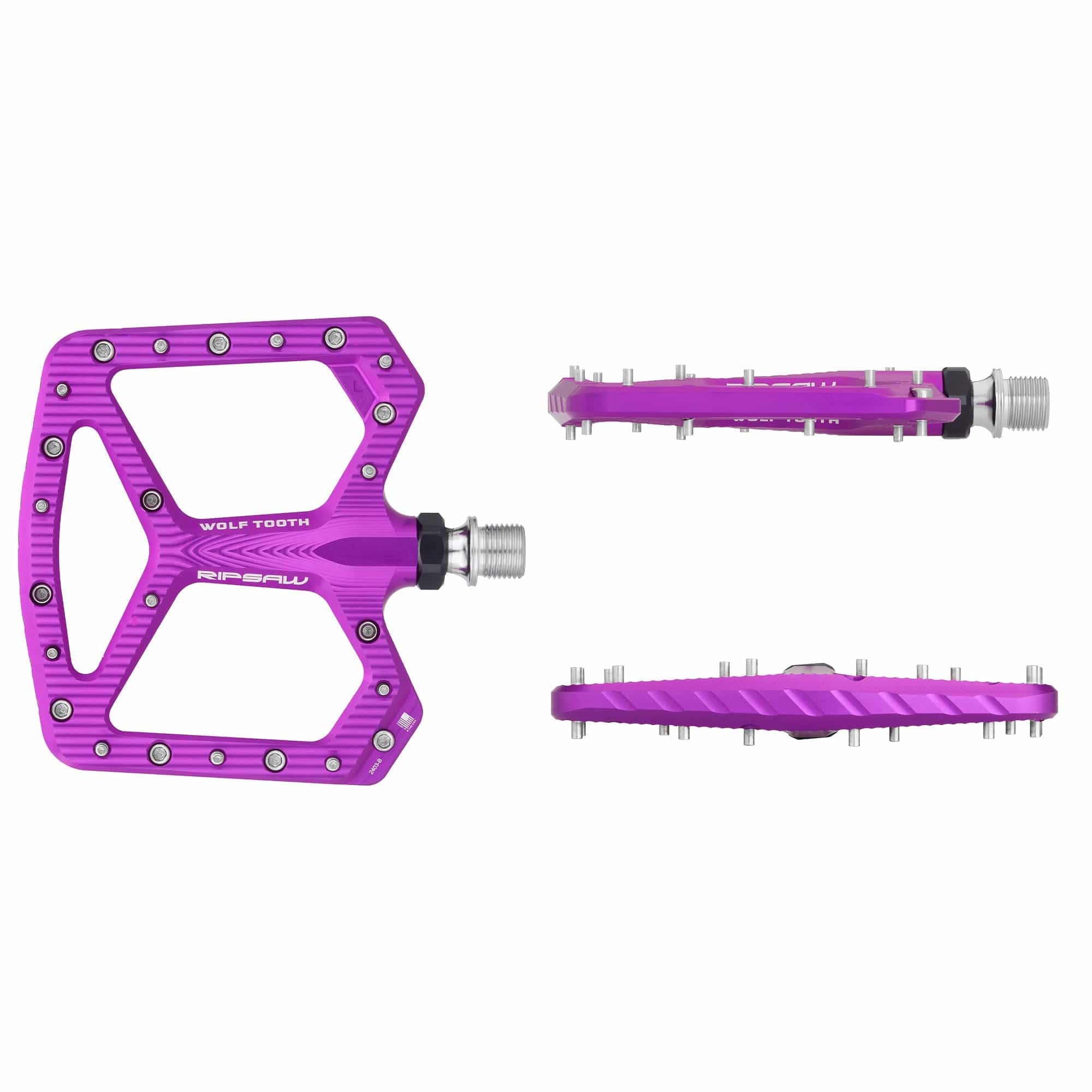

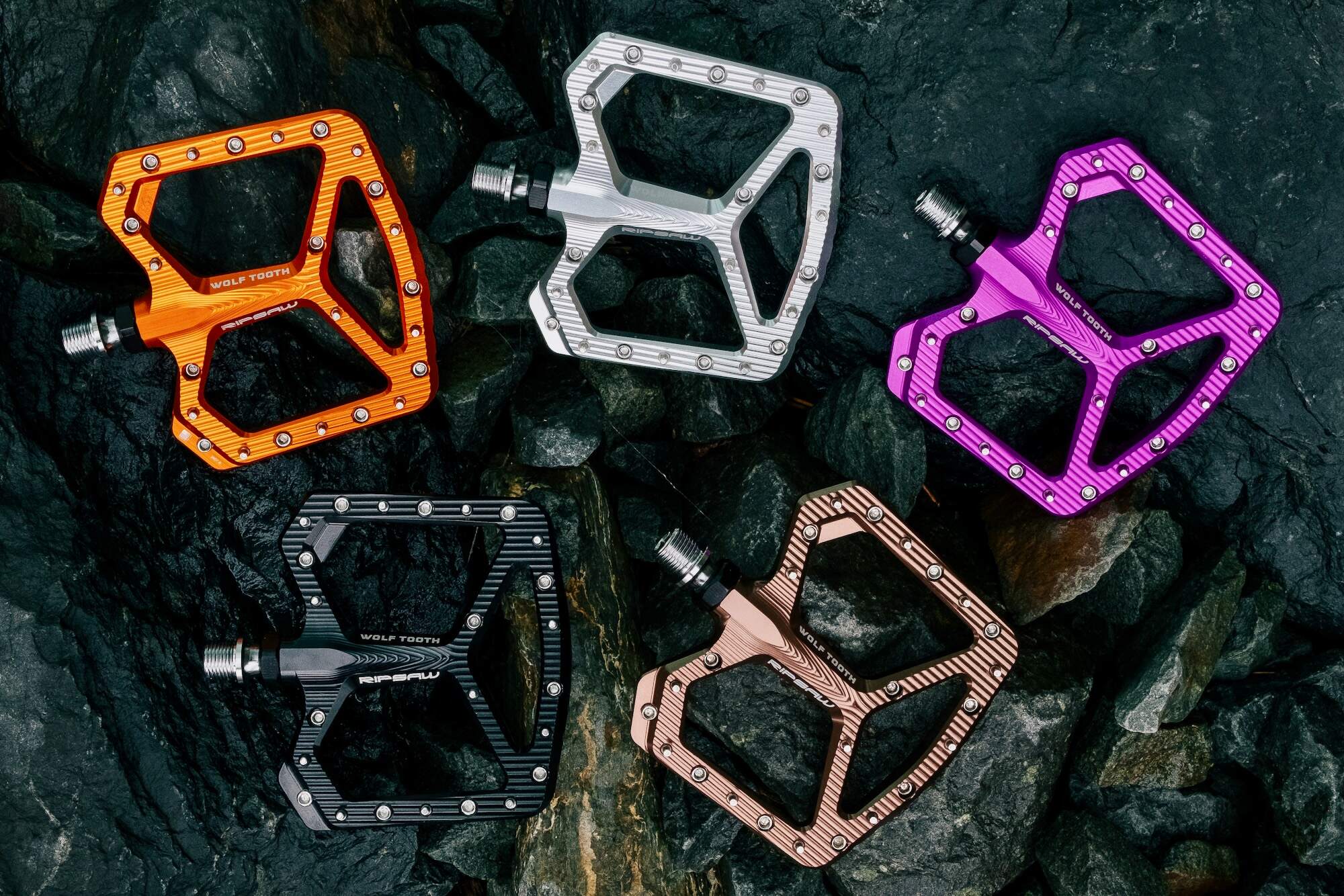

Three Colors

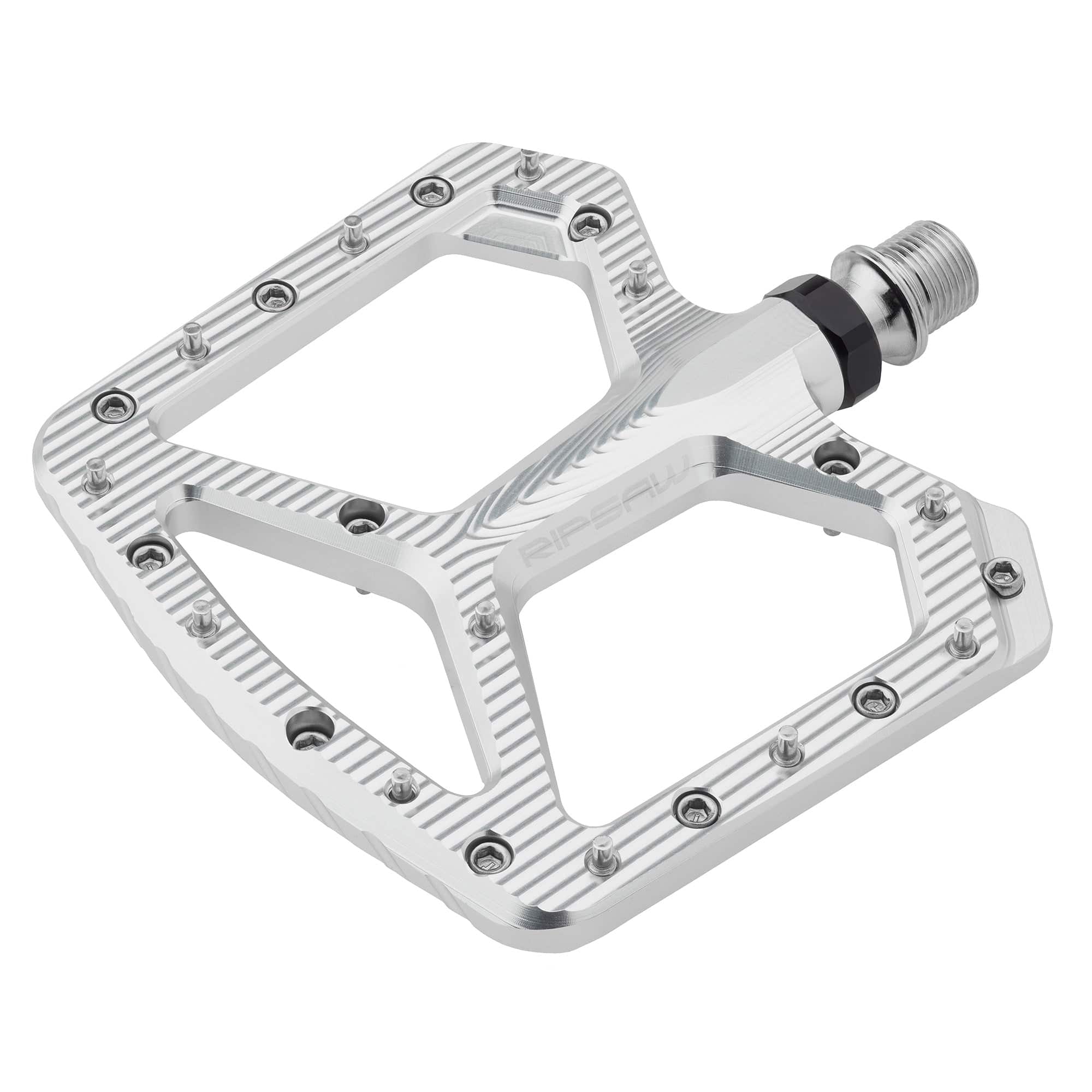

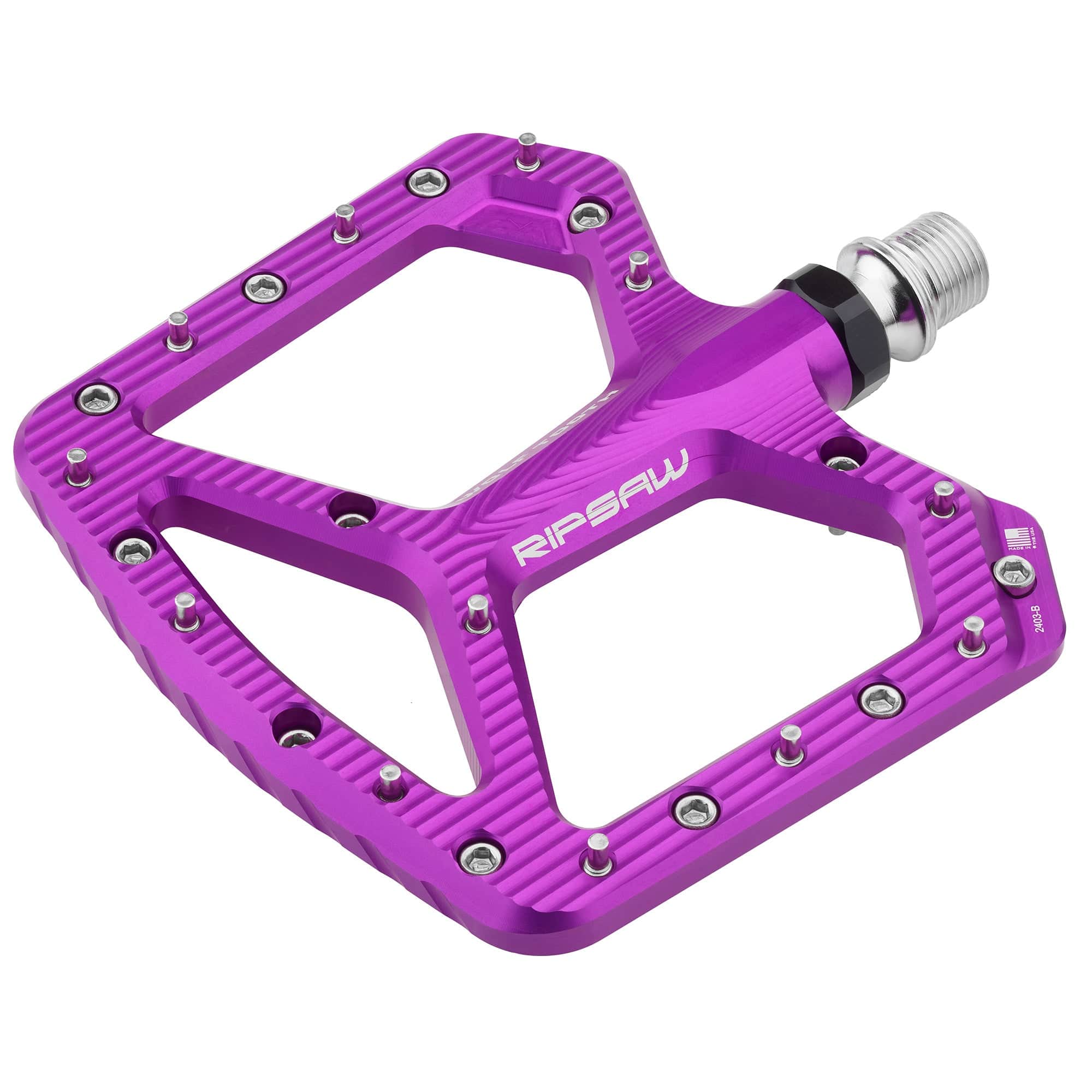

Black, Raw Silver, and Ultraviolet Purple.

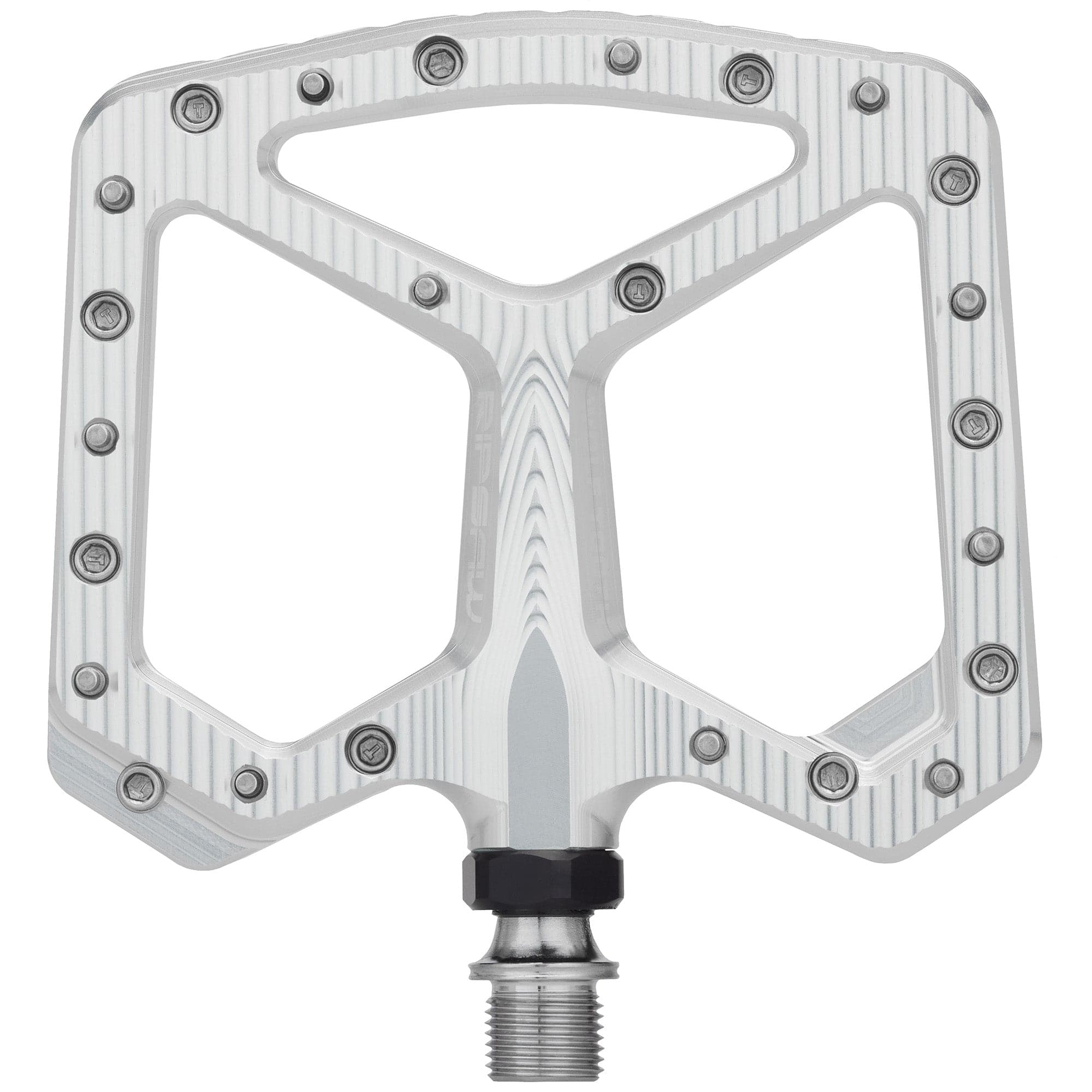

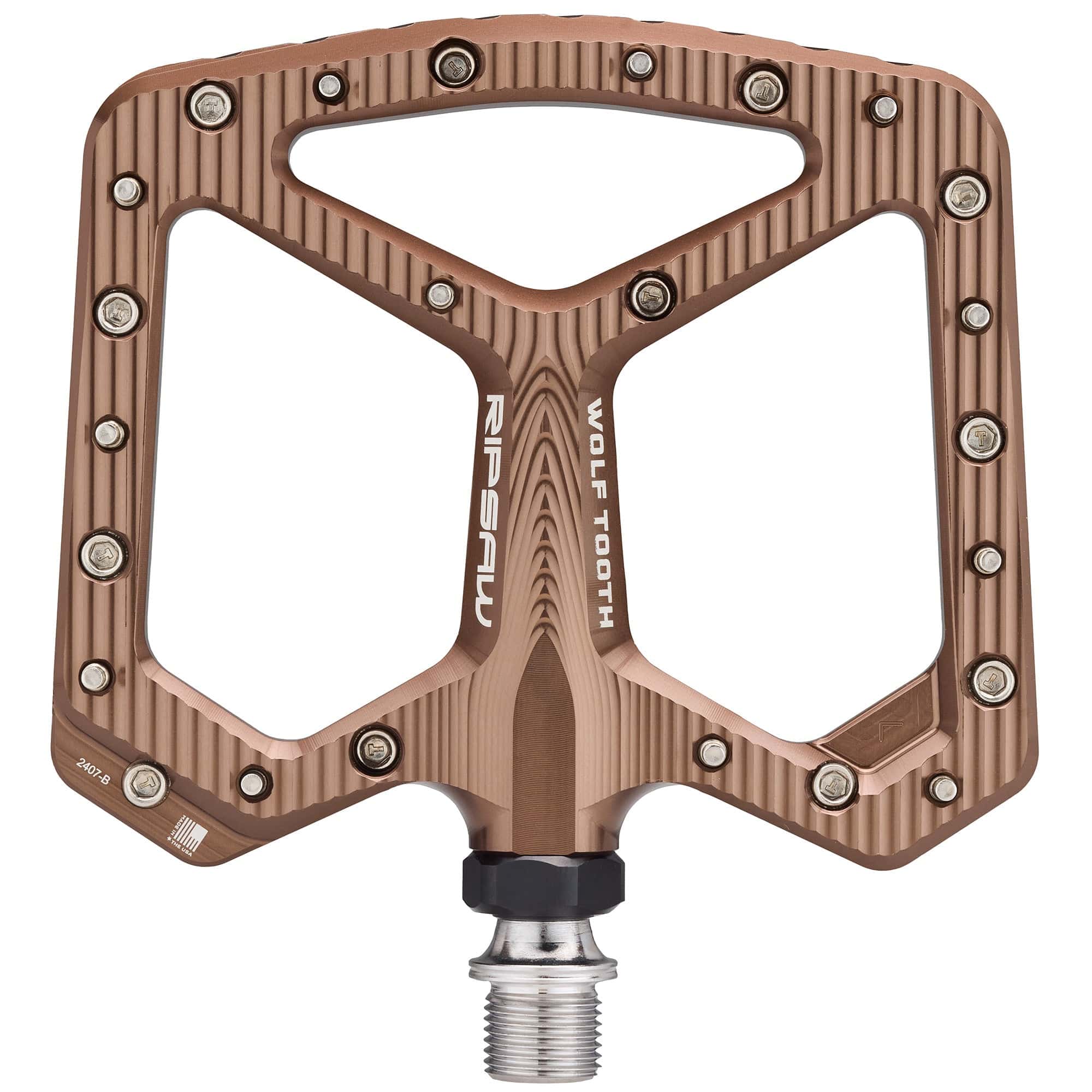

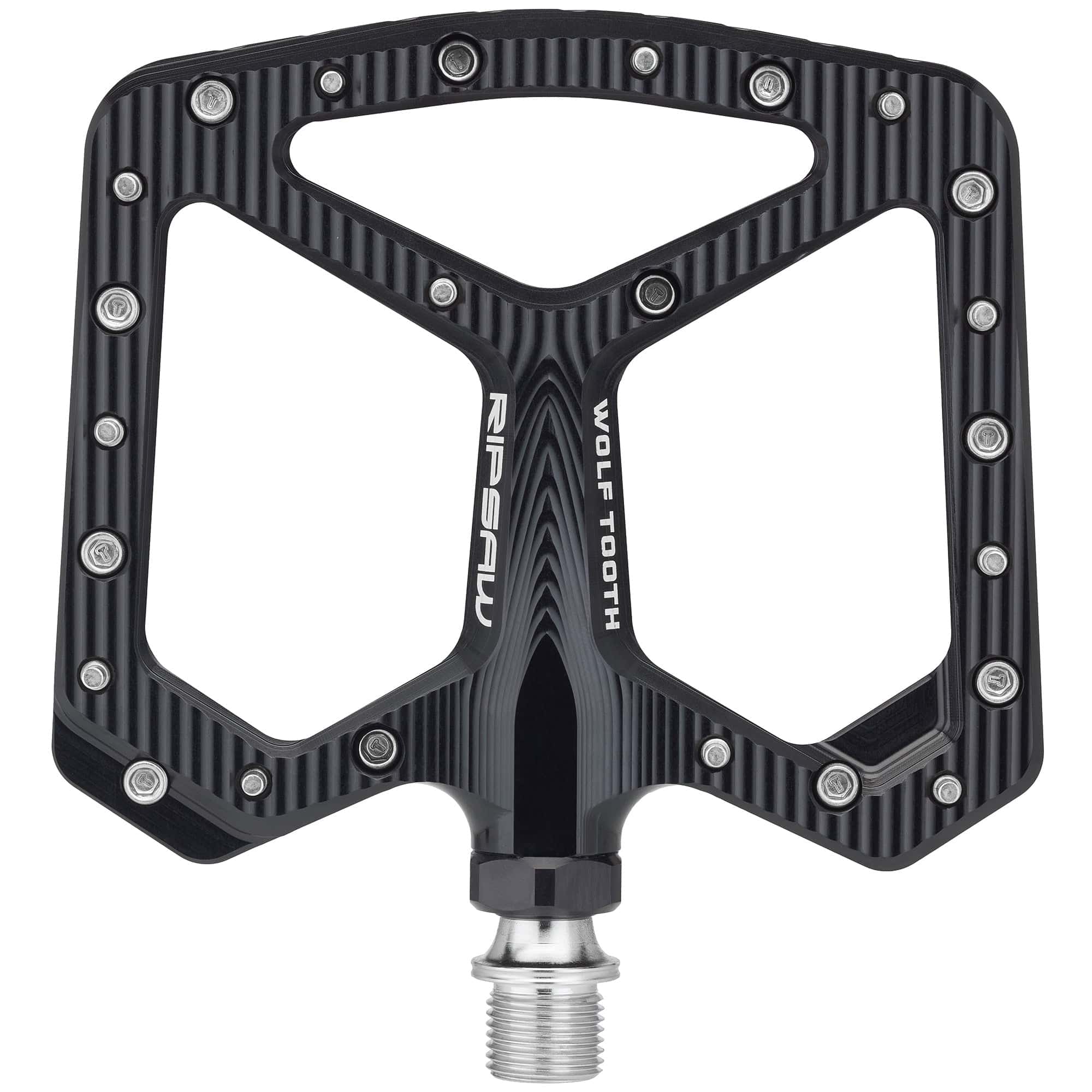

118mm long x 102mm wide

Large platform size provides strong foot support.

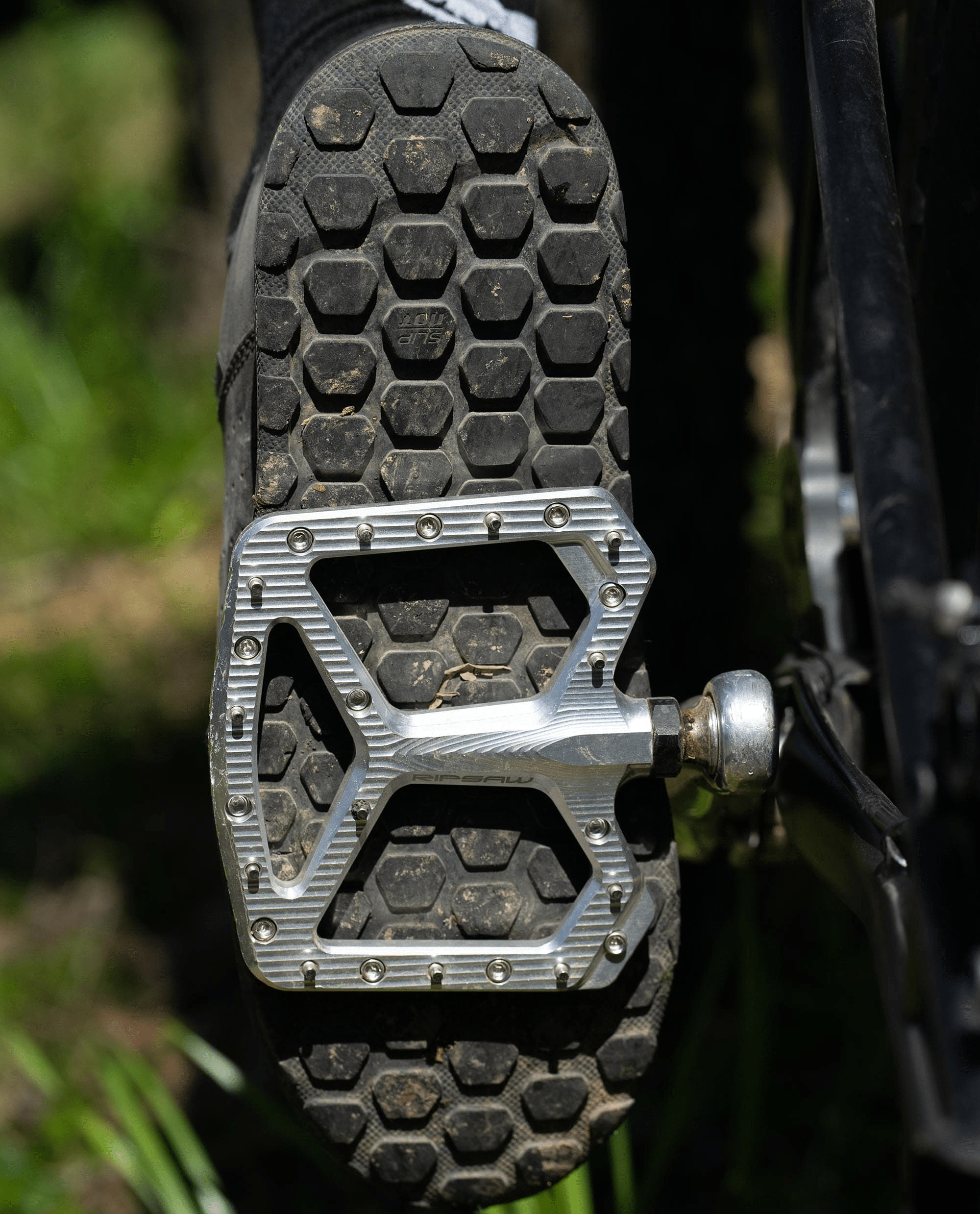

Convex arch aligns with the arch of your foot.

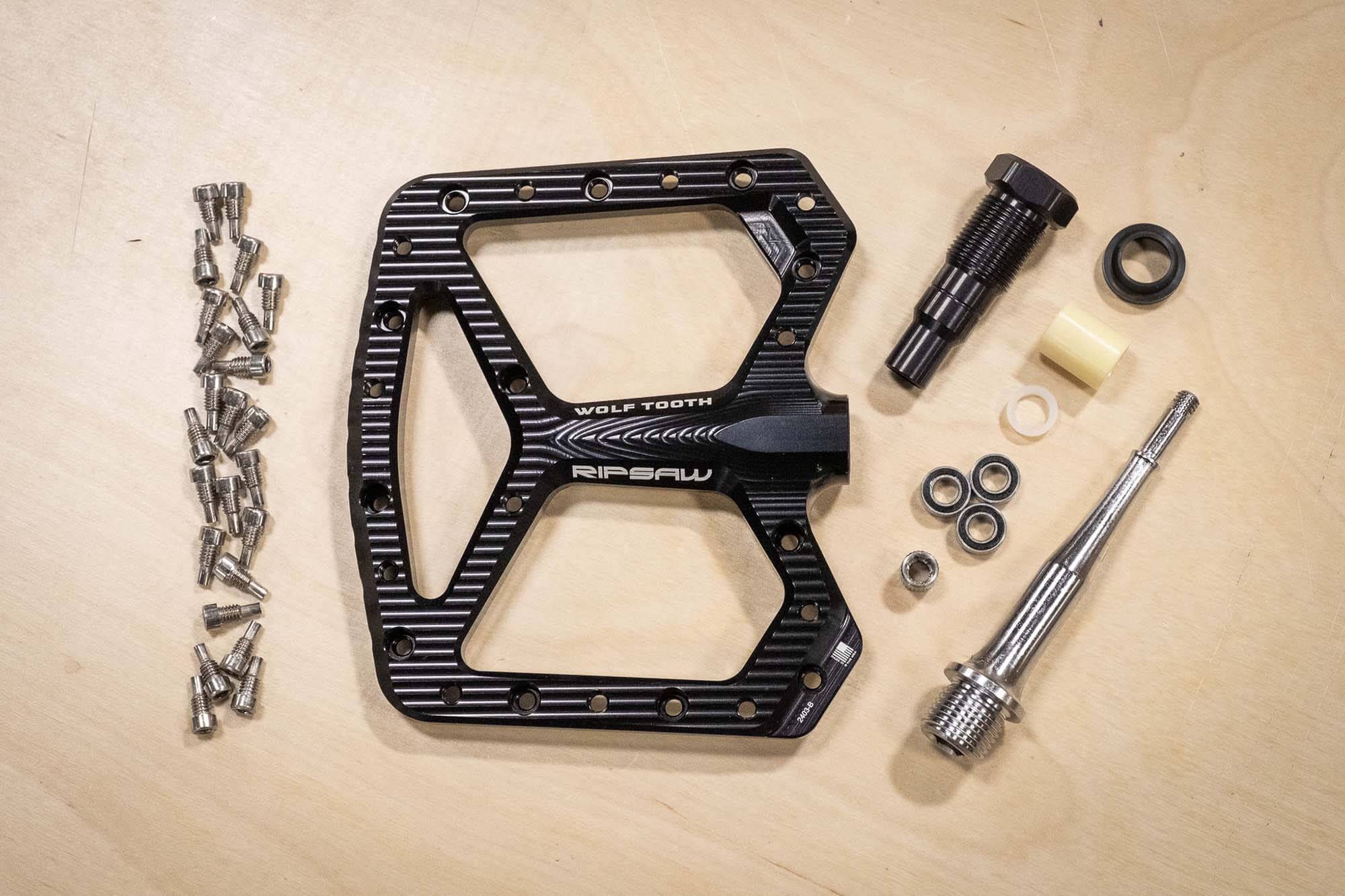

We believe in your right to be able to fix your components. Crashes happen, parts get misplaced, things go bump in the night. All individual parts are available as replacement parts.

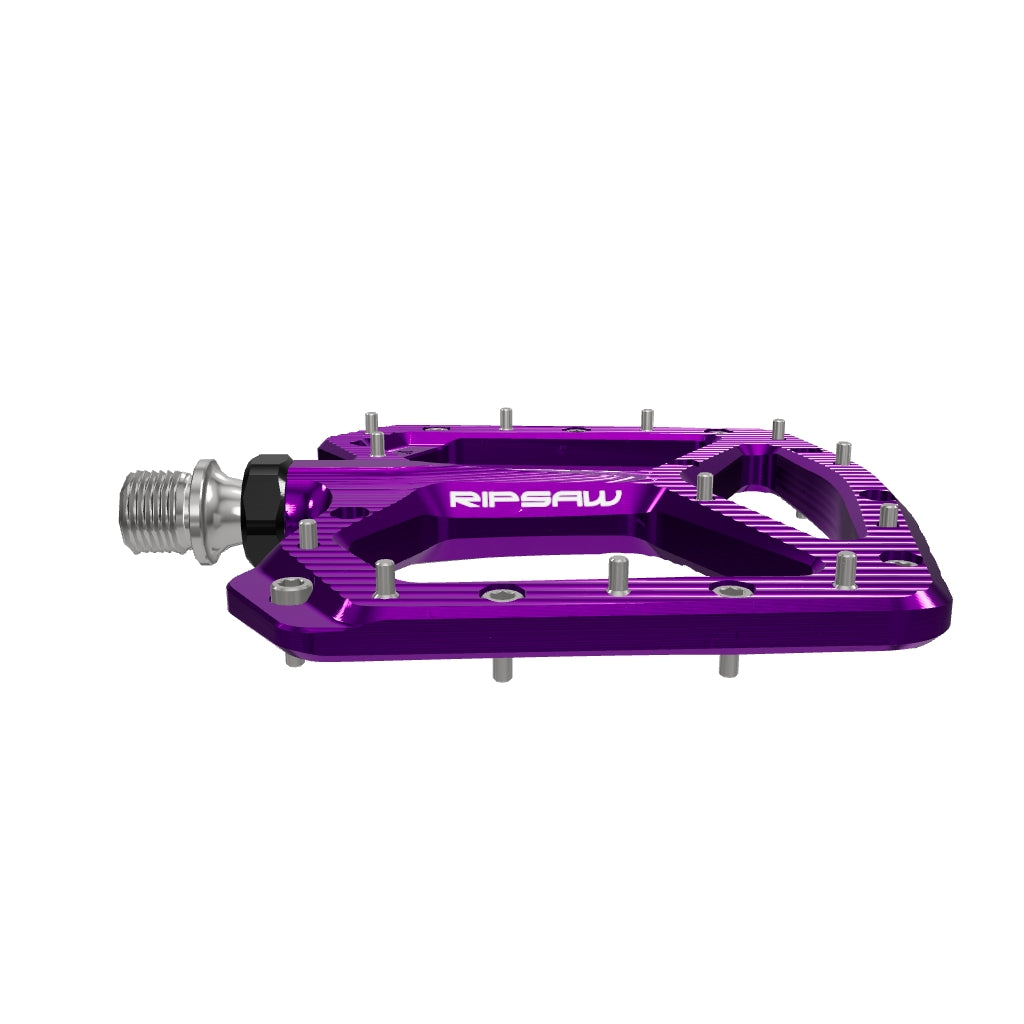

Use AR to see Ripsaw Pedals on your work bench

Scan the QR Code with your Phone

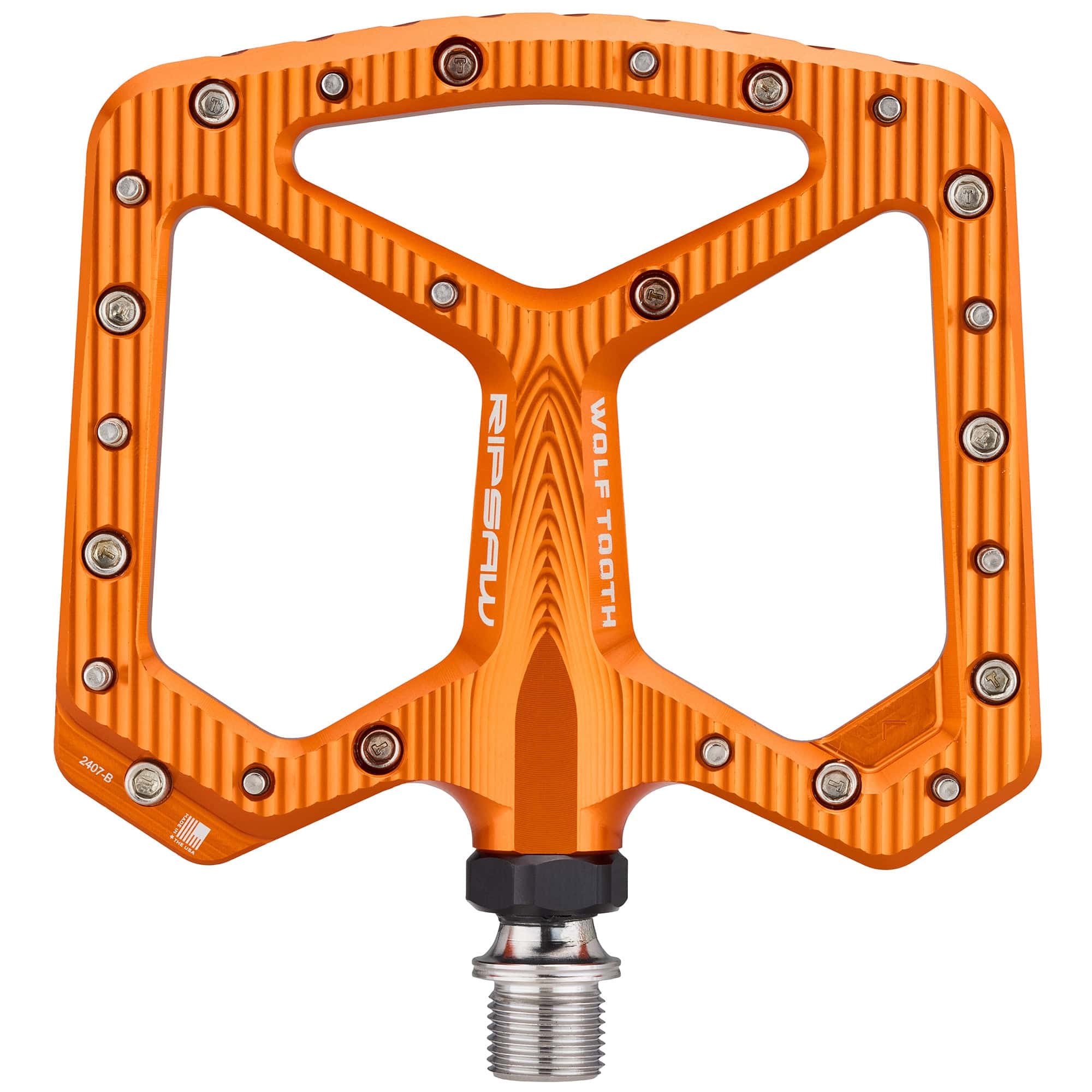

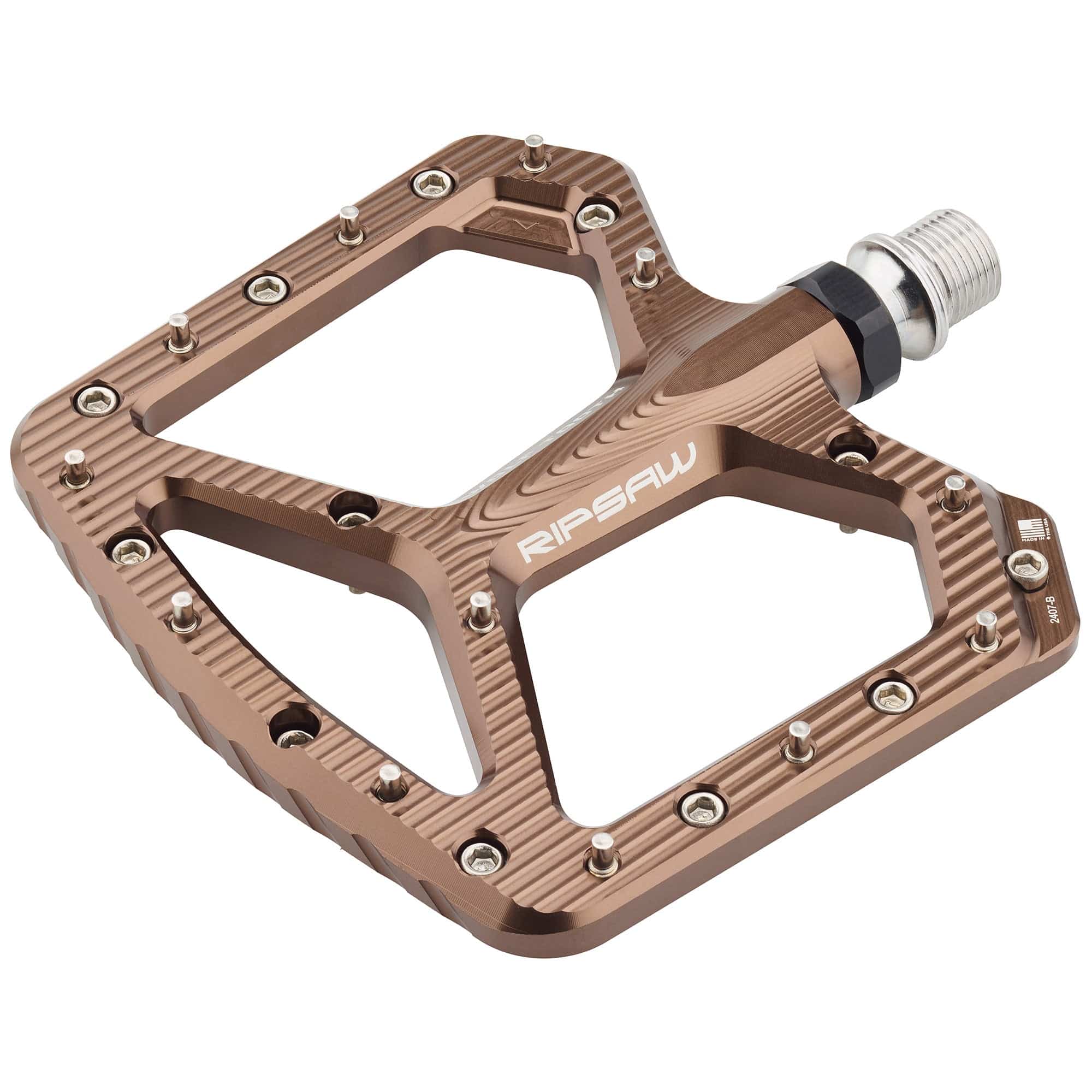

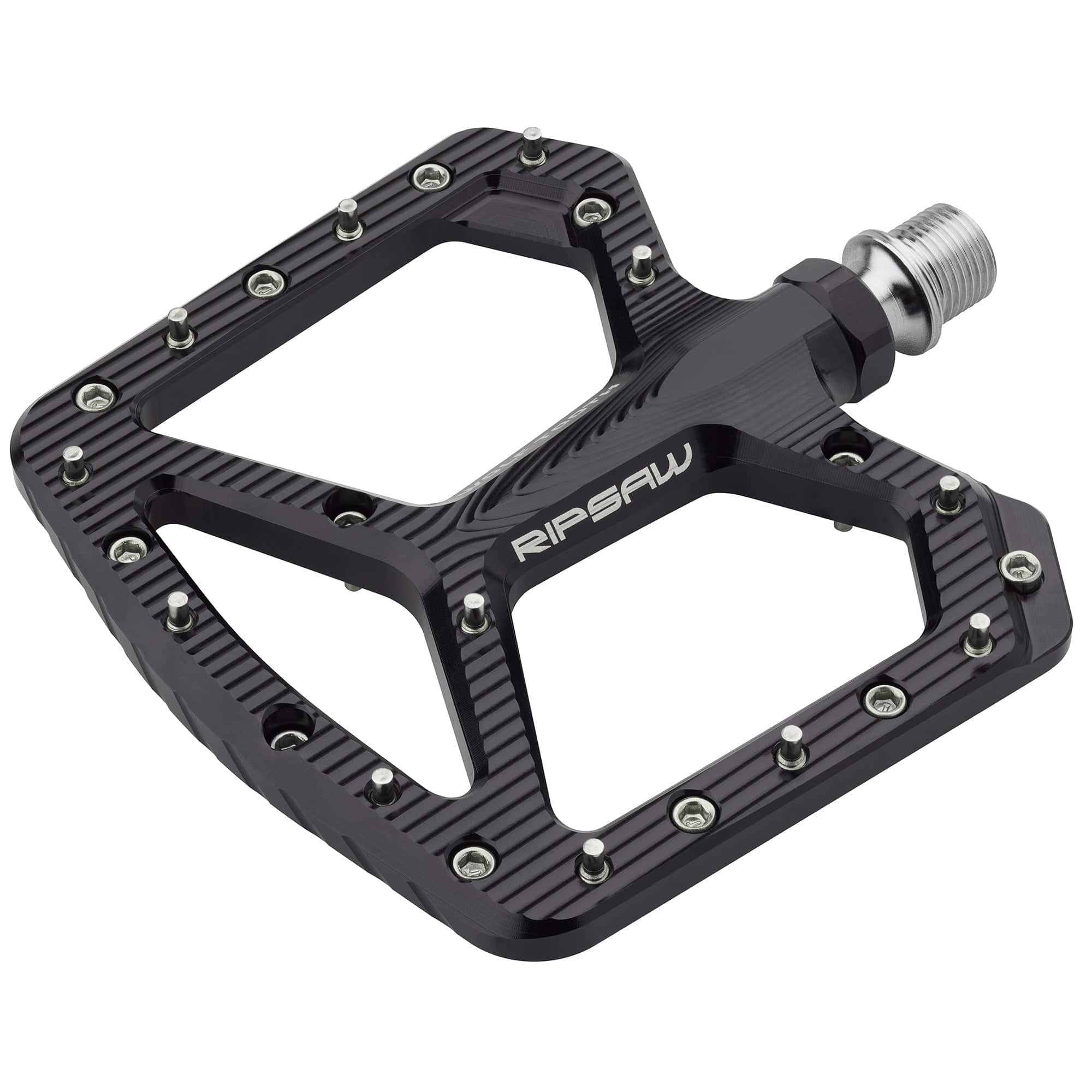

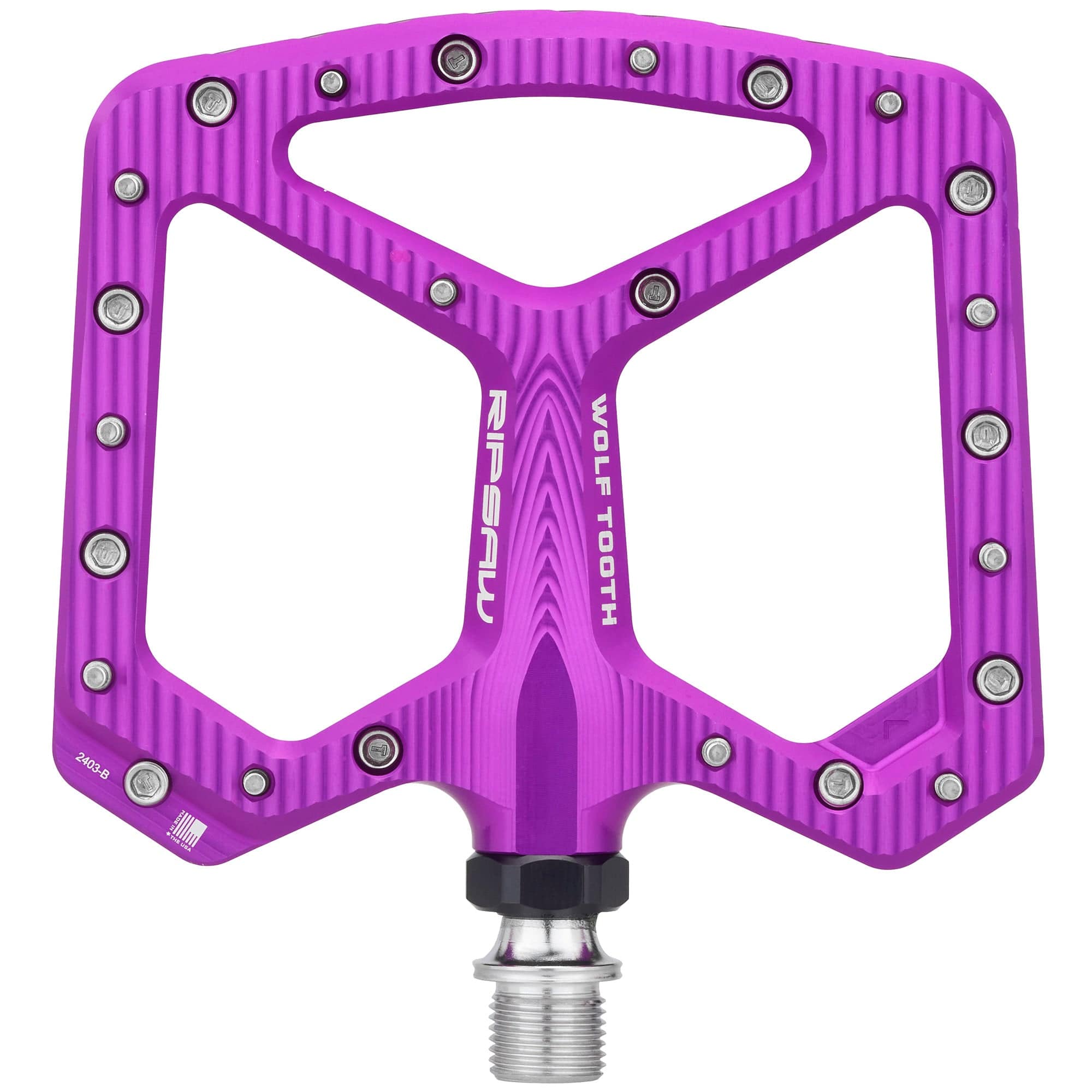

The new Ripsaw Aluminum Pedals feature a slim, lightweight design with a slight convex profile. The large, asymmetric aluminum platform provides strong foot support for all-mountain riding, while the minimal convex profile is just 7mm thick at the leading edge. These are designed for cyclists who prefer a mid-foot riding position, where the ball of the foot is in front of the pedal spindle and the arch of the foot aligns with the convex arch in the center of the pedal. Inside Ripsaw Aluminum Pedals is a 17-4 stainless steel axle, three sealed cartridge bearings, and one igus bushing with a custom radial seal to protect internal components from trail debris and dirt.

  • One size: 118mm long x 102mm wide
  • Twelve stainless steel, rear-loading grip pins on each side
  • Six extra 4.5mm grip pins included
  • Three colors: black, raw silver, ultraviolet purple
  • Replacement parts and service guides available via Wolf Tooth Right to Repair
  • Five-year warranty
  • Exceeds all ISO safety standards
  • Machined and assembled at Wolf Tooth in Minnesota, USA



  • Fits all standard cranks with 9/16-20 tpi right- and left-hand threads – some kid’s bikes and vintage bikes may have smaller incompatible threads.

Related Products

Ripsaw Pedals Replacement Parts

Pedal Pins

WT-G Grease

Waveform Aluminum Pedals

Right To Repair

Tech Specs

    User Manual and Service Guide


    Ripsaw Pedal Replacement Parts

    Ripsaw Pedals Factory Service

    Weight: 380g
    Pin Height: 4.5mm

    Material: Pedal Body: 6061-T6 Aluminum; Axle: 17-4 PH Stainless Steel; Pins: 304 Stainless Steel

    Made in the USA
