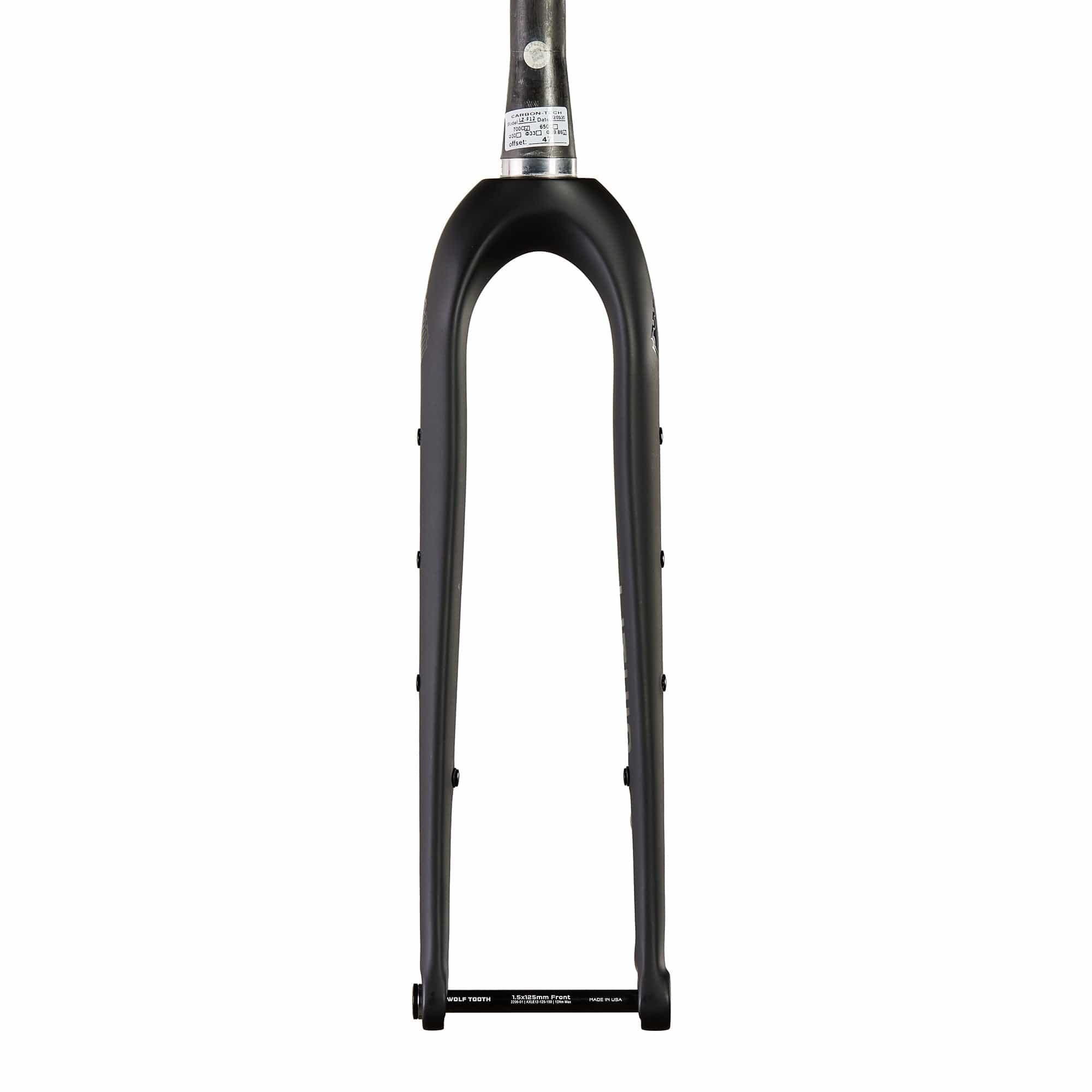

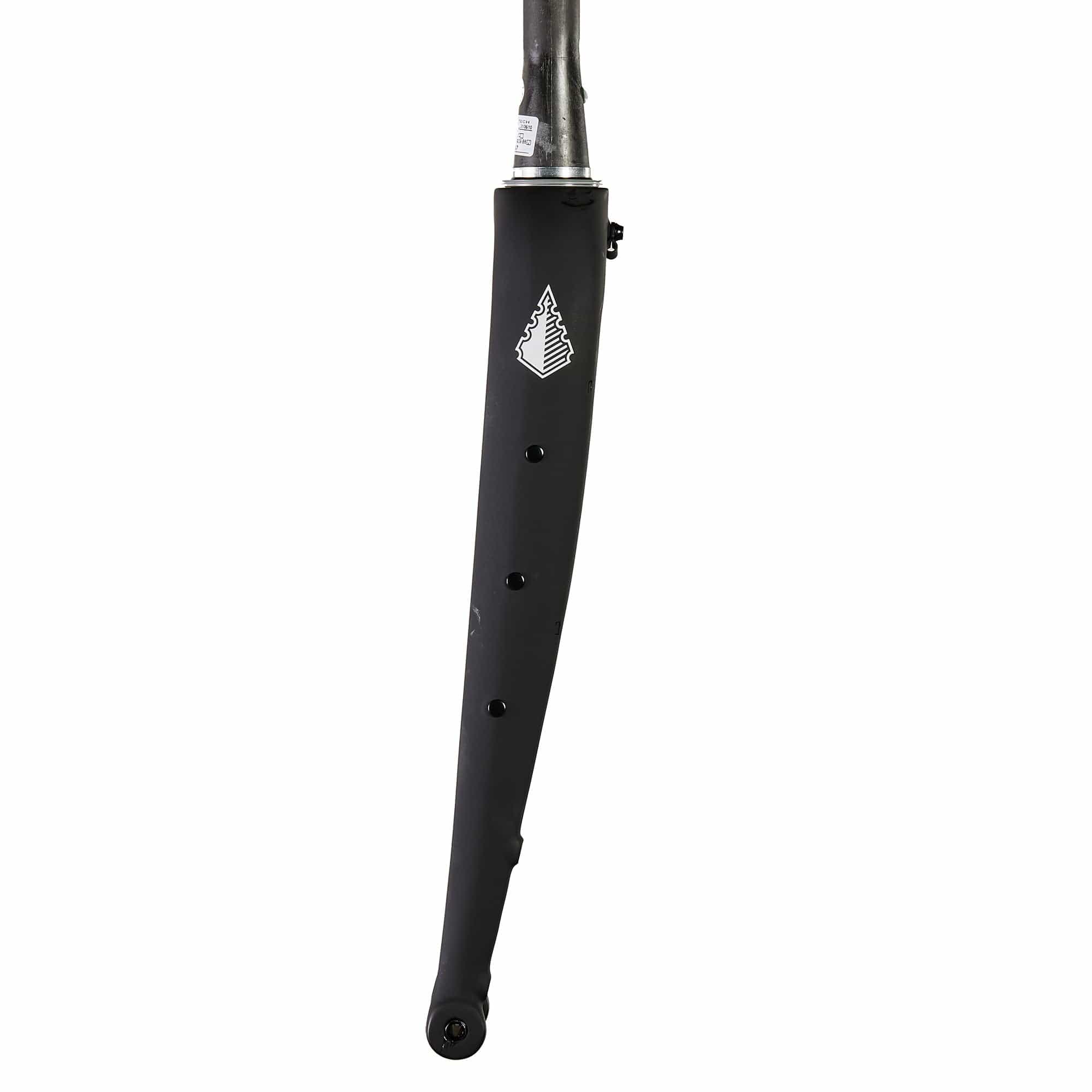

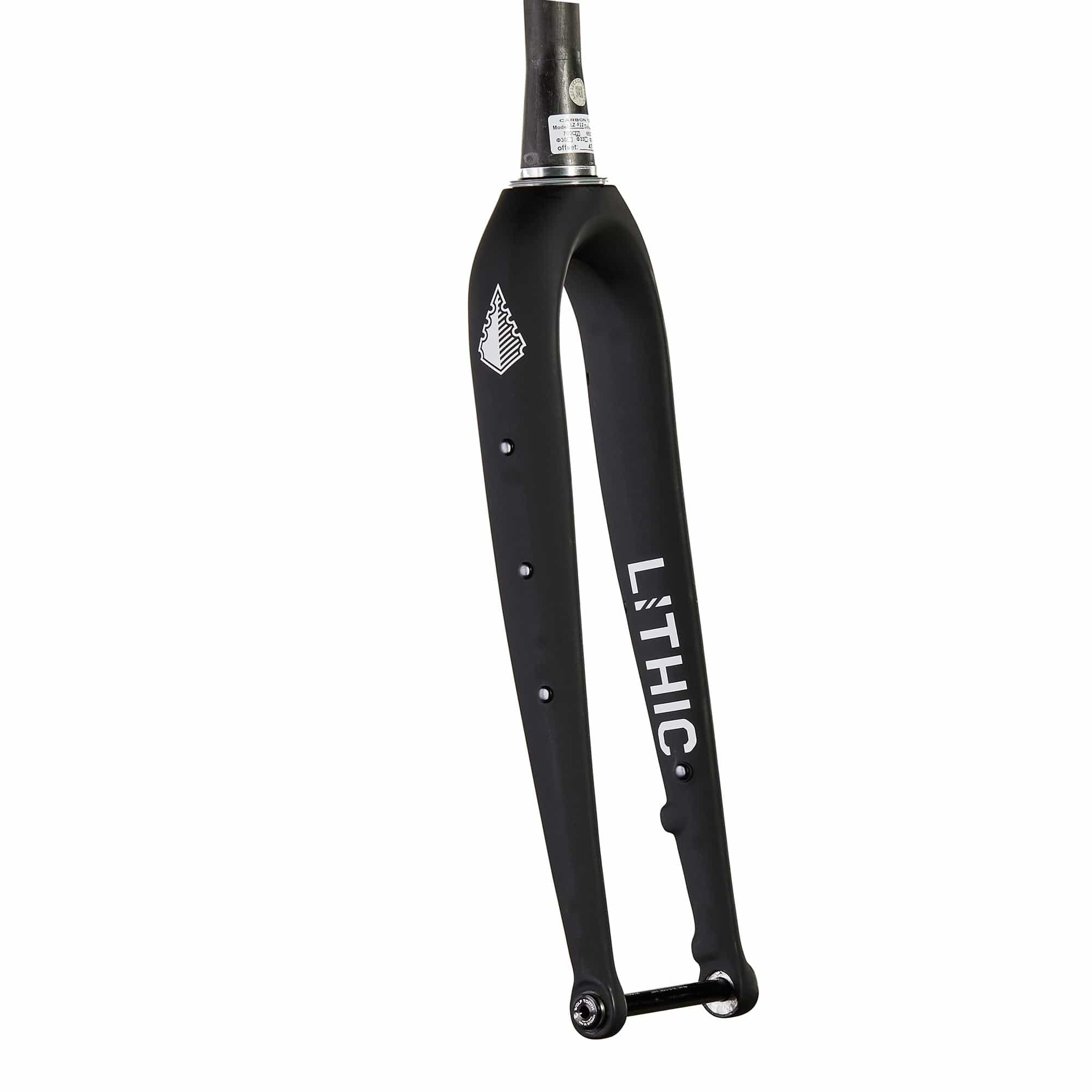

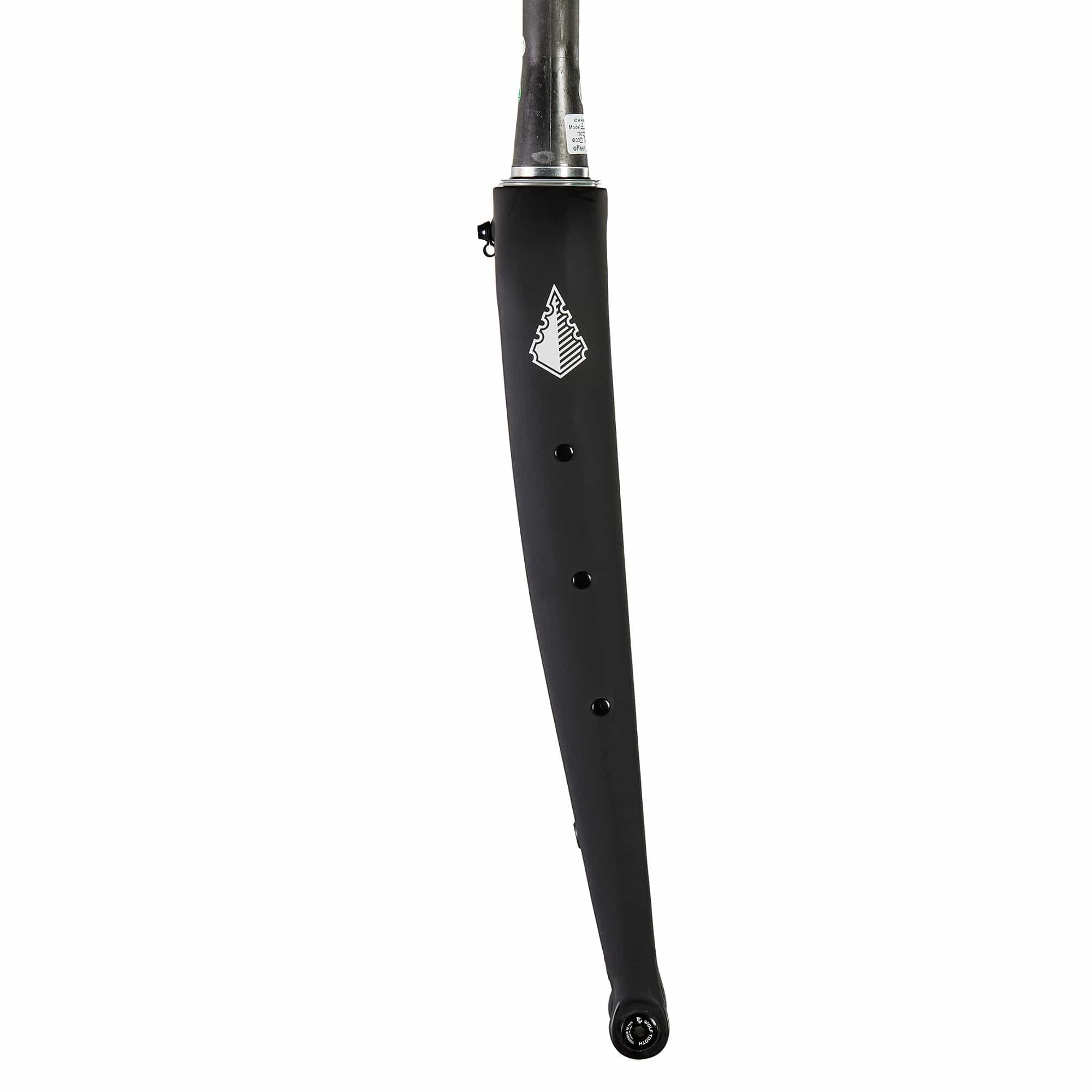

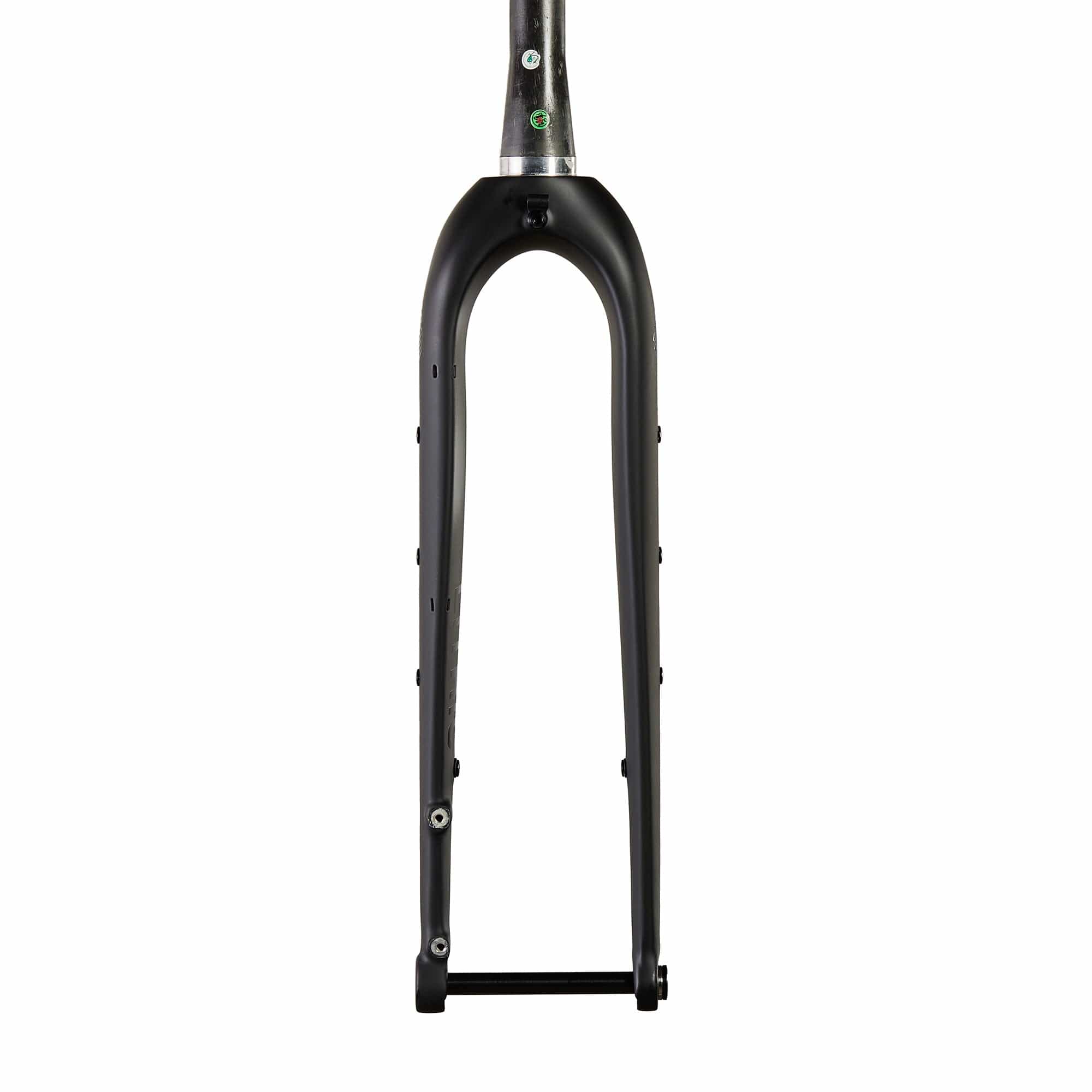

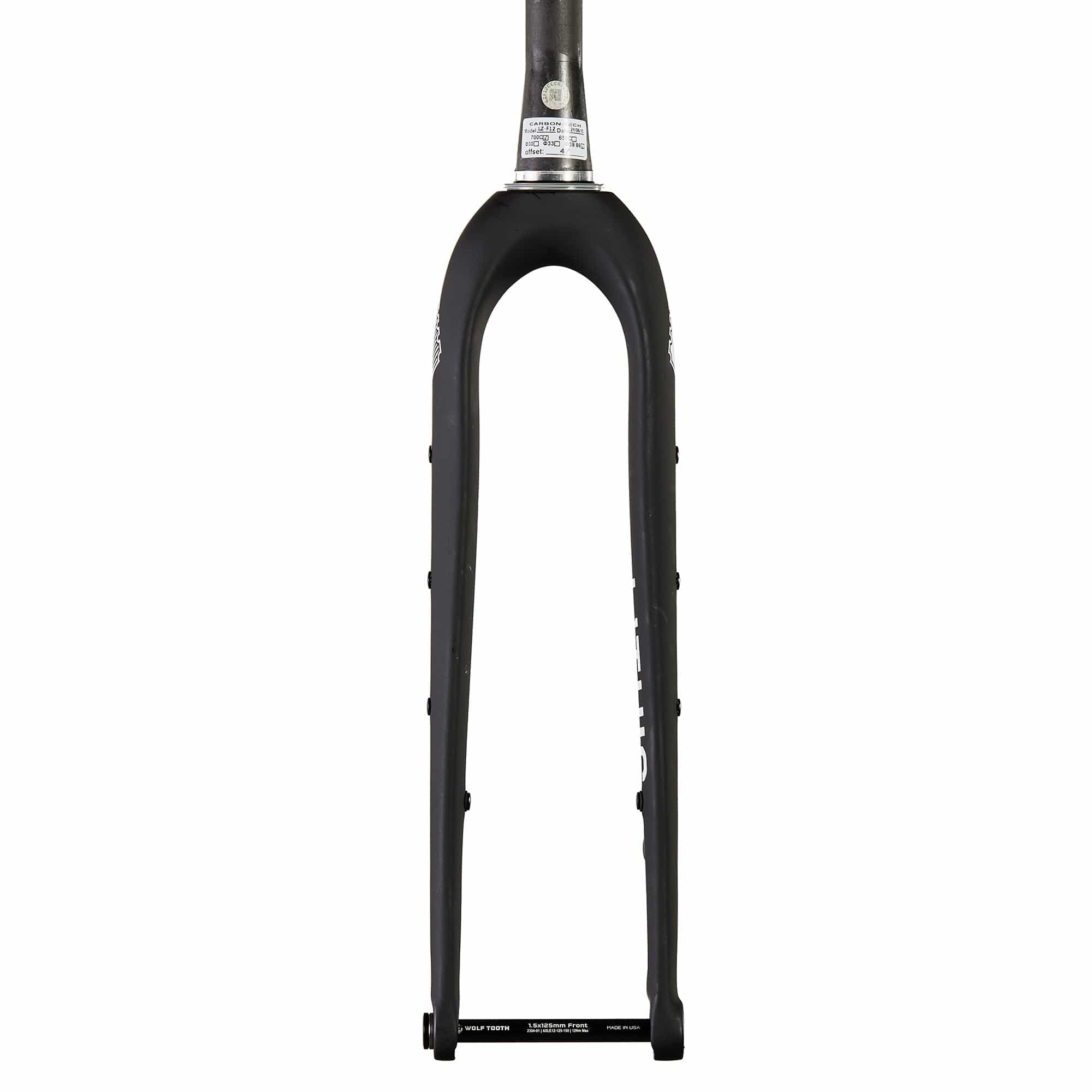

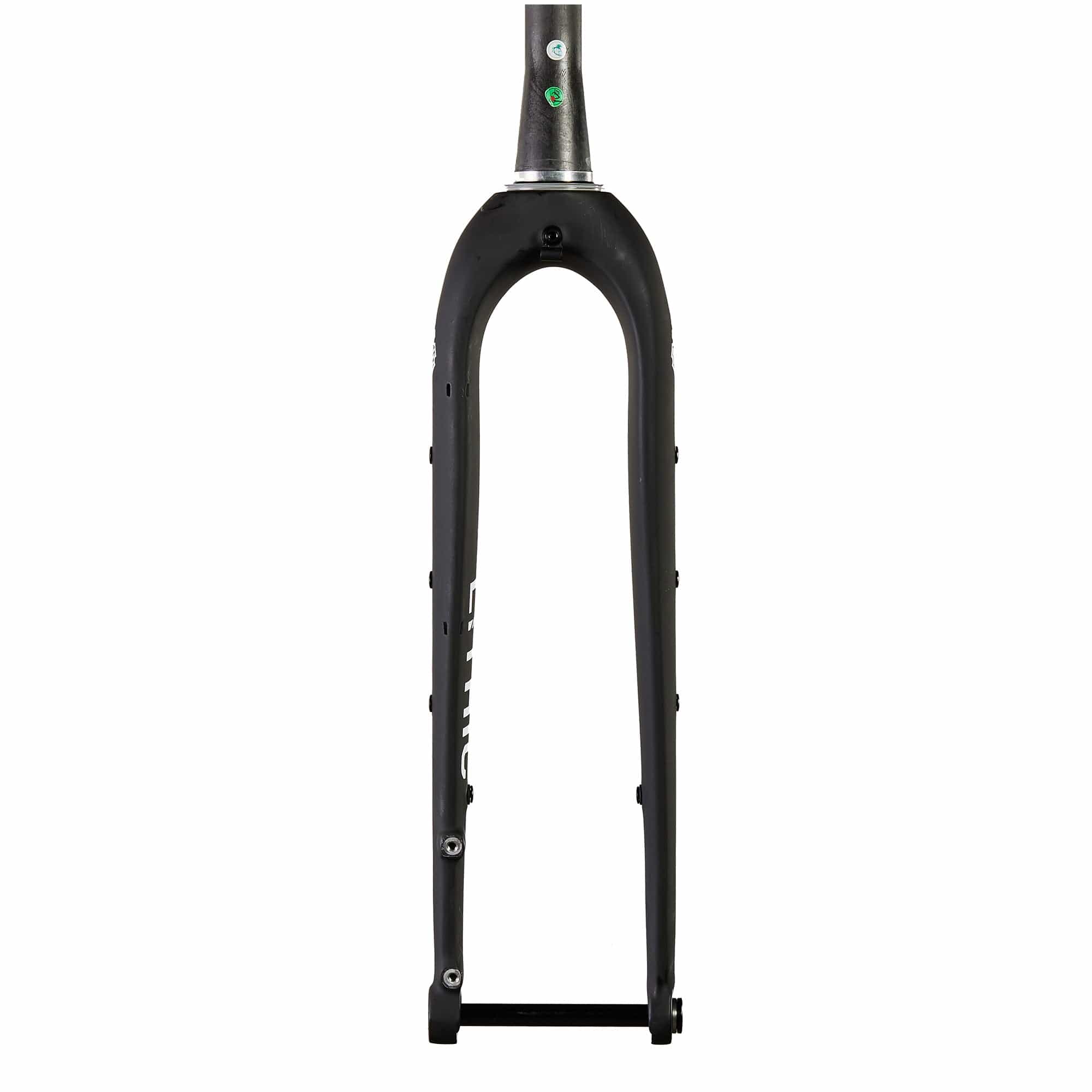

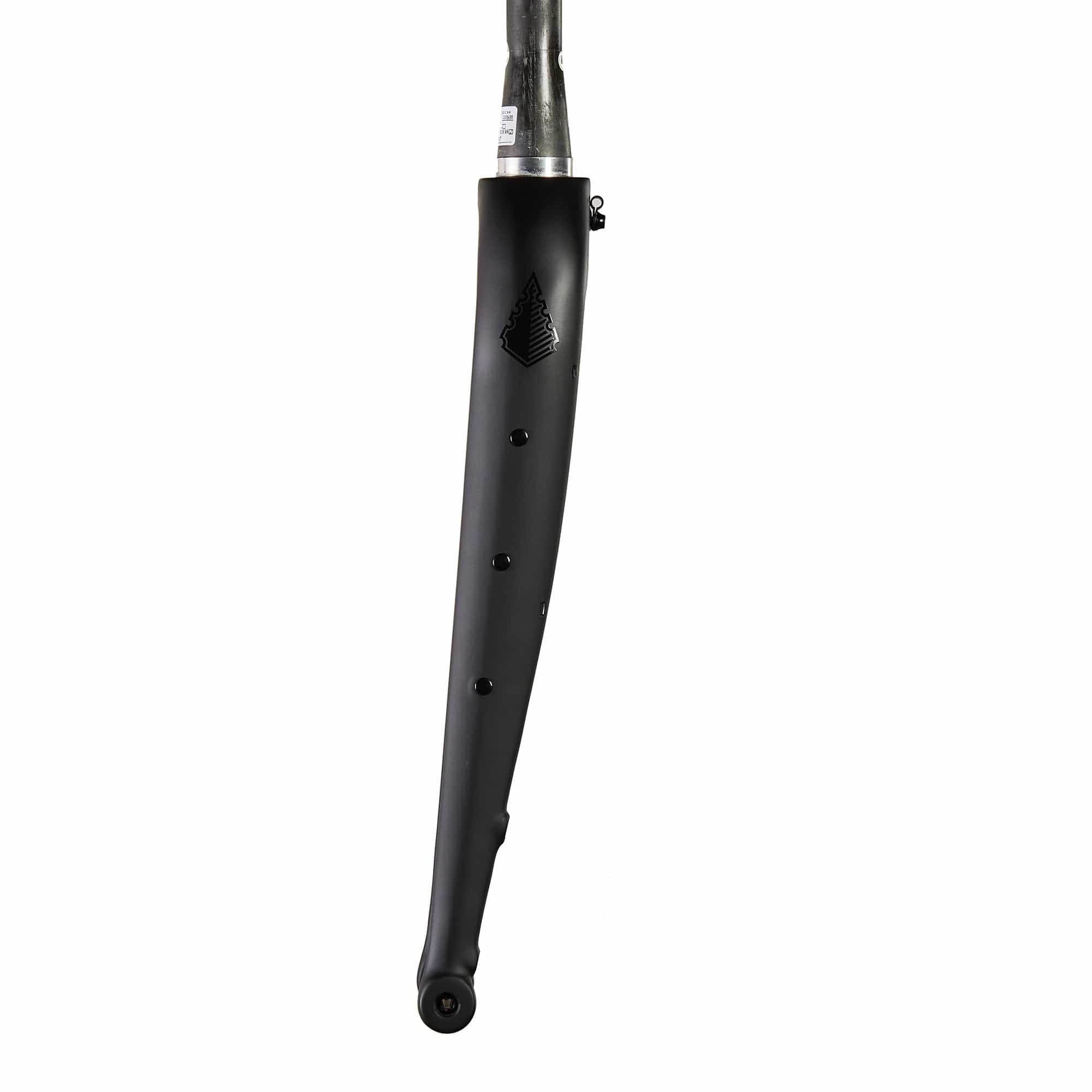

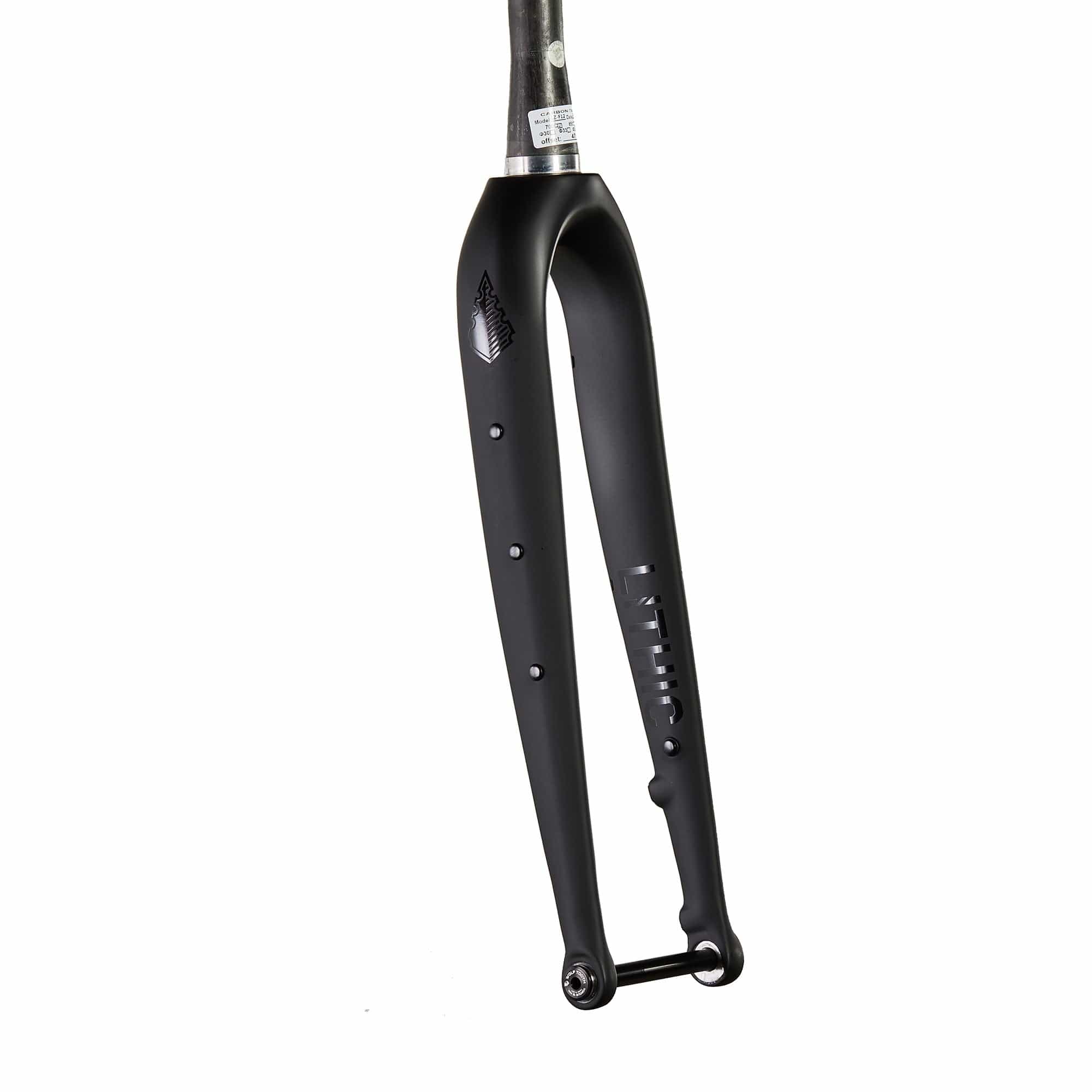

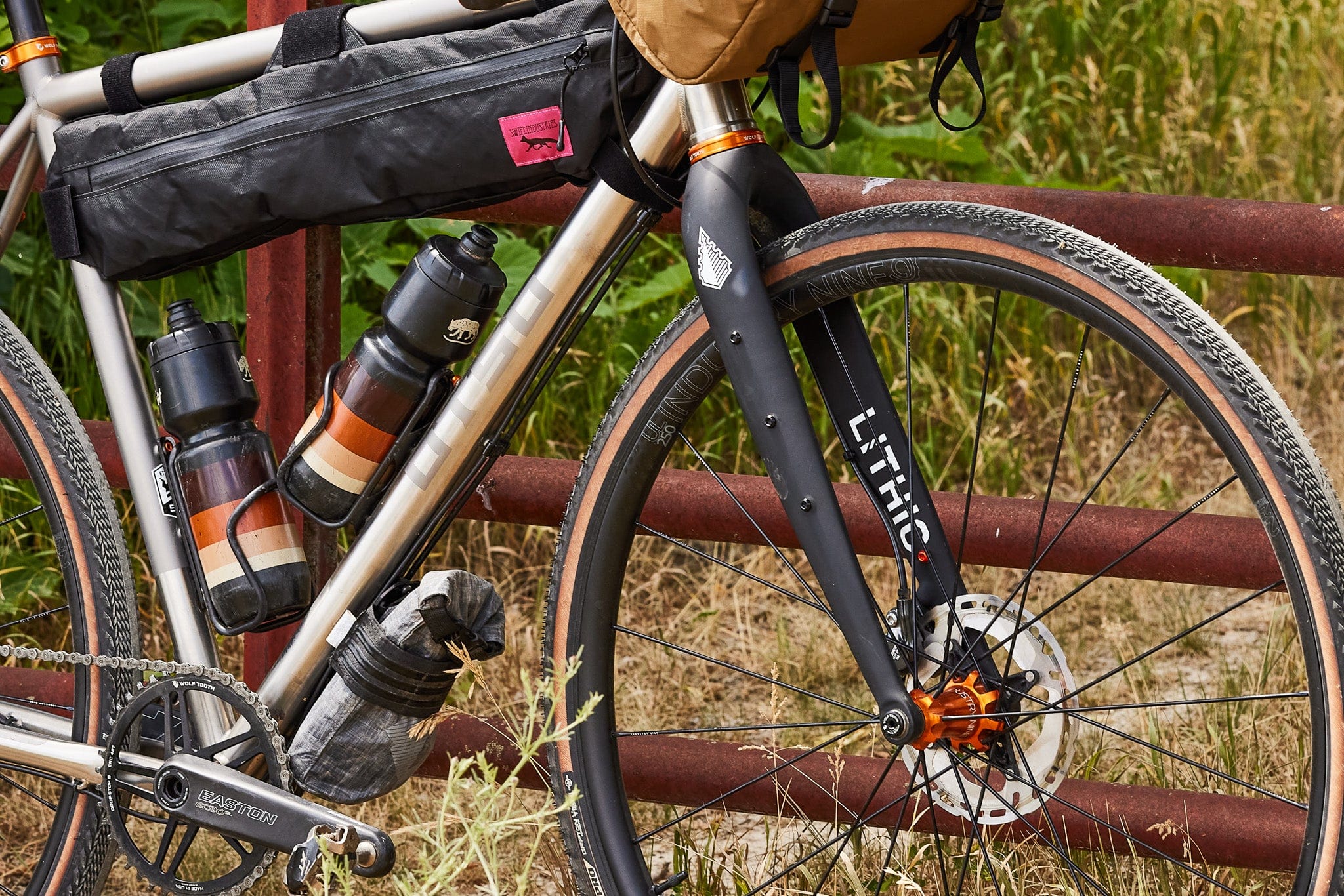

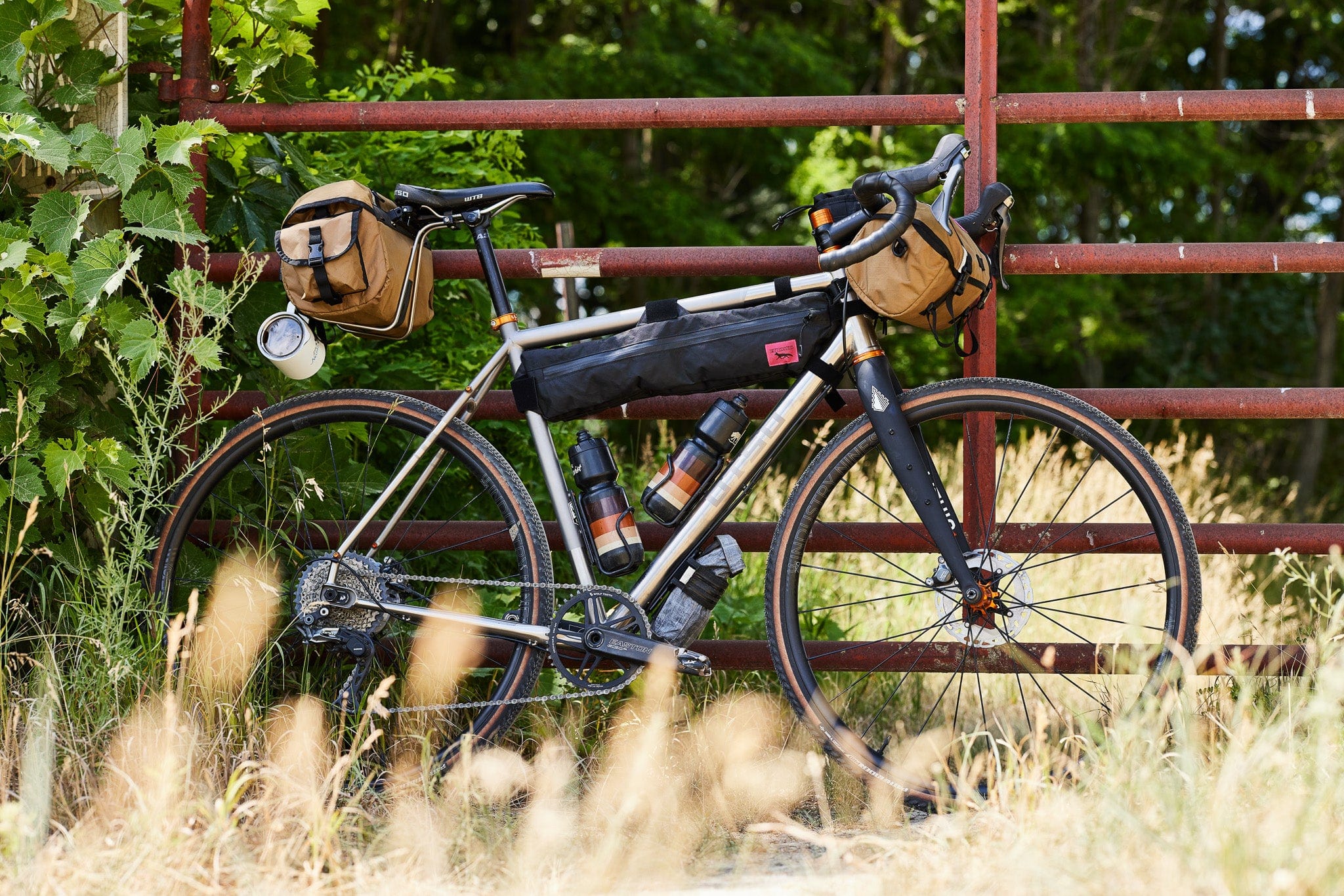

The Lithic Gravel Fork is a carbon option for gravel and all-road bikes. This fork has matte black paint with options for gloss black and gloss white decals. The axle-to-crown is 420mm, which makes it compatible with suspension-corrected frames. Clearance for 29” x 2.1” tires and three-pack mounts equip the fork for bikepacking, while the 515g uncut weight makes it a strong selection for gravel racing.


Material Carbon
Weight (including axle) 515g
Steerer Tube Length 320mm
Steerer Tube Taper 1 1/8" - 1 1/2"
Rake/Offset 47mm
Axle To Crown 420mm
Suspension Correction 30-50mm
Brake Mount Flat Mount
Hub Spacing 12x100mm
Max Rotor Size 160mm
Max Tire Clearance 29x2.1" (54-622)
Max Rider Weight 250 lbs
Max Load (3 pack mounts) 2.5kg [5.5 lbs] per side
Axle Torque 12Nm
Compression plug torque 8Nm
Stem spacers above stem 10mm MAX
Stem spacers below stem 40mm MAX
Stem steerer tube clamp torque 6Nm MAX
Warranty 2 years

Included with fork:
• Wolf Tooth 12mm thru axle
• Compression plug

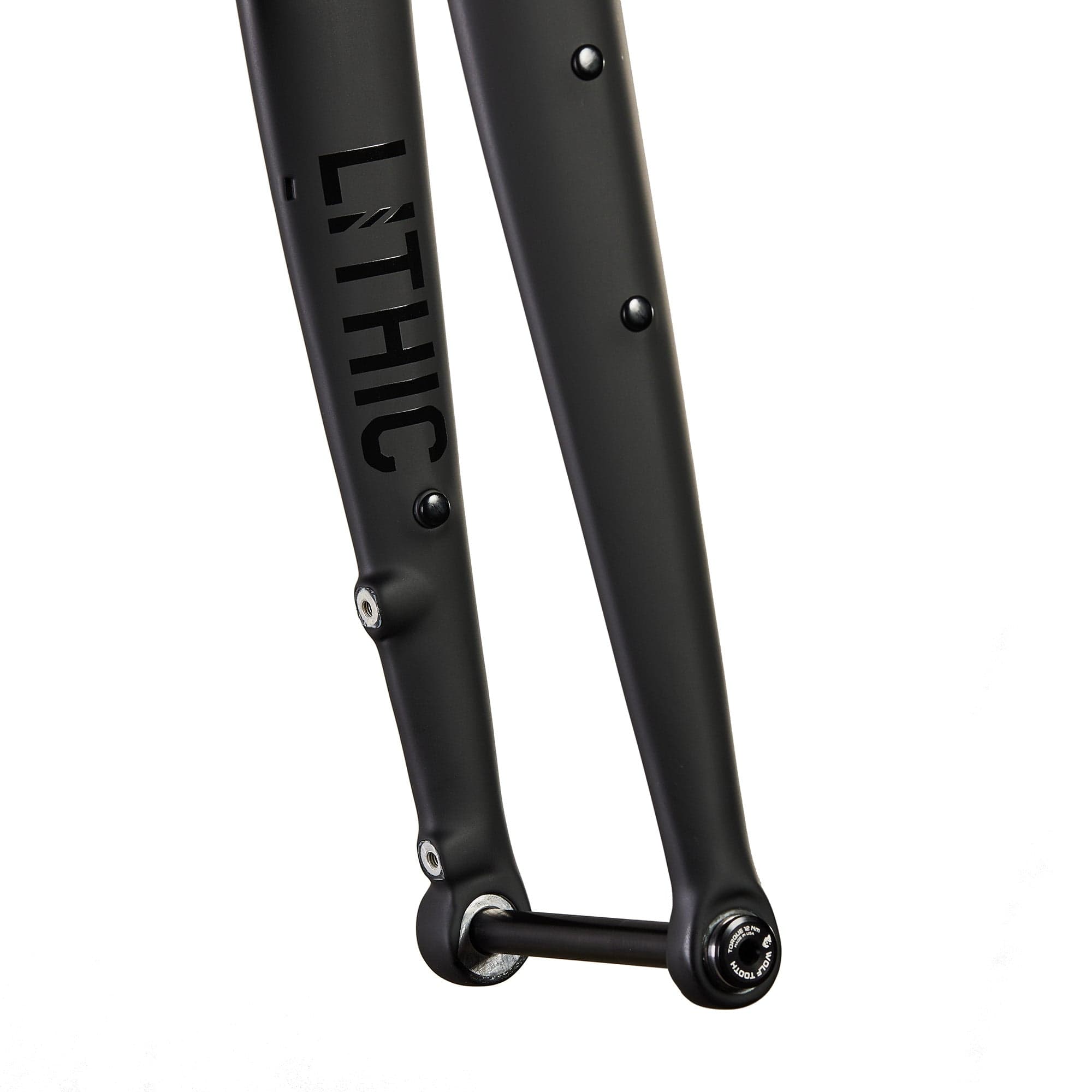

• Three M5 mounts on each side for carrying bottle cages or gear
• Hidden fender mount/brake cable clip
