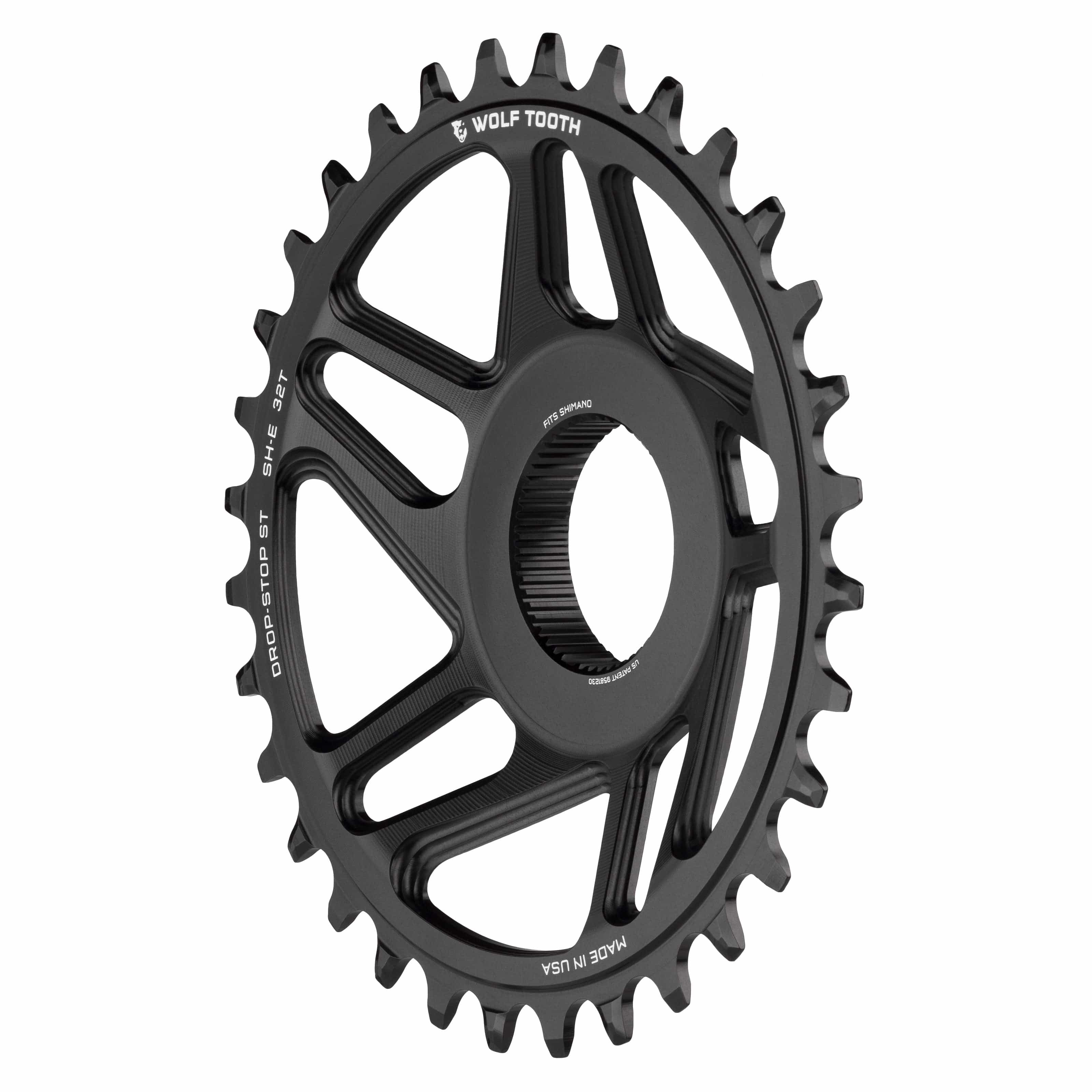

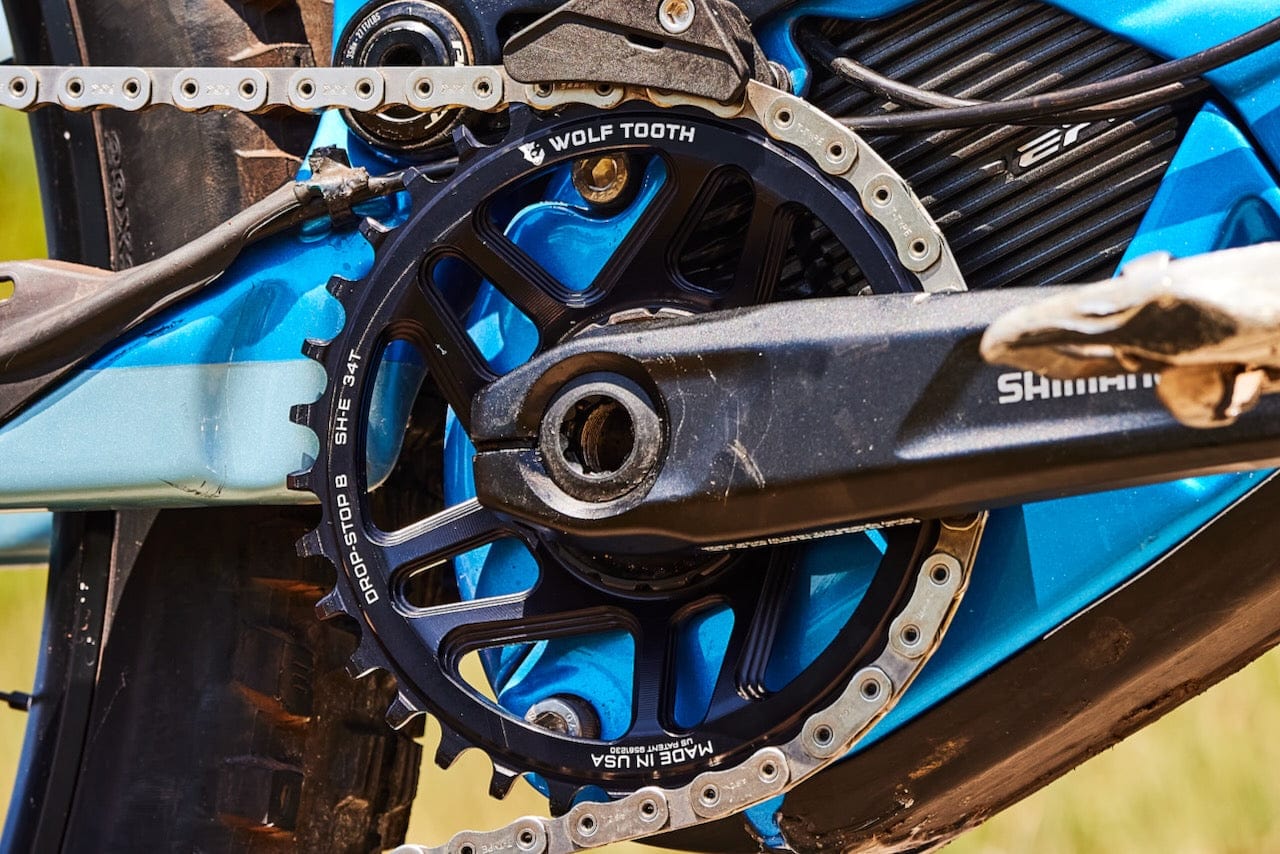

Wolf Tooth Direct Mount Chainrings for Shimano E-Bike Motors have a 55mm chainline and are compatible with all Boost and Super Boost bikes that use the Shimano EP8, E8000, and E7000 e-bike motor splines. The Drop-Stop B tooth profile is compatible with almost all 9-, 10-, 11-, and 12-speed chains – the only exception is Shimano Hyperglide+. The Drop-Stop ST tooth profile is only compatible with Shimano Hyperglide+ chains. Direct Mount Chainrings for Shimano E-Bike Motors are machined with 7075-T6 aluminum at Wolf Tooth in Minnesota, USA.

Compatibility

  • Compatible with all Boost and Super Boost bikes that use the Shimano EP8, E8000, and E7000 e-bike motors
  • Chain compatibility with all 9-, 10-, 11-, and 12-speed chains based on tooth profile selection
  • 55mm chainline



Related Products

Tech Specs

Weights: 32t • 87g | 34t • 92g
Material: 7075-T6 aluminum

Made in the USA


Wolf Tooth is committed to provide the most precision components possible and has three different tooth profiles for optimal performance based on your chain type.


Tooth Profile

Tooth Profile

Drop-Stop® B

Drop-Stop® A

Drop-Stop® ST

Chain Compatibility

Chain Compatibility

All 9s, 10s, and 11s Chains

12s Chains:

  • Connex
  • Wipperman
  • Campagnolo
  • SRAM Eagle
  • SRAM Road and Transmission (T-type) Flattop chains

Not compatible with 12s Shimano HG+, KMC, or 13s Campagnolo chains

All 9s, 10s, and 11s Chains

12s Chains:

  • SRAM® Eagle
  • Connex
  • Wippermann

You can use Drop-Stop B when Drop-Stop A is not available*

Not compatible with 12s SRAM Transmission (T-Type) and Road Flattop, 12s Shimano HG+, 12s KMC, 12s Campagnolo, or 13s Campagnolo chains

12s Chains:

  • Shimano HG+
  • 12s KMC

Not compatible with all other chains

Details

Details

Tooth shape is nearly identical to Drop-Stop A, but has narrower teeth. Valley between teeth is deeper to accommodate larger rollers on Flattop chain. Outside faces of narrow and wide teeth touch chain to guide alignment.

Drop Stop B Chainrings navigate_next

The original Drop-Stop tooth profile. The wide teeth are wider than Drop-Stop B. Outside faces of narrow and wide teeth guide chain alignment.

Drop Stop A Chainrings navigate_next

Narrower teeth than Drop-Stop A. Wide teeth use Symmetric Trapezoidal (ST) profile to match extended inner edge on chain to create alignment (outside faces of wide teeth do not touch). Interaction of narrow teeth and chain are similar to Drop-Stop A and B.

Drop Stop ST Chainrings navigate_next

*We are in the process of migrating most Drop-Stop A to Drop-Stop B to make them compatible with  SRAM Road and Transmission (T-type) Flattop chains.
