76 BCD Chainrings for SRAM XX1 and Specialized Stout
7630
Pairs well with
76 BCD Chainrings for SRAM XX1 and Specialized Stout

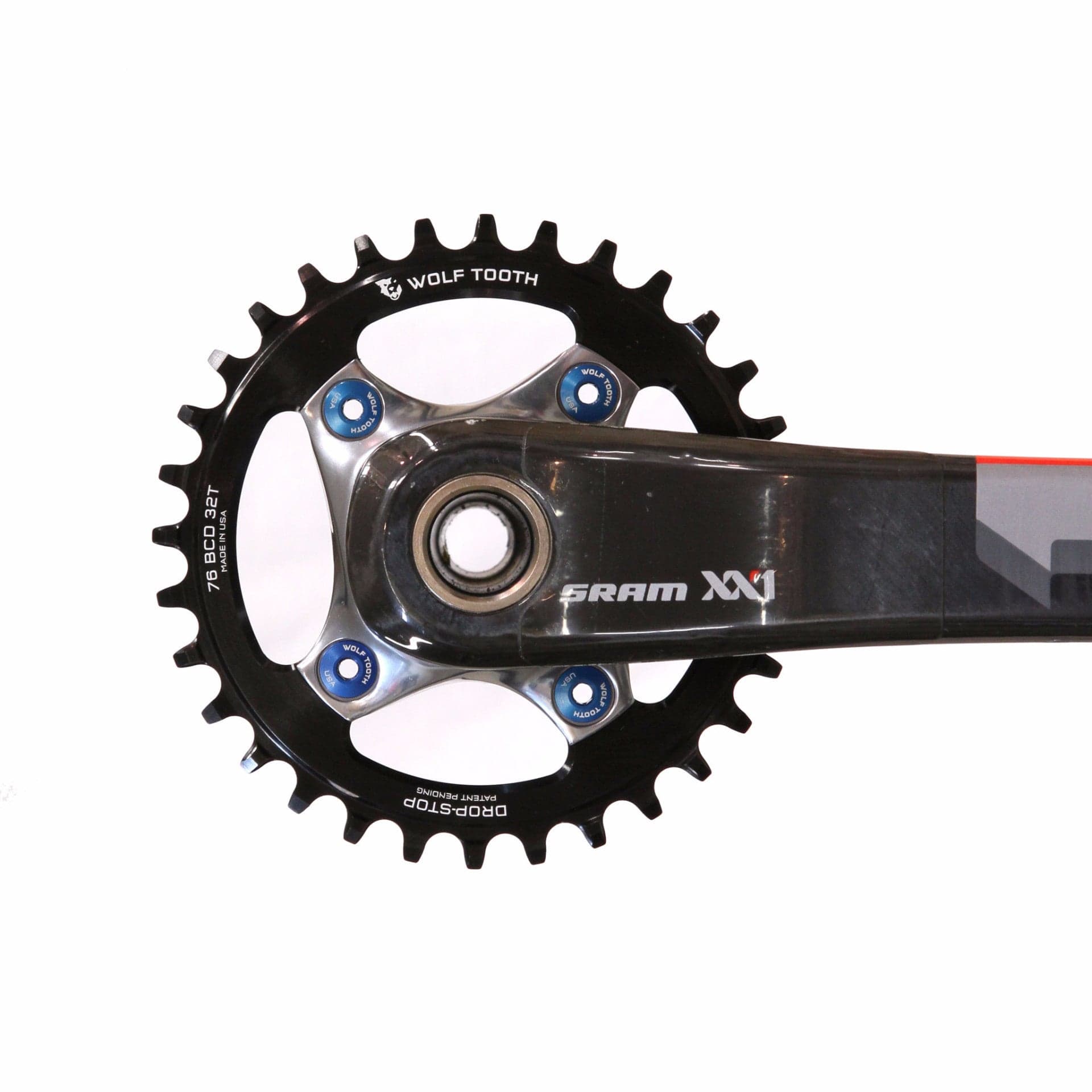

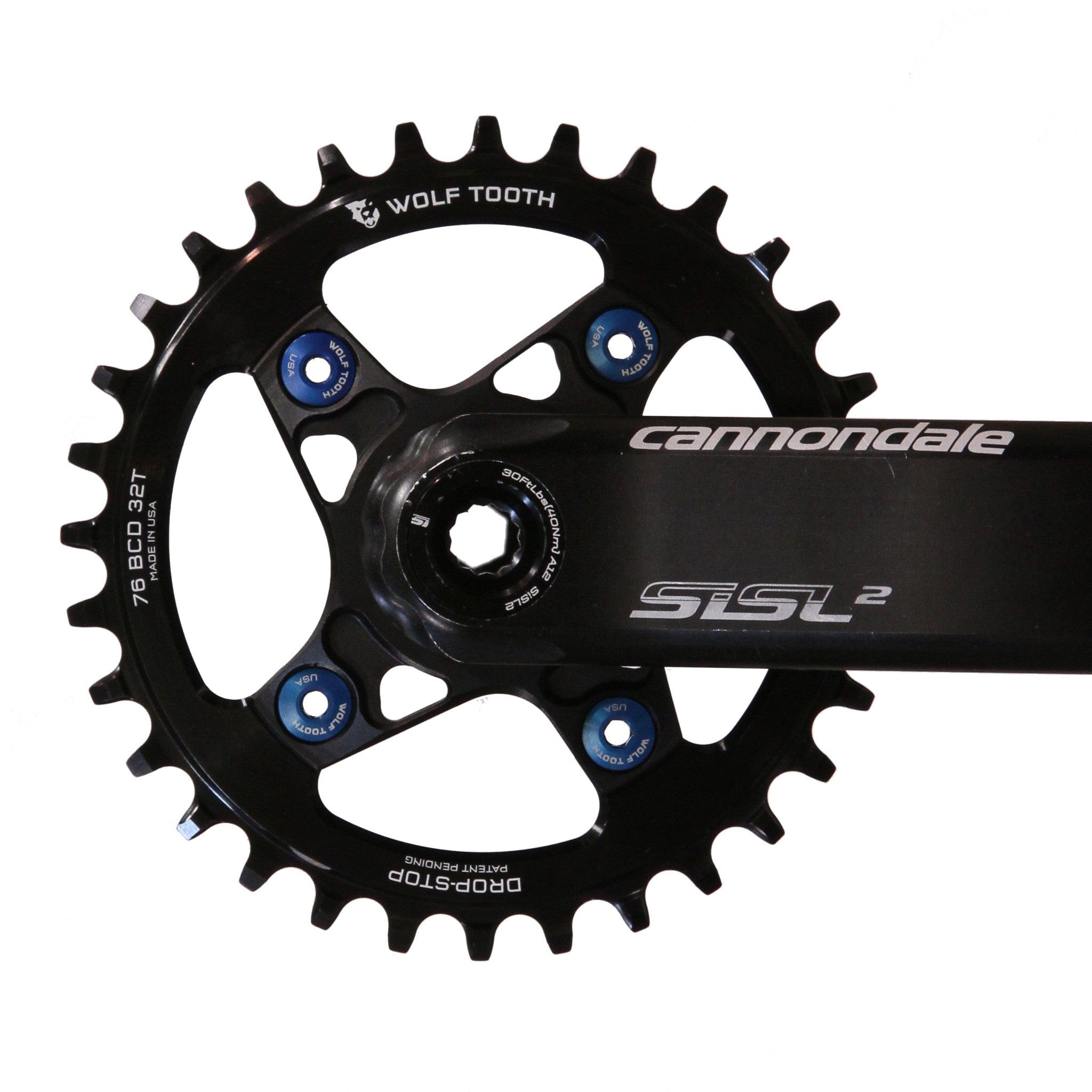

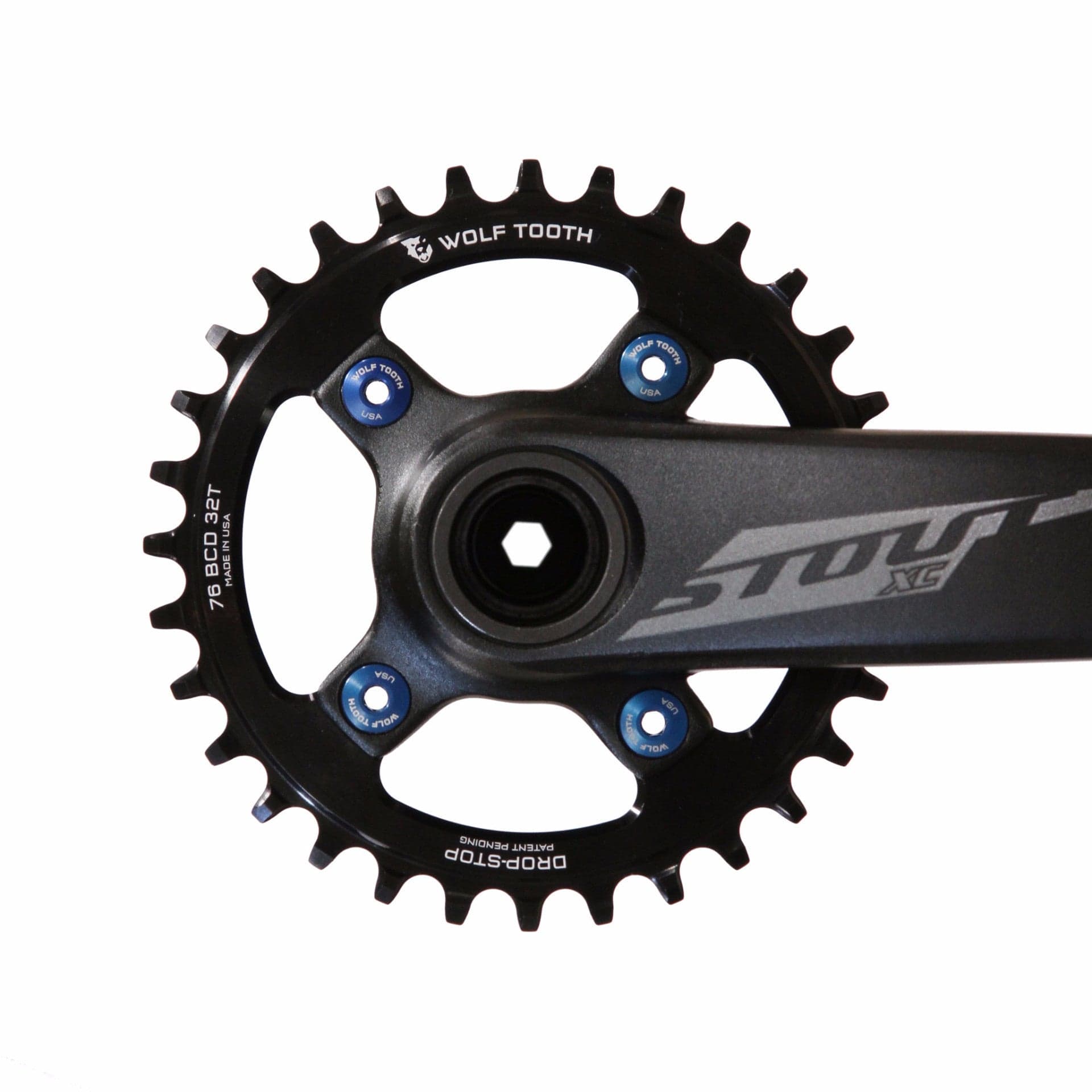

The Wolf Tooth 76 BCD chainrings work great on any 76 BCD spider or crankset. These will replace the more expensive rings used on SRAM XX1 spiders or other manufacturer's spiders such as Cannondale. Also a great fit on the Specialized Stout crankset.
-
Fits any 76 BCD crankset or spider
-
Drop-Stop® technology. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction.
-
Alternating wide/narrow tooth pattern prevents chain derailment
Note: Use standard M8 chainring bolts, not the M8.5 bolts included with XX1 spiders. Our patented Drop-Stop tooth design provides superior chain retention, wear life and mud-shedding capability.
Compatibility
- These rings fit any SRAM 76 BCD spider or Specialized Stout crankset. Here are instructions on how to measure your BCD.
- Threaded for standard M8 chainring bolts. For the XX1 spider, we recommend the 6mm bolts (or any short M8 chainring bolt). For the Stout crankset we recommend the 10mm bolts or the bolts that come with the crankset.
- If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
Recommendations
If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur. Without these precautions, you may experience chaindrops and/or chainsuck
Related Products
Tech Specs
Weight: 30t • 45g | 32 • 51g
Material: 7075-T6 aluminum
Made in the USA
Wolf Tooth is committed to provide the most precision components possible and has three different tooth profiles for optimal performance based on your chain type.
| Tooth Profile | |||
|---|---|---|---|
Tooth Profile |
Drop-Stop® B |
Drop-Stop® A |
Drop-Stop® ST |
| Chain Compatibility | |||
Chain Compatibility |
All 9s, 10s, and 11s Chains 12s Chains:
Not compatible with 12s Shimano HG+, 12s KMC, or 13s Campagnolo chains |
All 9s, 10s, and 11s Chains 12s Chains:
You can use Drop-Stop B when Drop-Stop A is not available* Not compatible with 12s SRAM Transmission (T-Type) and Road Flattop, 12s Shimano HG+, 12s KMC, 12s Campagnolo, or 13s Campagnolo chains |
12s Chains:
Not compatible with all other chains |
| Details | |||
Details |
 Tooth shape is nearly identical to Drop-Stop A, but has narrower teeth. Valley between teeth is deeper to accommodate larger rollers on Flattop chain. Outside faces of narrow and wide teeth touch chain to guide alignment. Drop-Stop B Chainrings |
 The original Drop-Stop tooth profile. The wide teeth are wider than Drop-Stop B. Outside faces of narrow and wide teeth guide chain alignment. Drop-Stop A Chainrings |
 Narrower teeth than Drop-Stop A. Wide teeth use Symmetric Trapezoidal (ST) profile to match extended inner edge on chain to create alignment (outside faces of wide teeth do not touch). Interaction of narrow teeth and chain are similar to Drop-Stop A and B. Drop-Stop ST Chainrings |
*We are in the process of migrating most Drop-Stop A to Drop-Stop B to make them compatible with SRAM Road and Transmission (T-type) Flattop chains.
