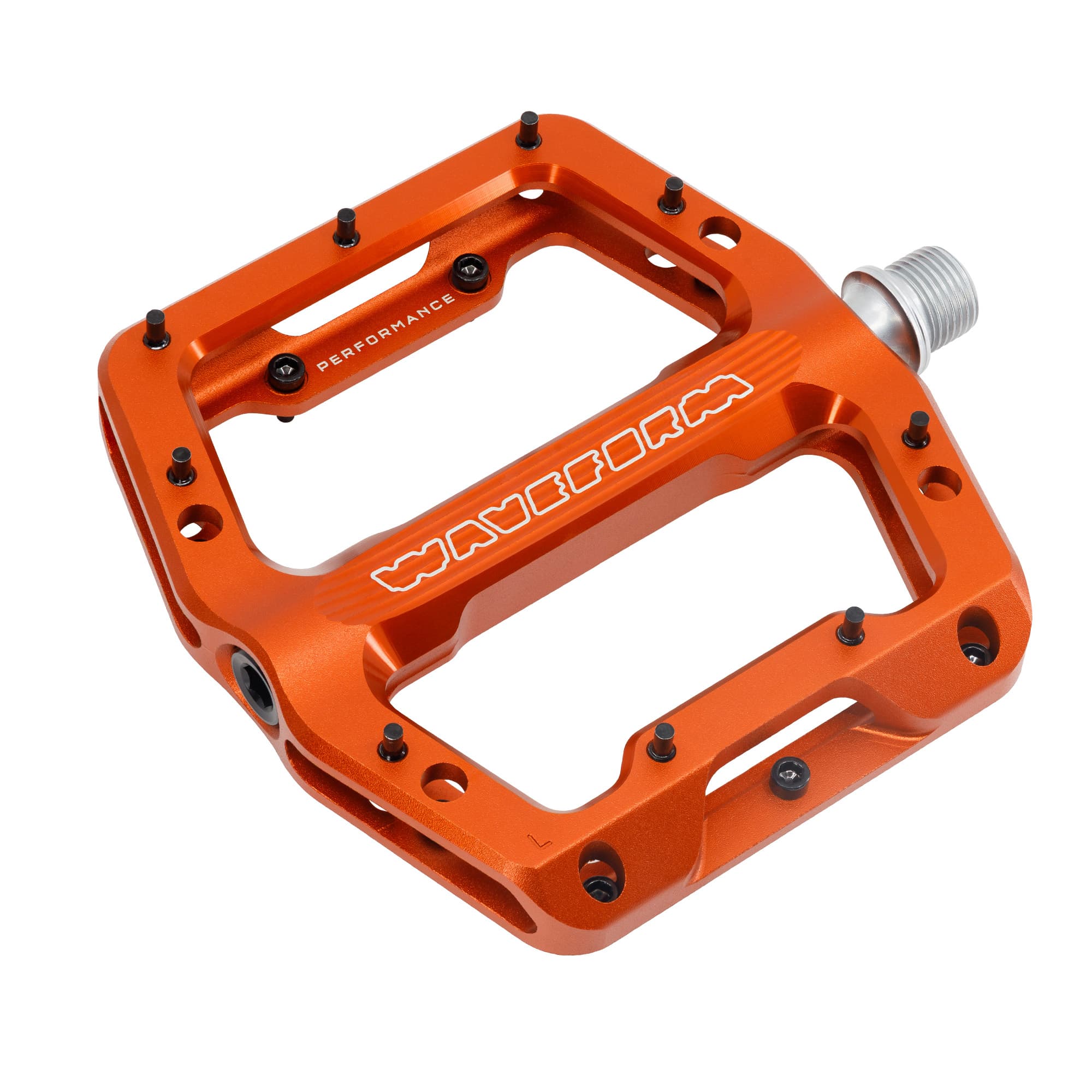

Waveform Performance Aluminum Pedals
Waveform Performance Aluminum Pedals
Wolf Tooth Waveform Performance Aluminum Pedals are designed for all-mountain riding. Trail to downhill, laps at the bike park, and everything in-between. They are engineered to lock in your foot with a shape that matches your shoe, rear-loading pins for grip, and a dual-concave profile to further cradle your feet.

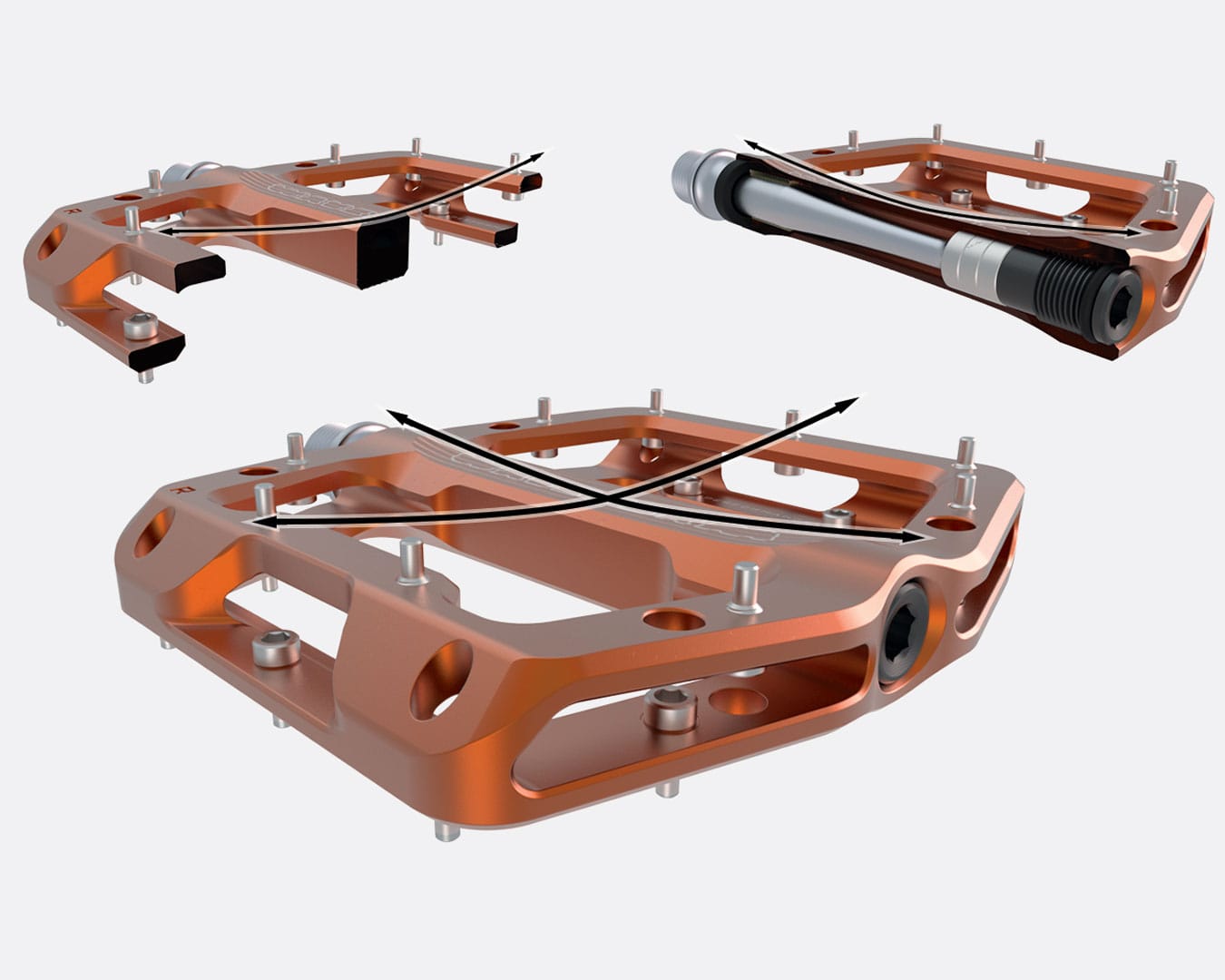

Dual-concave profile

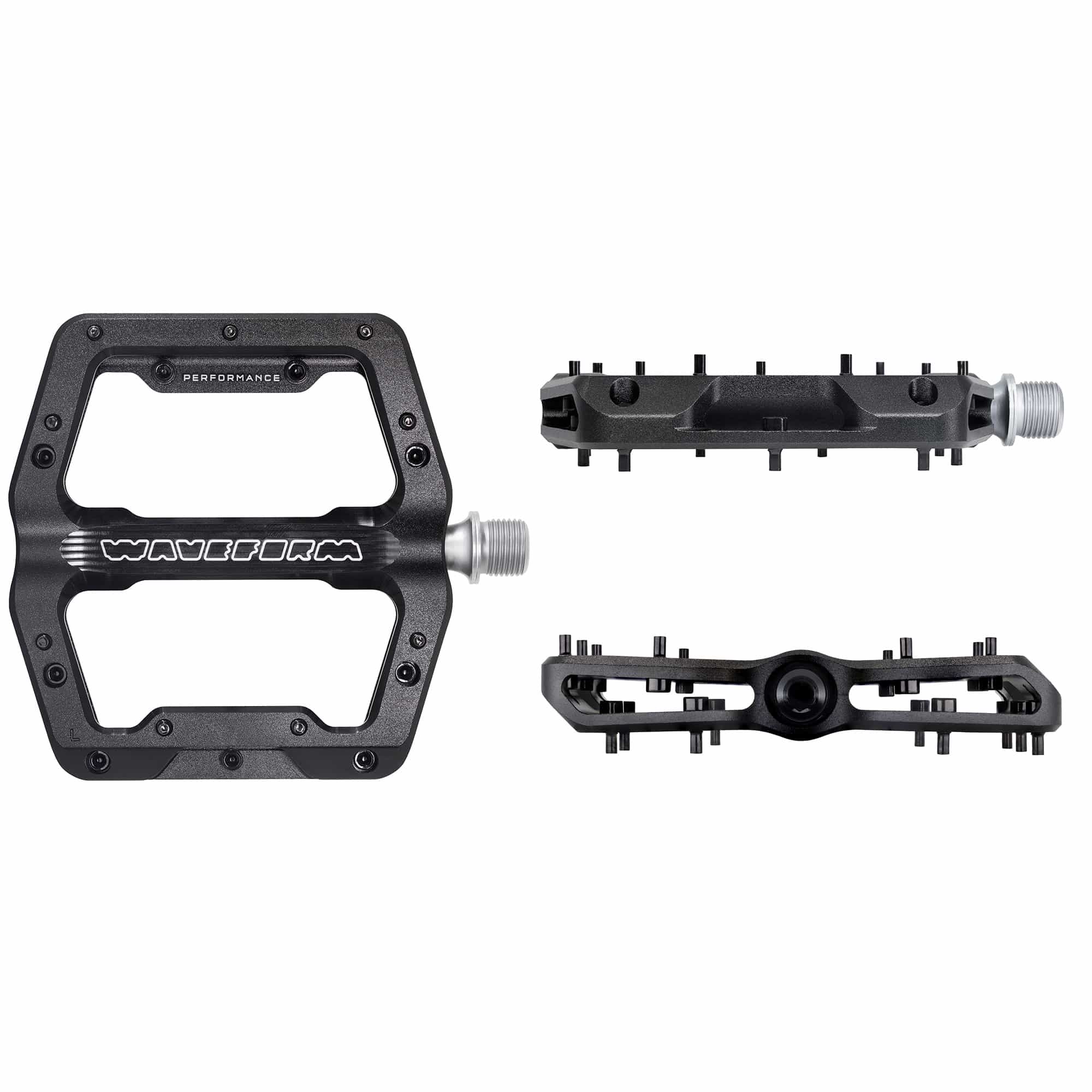

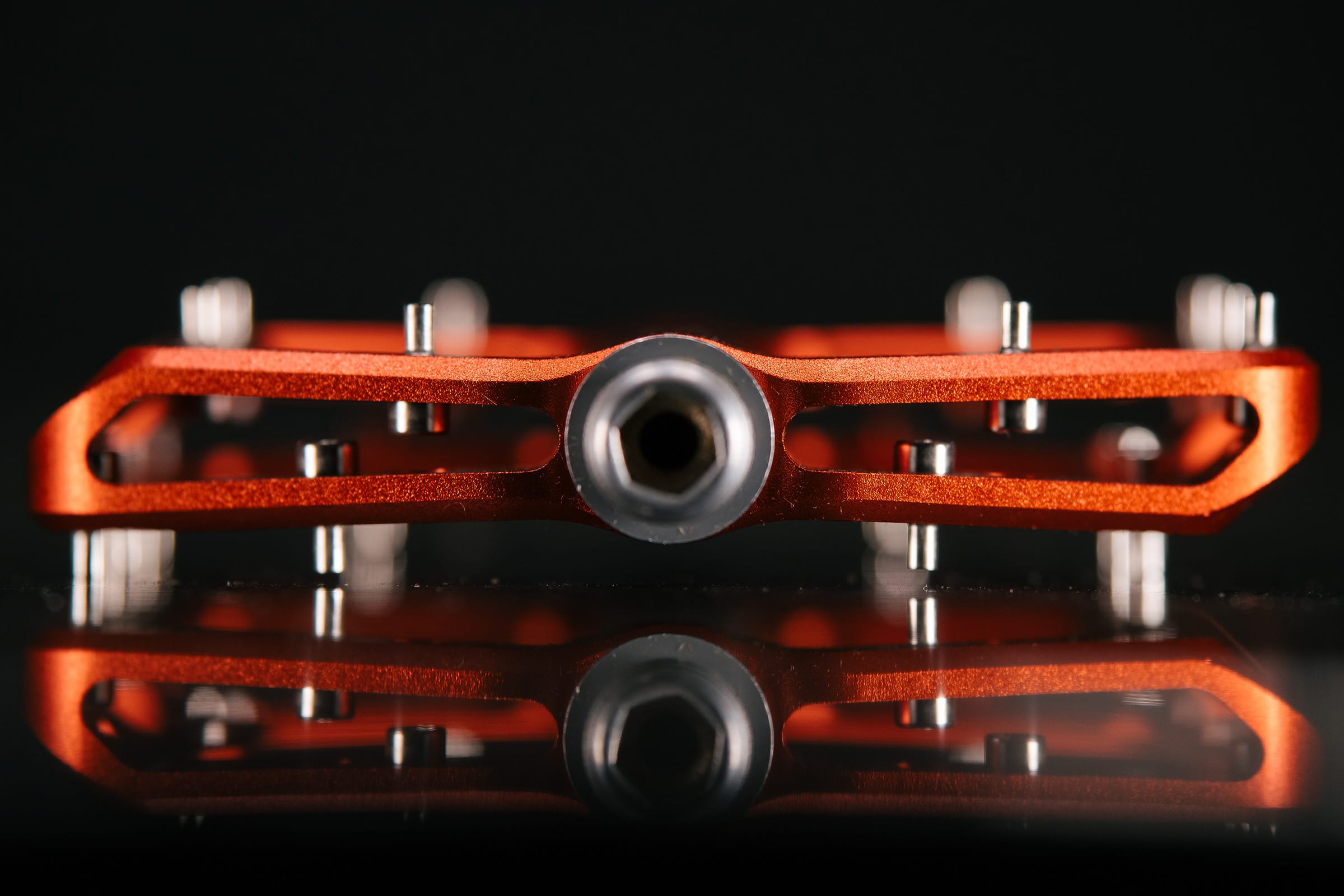

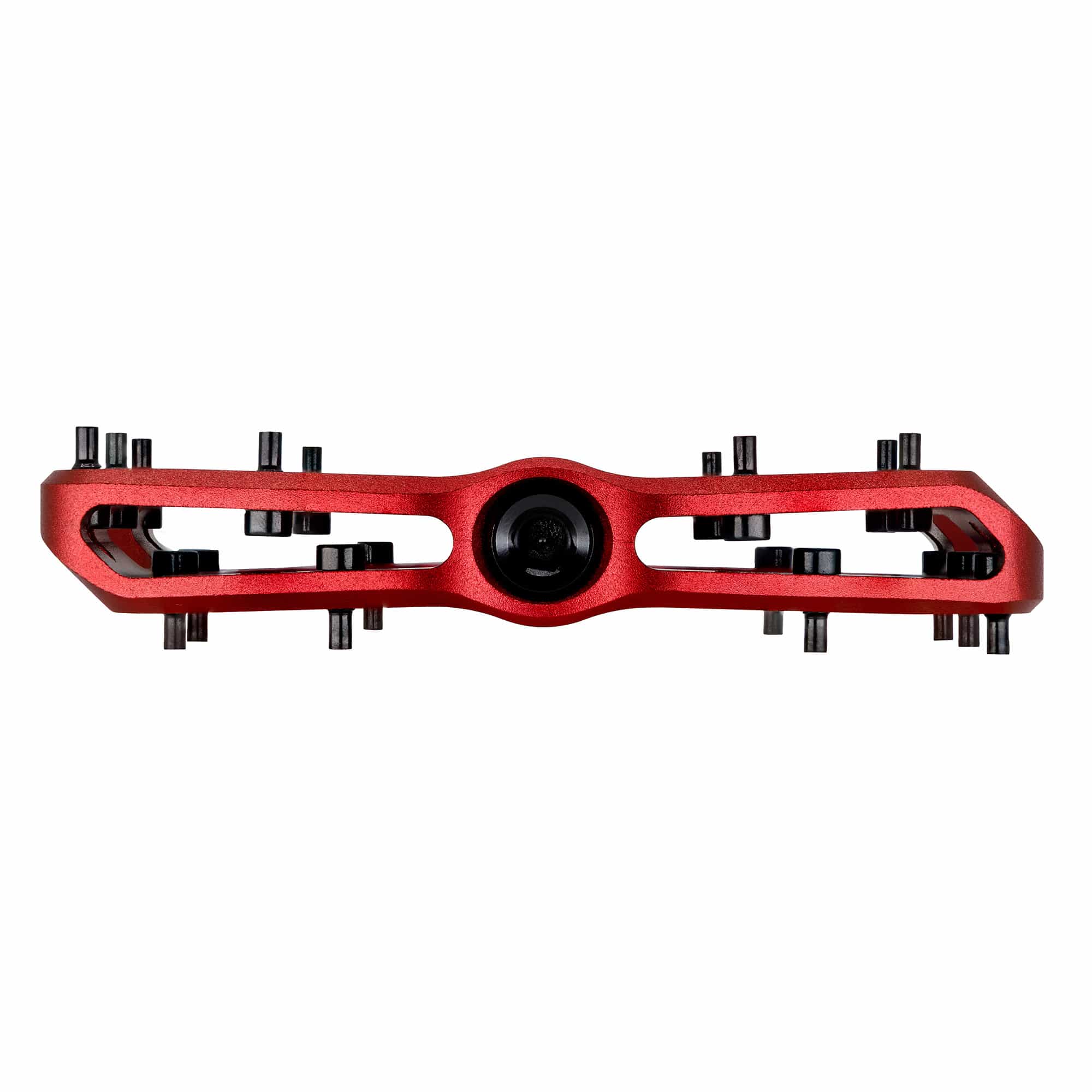

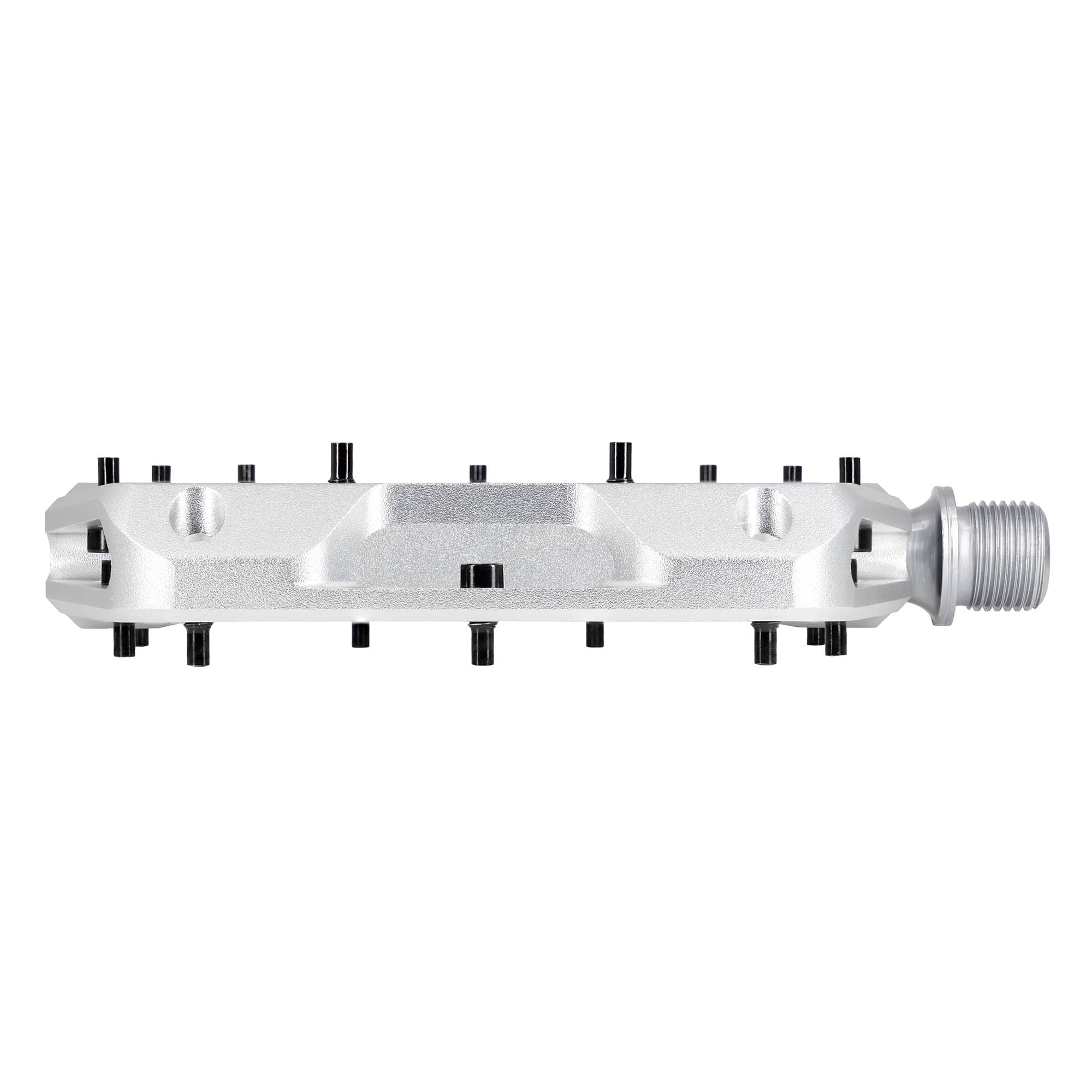

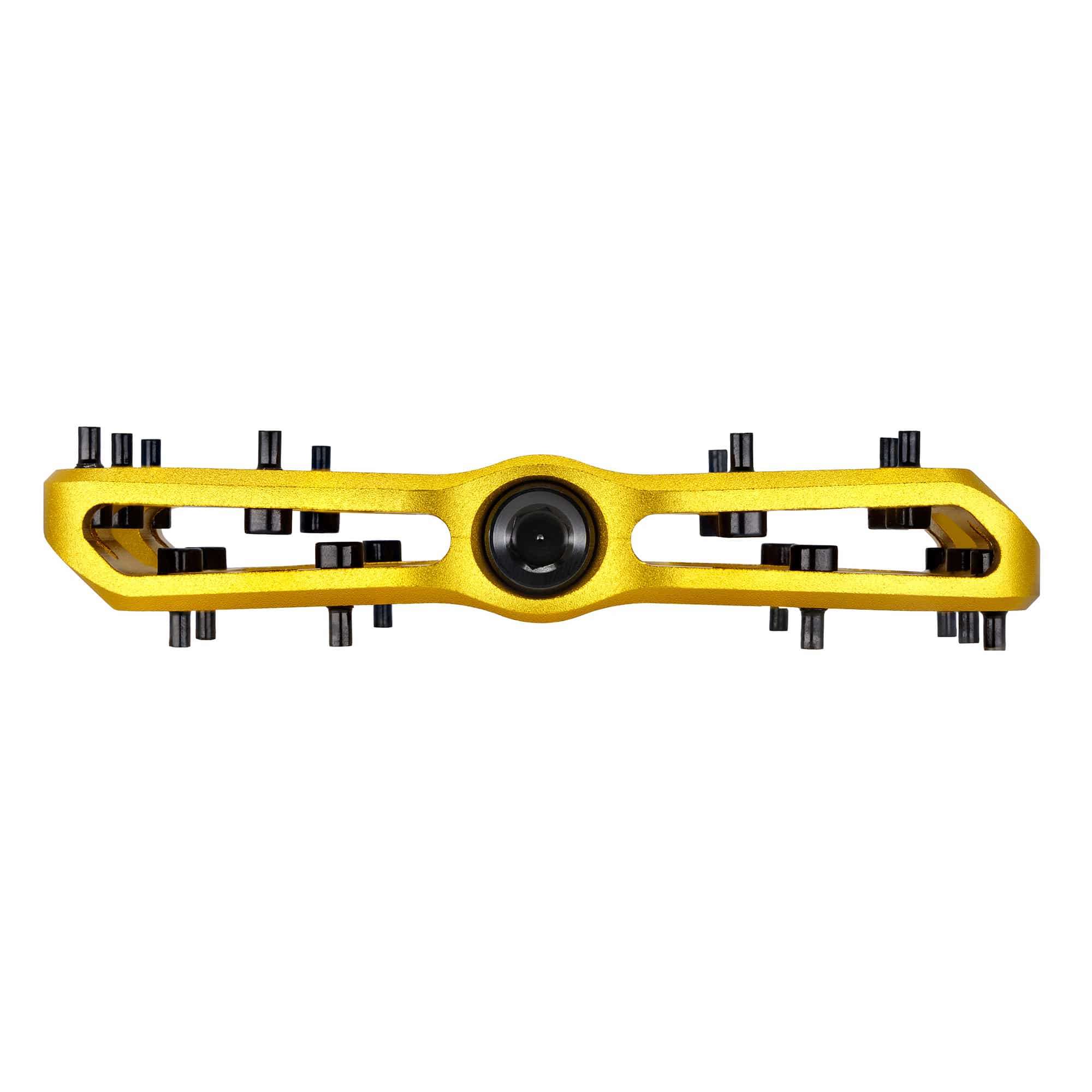

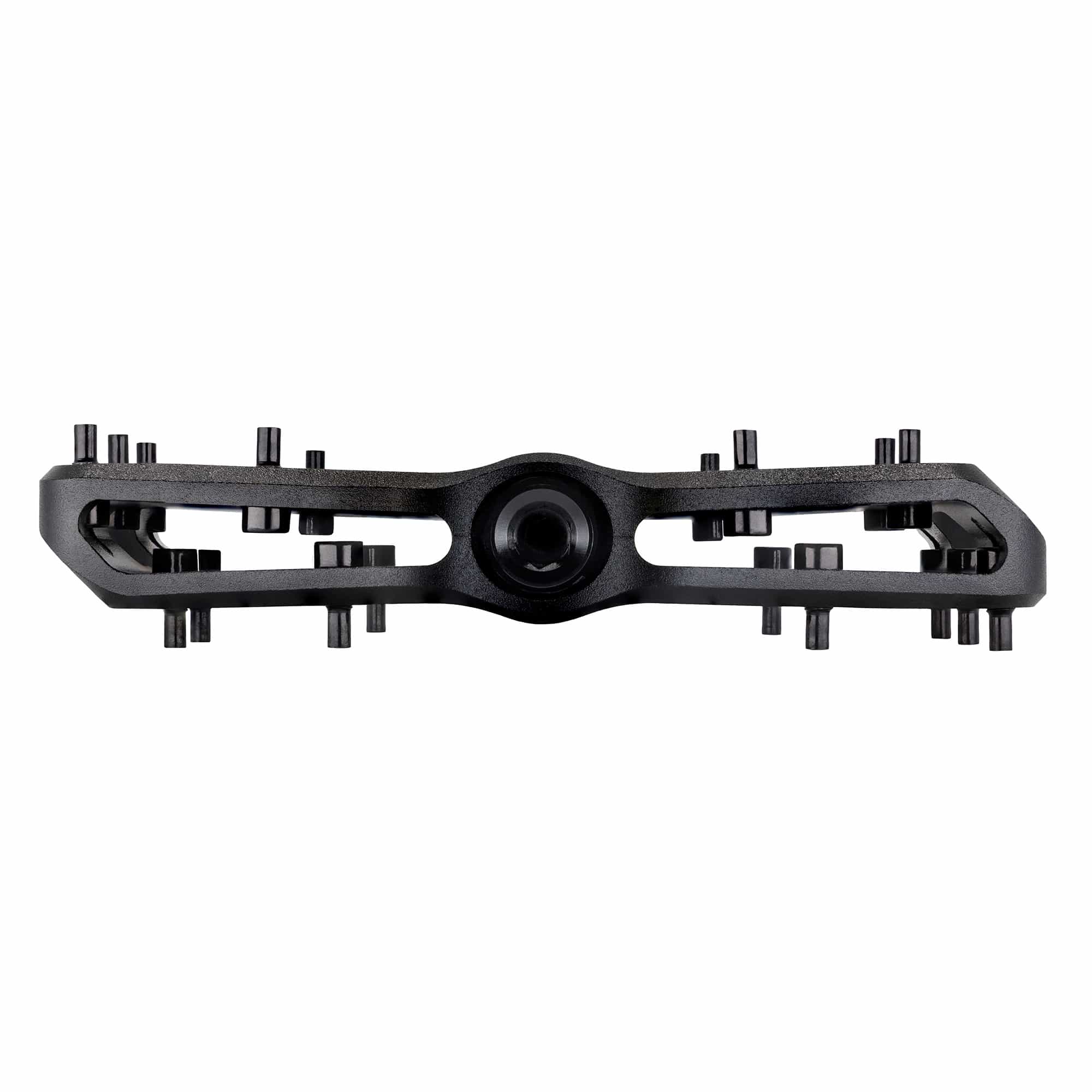

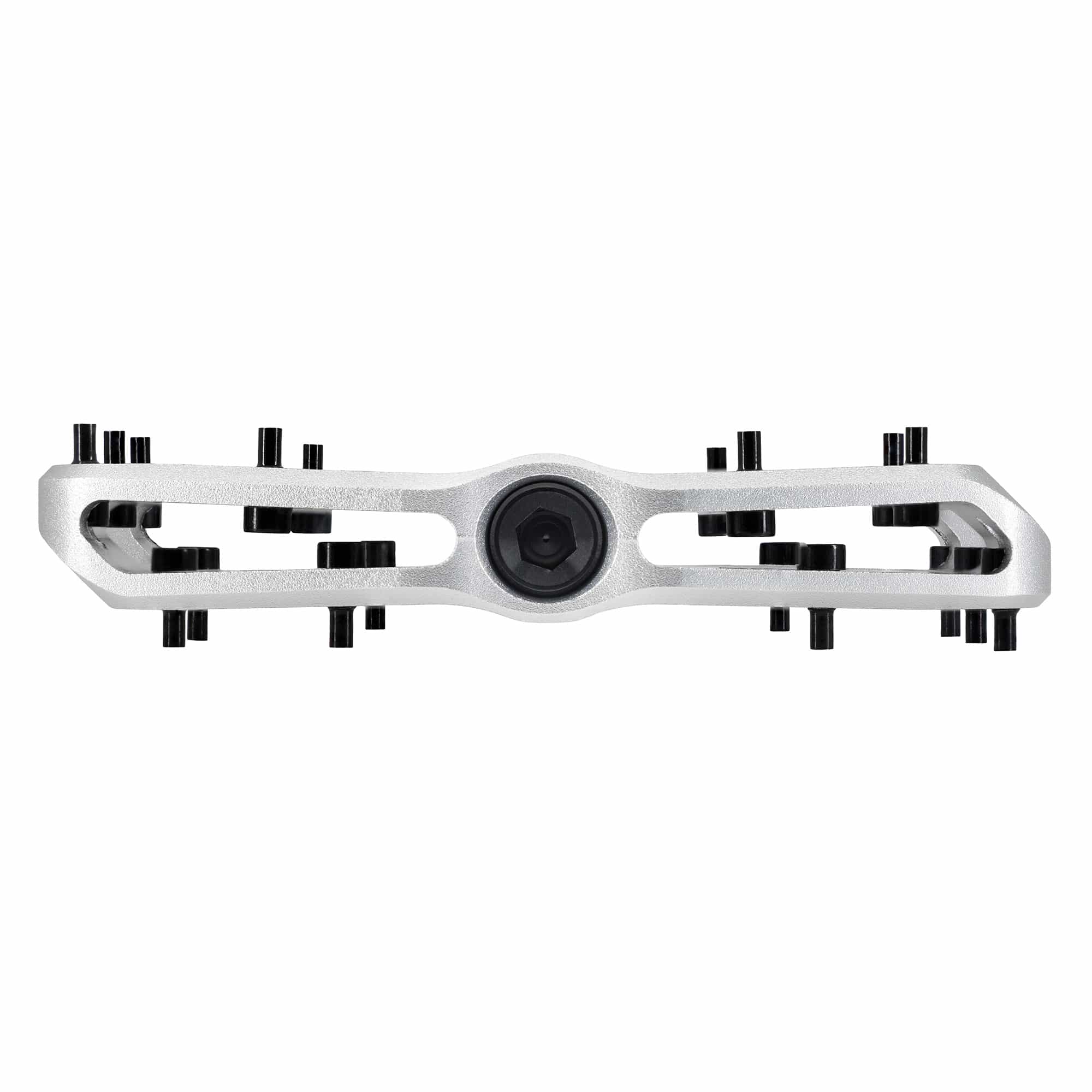

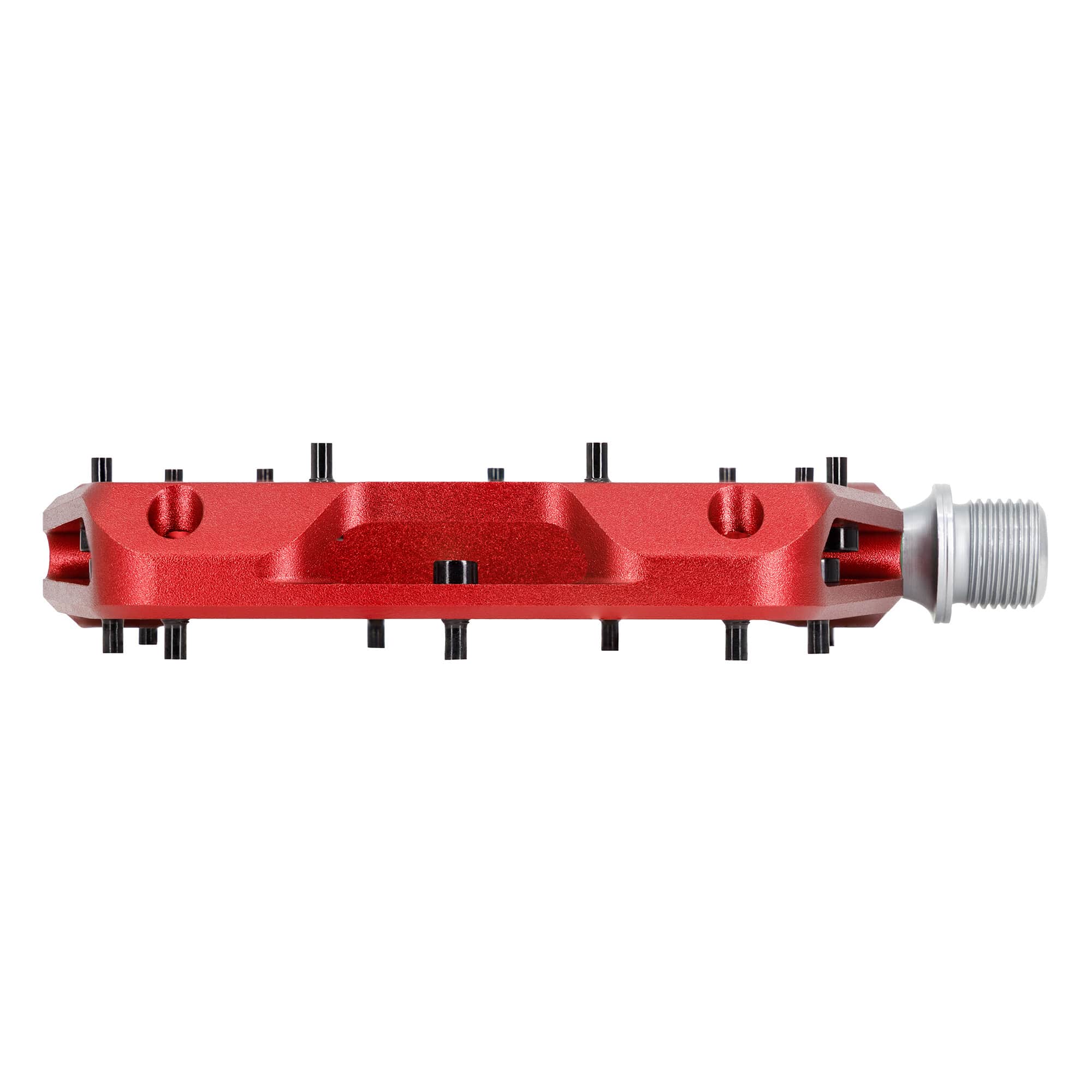

Waveform Performance pedals are 16mm thick on the perimeter and just 13.5mm thick in the center. This profile cradles your foot, front to back and side to side with 1.25mm of concavity.
Extra grip
Each side of the pedal has 9 rear-loading pins for loads of traction. An additional four pins ship with each set of pedals and they are available as replacement parts.
Shorter pins are available on the replacement parts page to fine tune concavity and suit rider preferences.
Toughness and Control
Red Bull Rampage approved. Waveform pedals are built for the biggest lines, and are the choice of freeride legends Cami Nogueira and Georgia Astle.
Reliable Performance
Three low-friction, fully sealed cartridge bearings and one igus bushing with a custom radial seal protect internal components against trail debris for riding in all conditions.
Shaped with purpose

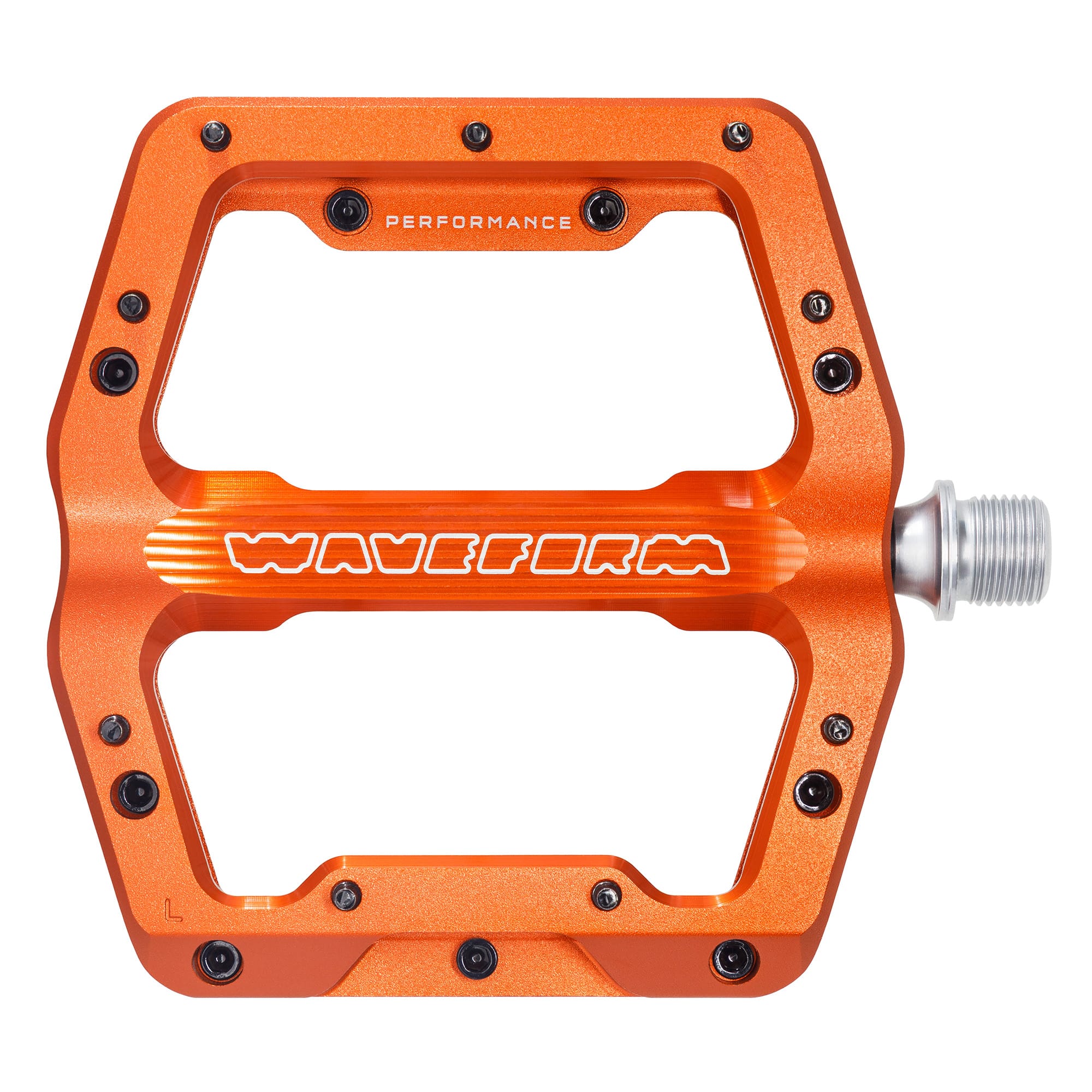

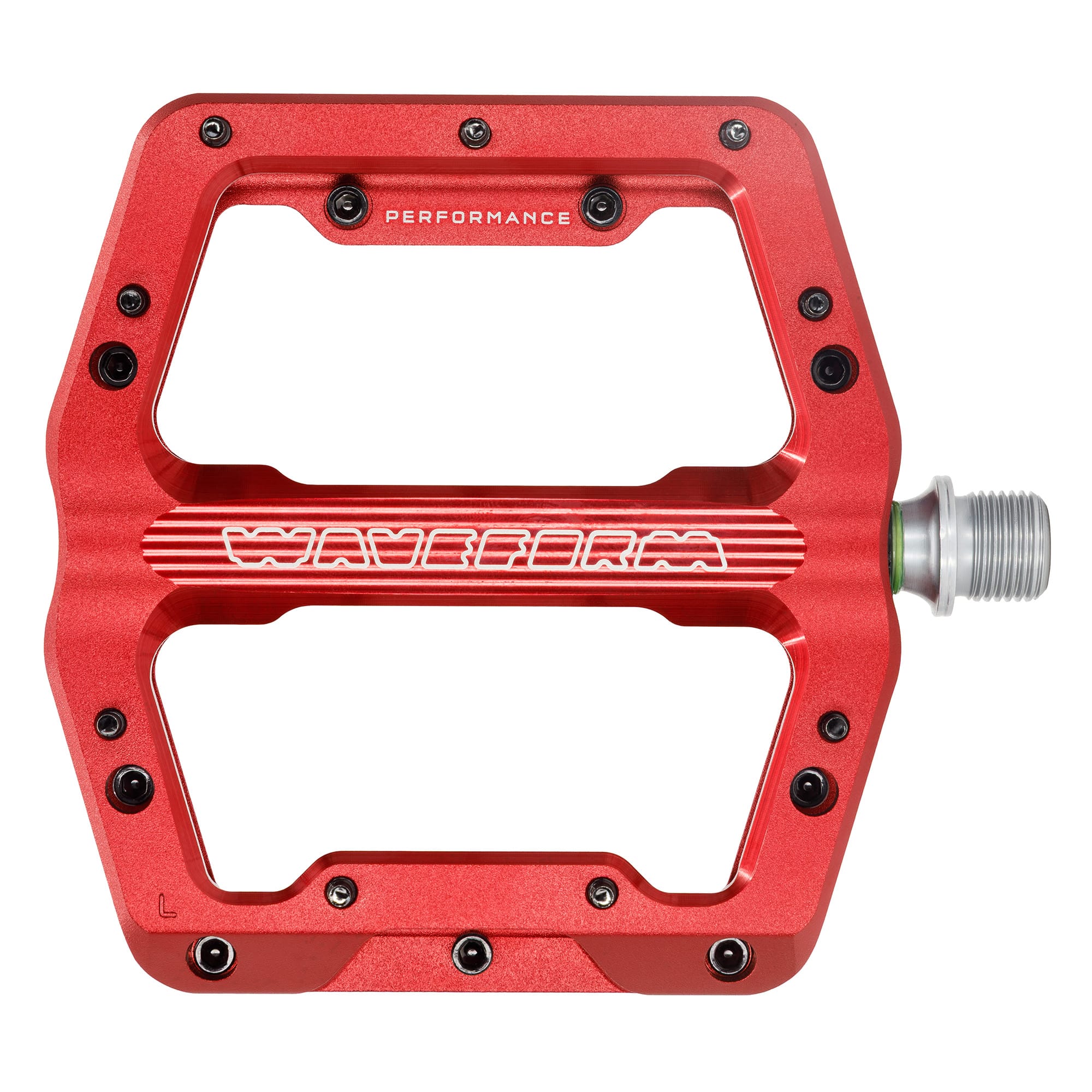

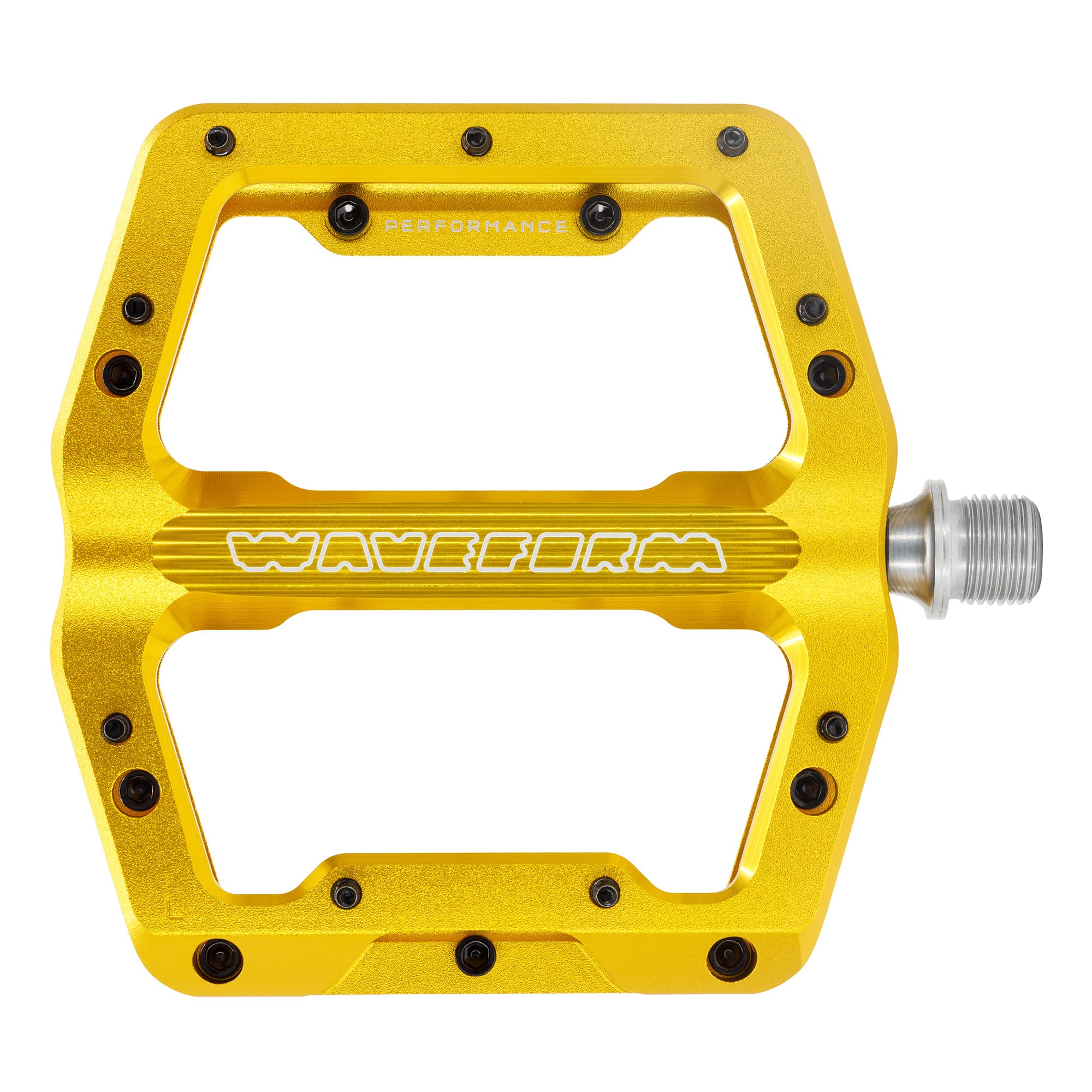

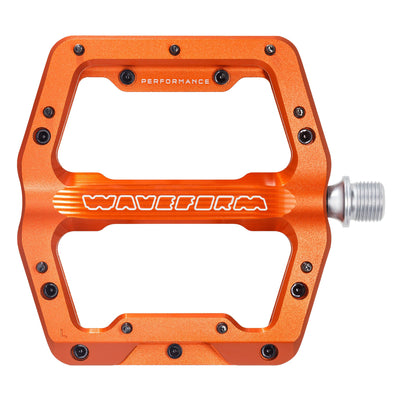

The shape of Waveform Aluminum Pedals matches the footprint of your shoe. This gives you maximum control and keeps you planted when things start to get wild.

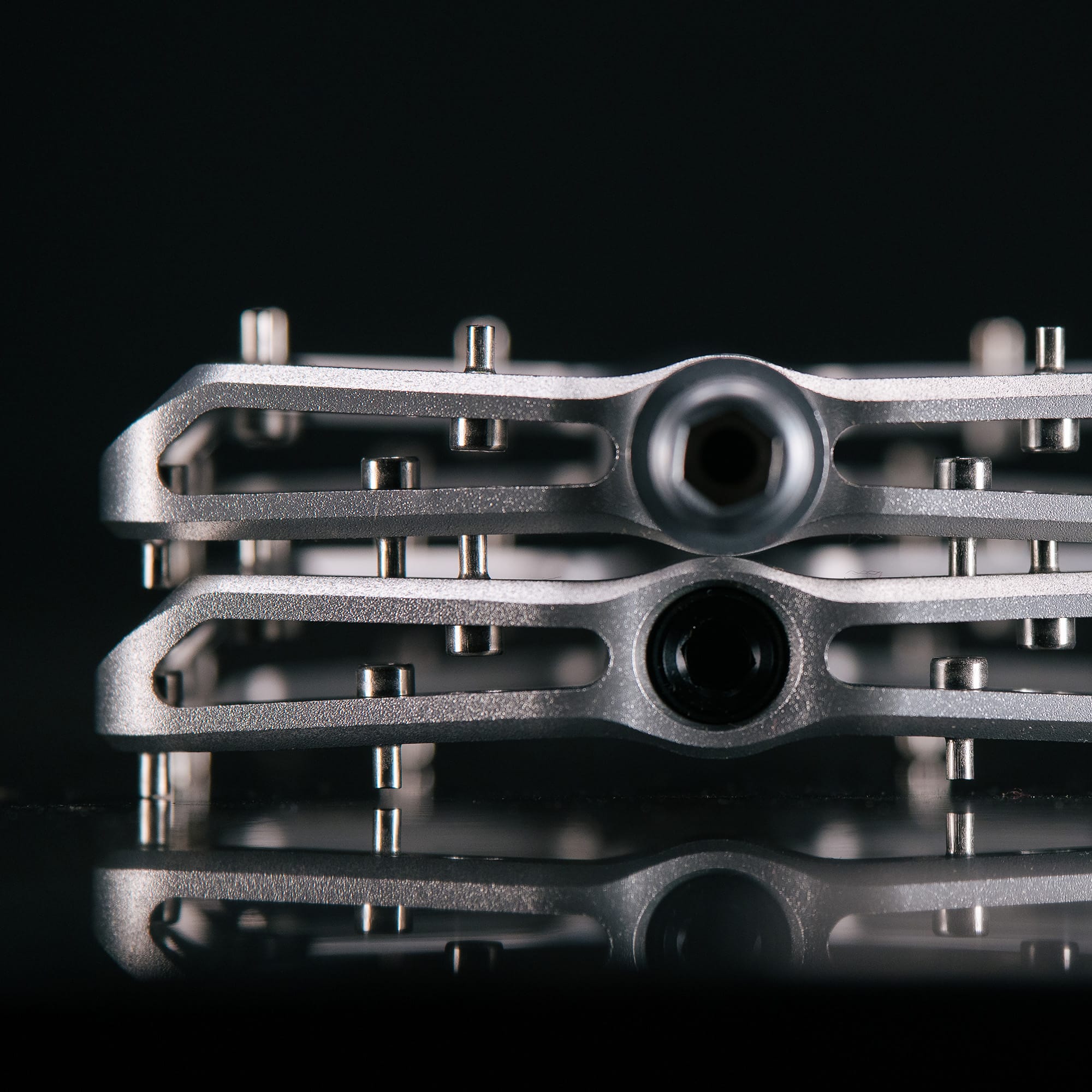

Tapered Edges

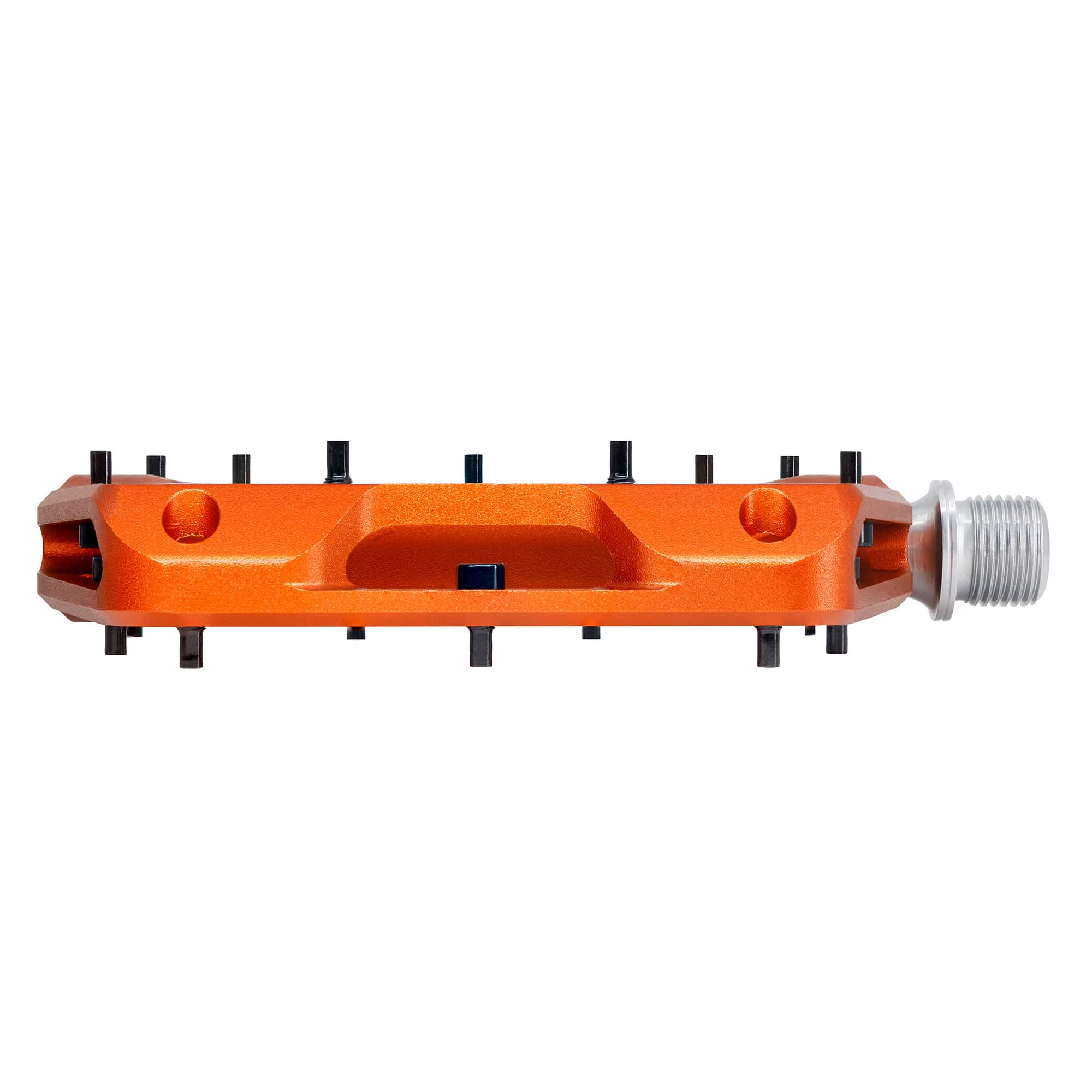

Large, tapered leading edge to deflect pedal strikes on rocky, rooty terrain.

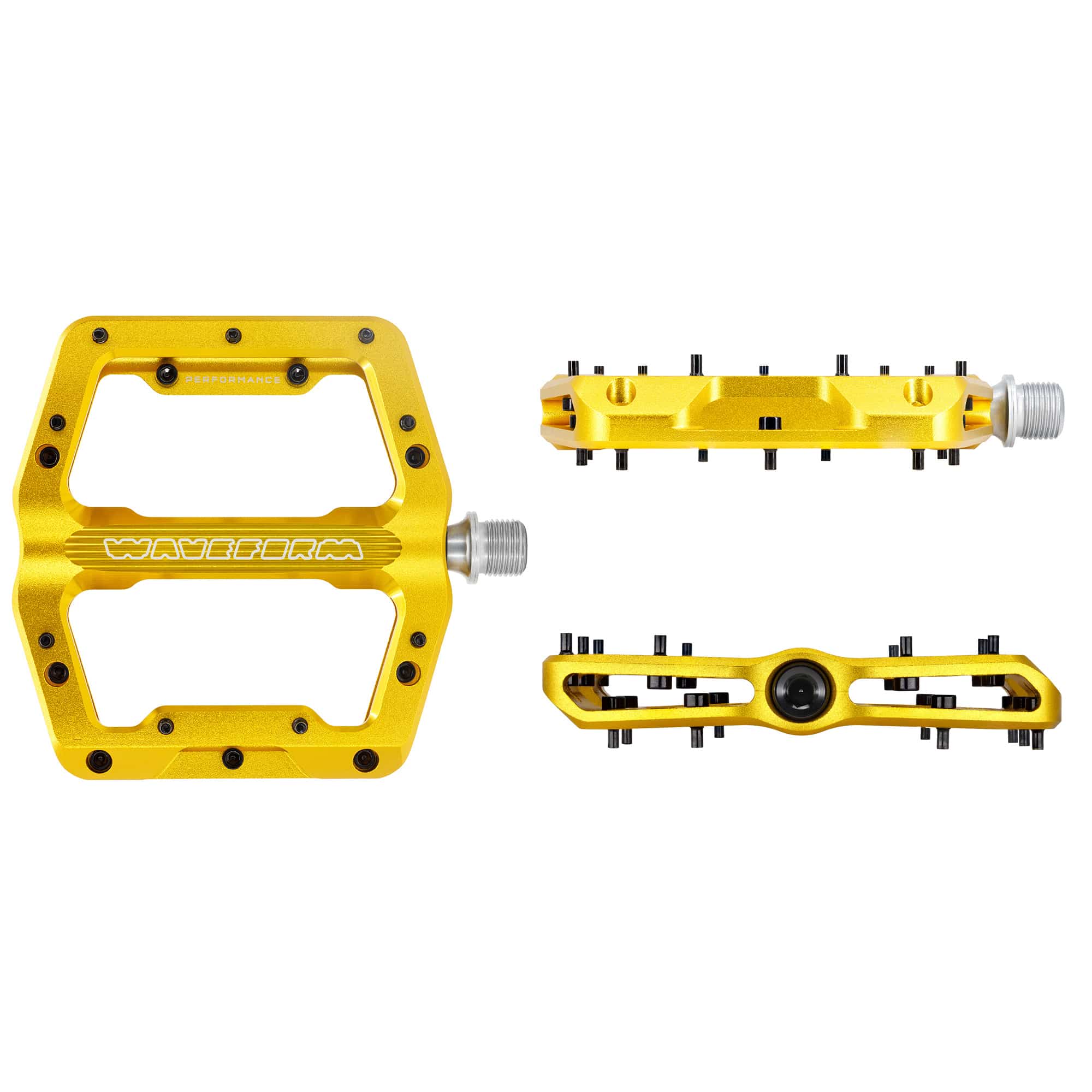

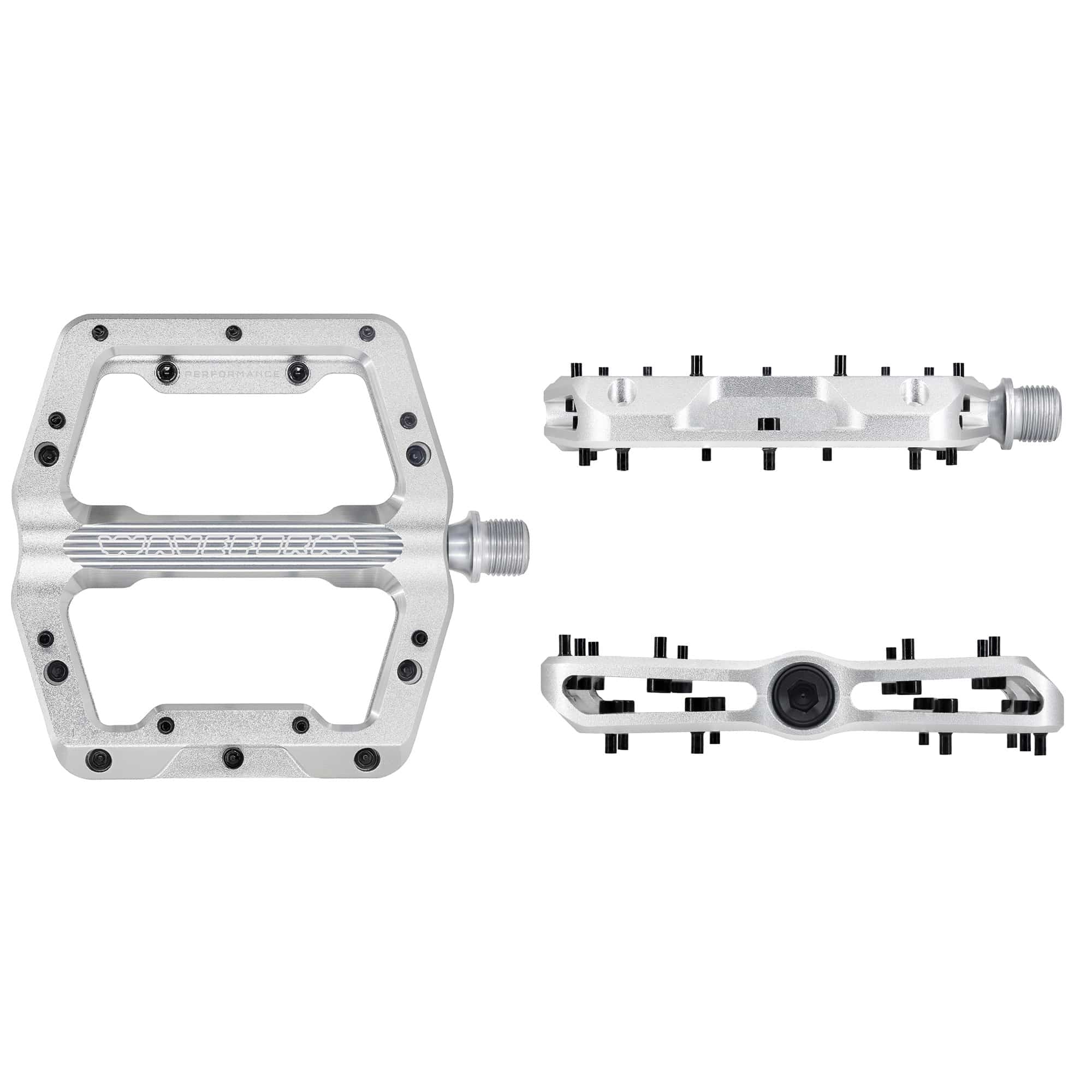

Available in five core Color Shop colors: Gold, Red, Raw Silver, Black, and Orange.
Designed in the USA
Waveform Performance Aluminum Pedals are designed at Wolf Tooth HQ with top level features and performance at an unbeatable price.
Exceeds all EN/ISO Standards
Safety is our priority. Waveform Performance Aluminum Pedals have undergone strenuous static and fatigue stress tests that exceed EN/ISO safety standards.
Two-Year Warranty
Wolf Tooth Waveform Performance Aluminum Pedals are warrantied for defects in material or workmanship for a period of two years from the date of purchase.
![]Waveform pedal parts from Wolf Tooth, machined in Minnesota, USA, spread across a workbench.](http://www.wolftoothcomponents.com/cdn/shop/files/WolfTooth_ReplacementParts_Waveform-225-2.jpg?v=1738460270&width=2048)
We believe in your right to be able to fix your components. Crashes happen, parts get misplaced, things go bump in the night. All individual parts are available as replacement parts.
100% USER SERVICEABLE
Service for Waveform Performance Aluminum Pedals is simple and can be done at home.
REPLACEMENT PARTS AVAILABLE
Each of the components of Waveform Performance Aluminum Pedals can be purchased separately, from the body to the bearings.

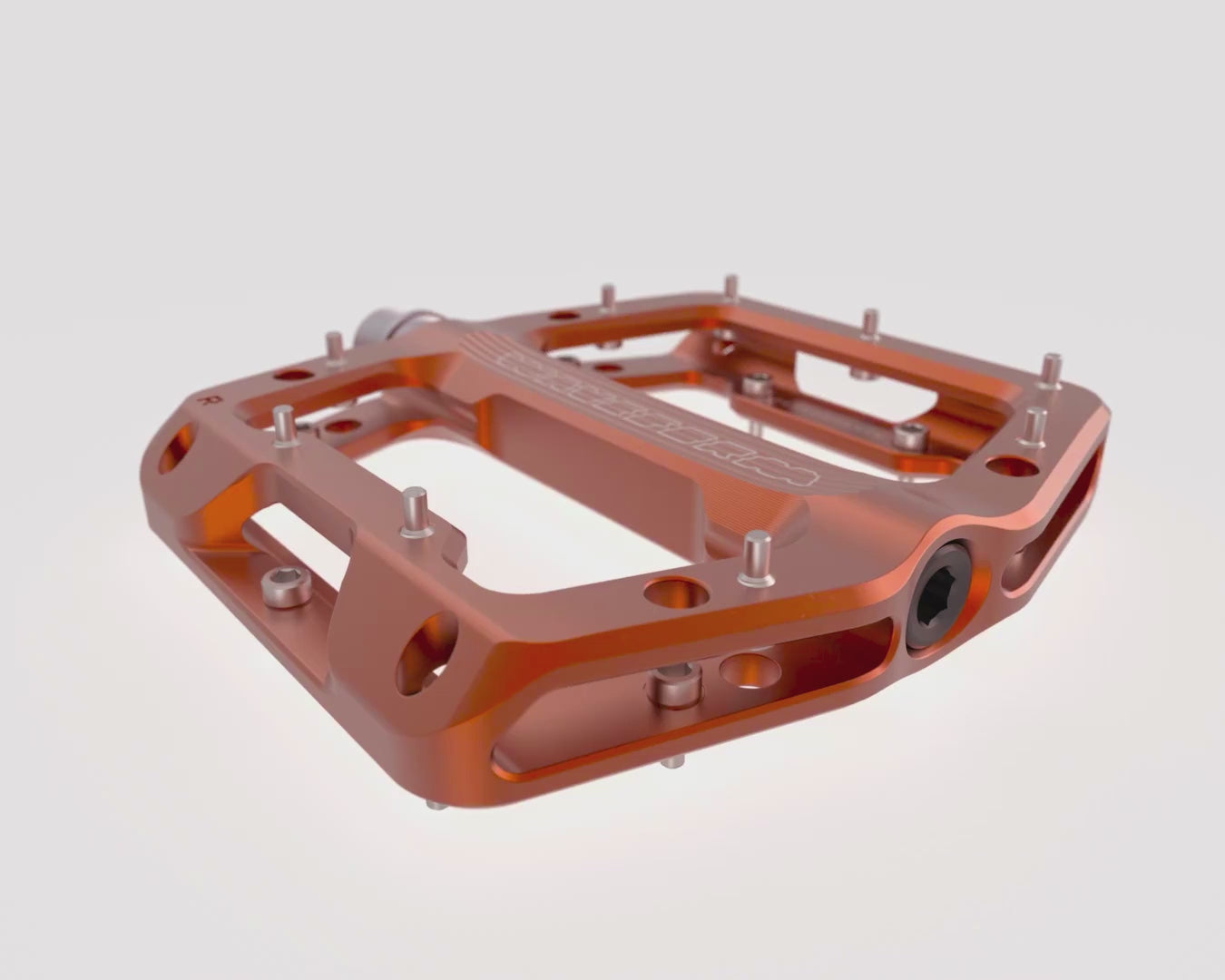

TUTORIAL VIDEOS
A video guide for service is available so you can disassemble, service, and reassemble your Waveform Performance Aluminum Pedals.
Choose Your Pedal
Weight
384 g
Weight
384 g
Size
112 mm x 106 mm
Size
L: 112 mm x 106 mm / S: 106 mm x 99 mm
Pins
9
Pins
11
Thickness
16 mm / 13.5 mm
Thickness
14mm / 12.5 mm
Concavity
1.25 mm
Concavity
.75 mm
Body Design
Extruded and Post-Machined Aluminum
Axle and HardwareBody Design
Fully CNC Machined 6061-T6 Aluminum
Axle and Hardware
Satin Nickel Plated / Hard Chrome Plated Chromoly Steel
Axle and Hardware
Stainess Steel
Warranty
2 Years
Warranty
5 Years

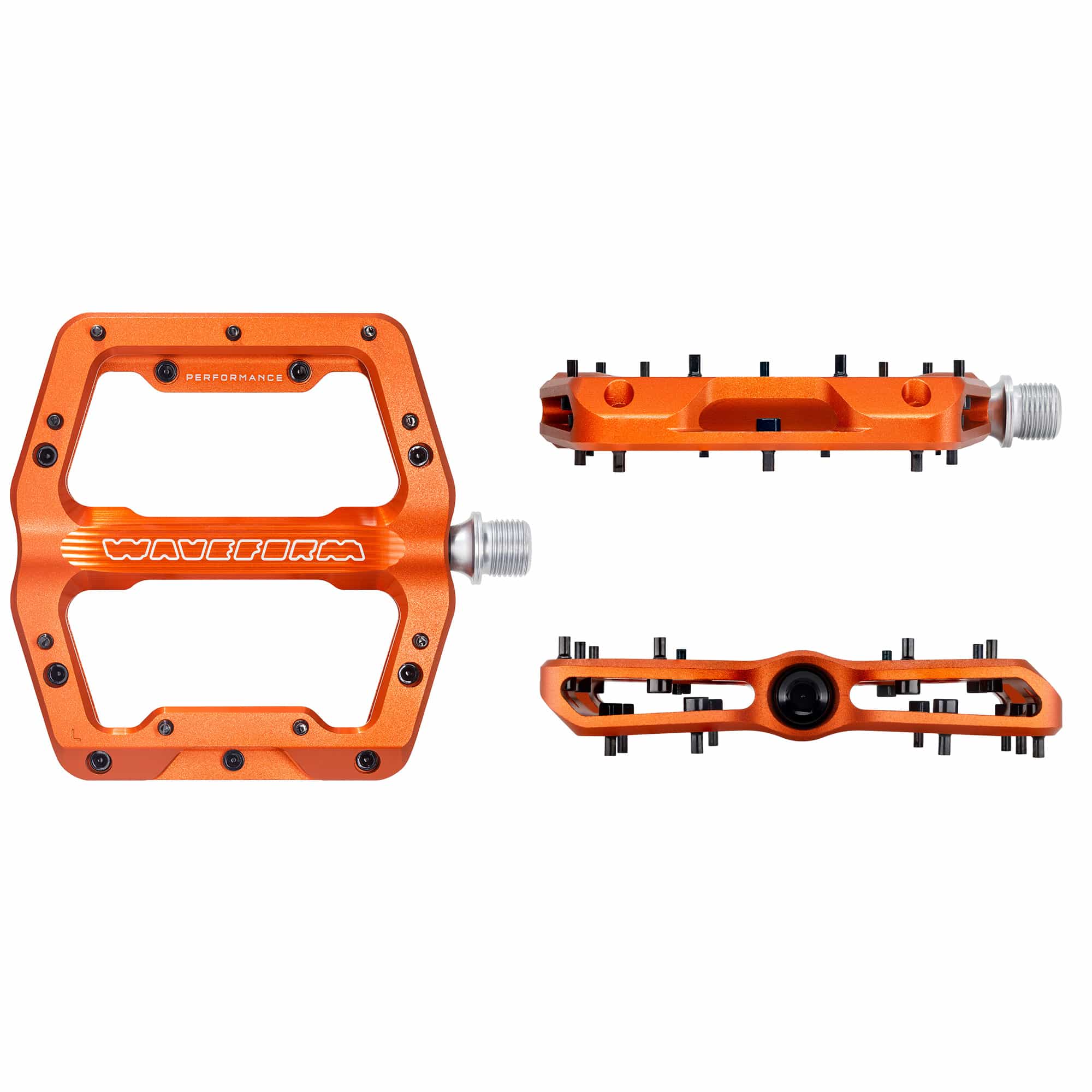

Wolf Tooth Waveform Performance Aluminum Pedals are designed for all-mountain riding. Trail to downhill, laps in the bike park, and everything in-between. The pedals provide a supportive platform, shaped to match the footprint of your shoe. They have a slim, dual-concave profile that is 16mm thick at the perimeter and just 13.5mm thick in the center, cradling your foot for optimal pedal feel. Each side of the pedal has 9 steel rear-loading pins for loads of traction. The design also features a large, tapered leading edge to deflect pedal strikes on rough terrain. A custom radial seal protects three fully sealed cartridge bearings for low-friction riding in all conditions.
- Large platform measures 112mm x 106mm
- Three high-precision, low-friction sealed bearings designed specifically for this pedal, with one inboard igus bushing
- Custom radial seal to protect internal hardware from water, dirt, and trail debris
- Nine steel, rear-loading 4.5mm pins per side
- Dual Concavity secures your feet firmly in place on the pedals, both front-to-back and side-to-side
- Tapered leading edge deflects pedal strikes
- Available in five colors
Recommended
- Apply WT-G Precision Bike Grease to the pedal threads before installing pedals on crankarms.
- Pins can be removed for desired grip by using a 3mm hex tool.
- Includes four extra grip pins. More pins are available on the replacement parts page. See installation instructions for recommendations on installing pins.
Compatibility
- Fits all cranks with 9/16-20 tpi right- and left-hand threads – some kid’s bikes and vintage bikes may have smaller incompatible threads.
Related Products
Waveform Pedals Replacement Parts
Crankskins Crankarm Protectors
Tech Specs
Waveform Pedal Replacement Parts
Waveform Pedals Factory Service
Weight: 384 g
Size (length x width): Large: 122 mm x 106 mm
Pin Height: 4.5mm
Material: Platform: Extruded and Post-Machined Aluminum; Axle: Satin Nickel-Plated Chromoly Steel; Pins: Steel
